6-23 6 How to replace consumable parts T ransfer direction from right to left Mark tube name CV ST1 CV ST3 CV ST4 CV ST5 CLAMP1 CLAMP3 CV ST6 CV ST8 CV ST9 CV ST10 CLAMP2 CLAMP4 Description Exit stopper 1 Main stopper 1 …
6-22
6
How to replace consumable parts
n
YSM20WR Dual-lane type
The valve assemblies locate on the left and right of conveyor (entrance conveyor/exit conveyor) for dual-lane type.
CV ST2
Lane 2
Lane 1
Transfer direction from right to left
Sub stopper 1-1
Sub stopper 1-2
Clamp 1Clamp 3
Main stopper 1
Exit stopper 1
Mark tube name
CV ST1
CV ST2
CV ST3
CV ST5
CLAMP1
CLAMP3
CV ST6
CV ST7
CV ST8
CV ST10
CLAMP2
CLAMP4
Description
Sub stopper 1-1
Sub stopper 1-2
Main stopper 1
Exit stopper 1
Lane 1 Clamp board (Small)
Lane 1 Clamp board (Large)
Sub stopper 2-1
Sub stopper 2-2
Main stopper 2
Exit stopper 2
Lane 2 Clamp board (Small)
Lane 2 Clamp board (Large)
Remarks
Used for 510 mm length type (option)
Used for 510 mm length type (option)
Used for 510 mm length type (option)
Used for 510 mm length type (option)
* Quantity of valve varies depending
on machine type.
Mark tube
Valve assembly
Valve assembly
Valve position
Right
Right
Right
Right
Right
Right
Left
Left
Left
Left
Left
Left
Sub stopper 2-1
Sub stopper 2-2
Clamp 2Clamp 4
Main stopper 2
Exit stopper 2
Position of conveyor valve
YSM20WR Dual-lane type 1
53637-KMK-00
6-23
6
How to replace consumable parts

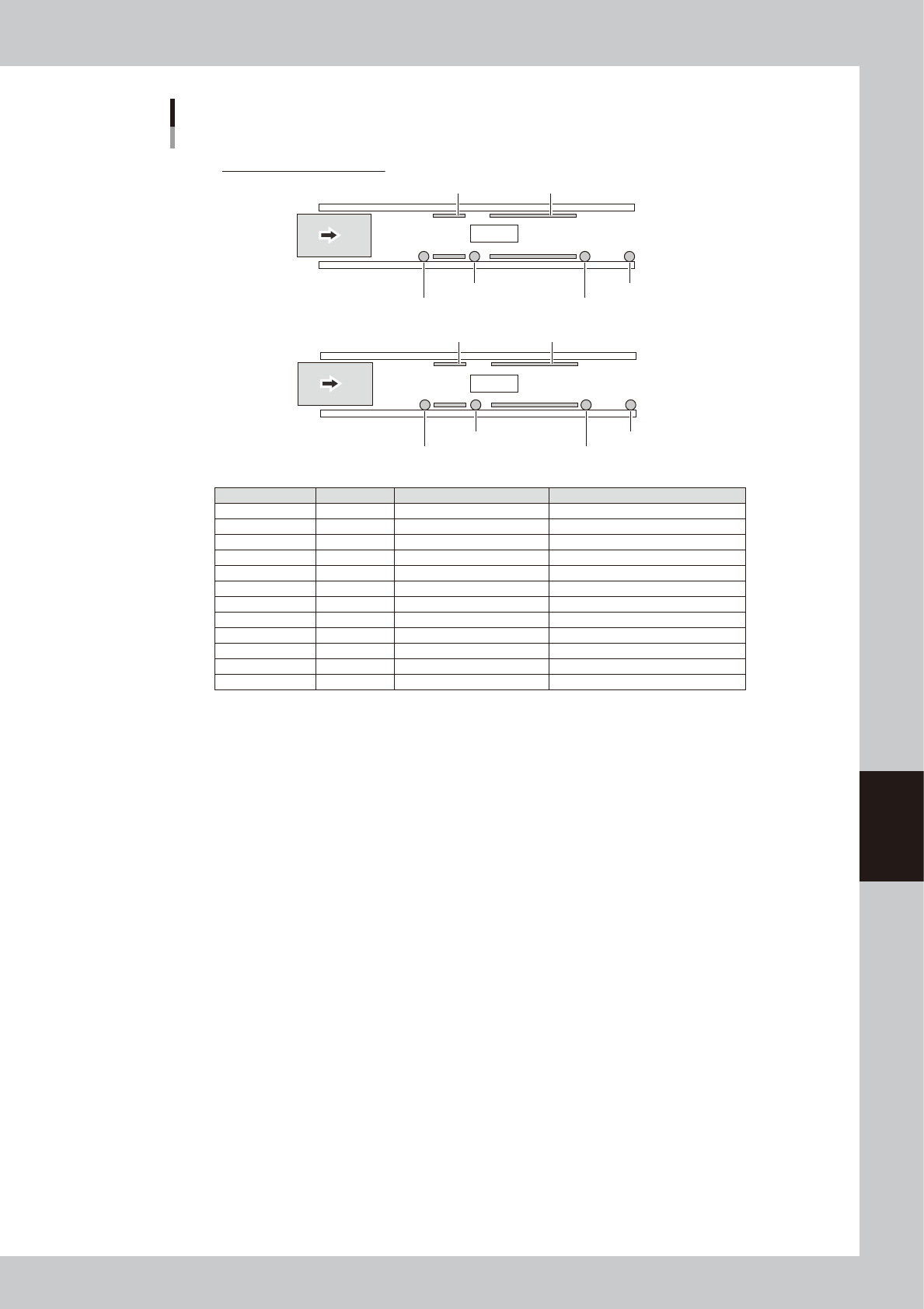

Transfer direction from right to left
Mark tube name
CV ST1
CV ST3
CV ST4
CV ST5
CLAMP1
CLAMP3
CV ST6
CV ST8
CV ST9
CV ST10
CLAMP2
CLAMP4
Description
Exit stopper 1
Main stopper 1
Sub stopper 1-2
Sub stopper 1-1
Lane 1 Clamp board (Large)
Lane 1 Clamp board (Small)
Exit stopper 2
Main stopper 2
Sub stopper 2-2
Sub stopper 2-1
Lane 2 Clamp board (Large)
Lane 2 Clamp board (Small)
Remarks
Used for 510 mm length type (option)
Used for 510 mm length type (option)
Used for 510 mm length type (option)
Used for 510 mm length type (option)
Valve position
Right
Right
Right
Right
Right
Right
Left
Left
Left
Left
Left
Left
Sub stopper 1-2
Sub stopper 1-1
Clamp 1Clamp 3
Main stopper 1
Exit stopper 1
Sub stopper 2-2
Sub stopper 2-1
Clamp 2Clamp 4
Main stopper 2
Exit stopper 2
Lane 2
Lane 1
Position of conveyor valve
YSM20WR Dual-lane type 2
53638-KMK-00
6-24
6
How to replace consumable parts
n

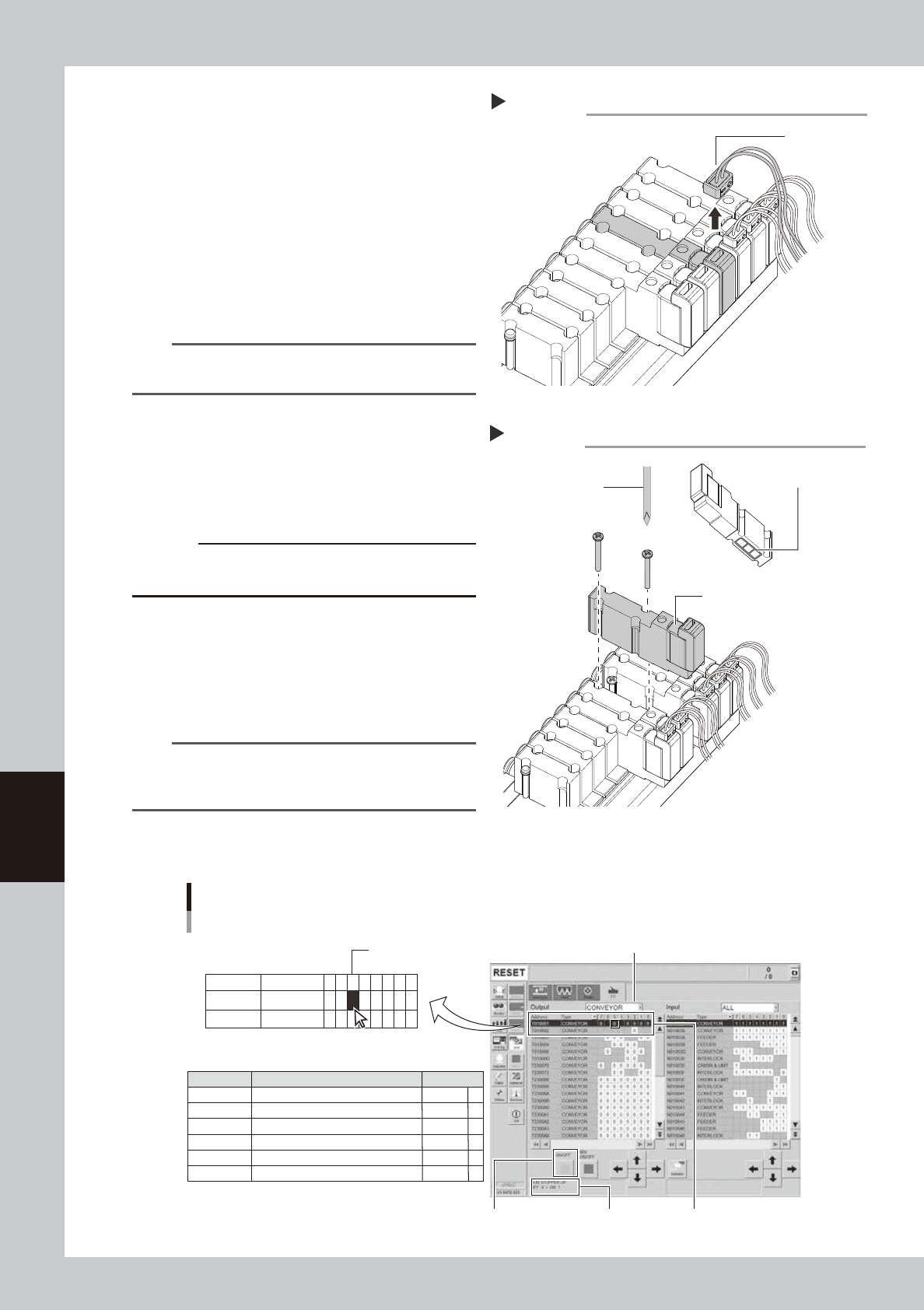

Example: Single-lane type
1
Turn off the air supply and power
off the machine.
1. Exit the software and power off the
machine.
2. Turn the “Air supply/exhaust” switch
(valve) clockwise (Exh) to turn off the air
supply.
2
Disconnect the connector.
Disconnect the connector of relevant valve.
n
NOTE
See the mark tube for the connector wiring of relevant
valve.
3
Replace the valve.
1. Remove bolts (2 each) mounting relevant
valve with Phillips precision screwdriver.
2. Attach a new valve.
3. Connect the connector.
c
CAUTION
Packing is on rear of valve. Make sure not to drop or
pinch it when replacing the valve with new one.
4
Check the valve operation.
1. Turn on the supply air and power on the
machine.
2. Check the replaced valve operation on
[Unit] - [I/O] screen.
n
NOTE
The figure below is an example of transfer direction
from right to left. Check the actual address and
operate the valve after replacing it.
Checking conveyor valve operation
Single-lane type (Example: Transfer direction from right to left)
Select “CONVEYOR” from “Output”.
Select address.
7
6
5
3
2
1
Mark tube
Address Description
Sub stopper 1: L 510 mm (OP)
Sub stopper 2
Main stopper
Exit stopper
Clamp board (Small): L 510 mm (OP)
Clamp board (Large)
T010001
T010001
T010001
T010002
T010002
T010002
[ON/OFF] button Address description
Example: T010001-5
Address
T010001
T010002
Type
CONVEYOR
CONVEYOR
7 6 5 4 3 2 1 0
0
0
00
0 00
00 00
CV ST1
CV ST2
CV ST3
CV ST5
CLAMP1
CLAMP3
54604-KMK-00
Disconnecting valve connector
Step 2
Connector
53633-KMK-00
Replacing valve
Step 3
Phillips precision
screwdriver
Valve
Packing is on rear of valve.
Make sure not to drop it.
53634-KMK-00
