3-59 3 Periodic maintenance items 5.3.3 YSM20WR Dual-lane: Cleaning and lubricating W-axis T he following describes the cleaning and lubrication procedure of W -axis of YSM20WR dual-lane type. 1 Mo ve the con ve yor forw…
3-58
3
Periodic maintenance items
e
8
Apply grease to rest of ball screw
and hexagon spline.
1. Press the emergency stop button and
then open the machine safety cover.
2. If the machine is carriage type, detach
carriage to access to the conveyor.
3. Apply the specified grease (NSL) with
finger uniformly over the hexagon spline
shaft surface and ball screw surface and
groove.
9
Spread the grease.
1. Close the machine safety cover and
cancel the emergency stop. Attach the
carriage if the machine is the carriage
type.
2. Change the conveyor width to maximum
and minimum several times referring to
Step 3 and Step 1.
e
0
Wipe away excess grease.
1. Press the emergency stop button and
then open the machine safety cover.
2. If the machine is carriage type, detach
carriage to access to the conveyor.
3. Wipe away excess grease on the edge
of ball screw, guide, and hexagon spline
shaft with lint-free cloth.

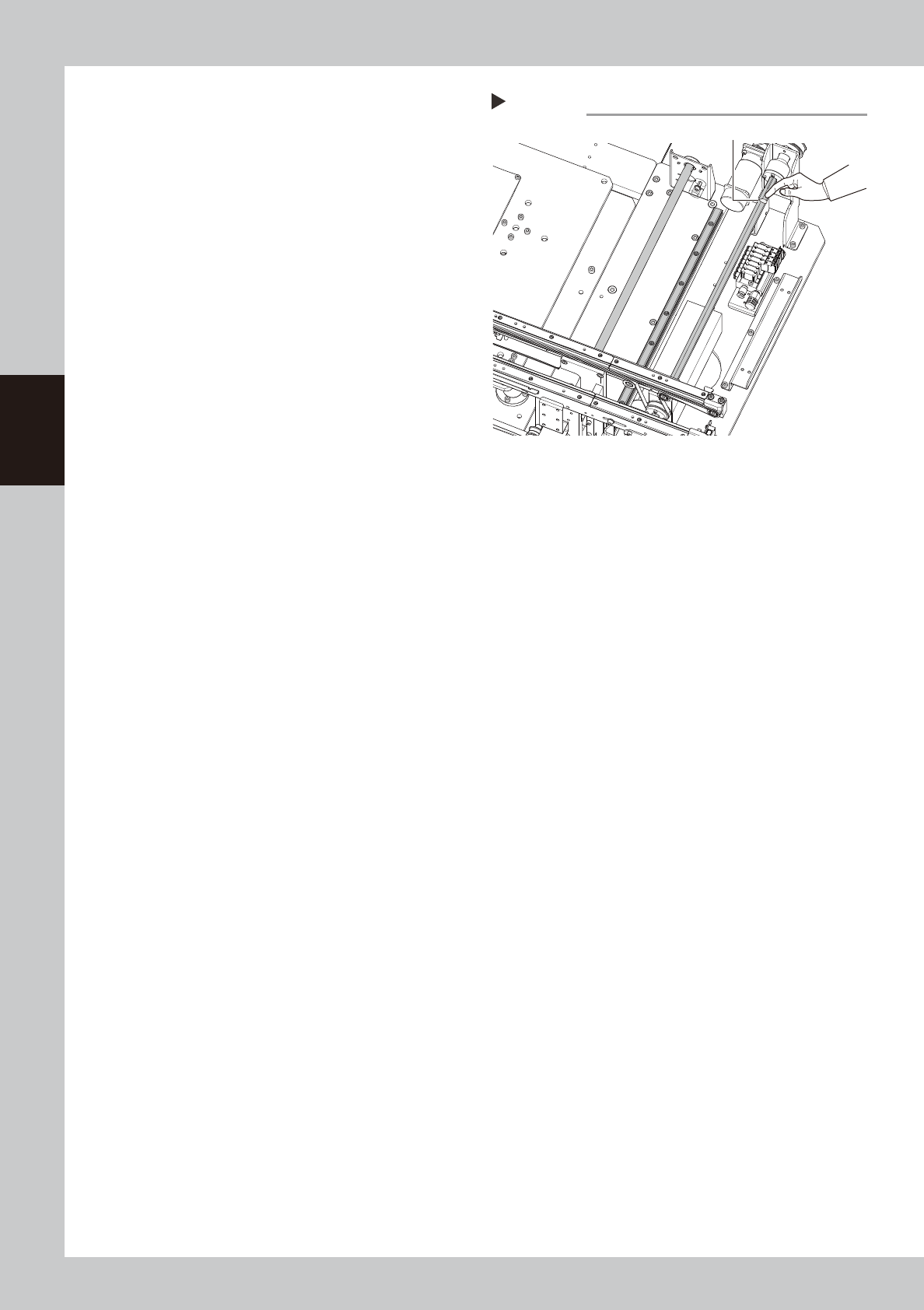

Applying grease to W-axis 2
Step 8
Apply grease to remaining area.
53377-KMK-00
3-59
3
Periodic maintenance items
5.3.3 YSM20WR Dual-lane: Cleaning and lubricating W-axis
The following describes the cleaning and lubrication procedure of W-axis of YSM20WR dual-lane type.
1
Move the conveyor forward.
1. Press the [Width] button on the [Unit]
- [Conveyor] screen to display the
"Conveyor Width" screen.
2. Enter "50 mm" in the "Target Width" box of
"Lane 1". Enter "662 mm" in the "Lane 2".
Pressing the [OK] button changes the
conveyor width to the specified width.
e
2
Clean each part of W-axis.
1. Press the emergency stop button and
then open the machine safety cover.
2. If the machine is carriage type, detach
carriage to access to the conveyor.
3. Take off all accessories susceptible to the
magnetic fields, such as a wristwatch
and/or magnetic ID card.
4. Wipe the old grease and soiling on entire
areas of 4 ball screws, 2 guides , and 2
hexagon splines of the W-axis with
lint-free cloth.
n
NOTE
Carefully wipe the lead grooves of the ball screw and
guide rail during the cleaning. Additionally, make sure
that any dirt is not produced after wiping.
n
NOTE
See "Chapter 5 Lubrication points" for the positions and
quantities of ball screw, guide, and hexagon spline.
3
Move the conveyor width to the
lubrication points.
1. Close the machine safety cover and
cancel the emergency stop. Attach the
carriage if the machine is the carriage
type.
2. Press the [Width] button on the [Unit]
- [Conveyor] screen to display the
"Conveyor Width" screen.
3. Enter the following value in the "Target
Width" box.
Lane 1: 300 mm
Lane 2: 150 mm
The conveyor width is changed to the
specified width by pressing the [OK]
button.

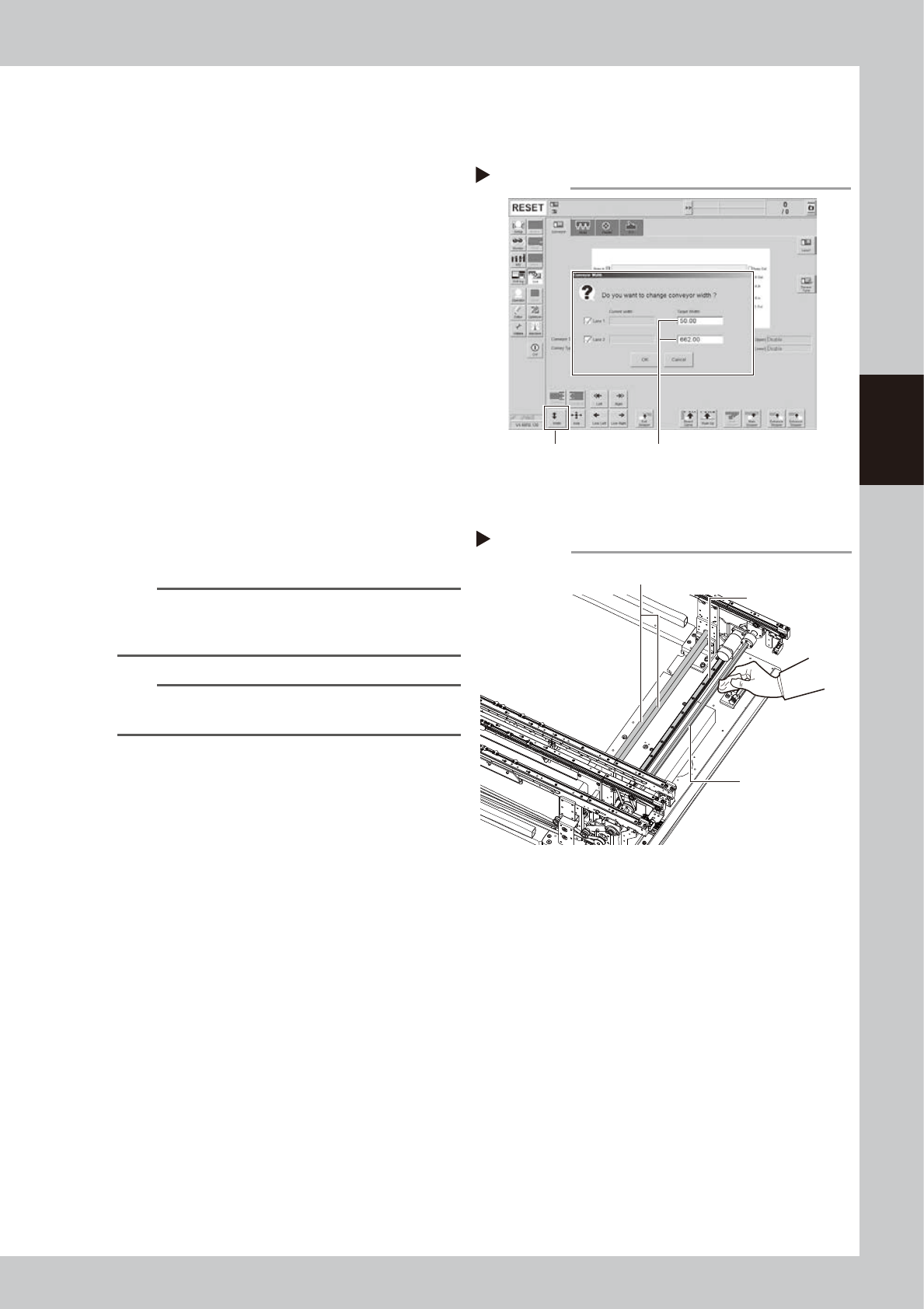

Step 1
Moving conveyor forward
[Width] button Enter following values.
Lane 1 : “50 mm”
Lane 2 : “662 mm”
54323-KMK-00
Step 2
Cleaning W-axis
Ball screw
Guide
Hexagon spline
533A5-KMK-00
3-60
3
Periodic maintenance items
e
4
Wipe off remaining grease.
1. Press the emergency stop button and
then open the machine safety cover.
2. If the machine is carriage type, detach
carriage to access to the conveyor.
3. Wipe off remaining grease in Step 2 with
lint-free cloth.
5
Apply grease to ball screw and
hexagon spline.
Apply the specified grease (NSL) with finger
uniformly over the hexagon spline shaft
surface and ball screw surface and groove.
6
Apply grease to the guide.
Apply grease to the guide with grease gun.
Inject the specified grease (NSL) to the
grease nipple of the guide with a grease
gun (30°
bent type nozzle).
n
NOTE
Apply grease until the new grease oozes from the gap.
n
NOTE
See "Chapter 5 Lubrication points" for the positions and
quantity of the guide grease nipple.

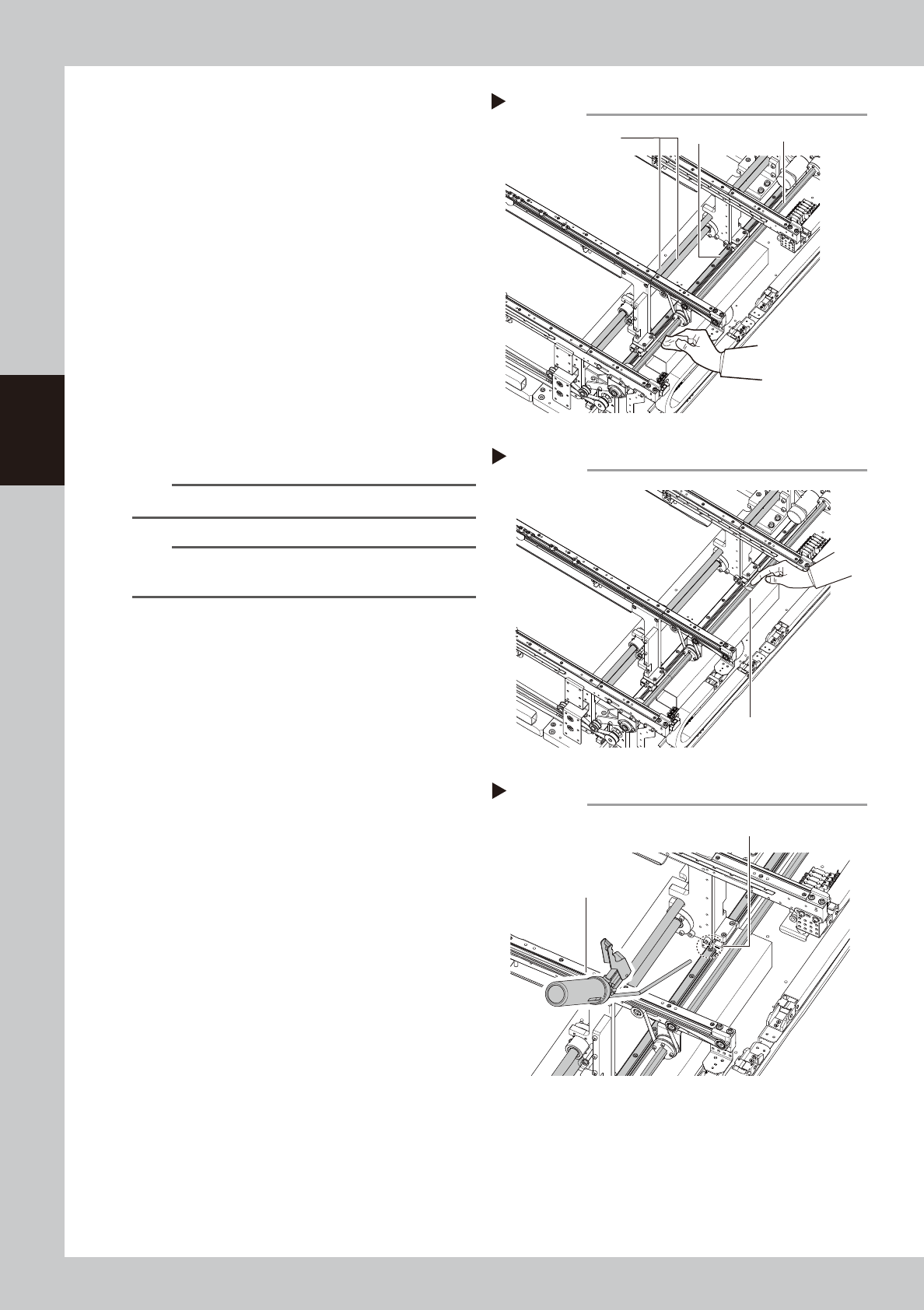

Step 4
Cleaning W-axis 2
Ball screw Guide
Hexagon spline
533A6-KMK-00
Step 5
Applying grease to W-axis
Grease (Apply uniformly.)
533A7-KMK-00
Step 6
Applying grease to guide
Grease nipple
Grease gun (30°-bent type)
533A8-KMK-00
