5-7 5 Lubrication points 2.3.2 YSM20R/YSM20WR Single-lane type W-axis lubrication points W-axis ball screw W-axis ball screw W-axis hexagon spline W-axis hexagon spline W-axis guide W-axis guide W-axis guide W-axis guide…
5-6
5
Lubrication points
2.3 W-axis (U-axis)
2.3.1 YSM20R Dual-stage type
W-axis (U-axis) lubrication points
YSM20R dual-stage type
W4-axis guide
W2-axis
ball screw
W4-axis hexagon spline
W1-axis ball screw
W4-axis ball screw
W3-axis ball screw
W1-axis
hexagon spline
W1-axis guide
W2-axis guide
W3-axis guide
W2-axis hexagon spline
W3-axis hexagon spline
Grease gun:
Manual lubrication:
53503-KMK-00
Lubrication section Grease
Lubrication
point
Interval Procedure
W1-
axis
Ball screw NSL 2 Yearly Manual lubrication
Guide NSL 1 Yearly Grease gun: Bent type nozzle (
φ
5 mm)
Hexagon spline NSL 1 Yearly Manual lubrication
W2-
axis
(U1-
axis
）
Ball screw NSL 2 Yearly Manual lubrication
Guide NSL 4 Yearly Grease gun: Bent type nozzle (
φ
5 mm)
Hexagon spline NSL 1 Yearly Manual lubrication
W3-
axis
(U2-
axis
）
Ball screw NSL 2 Yearly Manual lubrication
Guide NSL 4 Yearly Grease gun: Bent type nozzle (
φ
5 mm)
Hexagon spline NSL 1 Yearly Manual lubrication
W4-
axis
Ball screw NSL 2 Yearly Manual lubrication
Guide NSL 1 Yearly Grease gun: Bent type nozzle (
φ
5 mm)
Hexagon spline NSL 1 Yearly Manual lubrication
5-7
5
Lubrication points

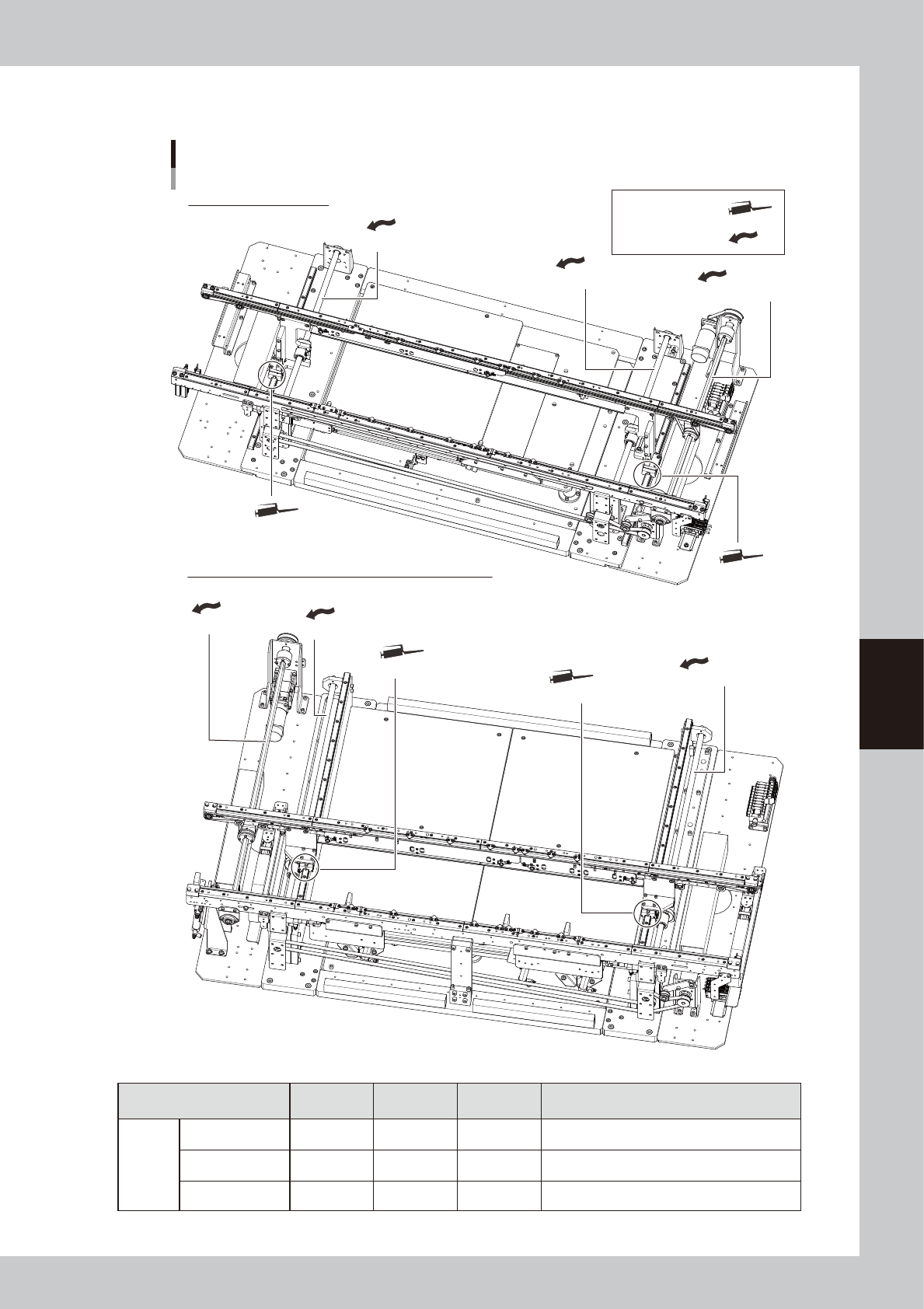

2.3.2 YSM20R/YSM20WR Single-lane type
W-axis lubrication points
W-axis ball screw
W-axis ball screw
W-axis hexagon spline
W-axis hexagon spline
W-axis guide
W-axis guide
W-axis guide
W-axis guide
W-axis ball screw
W-axis ball screw
Grease gun:
Manual lubrication:
YSM20R single-lane type
YSM20R single-lane type (for transferring heavy board)
51304-KMK-10
Lubrication section Grease
Lubrication
point
Interval Procedure
W-axis
Ball screw NSL 2 Yearly Manual lubrication
Guide NSL 2 Yearly Grease gun: Bent type nozzle (
φ
5 mm)
Hexagon spline NSL 1 Yearly Manual lubrication
5-8
5
Lubrication points
2.3.3 YSM20WR Dual-lane type
W-axis ball screw (Lane 1)
W-axis ball screw (Lane 2)
W-axis ball screw (Lane 1)
W-axis ball screw (Lane 2)
Hexagon spline (Lane 1)
W-axis guide (Lane 1)
W-axis guide (Lane 1)
W-axis guide (Lane 2)
W-axis guide
(Lane 2)
Hexagon spline
(Lane 2)
W-axis lubrication points
YSM20WR dual-lane type
Grease gun:
Manual lubrication:
53510-KMK-00
Lubrication section Grease
Lubrication
point
Interval Procedure
Lane 1
Ball screw NSL 2 Yearly Manual lubrication
Guide NSL 2 Yearly Grease gun: Bent type nozzle (
φ
5 mm)
Hexagon spline NSL 1 Yearly Manual lubrication
Lane 2
Ball screw NSL 2 Yearly Manual lubrication
Guide NSL 2 Yearly Grease gun: Bent type nozzle (
φ
5 mm)
Hexagon spline NSL 1 Yearly Manual lubrication
