Installation
3.1.4 Location 1 and 3 – Installing the "Support Option ASP Speed Flex Row 2 SP1/3" X4i S - Installing the NC Row 2
NC Row 2 - NC in Front of MTC 2/WPC PPW 2te Reihe - PPW vor MTC 2/WPC 73
Installation
Attaching the mount – example of right side
► Fit the mount for the second row from the left, onto
the mount for the first row.
► Press the mount down firmly so that the two align-
ment pins (1) and (2) are completely inserted into the
relevant holes on the front mount.

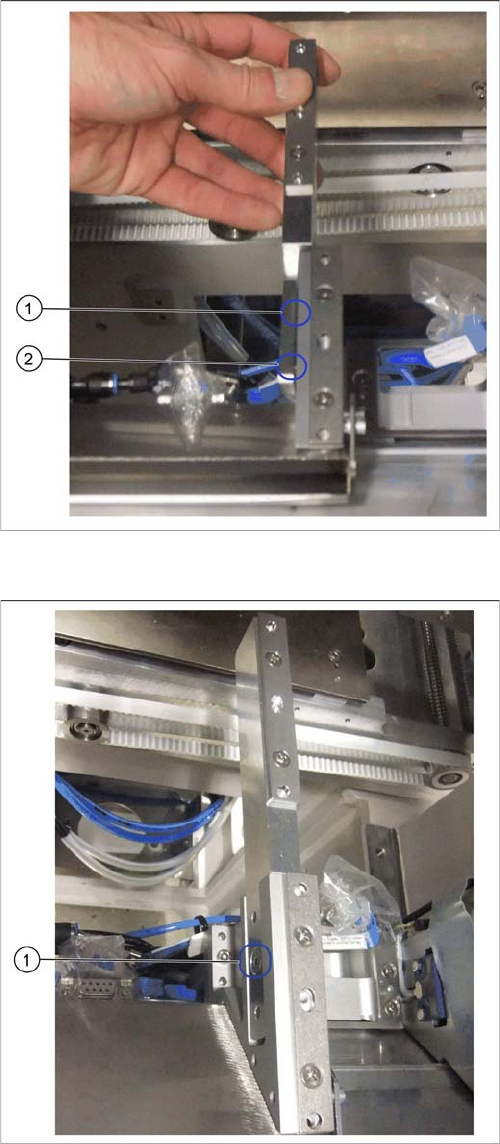

Screwing the mount into place – example of right side
► Screw the mount for the second row into place from
the left side (1).
Installation
X4i S - Installing the NC Row 2 3.1.4 Location 1 and 3 – Installing the "Support Option ASP Speed Flex Row 2
74 NC Row 2 - NC in Front of MTC 2/WPC PPW 2te Reihe - PPW vor MTC 2/WPC
► For configurations without Smart Pin Support, continue with section "3.1.8 Checking the Height"
[➙80].
► For configurations with Smart Pin Support, continue with section "3.1.7 Inserting the NC ASP Sup-
port Plate" [ ➙ 78].
See also
3.1.5 Location 2 and 4 – Installing the "Support Option ASP Speed Flex Row 2 SP1/3" [ ➙ 75]

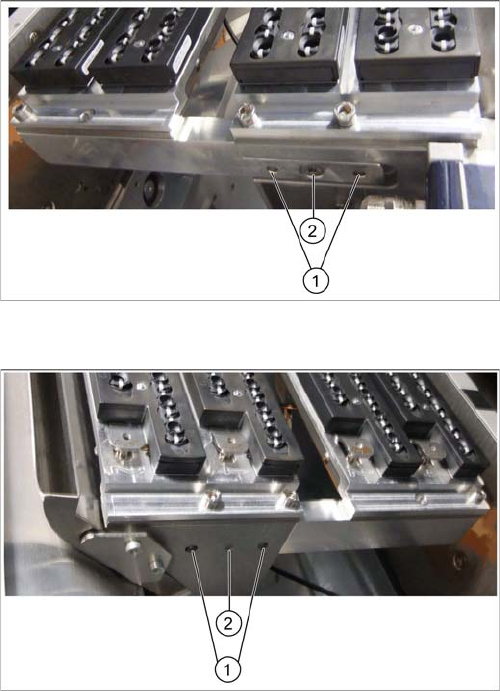

NC option mount installed (left side)
1. Alignment pins
2. Fastening screw
NC option mount installed (right side)
1. Alignment pins
2. Fastening screw
Installation
3.1.5 Location 2 and 4 – Installing the "Support Option ASP Speed Flex Row 2 SP1/3" X4i S - Installing the NC Row 2
NC Row 2 - NC in Front of MTC 2/WPC PPW 2te Reihe - PPW vor MTC 2/WPC 75
3.1.5
3.1.5 Location 2 and 4 – Installing the "Support Option ASP Speed Flex Row 2 SP1/3"
Location 2 and 4 – Installing the "Support Option ASP Speed Flex Row 2 SP1/3"
Parts required from "Support option ASP speed flex row 2" [03090225-xx]
Support option ASP speed flex row 2
Installation
Quantity Designation Item number
1 NC option mount 03005337-xx
1 ISO4762 - M5 x 14-A2-70 03043120-xx
1 ASP adapter 03089973-xx
2 ISO4762 - M5 x 14-A2-70 03043120-xx
Support option ASP speed flex row 2
Locations 2 and 4 require the preassembled support op-
tion ASP speed flex row 2 for the left side.
Attaching the support
► Fit the support for the second row onto the mount for
the first row of nozzle changers.
► Press the support down firmly so that the two align-
ment pins (1) and (2) are completely inserted into the
relevant holes on the front mount.
