Installation
3.2.2 Locations 1 to 4 Without MTC X3 S / X4 S - Installing the NC Row 2
NC Row 2 - NC in Front of MTC 2/WPC PPW 2te Reihe - PPW vor MTC 2/WPC 87
3.2.2.6
3.2.2.6 Converting the Nozzle Station
Converting the Nozzle Station

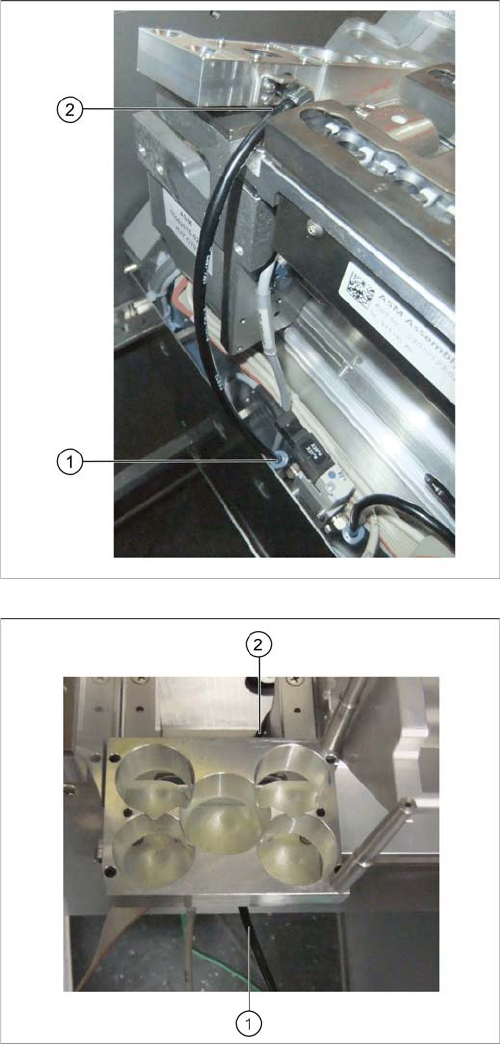

► Unplug the compressed air line from the valve (1) and
the connection at the nozzle station (2).
► Connect the compressed air line from the conversion
kit to the valve (1).
► Remove the reject bin sensor for the first nozzle
changer row.
► Run the compressed air line for the nozzle station un-
der the W5 magazine support (1) and behind the ba-
sic assembly (2).
Installation
X3 S / X4 S - Installing the NC Row 2 3.2.2 Locations 1 to 4 Without MTC
88 NC Row 2 - NC in Front of MTC 2/WPC PPW 2te Reihe - PPW vor MTC 2/WPC
► Insert the nozzle station into the basic assembly.
► Run the compressed air line through the groove on
the basic assembly (1) and connect it to the nozzle
station.
► Insert the reject bin from the first into the second row.
► In the first row, fit the coding sheet into place.

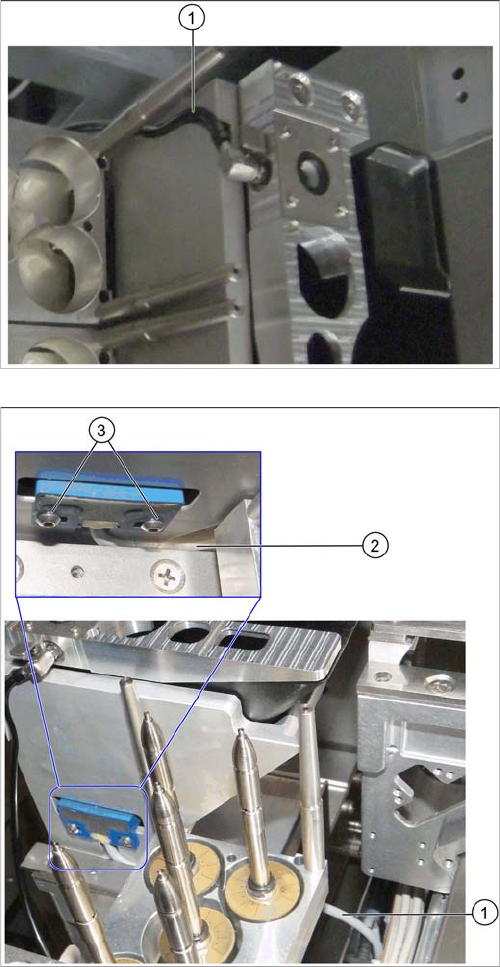

► Run the sensor cable between the W5 magazine sup-
port and the nozzle station container (1) and (2).
Make sure that the cable is not bent or pinched.
► Install the reject bin sensor to the basic assembly for
the second row of nozzle changers and fix it into
place with the screws you removed earlier (3).
Installation
3.2.2 Locations 1 to 4 Without MTC X3 S / X4 S - Installing the NC Row 2
NC Row 2 - NC in Front of MTC 2/WPC PPW 2te Reihe - PPW vor MTC 2/WPC 89
3.2.2.7
3.2.2.7 Connecting the NC Row 2
Connecting the NC Row 2
► Set the jumpers (if present) on the nozzle changers (see "4.1.1 Jumpers on the Nozzle Changer"
[ ➙ 101]).
Data cable for NC 2 and SPS
Labeled data cables have been prepared in the machine
for the various configurations of nozzle changers with and
without Smart Pin Support (SPS).
▪ X1*a (NC 1)
▪ X1*b (SPS (1) or NC 2 (without SPS))
▪ X1*c (NC 2 with SPS)
▪ X1*d (SPS2)
Underside of NC 2 with data cable and compressed air
line (example of X4i S)
► Connect the relevant data cable to the underside of
the NC 2 (1).
► Connect the compressed air line to the free connec-
tion on the Y coupling (2).
