2.2 Configuration
Feeder Inspection Unit
2.2−1
DX1OEC−12−310−A0

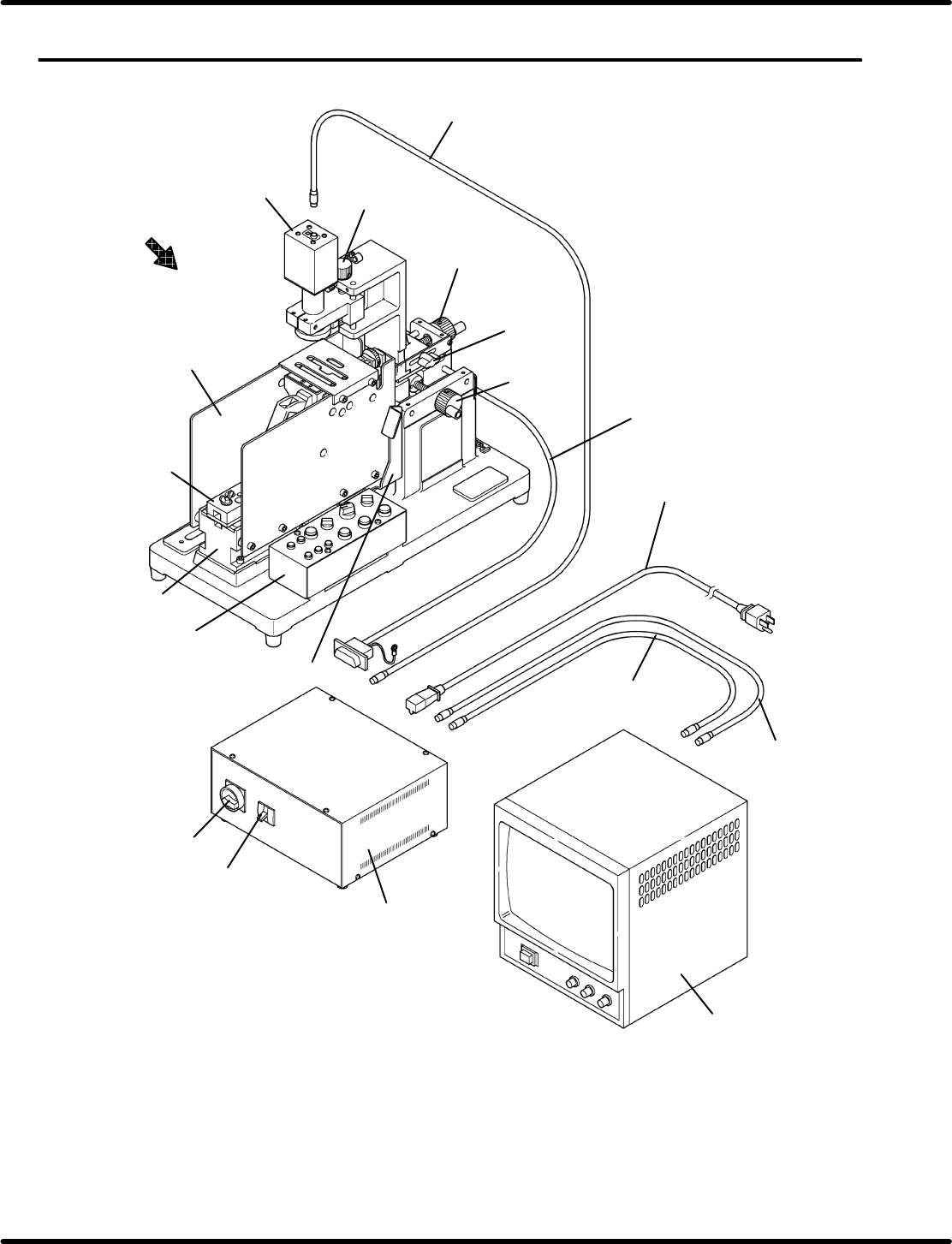

2.2 Configuration
DX1OEC−12−310−A0
Sentence No.
Adjust unit
Gauge jig
Clamp stand
Camera
Z adjustment
knob
Y adjustment
knob
Camera cable
Clamp reset lever
X adjust−
ment knob
Y−direction
fix knob
Control panel
Cover
PNL cable
Monitor signal
cable
Power cable for
power box
Monitor power cable
(12V DC)
*2
Monitor
*1
Power box
Main switch
Breaker
*1 Monitor should be provided by the customer. (NTSC standard)
*2 A monitor set is available as an option.
Monitor power cable is included in the option set.
12V DC is supplied by the power box.

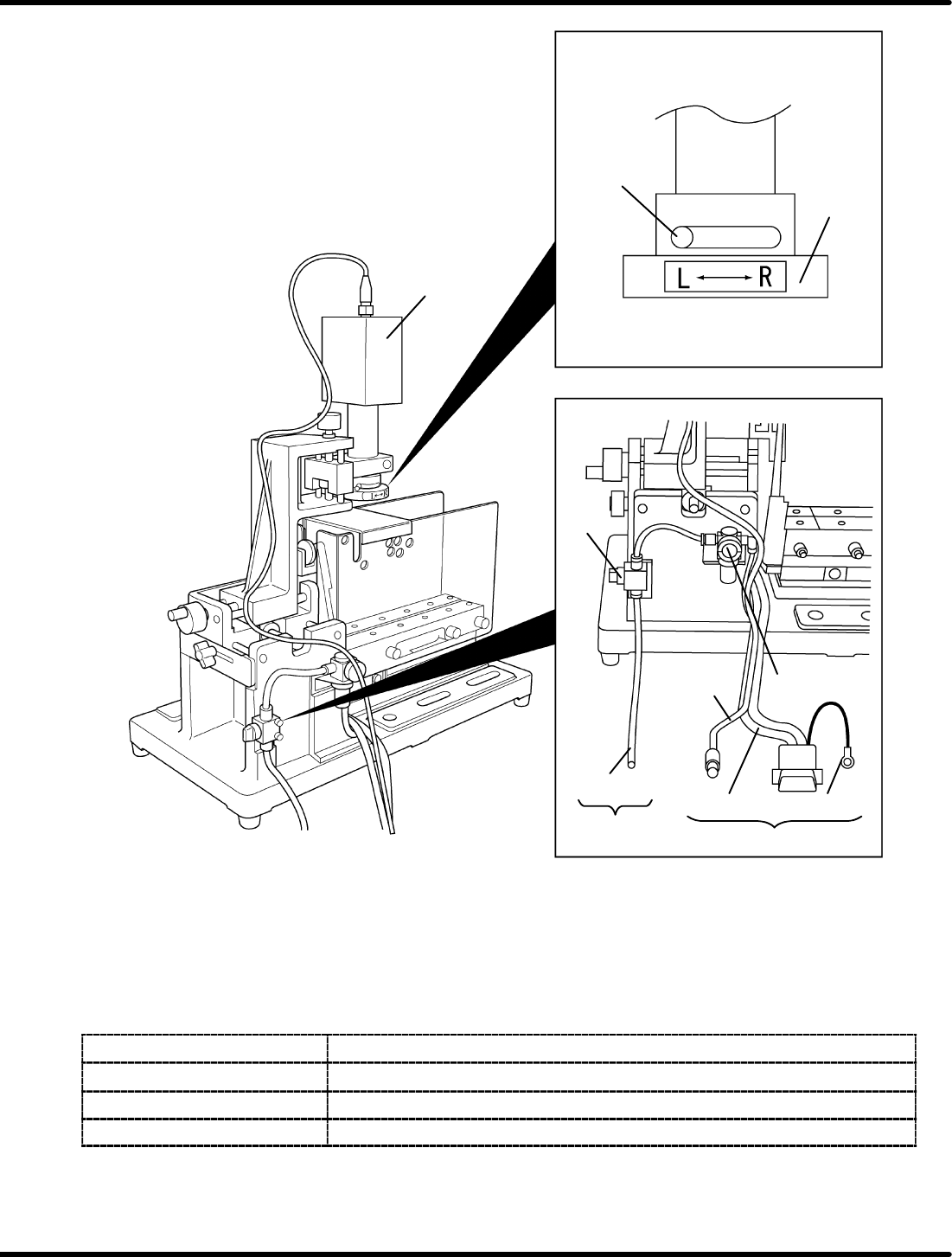

Feeder Inspection Unit
2.2 Configuration
2.2−2
DX1OEC−12−310−A0
Camera
LED
Air tube
*3
Camera
cable
PNL cable
Ground terminal
Regulator
Connected to
air source
Connected to power box
Valve
Camera view
select lever
*3 Air tube (φ6) for valve should be provide by the customer.
=REMARKS=
The image signals to be output to the monitor of this inspection unit uses the NTSC standard.
When the monitor is to be provided by the customer, it must be NTSC type. There are three
standards for TV signals: NTSC, PAL and SECAM. The monitors distributed in customers’
countries may not comply with the NTSC standard. Refer to the following table and prepare an
applicable monitor.
Standard
Major countries adopting the standard
NTSC United States, Canada, Japan, Korea, Taiwan,
PAL UK, Italy, Germany, Australia, China
SECAM France, Greece, Bulgaria, Egypt
