Feeder Inspection Unit 5.3 Lubrication 5.3−4 DX1OEC−80−140−C0 Feed Screws • Apply grease entirely to the thread and wipe off any excess with a waste cloth. Thread Thread Feed screw (Y) Feed screw (X) Feed screw (Z) T hre…
5.3 Lubrication
Feeder Inspection Unit
5.3−3
DX1OEC−80−140−C0

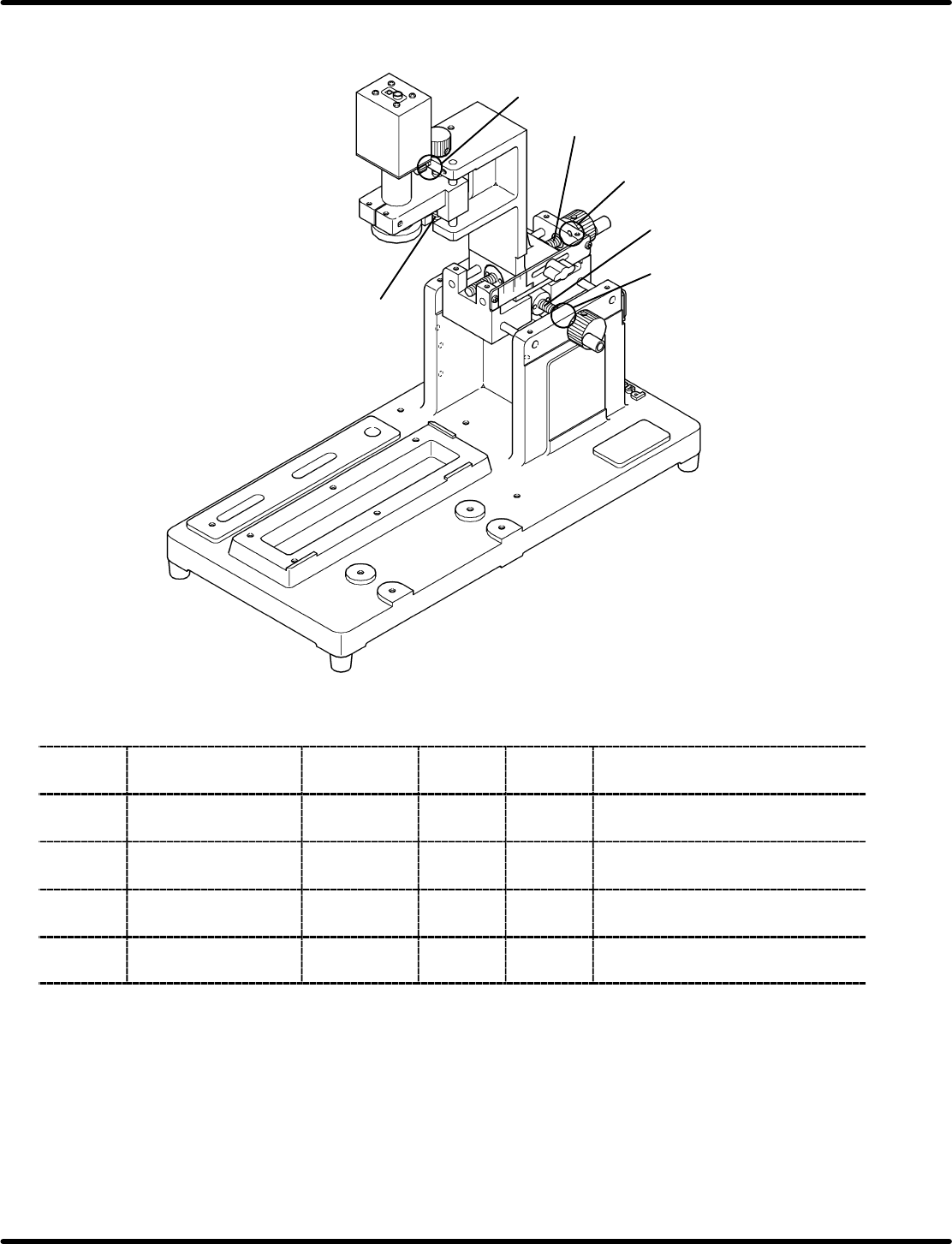

5.3.3 XYZ Stage
3
4
2
1
4
4
Oiling
No. Oiling point Oil type
Oil
volume
Period Lubrication method
1 Feed screw (X) MP grease
Moderate
amount
3 months
Apply grease entirely to the thread
and wipe off any excess.
2 Feed screw (Y) MP grease
Moderate
amount
3 months
Apply grease entirely to the thread
and wipe off any excess.
3 Feed screw (Z) MP grease
Moderate
amount
3 months
Apply grease entirely to the thread
and wipe off any excess.
4 Bearing MP grease
Moderate
amount
Once a
year
Fill grease appropriately from the
open side and wipe off any excess.
=HINT=
1−4: It is not necessary to disassemble the unit for lubrication.
Feeder Inspection Unit
5.3 Lubrication
5.3−4
DX1OEC−80−140−C0
Feed Screws
• Apply grease entirely to
the thread and wipe off any
excess with a waste cloth.
Thread
Thread
Feed screw (Y)
Feed screw (X)
Feed screw (Z)
T
hread
=HINT=
It is not necessary to disassemble the unit for lubrication.
Bearing
As shown in the drawing below, fill proper amount of oil from the both sides (x 3 points)
Bearing
5.3 Lubrication
Feeder Inspection Unit
5.3−5
DX1OEC−80−140−C0

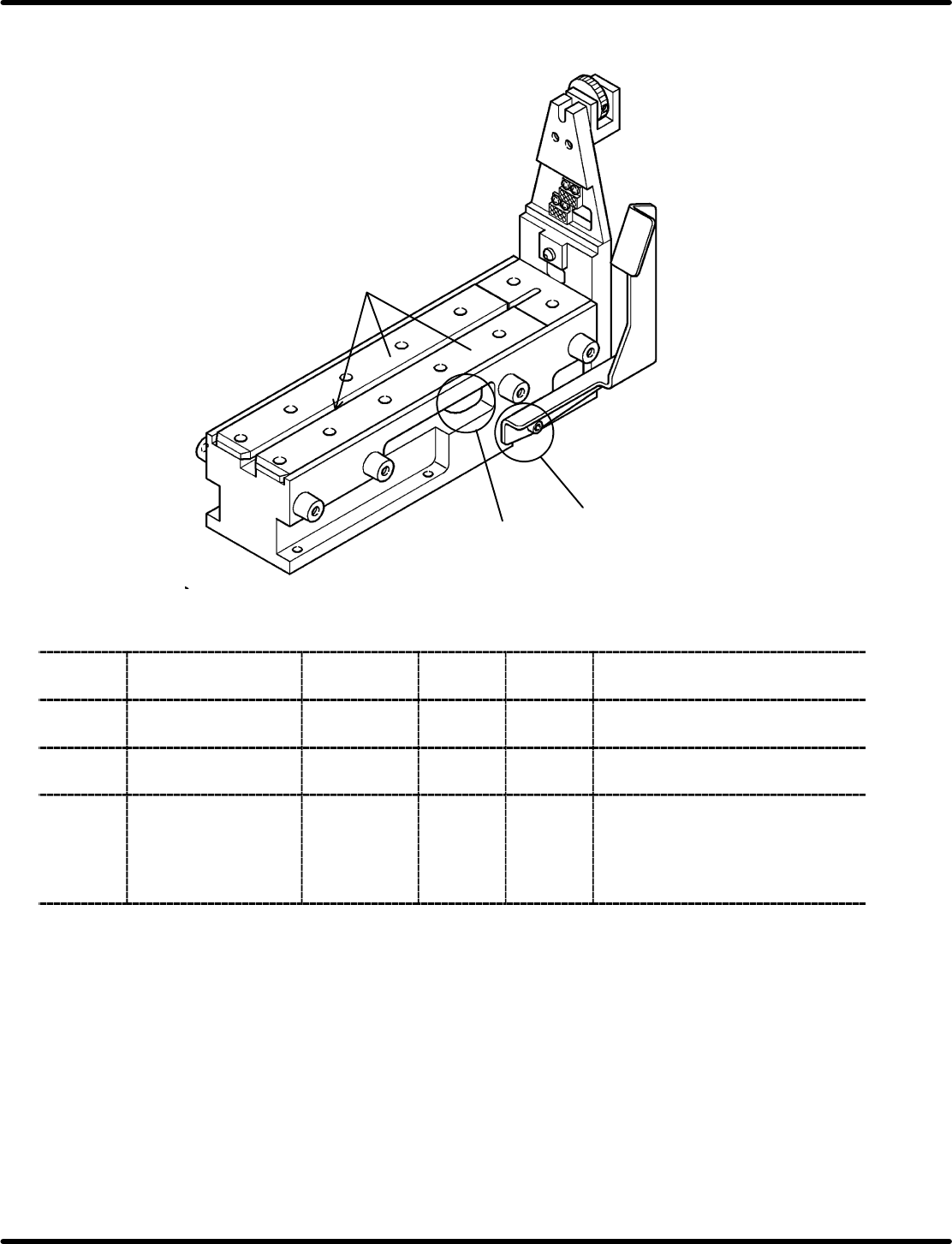

5.3.4 Clamp Stand
3
2
1
Oiling
No. Oiling point Oil type
Oil
volume
Period Lubrication method
1 Bracket MP grease
Moderate
amount
3 months
Apply oil thinly to the sliding
parts.
2 Shaft MP grease
Moderate
amount
3 months
Apply oil to the surfaces that
touch the bearing.
3 Guide plate
Machine oil
(Antirust)
Thinly
When
storing
for
extended
period
Apply thinly to the top of the
plate and guide surfaces on
the side.
