Feeder Inspection Unit 5.3 Lubrication 5.3−6 DX1OEC−80−140−C0 Bracket =HINT= It is not necessary to disassemble the unit for lubrication. Apply oil slightly to the areas marked . Shaft Apply to the surfaces that touch th…
5.3 Lubrication
Feeder Inspection Unit
5.3−5
DX1OEC−80−140−C0
5.3.4 Clamp Stand
3
2
1
Oiling
No. Oiling point Oil type
Oil
volume
Period Lubrication method
1 Bracket MP grease
Moderate
amount
3 months
Apply oil thinly to the sliding
parts.
2 Shaft MP grease
Moderate
amount
3 months
Apply oil to the surfaces that
touch the bearing.
3 Guide plate
Machine oil
(Antirust)
Thinly
When
storing
for
extended
period
Apply thinly to the top of the
plate and guide surfaces on
the side.
Feeder Inspection Unit
5.3 Lubrication
5.3−6
DX1OEC−80−140−C0

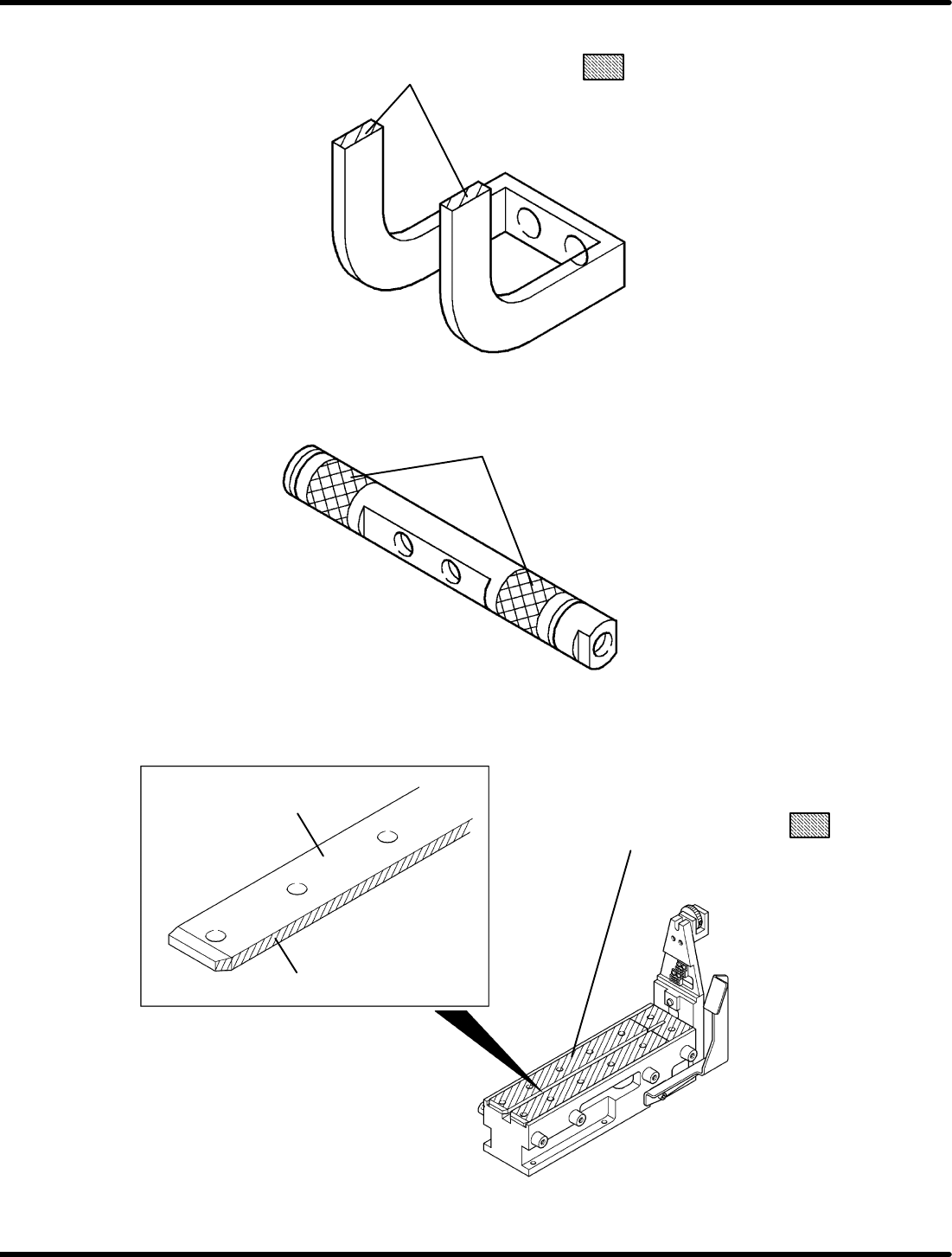

Bracket
=HINT=
It is not necessary to disassemble
the unit for lubrication.
Apply oil slightly to the areas marked .
Shaft
Apply to the surfaces that touch the bearing.
=HINT=
It is not necessary to
disassemble the unit for
lubrication.
Guide Plate
Apply thinly to the area marked .
Top surface
Apply oil to the side
surface as well.
=HINT=
It is not necessary to disassemble
the unit for lubrication.
