2.4 Dimension Gauges for OHP Feeder Inspection Unit 2.4−3 DX1OEC−12−330−A0 Pneumatic feeder for 8 mm 8m m Pneumatic feeder

Feeder Inspection Unit

2.4 Dimension Gauges for OHP

2.4−2

DX1OEC−12−330−A0

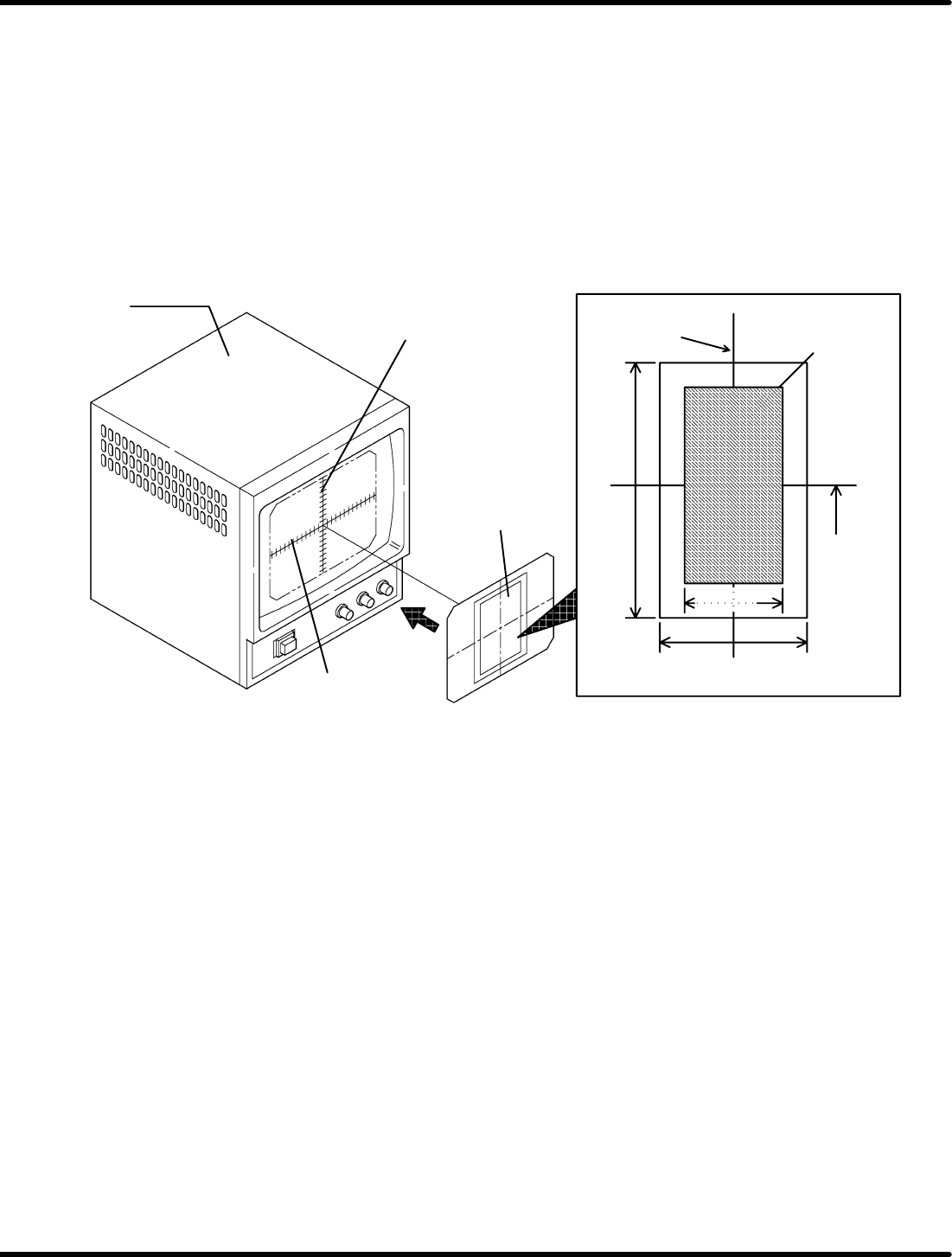

2.4.2 Dimension Gauges for 9−inch Monitor

Dimension gauges for attaching 9−inch monitor

• These dimension gauges are for attaching to the monitor by the type of wheel.

Use a proper dimension gauge corresponding to the feeder type or feeder width.

• Photocopy them to OHP sheets (Ex. Sumitomo 3M: PP2500) normally (1/1).

• The inner frame refers to the outer frame of the feed wheel teeth.

• The outer frame indicates the tolerance range of the feed wheel. (Serves as a guide for OK/NG judgment.)

• Enlarged size on the monitor is x 62.5.

• Attach a dimension gauge so that the reference lines of the dimension gauge may align with the graduation

lines on the monitor.

Graduation line

(X direction)

Reference line

(Y direction)

Reference

line

(X direction)

Attach

Monitor

Dimension

gauge

Wheel outer size

frame

Tolerance range in X direction

Tolerance range in Y direction

1mm

Graduation line

(Y direction)

2.4 Dimension Gauges for OHP

Feeder Inspection Unit

2.4−3

DX1OEC−12−330−A0

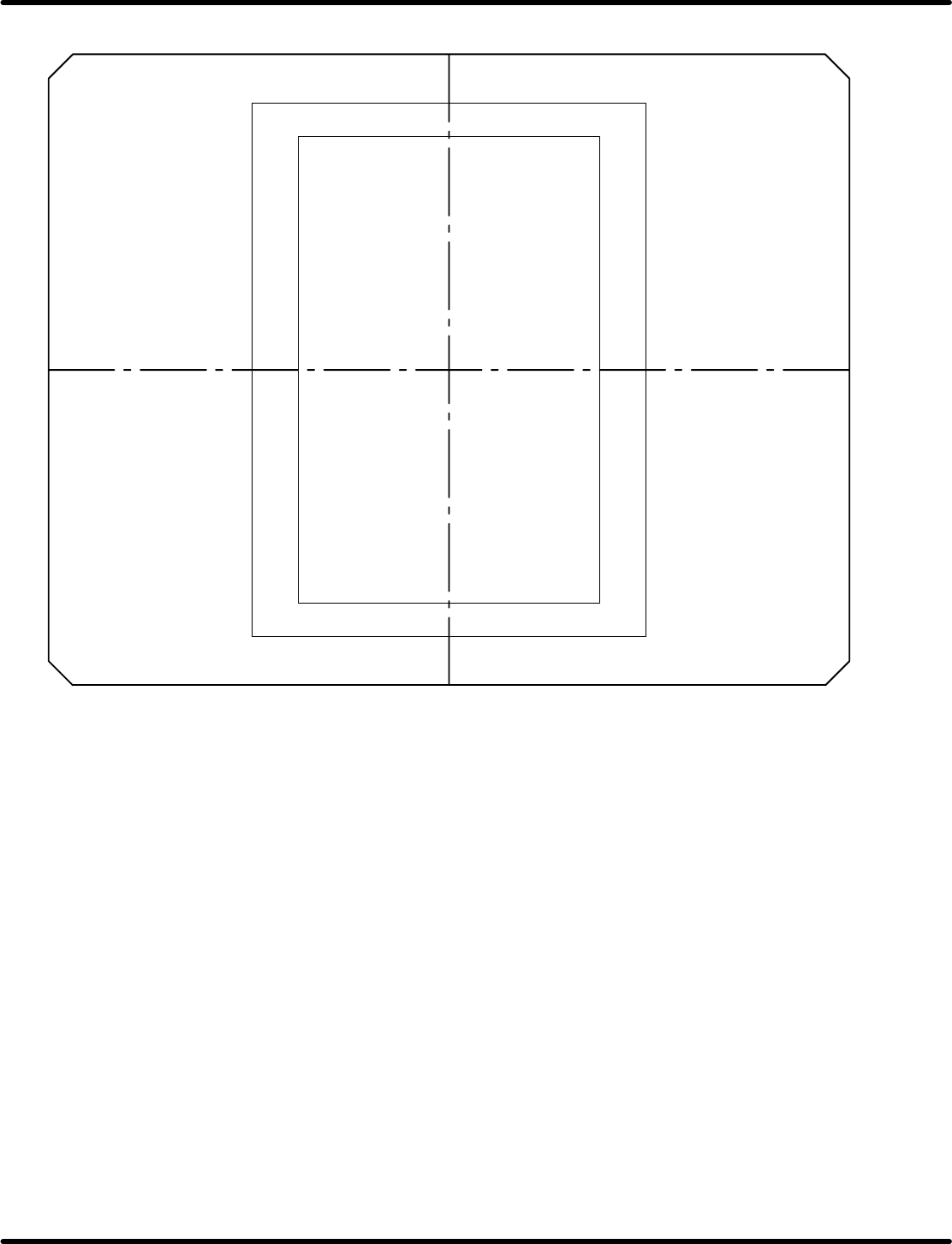

Pneumatic feeder for 8 mm

8mm

Pneumatic feeder

Feeder Inspection Unit

2.4 Dimension Gauges for OHP

2.4−4

DX1OEC−12−330−A0

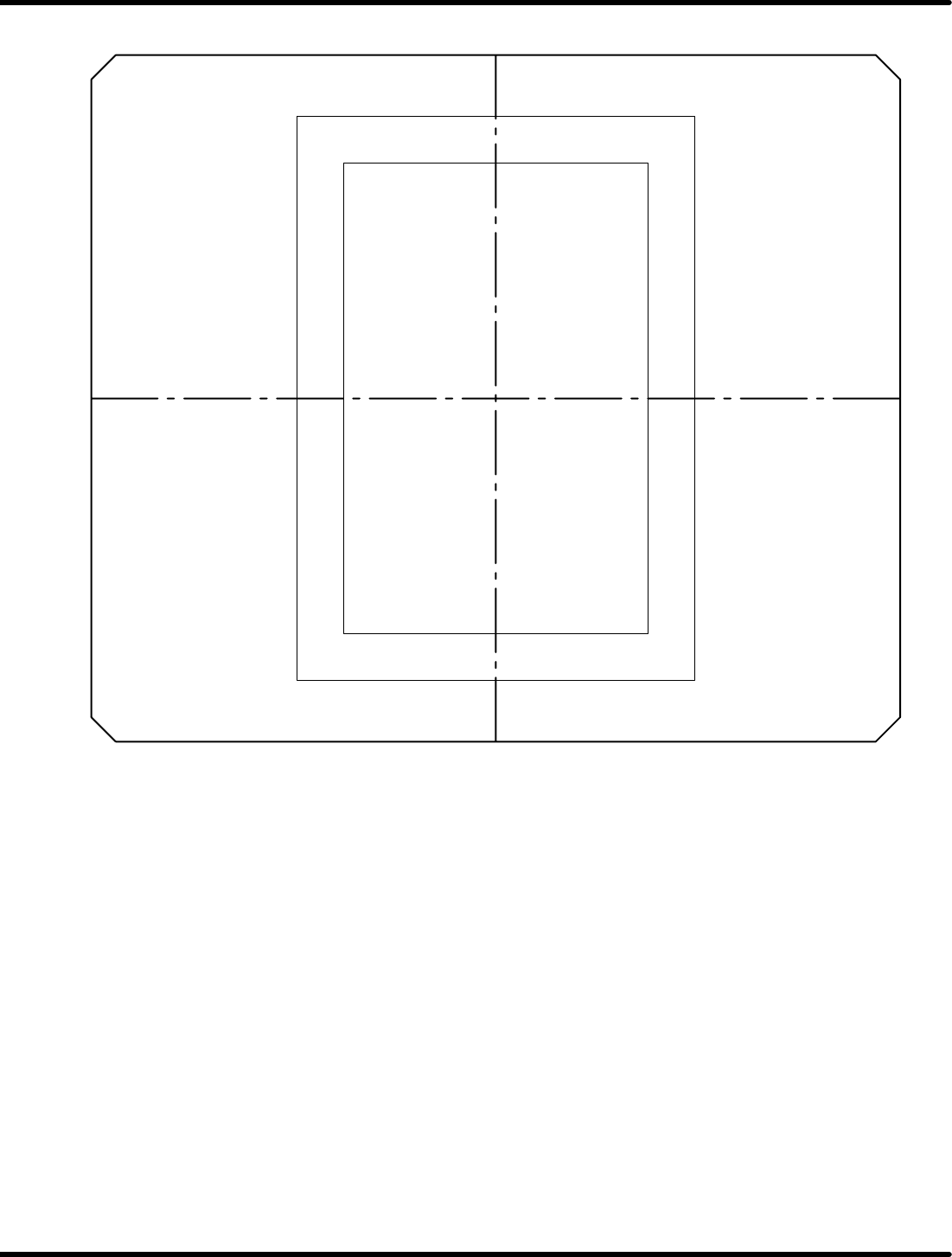

Pneumatic feeder for 12 to 24 mm

12 to 24 mm

Pneumatic feeder
