Feeder Inspection Unit 3.1 Environmental Requirements 3.1−2 DX1OEC−1 1−070−B0 =REMARKS= Before installing the unit, make sure the following dimensions are satisfied (when inspecting large reel tape feeders). (Operator ’ …
3.1 Environmental Requirements
Feeder Inspection Unit
3.1−1
DX1OEC−11−070−B0
3.1 Environmental Requirements
DX1OEC−11−070−B0
Sentence No.
If the unit has not been installed properly, expected functions cannot be attained. Install the unit on the
location where the following conditions can be met:
Environmental Requirements
• Adequate electric capacity to the unit
The power supply voltage fluctuation is within ±5%
• Supply air of 0.4MPa and adequate flowrate must be assured.
• The room temperature is in the range of 10−30°C. (The same environment as this machine is
recommended if more stable wheel adjustment is required for 0603, 8 mm feeders.)
• The humidity is in the range of 20−90% with no dew formation.
• Capable of sustaining the mass of the unit and the workload. (Capable enduring a load of 500N
(50 kgf))
• No considerable vibration
• No inflammable or corrosive gas is around
• No dust and/or soot
=REMARKS=
Use a ground cable of the power cord without fail.
=REMARKS=
This unit complies with the essential health and safety requirements in accordance with the
industrial provisions of EC Council Directives. Accordingly, the electrical components, cables and
devices must be our recommended maintenance−parts. Our customers should not remodel unit
by another maintenance−parts all by oneself.
=REMARKS=
Disturbance of TV Monitor due to Electromagnetic Noise
If this unit is exposed to strong radiation field or strong magnetic field, the connected TV monitor
may be disturbed. But this does not cause functional loss.
=REMARKS=
The cables to be connected between the feeder adjust unit and the power box should not be laid
on the floor but should be placed on the desk, etc.
Feeder Inspection Unit
3.1 Environmental Requirements
3.1−2
DX1OEC−11−070−B0
=REMARKS=

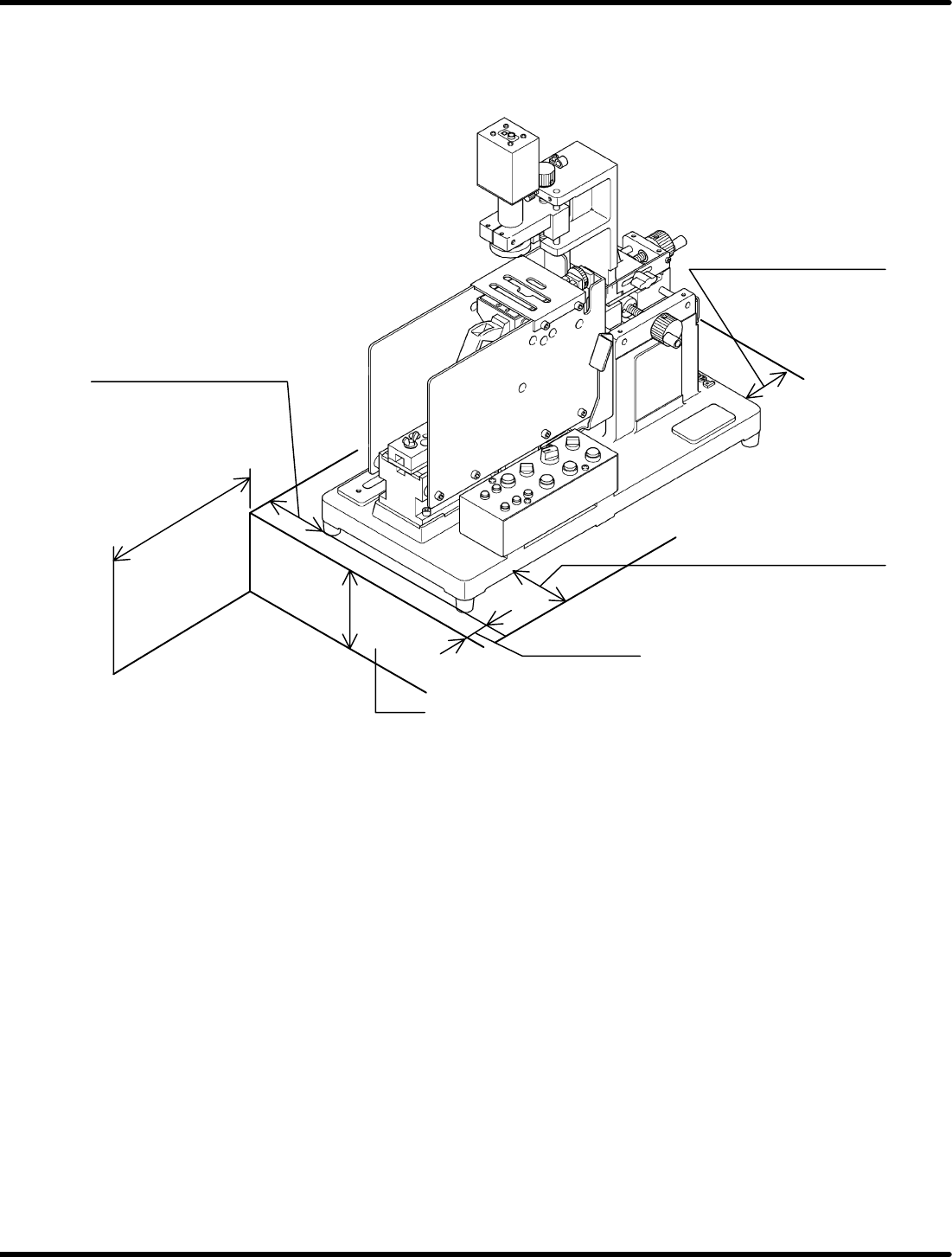

Before installing the unit, make sure the following dimensions are satisfied (when inspecting large
reel tape feeders).
(Operator’s standing position and the installation space for a power box are not included.)
When installing the unit on the desk for standing work,
approx. 800 mm is recommended.
150mm or more
(for work space)
100mm or more
(for work space)
200mm
or more
30−80 mm
150mm or more
(for work space)
(Space required for
attaching/detaching
feeders)
800mm or
more
3.2 Connecting Method
Feeder Inspection Unit
3.2−1
DX1OEC−11−080−A0
3.2 Connecting Method
DX1OEC−11−080−A0
Sentence No.

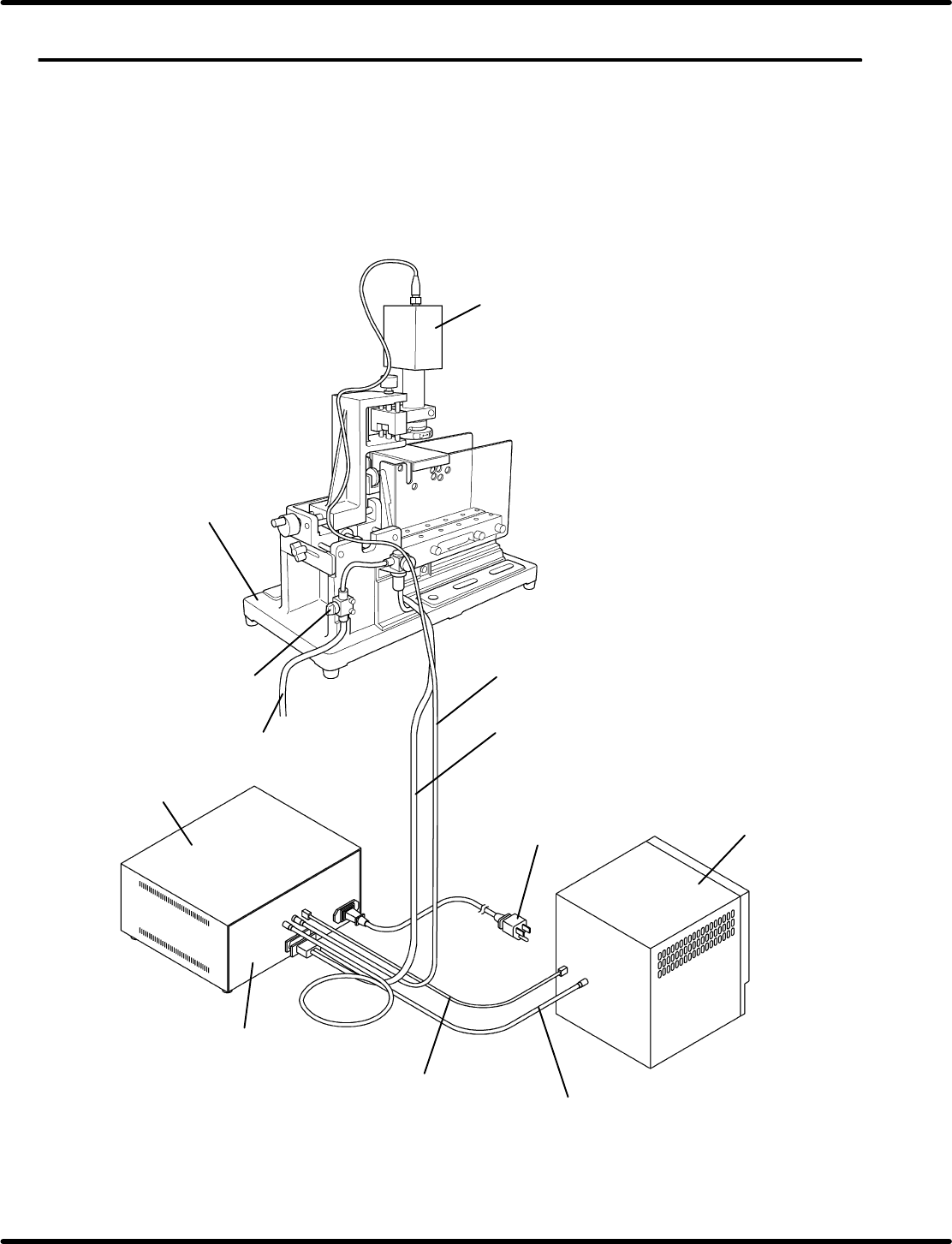

Before using the adjust unit, connect the jig, power box and monitor via cables.
At this time, connect the air tube to the jig as well.
=REFERENCE=
The breaker is not provided with earth leakage detection function. Therefore, be sure to ground
the power box. (If necessary, an earth leakage breaker should be provided by the customer.)
=REMARKS=
Before connecting the cables, be sure to turn OFF the main switch and breaker.
Camera
Power cable for power box
(Power supply: 100 to 240V AC)
Valve
Air tube
* To be provided
by the customer.
PNL cable
(Power box − Adjust unit)
Power box
Camera cable
(Power box − Camera)
Monitor
Rear
Monitor signal cable
(Power box − Monitor)
Monitor power cable (Option)
(Power box − Monitor)
* Provided with the optional monitor only.
Adjust unit
