Stopper Air conductor 4.1 Adjusting Wheel Position Feeder Inspection Unit 4.1−3 DX1OEC−31−240−B0 4.1.3 Preparations for Inspection Attaching the Gauge Jig 1. Attach the gauge jig along the guides of the clamp stand. =HIN…
Feeder Inspection Unit
4.1 Adjusting Wheel Position
4.1−2
DX1OEC−31−240−B0
• 32 mm or wider tape feeders have a feed wheel on both sides. So the feed wheel on the drive side
(far side as seen from the control panel) only will be inspected.
4.1.2 Checking Component Status at the Pickup Position
(Reference)
Follow the procedure below to check the status of components when feeding the tape feeder.
Preparations for Adjust Unit
=REFERENCE=
Refer to ‘4.1.3’.
1. Attach the master jig.
2. Turn power ON.
3. Supply air.
4. Check the camera position.
Preparations for Tape Feeder
1. Set taping components to the tape feeder.
Setting Camera Position
1. Attach the master jig.
2. Move the camera to a wheel position hole in the plate of the master jig and secure it.
Checking Component Status at the Pickup Position
=REFERENCE=
Refer to ‘4.1.7’.
1. Attach the tape feeder concerned.
2. Feed the tape feeder and check for components.
=HINT=
When checking the pneumatic double feeder on the L side, set the camera view select lever to the
L side.
3. When checking other tape feeder, keep the camera position as it is and replace the feeder only.
=HINT=
• Dimensions of taping components are limited. If smaller than the view of camera (2 mm by 2.7 mm),
checking can be made.
• Taping components can only be used with a small reel (reel dia.: φ178 mm).
• Consider the component pickup position check to be for reference purpose only. Therefore, adjust
the feed position using the feed wheel.
• When directly checking components at the pickup position, some cannot be seen clearly depending
on the types of paper tape or embossed tape.
Stopper
Air conductor
4.1 Adjusting Wheel Position
Feeder Inspection Unit
4.1−3
DX1OEC−31−240−B0
4.1.3 Preparations for Inspection
Attaching the Gauge Jig

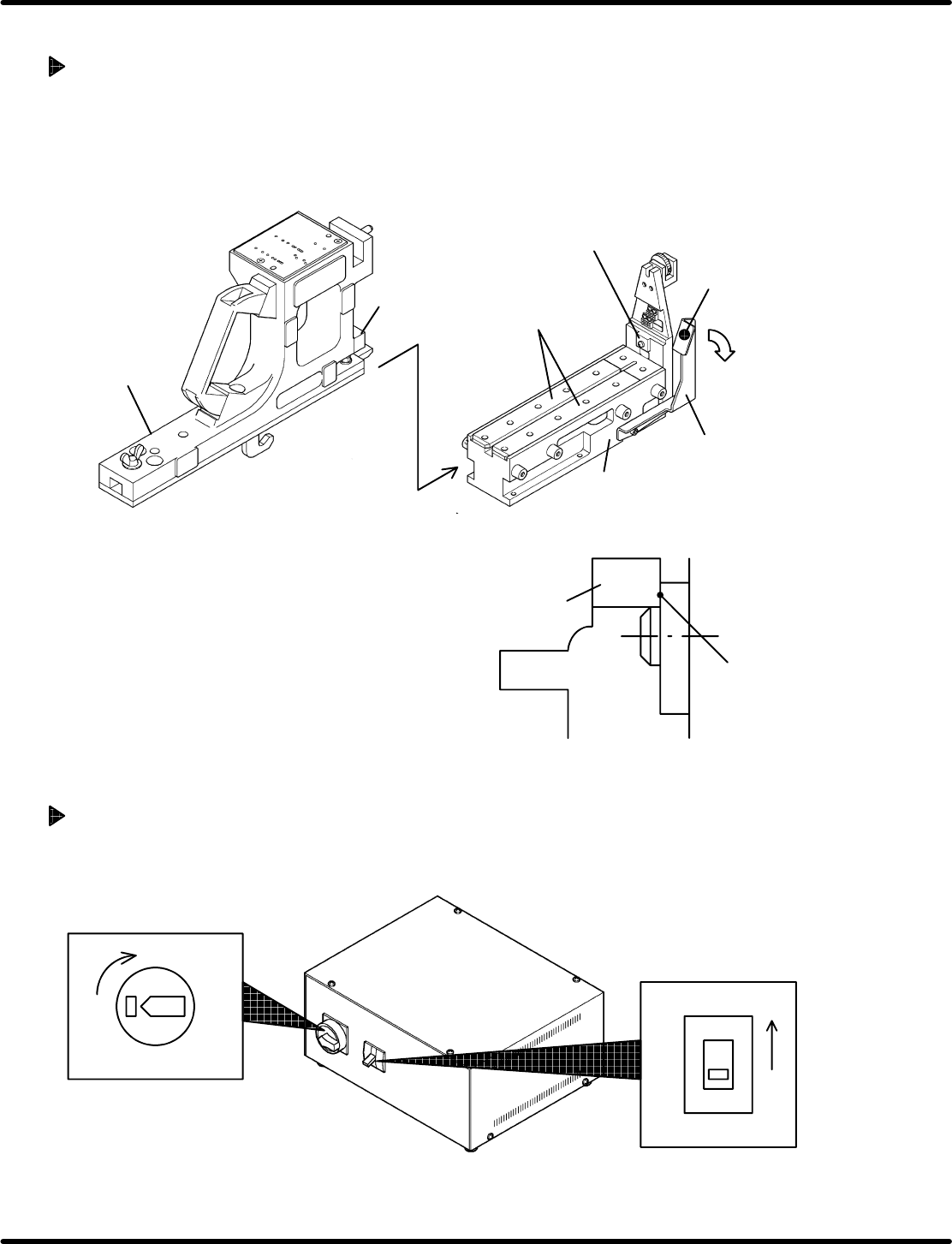

1. Attach the gauge jig along the guides of the clamp stand.
=HINT=
When attaching/detaching the gauge jig and feeder, pushing the clamp reset lever enables the
clamp to be released.
This allows the gauge jig and feeder to be attached/detached easily.
Stopper
Gauge jig
Clamp reset lever
Push
Guide
Air conductor
Clamp stand
2. Ensure that the stopper of the gauge jig and air
conductor of the clamp stand have been fitted
properly without any gap.
=REMARKS=
• To ensure c lamping, av oid pus hing the
clamp reset lever when fitting the stopper
to the air conductor.
• Check if the fitting is proper for accurate
inspection. If there is a gap, the gauge jig
can be displaced.
Turning Power ON
1. Turn ON the breaker switch.
2. Turn ON the main switch.
Breaker switch
ON
ONOFF
Main switch
Feeder Inspection Unit
4.1 Adjusting Wheel Position
4.1−4
DX1OEC−31−240−B0
Supplying Air

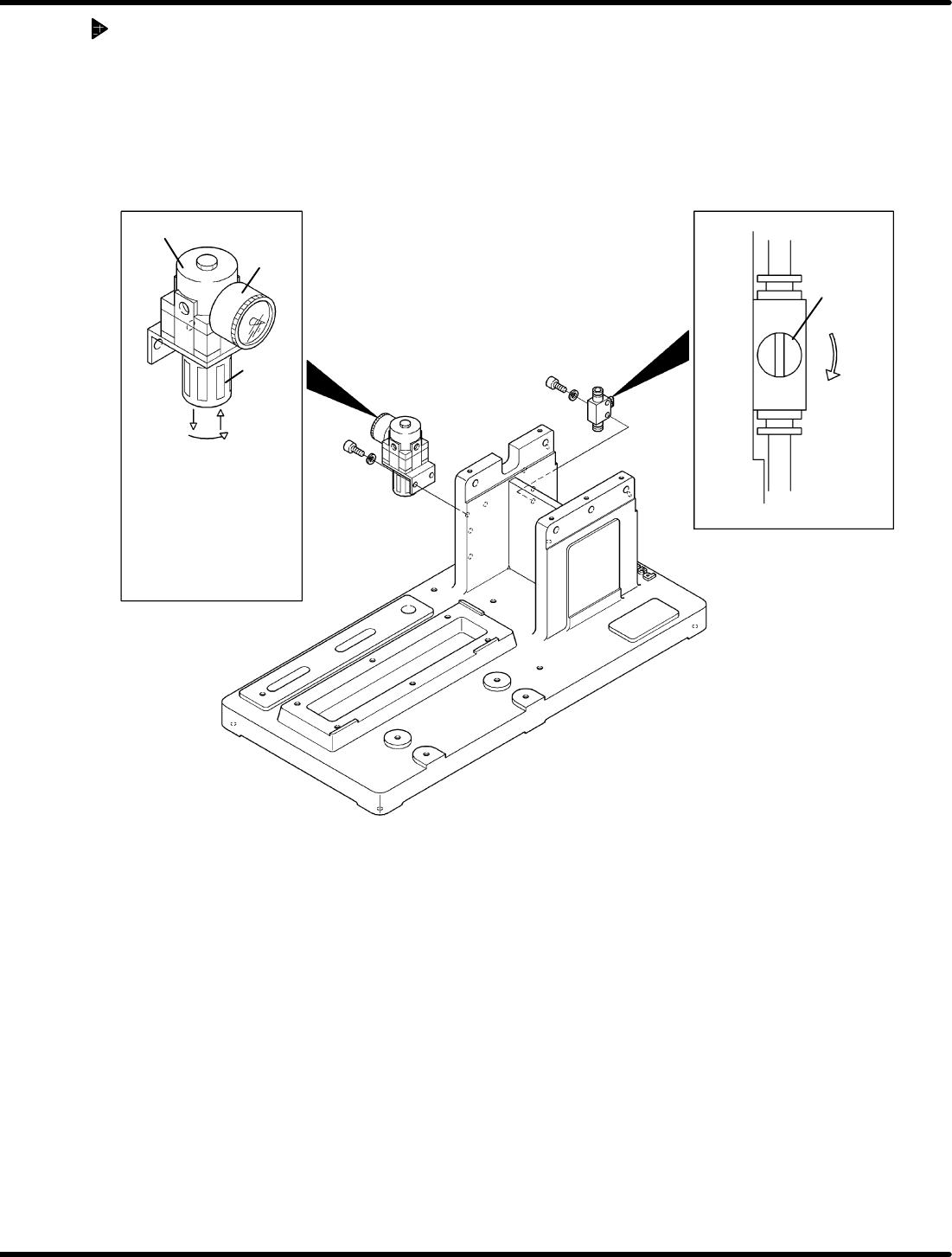

1. Open the air valve.
2. Check the air pressure.
Use the regulator to adjust the pressure if necessary. (0.4 MPa (4.1 kgf/cm
2
))
=REMARKS=
Depending on models, the supplied pressure may differ. The tape feeders, however, can be
operated as usual.
(1) (3)
(2)
Regulator
Pressure
gauge
Knob
(1) Pull down the knob to
unlock the regulator.
(2) Turn the knob to
adjust the pressure.
(3) Push up the knob
to lock the regulator
in place.
Valve
