5.2 Routine Check Item
Feeder Inspection Unit
5.2−1
DX1OEC−80−080−A0
5.2 Routine Check Item
DX1OEC−80−080−A0
Sentence No.
No. Check Item Check method and point Check period
1 Check gauge jig
accuracy
• Check the installation accuracy of the block and
guide pin.
Once a year
2 Camera LED check
and replacement
• If the intensity is insufficient even after the LED is
adjusted, replace the LED.
When the intensity
is weak, replace
the LED after about
10,000 hours of
use.
3 Lubrication
• Lubricate the movable parts regularly.
Refer to ‘5.3.3’ and
‘5.3.4’.
Feeder Inspection Unit
5.2 Routine Check Item
5.2−2
DX1OEC−80−080−A0

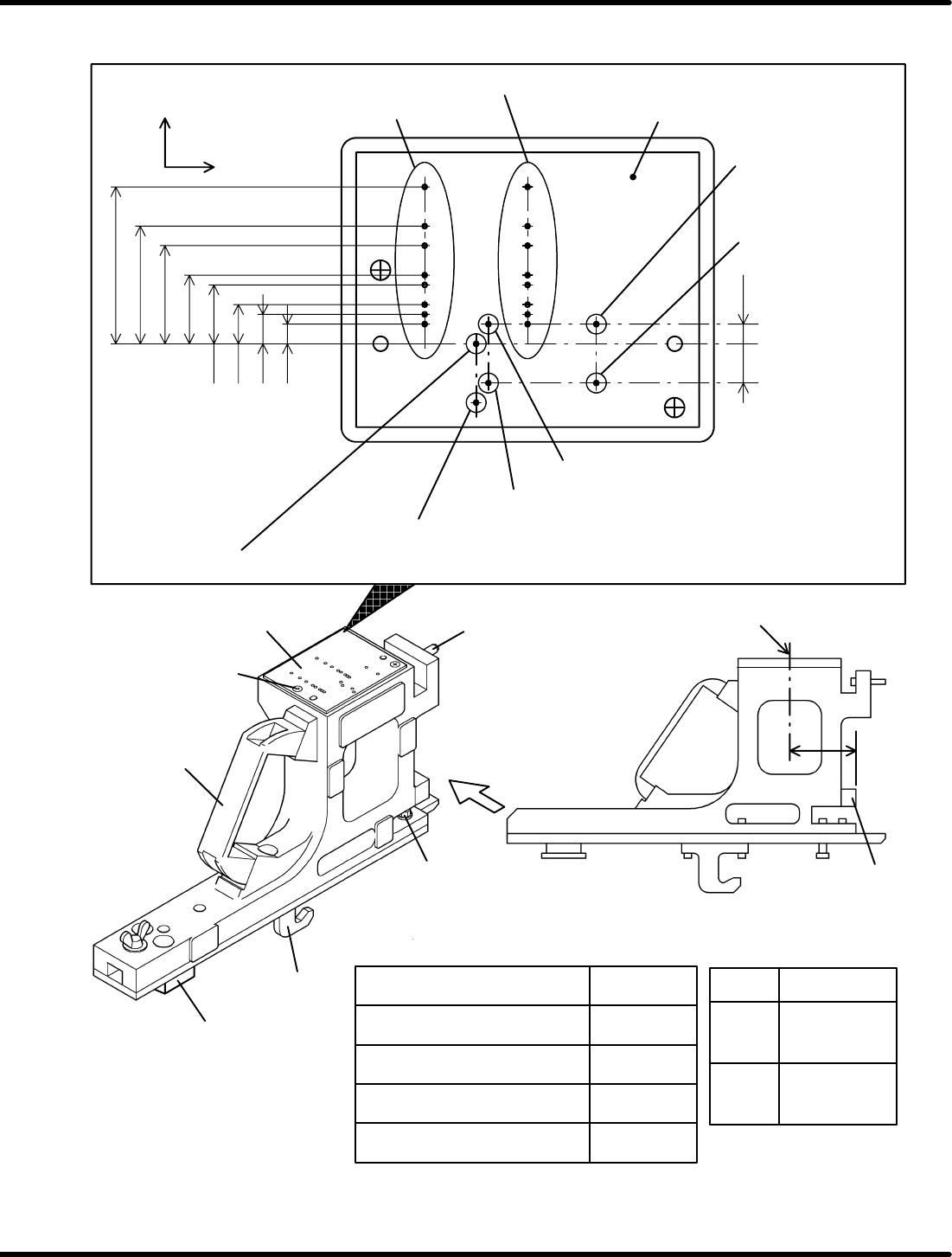

5.2.1 Gauge Jig Precision Check
A
72
56
44
32
16
8
72
56
44
32
24
16
12
V
MOTOR AIR
V
W
24
12
0603
8
W
34.2
26.2
20.2
14.2
11.5
7.5
5.5
3.5
10.75
X direction
(Width direction)
Y direction
(Feed direction)
Plate
V
L
: Pickup position (Double feeder, L side)
Pneumatic feeder
Motorized feeder
Pneumatic double feeder
(R side)
Pneumatic double feeder
(L side)
V
R
: Pickup position (Motorized feeder, pneumatic feeder, double feeders; R side)
Pneumatic double feeder
for 0603 (R side)
Pneumatic double feeder for 0603 (L side)
Block
Clamp claw
Guide pin
Gauge jig
Set screw of plate
Plate
Guide pin
The distance between the stopper and the center of the wheel
position and its accuracy vary with the feeder type as summarized in
the following tables.
Stopper
Center of wheel position
Motorized feeder
Feeder type
Pneumatic feeder
Distance A
38mm
78mm
54mm
62mm
Pneumatic double feeder
(8 mm)
Pneumatic double feeder
(For 0603)
Width
8mm
Accuracy (Both X
and Y directions)
±0.05mm
±0.025mm
12 to
72mm
