1 - 12
Student Guide SIPLACE X
4 Collect &Place-Head 6/12 Edition 02/2005
12

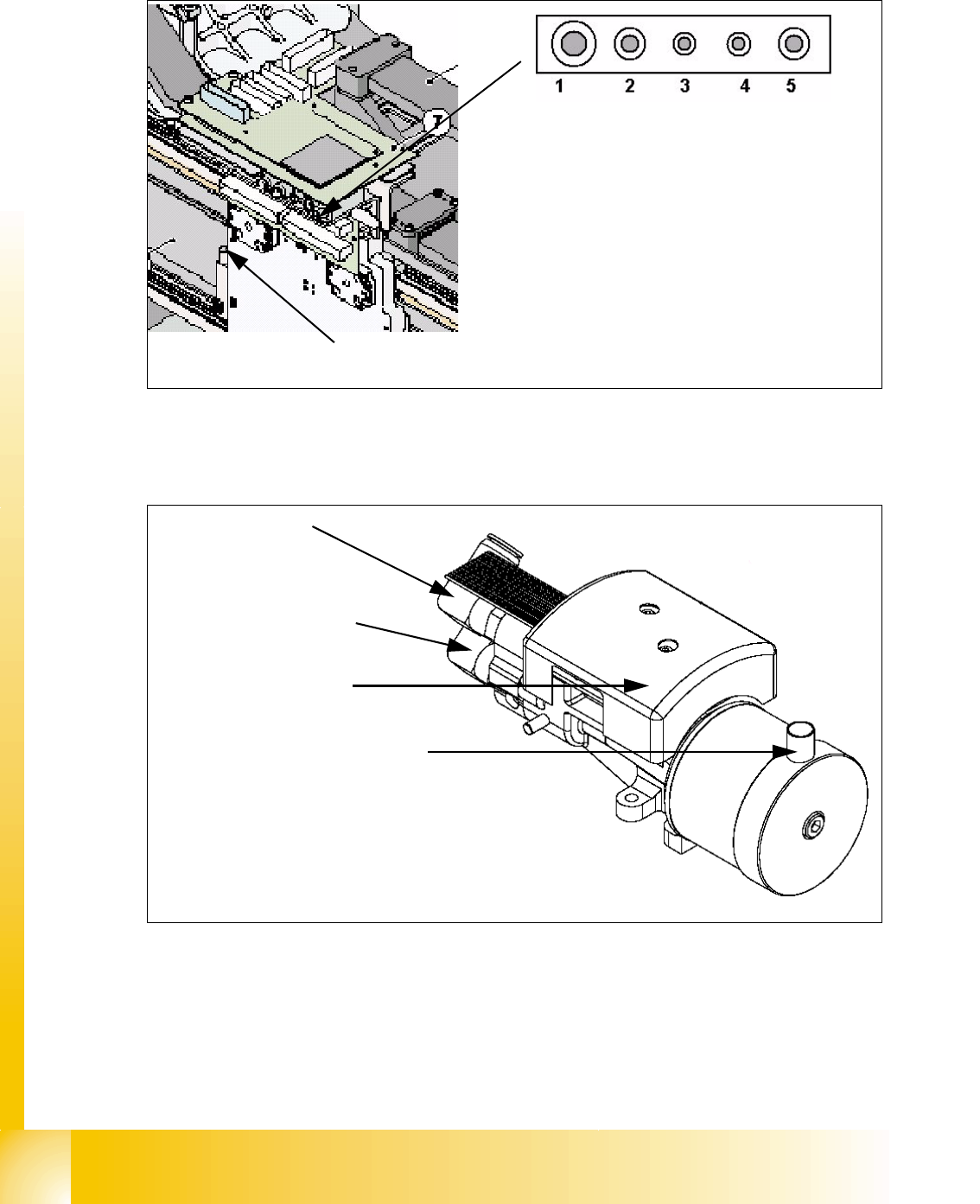

4.1.4 Pressure air supply DLM 2 C&P head
Fig. 4.1 - 6 Pressure air connectors C&P head
4.1.4.1 Vacuum generator DLM 2
Fig. 4.1 - 7 Vacuum generator DLM 2 head
(1) Pressure air connector for C&P-head Va-
cuum-holding circuit 4,7 bar Input pressure air
for the Placement head
(2) Pressure air connector for C&P-head Va-
cuum-pick up circuit with branching for the air
kiss supply 4,7 bar Input pressure air for the
Placement head
(3)-(5) Blind connector (Connector for Twin head)
Pressure air connector for cooling
X-Motor
(1) Holding circuit
(2) Pick up- and Placement circuit
w
ith branching for air kiss
V
acuum measuring board
Pressure air connector for cooling
the X-motor on the silencer (exhaust
air from the vacuum system)
1 - 13
Student Guide SIPLACE X
Edition 02/2005 4 Collect &Place-Head 6/12
13

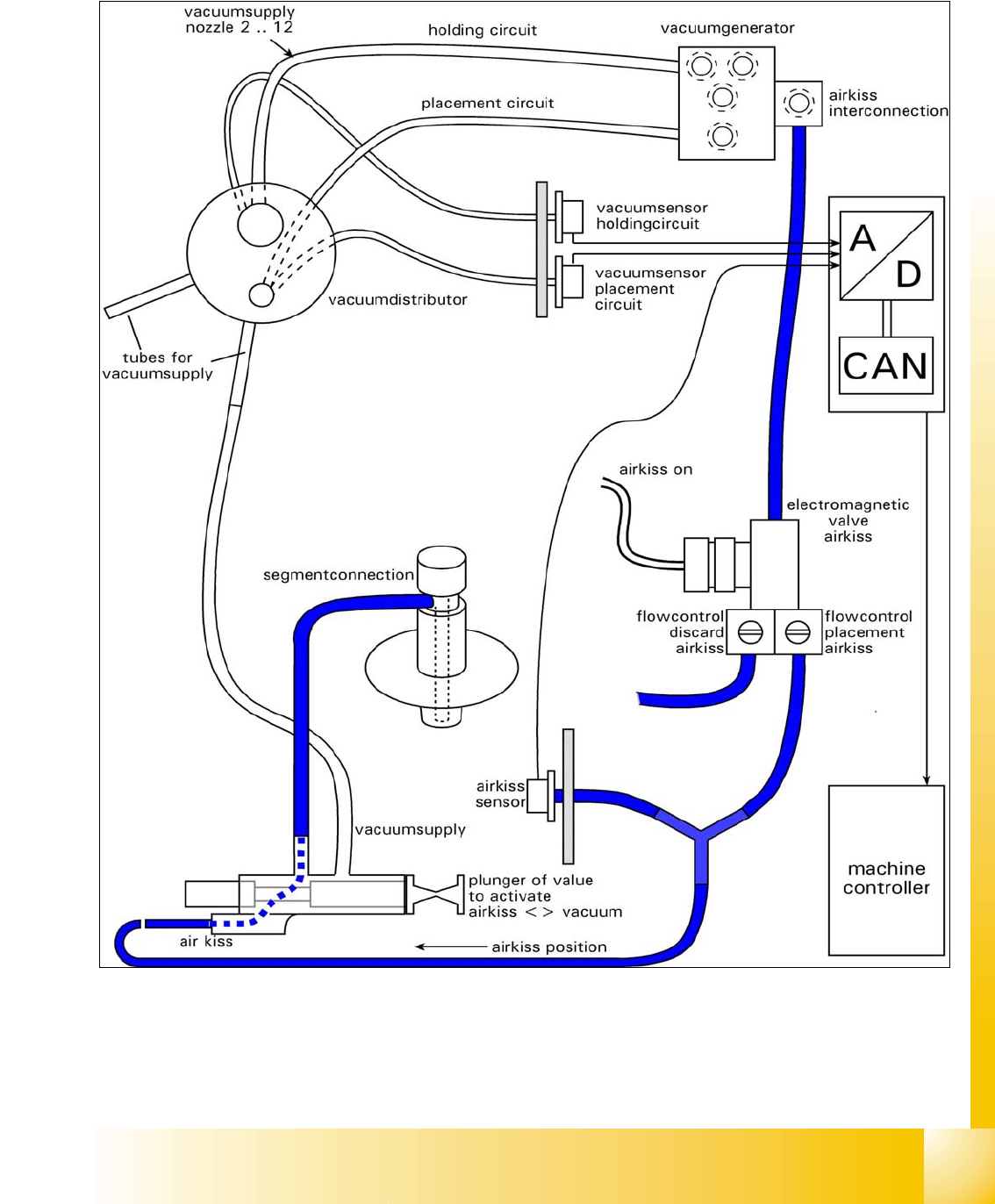

4.1.5 Overview air kiss supply
4
Fig. 4.1 - 8 General overview of the function Air kiss
4
4
1 - 14
Student Guide SIPLACE X
4 Collect &Place-Head 6/12 Edition 02/2005
14

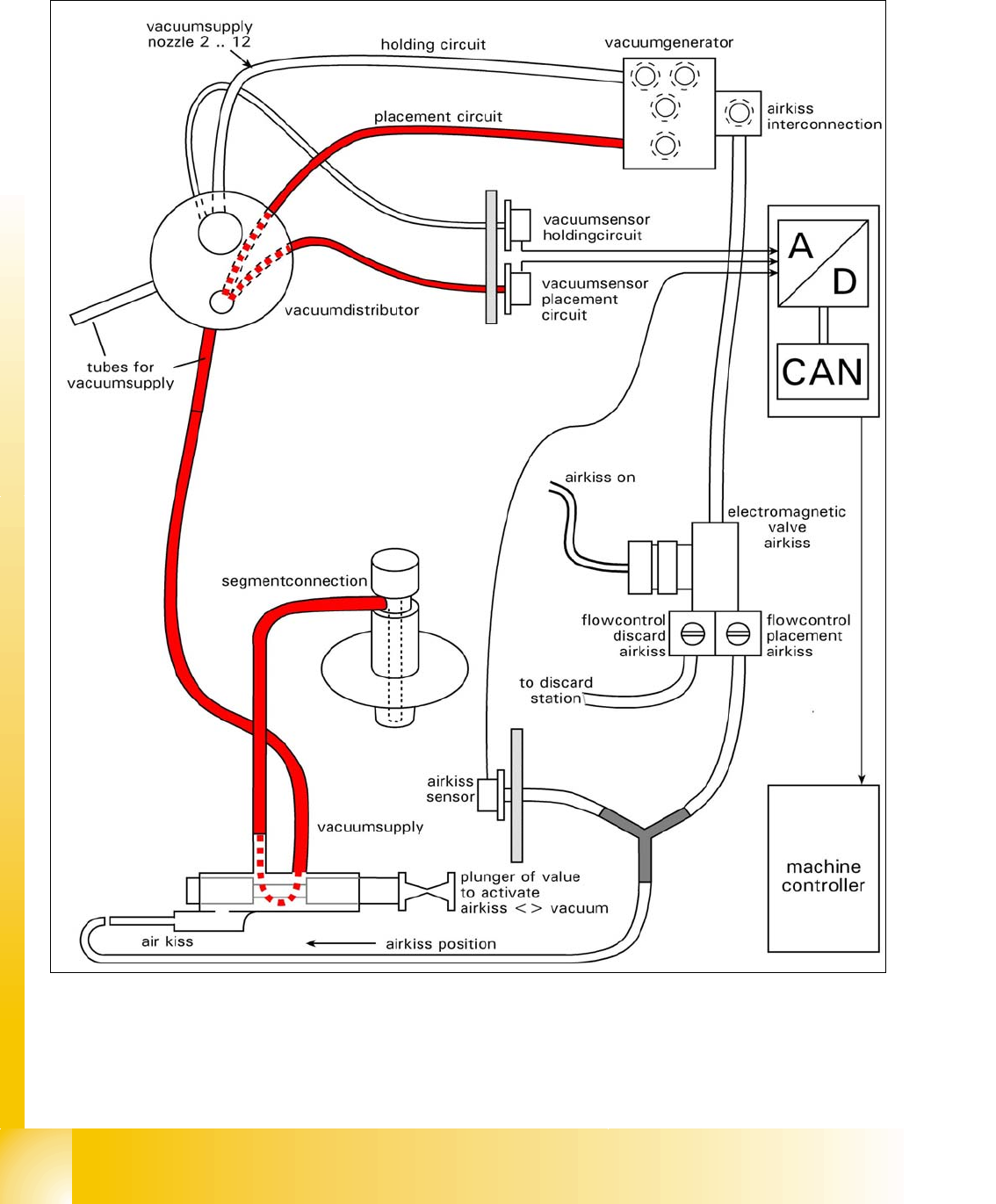

4.1.6 Overview vacuum supply
4
Fig. 4.1 - 9 General overview of the fnction Vacuum
4
4
