1 - 55 S tudent Guide SIPLACE X Edition 02/2005 4 Coll ect &Place-Head 6/12 55 4.4.1.3 SP_12 Digit al intermediate distribution board (00330648-05) 4 Fig. 4.4 - 3 SP6_12 intermediate distribution board (Picture DLM 1…
1 - 54
Student Guide SIPLACE X
4 Collect &Place-Head 6/12 Edition 02/2005
54
Description LED‘s on the head adapter: 4
– H6 -LZOS Light barrier Z-axis upper stop
– H5 -LZUS Light barrier Z-axis down position
– H4 -LSM Stepper motor board not connected
– H3 -LSZD Light barrier Swivel in for turning at DP-station
– H2 -LSVZ Light barrier Vacuum / air kiss Z-axis
– H1 -LSVA Light barrier Vacuum / air kiss reject position
– H8 -P15_F 15V Power supply
– H7 -C167
4.4.1.2 Stepping motor board
The stepping motor board for the valve drivers and the swivel function on the DP station is moun-
ted onto the head adapter. Now, the functions are controlled via the 16 Bit processor board on the
head interface.
Fig. 4.4 - 2 Stepping motor board
2
3
1
Stepping motor rejectposition
(for X3/X2. X4 and HF-machine)
Stepping motor pick up-, placement-
(and reject position HF/HF3)
Stepping motor DP-axis
1 - 55
Student Guide SIPLACE X
Edition 02/2005 4 Collect &Place-Head 6/12
55
4.4.1.3 SP_12 Digital intermediate distribution board (00330648-05)
4

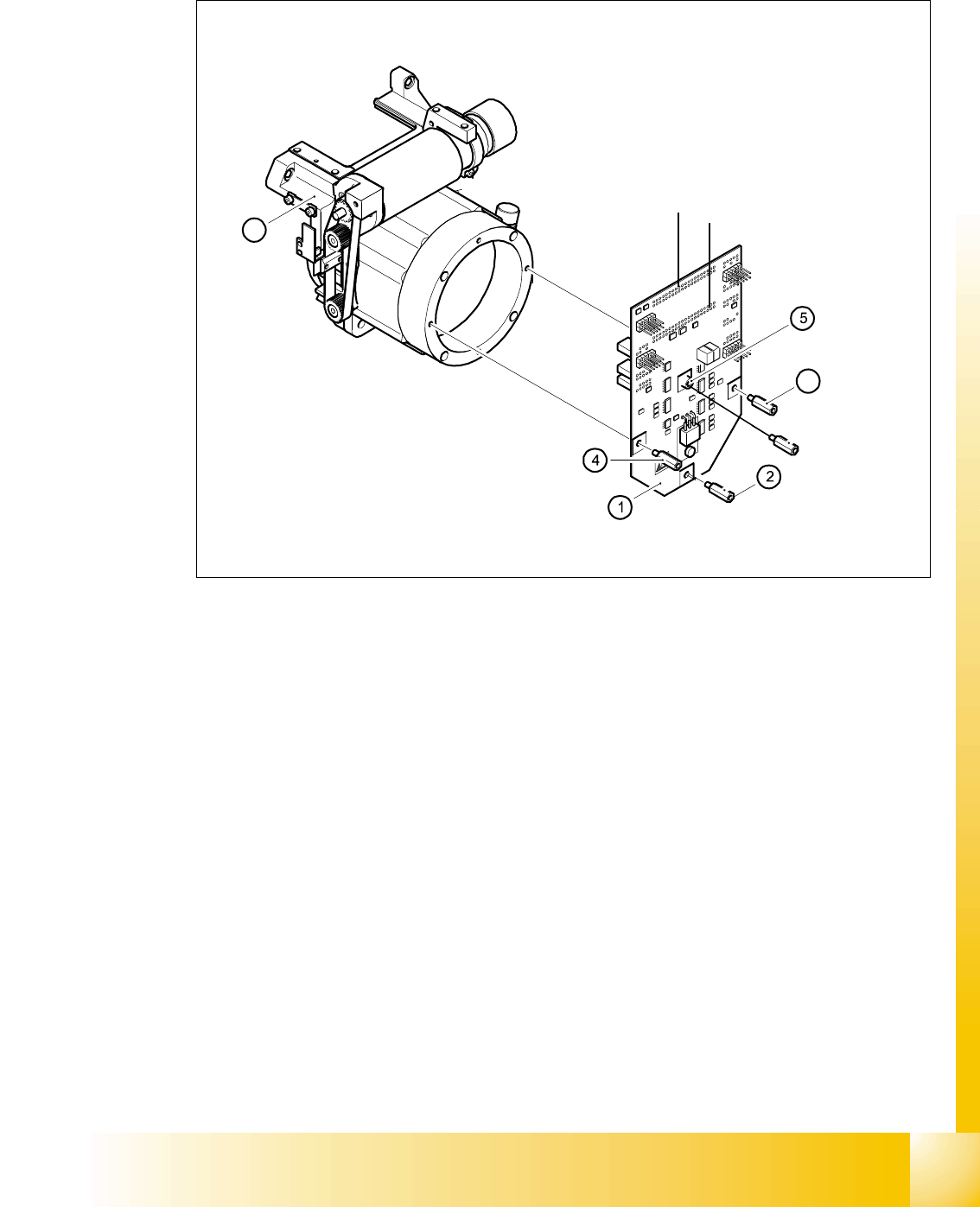

Fig. 4.4 - 3 SP6_12 intermediate distribution board (Picture DLM 1)
Legend
The intermediate distribution board (1) is fixed to the front part (4) with four spacer bolts (items 2,
3,4 and 5). The cover of the intermediate distribution board is fixed with push buttons.
4
Two 40-pin ribbon cables run from plug X1 and X2 on the intermediate distribution board to socket
X14 / X13 on the head board.
(1) Intermediate distribution board (2) M3x10 spacer bolt
(3) M3x10 spacer bolt (4) M3x10 spacer bolt
(5) M3x10 spacer bol (6) Front part of the collect&place head
3
6
X 1
X 2
1 - 56
Student Guide SIPLACE X
4 Collect &Place-Head 6/12 Edition 02/2005
56
.
Abb. 4.4 - 4 Intermediate distributor - position of the sockets
Legende
The following supply voltages and signals are routed by the intermediate distribution board to the
individual placement head modules or to the head board:
4
Plug X1, 40-pin 4
Connected to plug X14 on the head board 4
– Voltage supply, tacho and track signals for the Z-axis drive
– Signal from light barrier "Z-axis in top position"
– Signal from light barrier "Z-axis in bottom position" (sensor stop signal)
– Control signal for the forced air valve
– Supply voltage + 5VDC, ± 15VDC
– Reference point signal for the DP-axis
– Track signals for the DP-axis
(1) Front of the intermediate distributor (2) Back of the intermediate distributor
U4 Pressure sensor for air kiss
X16
