6.4.8 Mechanical adjustment the incremental encoder Z-axis
Please Note:
The incremental encoder on the Z-Axis must be adjust to a distance of 0,4 mm +/- 0,1 mm to the
incremental scale. Please adjust the incremental encoder parallel to the incremental scale. For the
distance use a plastic feeler gauge of 0,4 mm.
After this adjustment of the incremental encoder you have to check the zero pulse and track sig-
nals (see chapter Tracksignals and Zeropulse).
Notes
1 - 33
Student Guide SIPLACE X
Edition 02/2005 6 Twin-Head
33
6.5 Nozzle changer
6.5.1 Nozzle changer for Twin- head
Die Siplace HF/HF3 and SIPLACE X machine will be delivered with a standard nozzle changer for
the twin head. This nozzle changer can hold up to 12 magazines. There are two types of magazine
available: standard magazines and magazines for special nozzles or grippers.
The nozzle changer may be installed depend on the configuration at location 1 and/or 3. The
nozzle changer consist of a standard modul with 3 nozzle holders two standard nozzles and one
special nozzle or gripper. This configuration could be extended see Fig. 6.5 - 1.There are three
’Standard’ (504) magazine configurations.

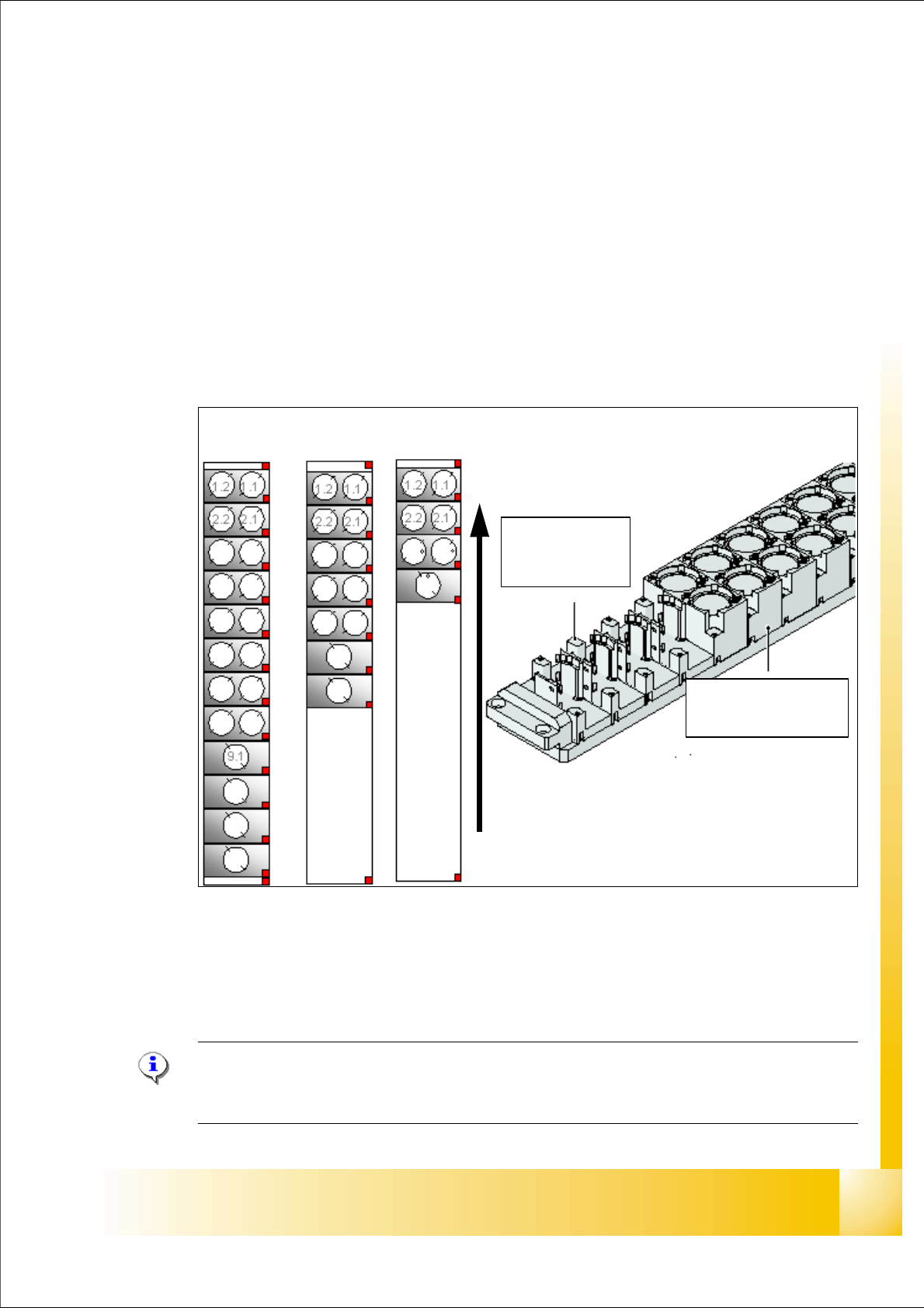

Fig. 6.5 - 1 Nozzle changer configuration TWIN- head
(1) Standard-Nozzle changer
(2) Extended Nozzle changer
(3) Complete Nozzle changer
Please Note:
The magazines for standard, and special nozzles are freely configurable with the SW 505
or higher . 6
Transport direction
3
2
1
Magazine for
1 special nozzle
Magazine for 2
standard nozzles
1 - 34
Student Guide SIPLACE X
6 Twin-Head Edition 02/2005
34
6.5.2 Position and assembly the nozzle changer
6.5.2.1 Position
Fig. 6.5 - 2 Position nozzle changer "Standard configuration" here are on location 3
Legend (The blue numbers show the feeder areas.)
(1) Nozzle changer no. garage 1 (2) Standard magazine set up
(3) Magazine for special nozzles or grippers (4) Component reject bin
Option TWIN on G1
nozzle changer space
