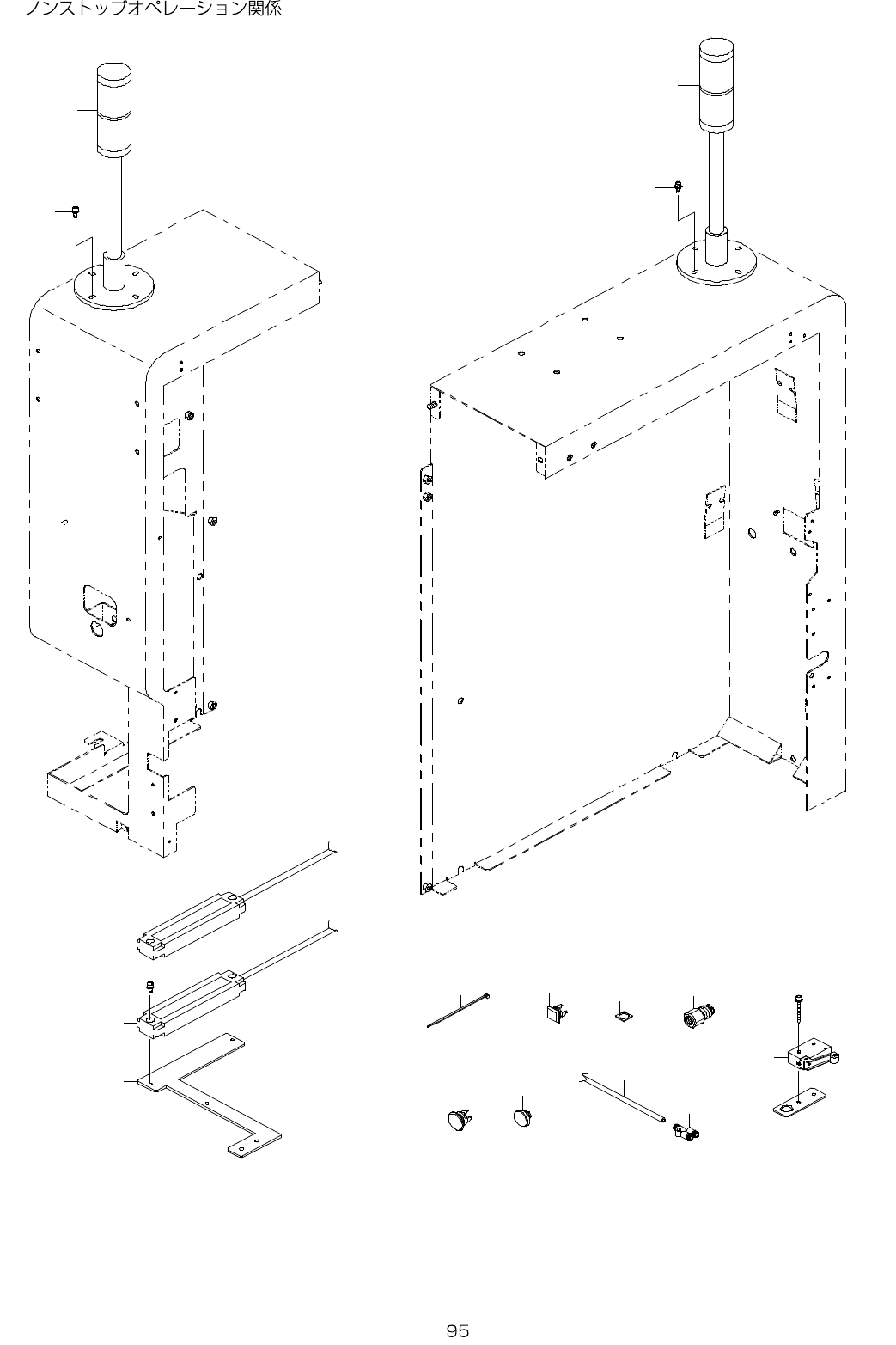

- - 48.N O N -ST O P O PE R A TI O N C OM PO N ENTS 2 1 2 1 3 4 5 6 7 1 5 8 9 1 0 1 1 1 2 1 3 1 4 1 6 1 7
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-27815 F-232C CABLE ASM 1
- -
48.NON-STOP OPERATION COMPONENTS
2
1
2
1
3
4
5
6
7
1 5
8
9
1 0
1 1
1 2
1 3
1 4
1 6
1 7
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9819-729-0A0 MINI PAT CABLE ASM 2
2 SL-6041092-TN SCREW 8
3 EA-9500B01-00 CABLE BAND 10
4
#02
HA-0053700-1A BEZEL 2
5
#02
HA-0053700-20 WASHER 2
6
#01
400-02323 AREA SENS LIGHT ASM(EN) 2
7
#01
400-02324 AREA SENSOR DETECTOR ASM.(EN) 2
8
#01
E6189-729-000 AREA SENSOR BRACKET 4
9
#01
SL-6041042-TN BOLT 8
10
#01
PV-0105051-00 MECHANICAL VALVE 2
11
#01
SL-6043592-TN SCREW 4
12
#01
E4325-725-000 BANK SENSOR PLATE (CE NSO) 2
13
#01
PJ-3010651-06 KNIFE UNION 2
14
#01
BT-0600400-EC TUBE HOSE, BLUE 0.2
15
#01
PJ-3080600-03 Y UNION 2
16
#03
HA-0055300-10 LENSE GREEN 2
17
#03
HA-0055300-20 BEZEL 2
