- - 66.R F I D COMPONENT S (M PC) 2 6 7 8 9 3 2 2 5 4 1 1 1 6 1 0 1 2 1 3 1 4 1 5 1 4 1 3 1 7 1 8 1 8 1 7 1 8 1 7 1 8 1 7 1 1 2 0 2 1 1 9 2 2 2 7 2 5 2 8 2 3 2 6 2 4 1 A A
- -

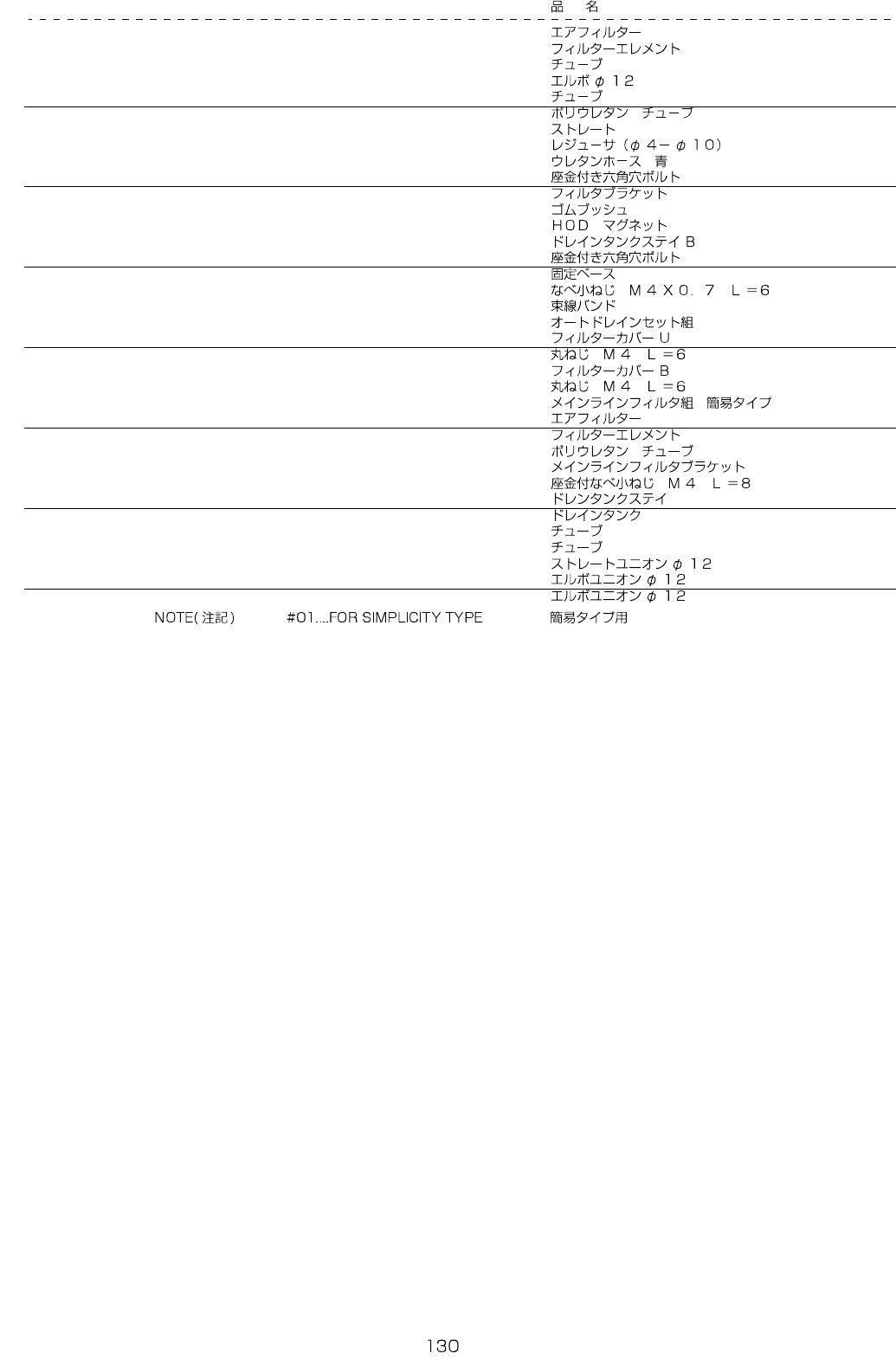

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 PF-0154010-A0 AIR FILTER 1
2 PF-9010070-00 FILTER ELEMENT (1)
3 BT-1200801-EF TUBE 1.3
4 PJ-3041200-01 ELBOW D=12 1
5 BT-1200801-EF TUBE 1.3
6 BT-1000651-EB POLYURETHANE TUBE 0.7
7 PJ-3031000-02 STRAGHT 1
8 PJ-3090400-03 STRAGHT 1
9 BT-0400251-EA TUBE HOSE, BLUE 0.16
10 SL-6061692-TN BOLT 2
11 400-31183 FILTER BRACKET 1
12 HX-0005500-0J RUBBER BUSHING 1
13 E1387-700-000 HOD MAGNET 2
14 400-17146 DRAIN TANK STAY B 1
15 SL-6040892-TN BOLT 2
16 HX-0029400-00 FIXED BASE 1
17 SM-4040601-SC SCREW M4X0.7 L=6 1
18 EA-9500B01-00 CABLE BAND 1
19 400-01639 AUTO DRAIN SET ASM 1
20 400-31184 FILTER COVER U 1
21 SM-3040652-TN SCREW M4 L=6 6
22 400-31185 FILTER COVER B 1
23 SM-3040652-TN SCREW M4 L=6 4
24
#01
400-73378 MAIN LINE FILTER ASM SIMPLICIT 1
25 PF-0154010-A0 AIR FILTER (1)
26 PF-9010070-00 FILTER ELEMENT (1)
27 BT-1000651-EB POLYURETHANE TUBE (0.175)
28 400-73362 MAIN LINE FILTER BRACKET (1)
29 SL-4040891-SC SCREW M4 L=8 (2)
30 400-73363 DRAIN TANK STAY (1)
31 400-16815 DRAIN TANK (1)
32 BT-1200801-EF TUBE (0.5)
33 BT-1200801-EF TUBE (0.5)
34 400-73368 STRAIGHT UNION 12 (1)
35 PJ-3041254-01 ELBOW UNION D=12 (2)
36 PJ-3041254-01 ELBOW UNION 12 2
- -
66.RFID COMPONENTS (MPC)
2
6
7
8
9
3
2
2
5
4
1 1
1 6
1 0
1 2
1 3
1 4
1 5
1 4
1 3
1 7
1 8
1 8
1 7
1 8
1 7
1 8
1 7
1 1
2 0
2 1
1 9
2 2
2 7
2 5
2 8
2 3
2 6
2 4
1
A
A
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-73032 4 PORT MPC 1
2 HX-0066000-00 DUST COVER 3
3 400-73033 SWITCHING HUB 1
4 SL-6030892-TN SCREW M3 L=8 4
5 SL-6030692-TN SCREW M3 L=6 4
6 EA-9500B01-00 CABLE BAND 3
7 HX-0006500-0A CABLE CLIP 10
8 401-22635 MPC_BR_A 1
9 401-22636 MPC_BR_B 1
10 401-22637 MPC_BR_C 1
11 SL-6040892-TN BOLT 4
12 HX-0033900-0L SPACER 4
13 L127E-021-000 COVER CUSHION 4
14 SM-6030502-TN SCREW M3 L=5 4
15 401-22638 MPC_COVER 1
16 SL-6040892-TN BOLT 4
17 HX-0029400-00 FIXED BASE 5
18 SM-4040601-SC SCREW M4X0.7 L=6 5
19 SM-3041252-TN SCREW M4 L=12 1
20 WS-0410002-KN SPRING WASHER M4 1
21 WP-0430801-SC WASHER M4 1
22 NM-6040001-SN NUT M4X0.7 1
23 SL-4040691-SC SCREW M4 L=6 1
24 SL-4030691-SC SCREW M3 L=6 1
25 401-22506 SHIELDING TUBE 1
26 SL-4040691-SC SCREW M4 L=6 1
27 401-22518 MPC POWER CABLE (60) ASM 1
28 401-22522 RFID CONTROL BOX FG CABLE (60) 1
