- - 51.C O P LA N ARIT Y U N IT 1 3 6 2 3 2 1 2 2 2 0 1 9 1 8 1 7 1 6 2 8 1 1 2 6 1 5 4 1 3 1 4 2 7 2 9 3 0 3 1 3 2 3 3 3 4 3 5 3 8 3 7 6 7 1 2 5 2 4 8 9 1 0 1 0 8 9 1 8 2 5 2 3 2 3
- -

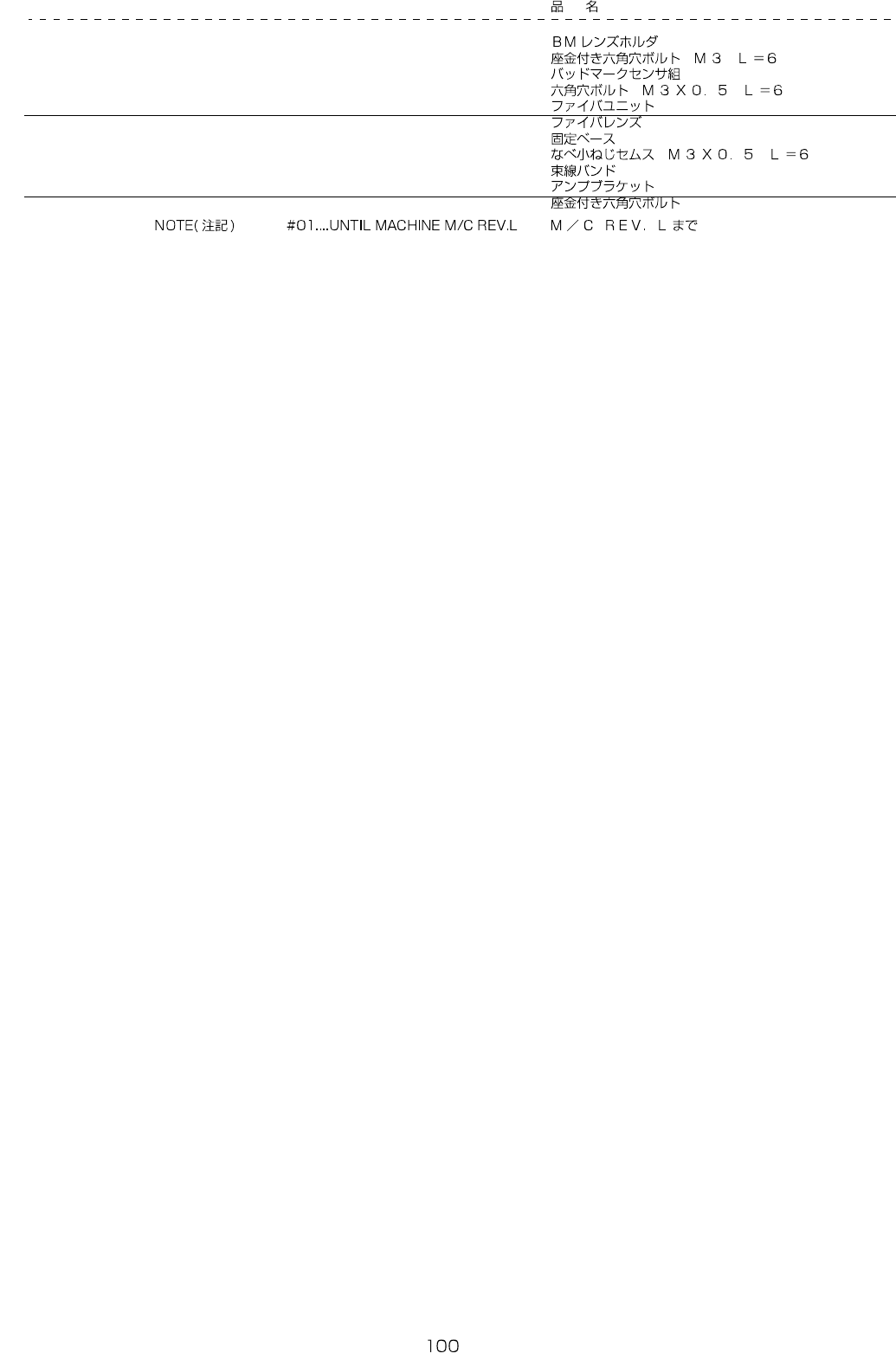

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-01300 BM LENS HOLDER 1
2 SL-6030692-TN SCREW M3 L=6 2
3 400-02267 BAD MARK SENSOR ASM 1
4 SM-6030602-TN HEX SCREW M3 X 6 2
5 HD-0013100-30 FIBER UNIT 1
6 E9638-729-000 FIBER LENS 1
7 HX-0029400-00 FIXED BASE 2
8 SL-4030691-SC SCREW M3X6 2
9 EA-9500B01-00 CABLE BAND 4
10
#01
400-63956 AMP BRACKET 1
11
#01
SL-6032092-TN BOLT 1
- -
51.COPLANARITY UNIT
1 3 6
2
3
2 1
2 2
2 0
1 9
1 8
1 7
1 6
2 8
1 1 2 6
1 5
4
1 3
1 4
2 7
2 9
3 0
3 1
3 2
3 3
3 4
3 5
3 8
3 7
6
7
1 2
5
2 4
8
9
1 0
1 0
8
9
1 8
2 5
2 3
2 3
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#02
E6500-729-000 COPLA SENSOR BRACKET 2025 1
2 SL-6062092-TN SCREW M6 L=20 2
3 SL-6041092-TN SCREW 4
4 400-01717 COPLANALITY SUB UNIT 1
5 400-46150 COPLANARITY PC COVER (1)
6 SM-3061252-TN SCREW M6 L=12 (2)
7 WP-0641601-SC WASHER (2)
8 SL-6030892-TN SCREW (4)
9 HX-0034400-00 HARNESS PARTS (2)
10 SL-6041292-TN SCREW (4)
11 HN-0014900-0A CLAMP FILTER (3)
12 E1049-729-000 ADJUSTER RUBBER SHEET (2)
13 400-01719 COPLANALITY COVER B (1)
14 HX-0055600-00 EDGE SADDLE (1)
15 400-28131 LCD DISP (1)
16 EA-9500B02-00 CABLE BAND 150 (20)
17 E9676-729-000 VGA TRANSFER SWITCH (1)
18 WP-0320501-SC WASHER M3 (4)
19 SL-6032542-TN SCREW (2)
20 400-01720 VGA SWITCH BRACKET (1)
21 SM-3040652-TN SCREW M4 L=6 (2)
22 WP-0430801-SC WASHER 4.3X9X0.8 (2)
23 400-46680 COPLANARITY UNIT ASM (1)
24 400-63760 COPLANARITY UNIT (1)
25 400-63761 COPLA_SENSOR_CABLE (1)
26 HN-0014900-00 CLAMP FILTER(L) (4)
27 E2156-998-000 COPLA HORIZONTAL FEED SHAFT (1)
28 400-03305 SHIELDING TUBE (1)
29 400-02289 COPLA I F CABLE ASM. 1
30 400-02290 COPLA RS232C CABLE ASM. 1
31 400-02291 COPLA SENSOR POWER CABLE ASM. 1
32 400-02292 COPLA AC POWER RELAY CABLE ASM 1
33 400-02293 COPLA VGA CABLE ASM. 1
34 400-02295 COPLA TOUCH VGA CABLE ASM. 1
35 400-02296 COPLA TOUCH VGA EXT CABLE ASM. 1
36
#01
E6501-729-000 COPLA SENSOR BRACKET 12 1
37 E9858-729-0A0 COPLA AC POWER CABLE ASM. 1
38 400-02332 COPLA FG WIRE ASM. 1
