- - 9. V CS COMPONENTS 1 4 1 4 1 6 9 1 1 1 3 1 2 3 6 3 8 3 9 1 7 1 7 1 9 2 2 2 1 2 3 2 4 2 8 2 9 A A 3 1 2 7 2 6 3 2 3 3 3 0 2 0 3 4 3 5 B B 7 8 7 9 5 8 8 2 8 0 8 1 7 0 6 9 6 5 6 6 6 7 6 8 7 1 7 4 7 5 7 6 5 9 6 4 7 7 1…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-01271 ATC 50 ASM. 1
2
#02
400-01273 ATC 60NC ASM. 1
3
#03
400-01273 ATC 60HC ASM. 1
4
#04
400-18633 ATC60 EC ASM 1
5 400-01276 ATC ASM. (1)
6 HX-0029400-00 FIXED BASE (2)
7 EA-9500B01-00 CABLE BAND (2)
8 ST-4040651-SN SCREW M4 X 6 (2)
9 400-01279 ATC BASE PLATE (1)
10 SL-6030892-TN SCREW (2)
11 SM-6031202-TN B0LT (1)
12 NM-6030001-SC NUT M3 (1)
13 400-01277 ATC SENSOR BRACKET (1)
14 SL-6030892-TN SCREW (2)
15 400-02128 ATC OPEN SENS ASM (1)
16 400-02127 ATC CLOSE SENS ASM (1)
17 SM-4030501-SC SCREW M3X0.5 L=5 (4)
18 400-01287 SLIDE BASE (8)
19 E2117-802-000 TUBE CLAMP (1)
20 SM-1020501-SC SCREW (2)
21 400-01285 GUIDE SPACER (4)
22 E3404-700-000 THRUST WASHER (8)
23 400-01283 SLIDE PLATE (1)
24 400-01294 SLIDE PLATE JOINT (2)
25 WP-0451016-SP WASHER 4.5X20X1 (4)
26 SL-6042092-TN SCREW M4 L=20 (4)
27 400-42709 AIR CYLINDER (1)
28 PC-0105080-00 SPEED CONTROLLER (2)
29 SM-6040802-TN SCREW (2)
30 400-01280 ATC BASE (1)
31 B2107-816-000 WASHER (1)
32 400-01286 ATC SPACER RUBBER (1)
33 400-01284 SLIDE PLATE GUIDE (1)
34 SL-6030892-TN SCREW (2)
35 400-01282 ATC SENSOR DOG (2)
36 NM-6030001-SC NUT M3 (4)
37 GLA-02335000 CLAMP WASHER (1)
38 E3528-729-000 ATC JOINT (1)
39 PV-1502060-A0 5 PORT MAGNETIC TRANSFER VALVE (1)
40 PJ-3010605-03 HALF UNION (1)
41 PX-0505010-00 SILENCER (2)
42 SL-6030692-TN SCREW M3 L=6 (2)
43 BT-0400251-EA TUBE HOSE, BLUE (0.4)
44 400-00648 NOZZLE CAL PIECE ASSY (1)
45 E5172-729-000 NOZZLE CAL PIECE (1)
46 NM-6080003-SC NUT M8 (1)
47 WP-0841601-SC WASHER 8.4X17.4X1.6 (1)
48 400-02126 CAL VACUUM SENSOR ASSY (1)
49
#05
400-42771 CYLINDER NUT (1)
50
#05
400-42772 CYLINDER STOPPER (1)
51
#02
400-01288 SPACER NC (2)
52
#03
400-01289 SPACER HC (2)
53
#04
400-16645 SPACER EC (2)
54 400-01281 ATC LABEL (1)
55
#01
400-01281 ATC LABEL (1)
56 #01 SL-6062092-TN SCREW M6 L=20 2
57
#02
SL-6062592-TN SCREW 2
58
#03
SL-6063092-TN SCREW M6 L=30 2
59
#04
SL-6065092-TN SCREW M6 L=50 2
- -
9. VCS COMPONENTS
1 4
1 4
1 6
9
1 1
1 3
1 2
3 6
3 8
3 9
1 7
1 7
1 9
2 2
2 1
2 3
2 4
2 8
2 9
A
A
3 1
2 7
2 6
3 2
3 3
3 0
2 0
3 4
3 5
B
B
7 8 7 9
5 8 8 2
8 0
8 1
7 0
6 9
6 5 6 6
6 7 6 8
7 1 7 4
7 5 7 6
5 9 6 4
7 7
1 5
1 0
2 5
1 6
7
8
1 8
4 3
4 2
4 2
C
C
D
D
4 4
4 7
4 5
4 6
5 0
5 2
5 3
5 1
4 9
4 8
5 4
5 5
5 7
5 6
4 0
4 1
4 0
3 7
4 3
1 8
8 3
8 4
8 5
- -

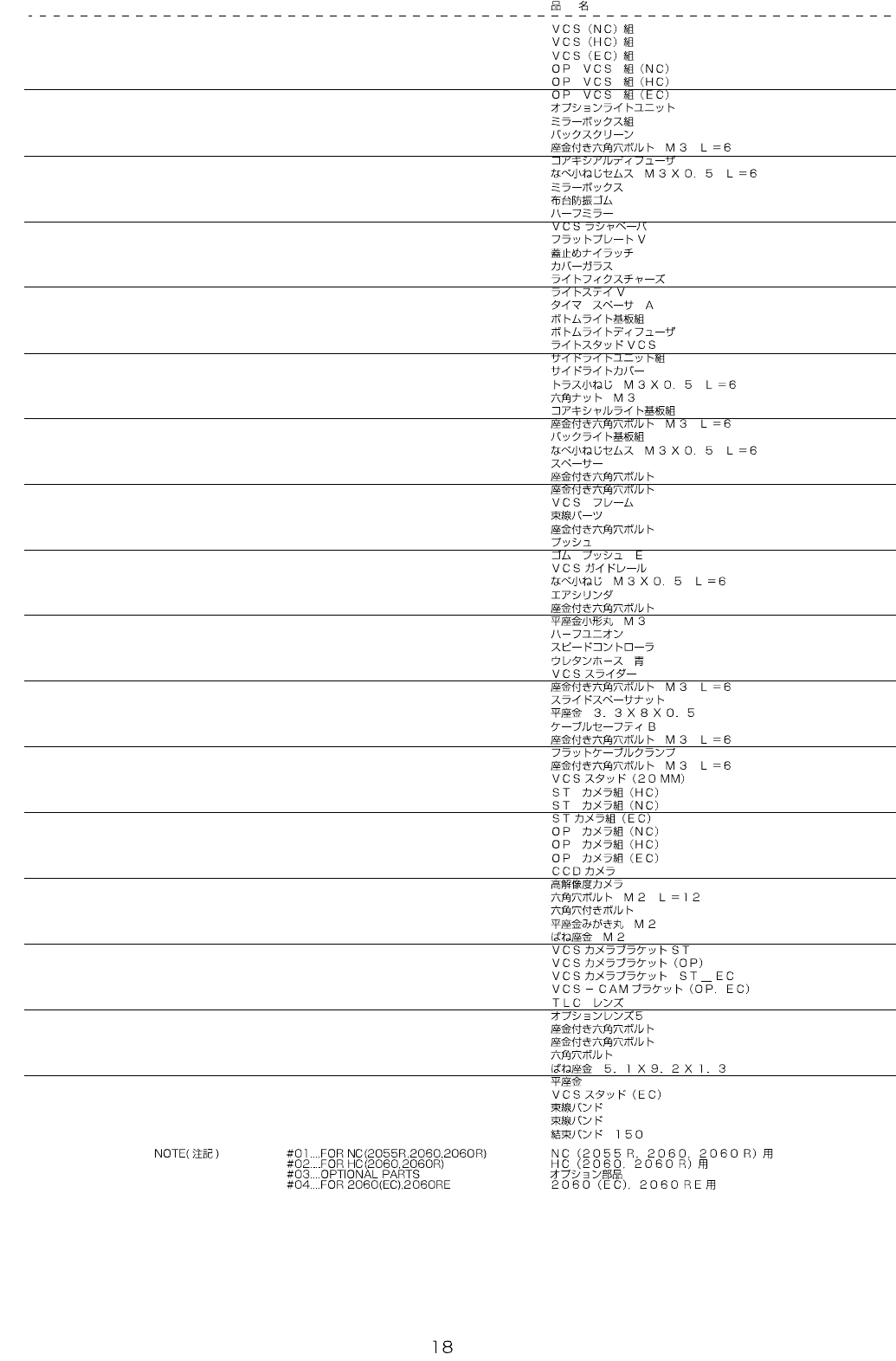

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-00603 VCS (NC) ASSY 1
2 #02 400-00604 VCS (HC) ASSY 1
3
#04
400-18738 VCS(EC)ASSY 1
4
#03
400-00623 OP VCS ASSY(NC) 1
5
#03
400-00624 OP VCS ASSY(HC) 1
6
#03
400-18797 OP VCS ASSY(EC) 1
7 400-00625 OPTION LIGHT UNIT (1)
8 400-00607 MIRROR BOX ASSY (1)
9 400-00620 BACK SCREEN (1)
10 SL-6030692-TN SCREW M3 L=6 (2)
11 400-00621 COAXIAL DIFFUSER (1)
12 SL-4030691-SC SCREW M3X6 (4)
13 400-00617 MIRROR BOX (1)
14 118-04606 RUBBER PLUG (8)
15 400-00618 HALF MIRROR (1)
16 400-00619 VCS FLOCK PAPER (1)
17 400-00609 FLAT PLATE V (2)
18 M8808-301-000 NYLATCH (4)
19 400-00611 COVER GLASS (1)
20 400-00640 LIGHT FIXTURES (1)
21 400-00612 LIGHT STAY V (1)
22 E2143-715-000 TIMER SPACER A (4)
23 400-01917 BOTTOM LIGHT PCB ASM. (1)
24 400-00614 BOTTOM LIGHT DIFFUSER (1)
25 400-23599 LIGHT STUD VCS (4)
26 400-01939 SIDE LIGHT PCB UNIT ASM. (1)
27 400-00615 SIDE LIGHT COVER (1)
28 SM-0030601-SC SCREW M3X0.5 L=6 (4)
29 NM-6030003-SC NUT M3 (4)
30 400-01915 COAXIAL LIGHT PCB ASM. (1)
31 SL-6030692-TN SCREW M3 L=6 (2)
32 400-01911 BACK LIGHT PCB ASM. (1)
33 SL-4030691-SC SCREW M3X6 (4)
34 HX-0035400-0B PCB SUPPORT L=8MM (4)
35 SL-6030642-TN SCREW M3 L=6 (4)
36 SL-6030892-TN SCREW (4)
37 400-00610 VCS FRAME (1)
38 HX-0034400-00 HARNESS PARTS (2)
39 SL-6030592-TN SCREW M3 L=5 (2)
40
#03
HX-0036500-00 PUSH (2)
41
#03
HX-0005500-0E RUBBER BUSHING (2)
42
#03
400-00628 VCS GUIDE RAIL (1)
43 #03 SM-4030601-SC SCREW M3 X 6 (8)
44
#03
PA-0605001-A0 AIR CYLINDER (1)
45
#03
SL-6032542-TN SCREW (2)
46
#03
WP-0320500-SC WASHER M3 (2)
47
#03
PJ-3010405-05 HALF UNION (2)
48 #03 PC-0124070-00 SPEED CONTROLLER (2)
49
#03
BT-0400251-EA TUBE HOSE, BLUE (2.4)
50
#03
400-00629 VCS SLIDER (1)
51
#03
SL-6030692-TN SCREW M3 L=6 (2)
52
#03
400-00630 SLIDE SPACER NUT (1)
53 #03 WP-0330516-SC WASHER 3.3X8X0.5 (1)
54
#03
400-00631 CABLE SAFETY B (1)
55
#03
SL-6030692-TN SCREW M3 L=6 (2)
56
#03
HX-0058000-00 FLAT CABLE CLAMP (1)
57
#03
SL-6030692-TN SCREW M3 L=6 (1)
58 #02 E5215-729-000 VCS STUD (20MM) (4)
59
#02
400-00622 ST CAMERA ASSY(HC) (1)
60
#01
400-00606 ST CAMERA ASSY(NC) (1)
61
#04
400-18779 ST CAMERA ASSY(EC) (1)
62
#03
400-28673 OP CAMERA ASSY(NC) (1)
63 #03 400-28674 OP CAMERA ASSY(HC) (1)
64
#03
400-28675 OP CAMERA ASSY(EC) (1)
65 401-57591 CCD CAMERA (1)
66
#03
400-28240 HIGH RESOLUTION CAMERA (1)
67 SM-6021202-TN SCREW M2 L=12 (4)
68 #03 SM-6030892-TN SCREW (4)
69 WP-0220301-SC WASHER M2 (4)
70 WS-0210002-KN SPRING WASHER M2 (4)
71 401-57622 VCS_CAMERA_BRACKET_ST (1)
72
#03
400-27097 VCS CAMERA BRACKET (OP) (1)
73 #04 401-64539 VCS_CAMERA_BR_ST_EC (1)
74 #03 400-27098 VCS-CAM BRACKET (OP.EC) (1)
75 E3723-700-000 TLC LENS (1)
76
#03
400-00634 OPTION LENS 5 (1)
77 SL-6041292-TN SCREW (2)
78 SL-6051292-TN BOLT (4)
79 #02 SM-6050802-TN BOLT (4)
80
#02
WS-0510002-KN SPRING WASHER (4)
81
#02
WP-0641600-SC WASHER 6.4X12.5X1.6 (4)
82
#04
E5216-729-000 VCS STUD(EC) (4)
83 HX-0006500-0A CABLE CLIP (1)
84 EA-9500B01-00 CABLE BAND (10)
85 EA-9500B02-00 CABLE BAND 150 (15)
