- - 36.P WB C O N VEYO R COMPONEN T S ( 6) 9 5 4 3 1 3 0 1 3 1 4 1 8 1 9 1 5 1 2 3 6 7 8 1 0 1 1 1 2 2 0 2 1 3 1 3 0 2 2 2 6 2 7 2 3 2 5 2 4 2 8 2 9 4 5 4 6 4 7 4 8 4 9 5 0 4 3 5 1 5 3 5 7 5 8 5 6 5 5 5 4 1 7 1 6 3 5 3…
- -

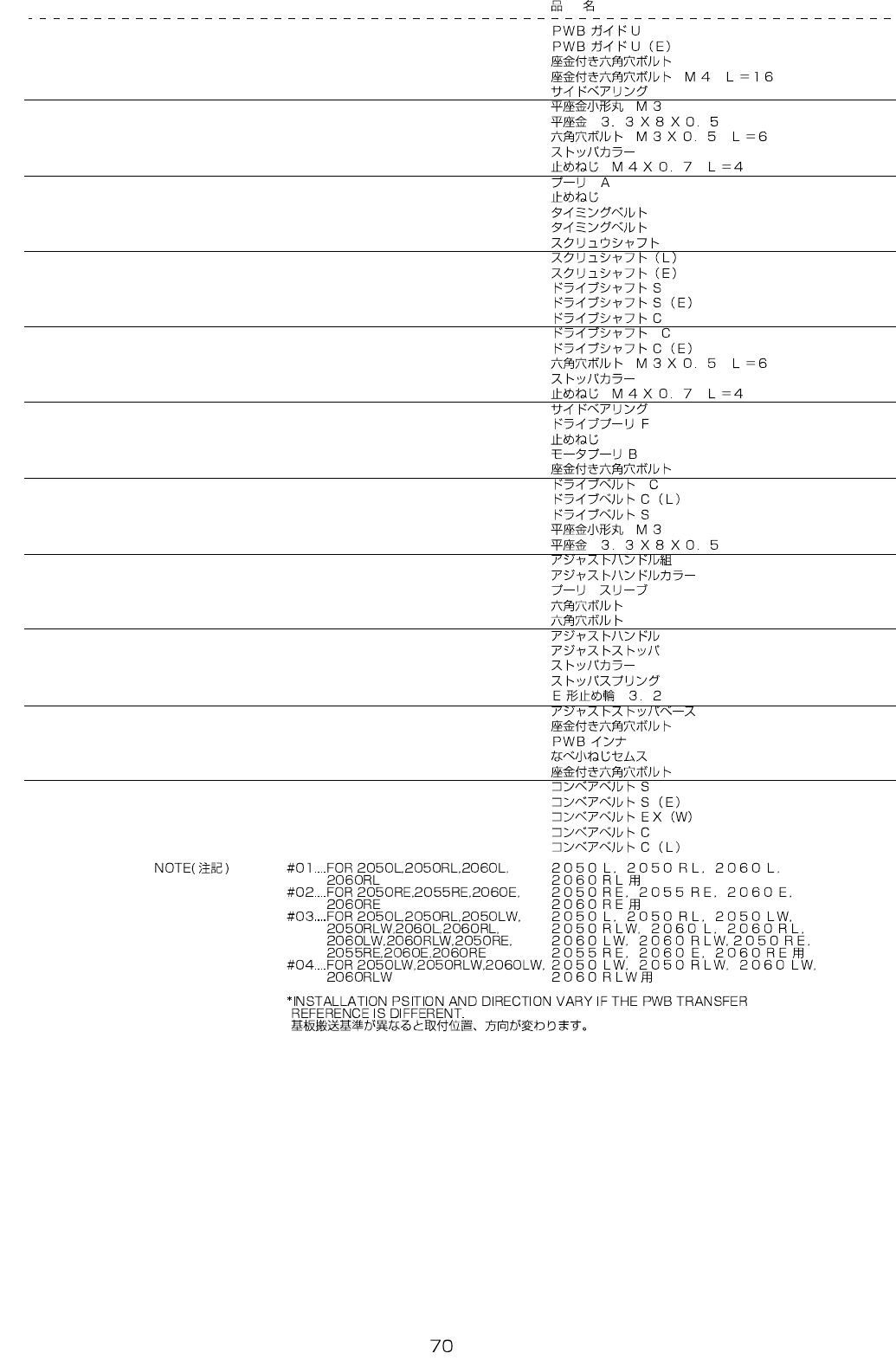

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00861 PWB GUIDE U 8
2
#02
400-01858 PWB GUIDE U(E) 8
3 SL-6031092-TN SCREW 16
4 SL-6041692-TN SCREW M4 L=16 8
5 SB-1080002-00 SIDE BEARING 4
6 WP-0320500-SF WASHER 3.2X7X0.5 8
7 WP-0330516-SC WASHER 3.3X8X0.5 4
8 SM-6030602-TN HEX SCREW M3 X 6 4
9 E2141-721-000 STOPPER COLLAR 2
10 SM-8040402-TP SCREW M4X0.7 L=4 4
11 E2156-721-000 PULLEY A 2
12 SM-8040602-TP SCREW M4X0.7 L=6 4
13 E2015-725-000 TIMING BELT 1
14
#01
E2146-721-000 TIMING BELT 1
15 400-15577 SCREW SHAFT 2
16
#01
400-15578 SCREW SHAFT(L) 2
17
#02
400-01855 SCREW SHAFT(E) 2
18 E2011-725-000 DRIVE SHAFT 2
19 #02 E4051-725-000 DRIVE SHAFT S(E) 2
20 E2004-725-000 DRIVE SHAFT C 1
21
#01
E2152-721-000 DRIVE SHAFT C 3
22
#02
E4004-725-000 DRIVE SHAFT C(E) 1
23 SM-6030602-TN HEX SCREW M3 X 6 6
24 E2141-721-000 STOPPER COLLAR 3
25 SM-8040402-TP SCREW M4X0.7 L=4 6
26 SB-1080002-00 SIDE BEARING 6
27 400-00850 DRIVE PULLEY F 3
28 SM-8040602-TP SCREW M4X0.7 L=6 6
29 400-00851 MOTOR_PULLEY_B 3
30 SL-6031642-TN SCREW 9
31 E2155-721-000 DRIVE BELT C 1
32
#03
400-01005 DRIVE BELT C(L) 1
33 400-00852 DRIVE BELT S 2
34 WP-0320500-SF WASHER 3.2X7X0.5 12
35 WP-0330516-SC WASHER 3.3X8X0.5 6
36 400-00854 ADJUST HAND WHEEL ASM. 1
37 400-00856 ADJUST HAND WHEEL COLLAR (1)
38 E2018-715-000 PULLEY SLEEVE (1)
39 SM-6052002-TN BOLT (1)
40 SM-6041002-TN BOLT (1)
41 400-00855 ADJUST HAND WHEEL (1)
42 400-00858 ADJUST STOPER 1
43 400-00859 STOPER COLLAR 1
44 400-00977 STOPER SPRING 1
45 RE-0320000-K0 E-RING 3.2 1
46 400-00857 ADJUST STOPER BRAKET 1
47 SL-6041292-TN SCREW 2
48 E2046-725-000 PWB INNER 12
49 SL-4031091-SC SCREW M3 X 10 8
50 SL-6031092-TN SCREW 16
51 400-00863 CONVEYOR BELT S 4
52
#02
400-01860 CONVEYOR BELT S(E) 4
53
#04
400-00790 CONVEYOR BELT EX(W) 4
54 400-00864 CONVEYOR BELT C 2
55
#03
400-01070 CONVEYOR BELT C(L) 2
- -

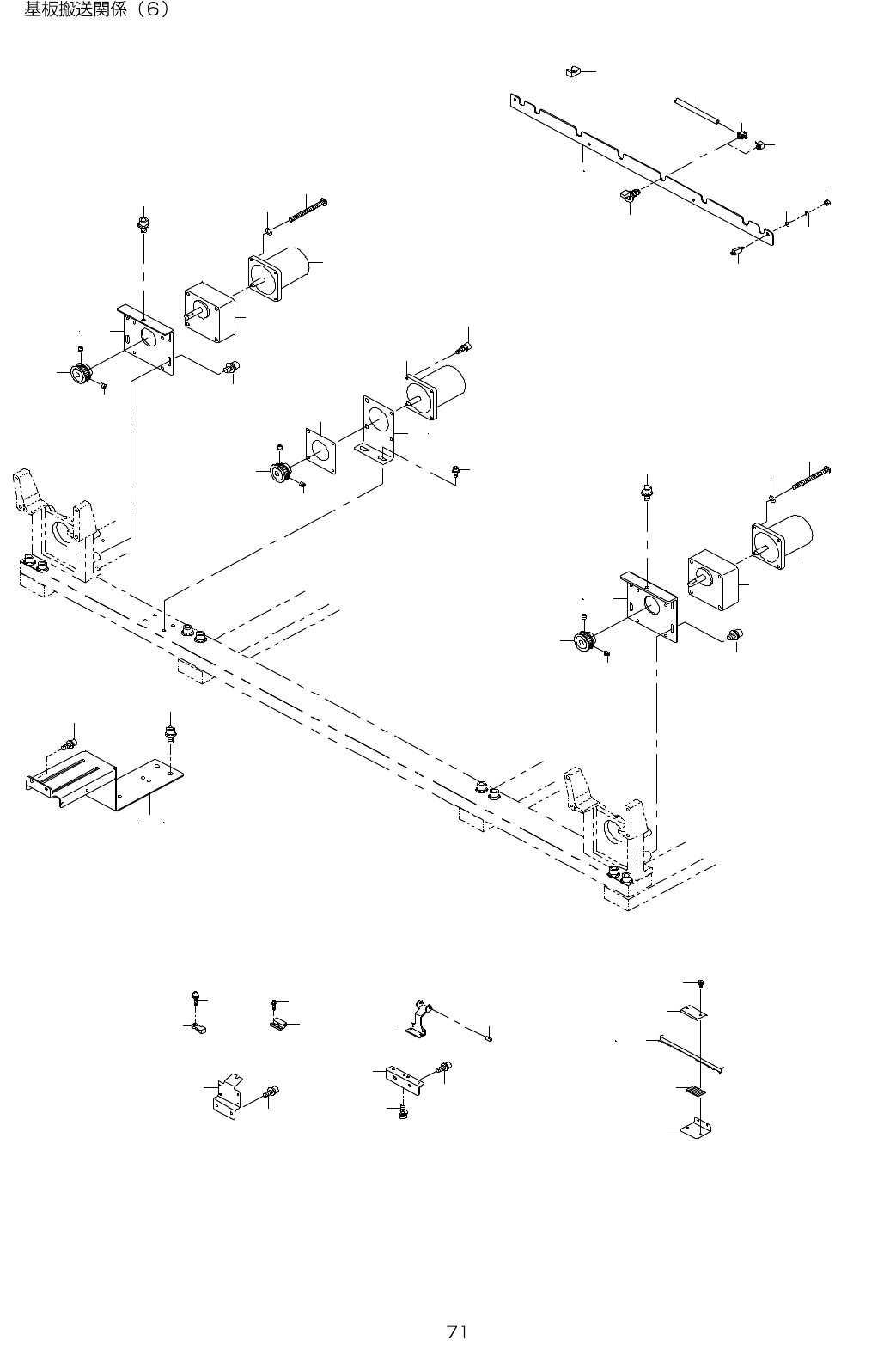

36.PWB CONVEYOR COMPONENTS (6)
9
5
4
3 1
3 0
1 3
1 4
1 8 1 9
1 5
1 2 3
6 7
8
1 0
1 1
1 2
2 0
2 1
3 1
3 0
2 2
2 6 2 7
2 3
2 5
2 4
2 8
2 9
4 5
4 6
4 7
4 8
4 9
5 0
4 3
5 1
5 3
5 7 5 8
5 6
5 5
5 4
1 7
1 6
3 5
3 6
3 7
3 8
3 2 3 3
4 0
4 1
3 9
3 4
4 2
4 4
5 2
4 9
- -

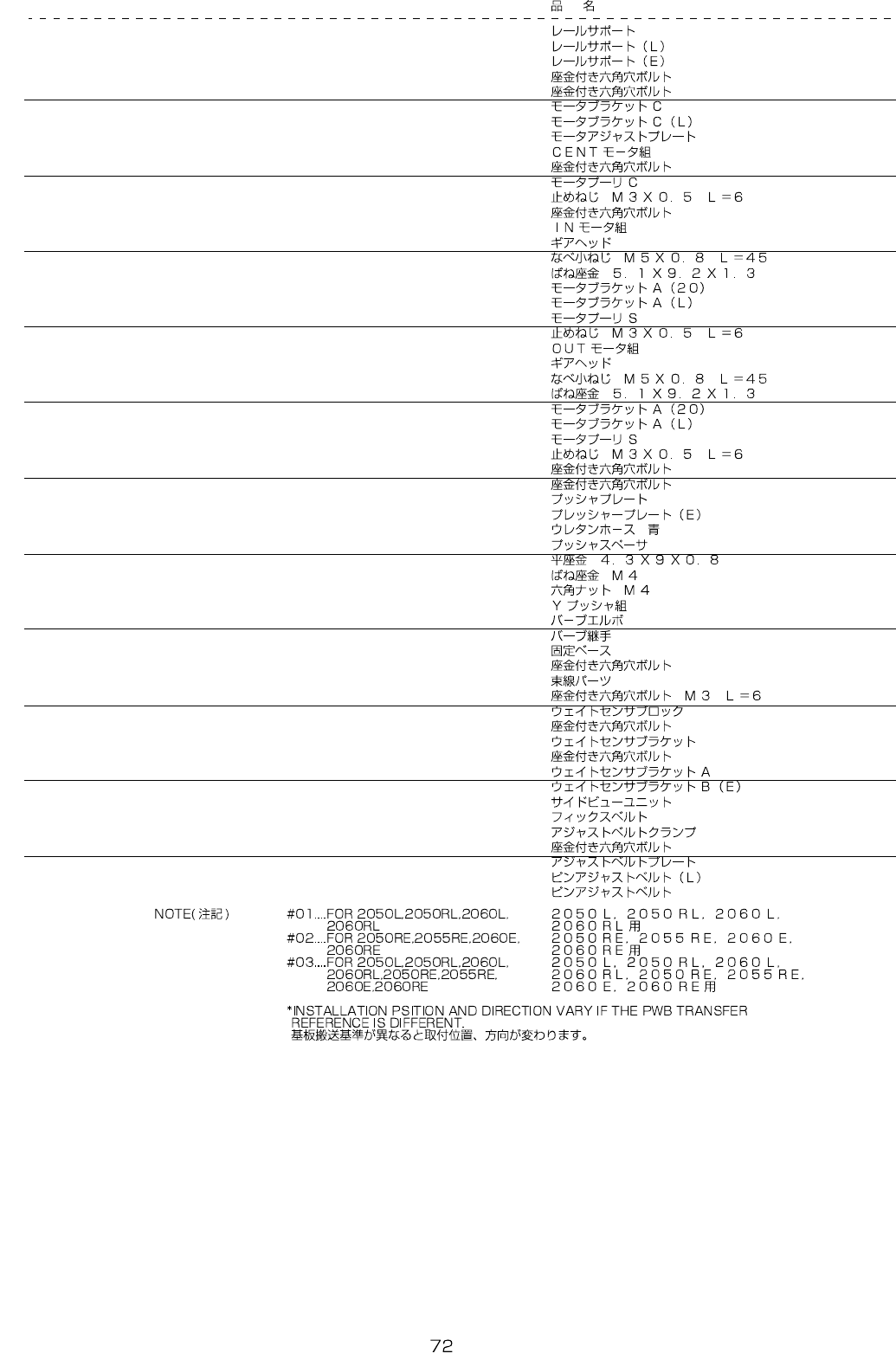

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00865 RAIL SUPPORT 1
2
#01
400-01067 RAIL SUPPORT(L) 1
3
#02
E4018-725-000 RAIL SUPPORT(E) 1
4 SL-6041092-TN SCREW 2
5 SL-6051092-TN BOLT 2
6 400-00868 MOTOR BRAKET C 1
7
#03
400-01009 MOTOR BRAKET C(L) 1
8 400-00869 MOTOR ADJUST PLATE 1
9 E9431-729-0A0 CENT MOTOR ASM. 1
10 SL-6041242-TN BOLT 4
11 400-00870 MOTOR PULLEY C 1
12 SM-8030602-TP SCREW M3X0.5 L=6 3
13 SL-6051292-TN BOLT 2
14 E9454-729-MA0 IN MOTOR ASM. 1
15 HM-0017700-10 GEAR HEAD 1
16 SM-4054501-SC SCREW M5X0.8 L=45 4
17 WS-0510002-KN SPRING WASHER 4
18 E4197-729-000 MOTOR BRACKET A (20) 1
19 #01 400-01053 MOTOR BRACKET A(L) 1
20 400-00872 MOTOR PULLEY S 1
21 SM-8030602-TP SCREW M3X0.5 L=6 2
22 E9456-729-MA0 OUT MOTOR ASM. 1
23 HM-0017700-10 GEAR HEAD 1
24 SM-4054501-SC SCREW M5X0.8 L=45 4
25 WS-0510002-KN SPRING WASHER 4
26 E4197-729-000 MOTOR BRACKET A (20) 1
27
#01
400-01053 MOTOR BRACKET A(L) 1
28 400-00872 MOTOR PULLEY S 1
29 SM-8030602-TP SCREW M3X0.5 L=6 2
30 SL-6051092-TN BOLT 8
31 SL-6051492-TN BOLT 2
32 E2120-725-000 PUSHER PLATE 1
33
#03
E4055-725-000 PUSHER PLATE(E) 1
34 BT-0400251-EA TUBE HOSE, BLUE 0.3
35 E2165-721-000 PUSHER SPACER 4
36 WP-0430801-SC WASHER 4.3X9X0.8 4
37 WS-0410002-KN SPRING WASHER 4
38 NM-6040001-SC NUT M4 4
39 400-00885 Y_PUSHER_ASM 5
40 PJ-0460525-01 ELBOW 1
41 PJ-0460590-05 CONNECTOR 4
42 HX-0029400-00 FIXED BASE 1
43 SL-6030592-TN SCREW M3 L=5 2
44 HX-0034400-00 HARNESS PARTS 3
45 SL-6030692-TN SCREW M3 L=6 3
46 E2090-725-000 WEIGHT SENSOR BLOCK 1
47 SL-6031492-TN SCREW 2
48 400-00875 WAIT SENSOR BRACKET 1
49 SL-6041092-TN SCREW 2
50
#03
400-19162 WAIT SENSOR BRACKET A 1
51
#03
E4092-725-000 WEIGHT SENSOR BRACKET B(E) 1
52
#03
HD-0015200-20 SIDE VIEW UNIT 1
53 400-00880 FIXED BELT 1
54 400-00881 ADJUST BELT CLAMP 1
55 SL-6030892-TN SCREW 2
56 400-00882 ADJUST BELT PLATE 1
57
#03
400-01072 PIN ADJUST BELT(L) 1
58 400-00879 PIN ADJUST BELT 1
