KE-2050_KE-2050R_KE-2055R_KE-2060_KE-2060R-Rev14-.pdf - 第93页
- - REF.NO N OTE PA RT NO D E S C R I P T I O N Qty 1 400-72349 HAND KNO B ASM 1 2 400-72363 HAND KNO B (1) 3 400-72364 HAND KNO B ARM (1) 4 NM-605000 1 -SC NU T M5 (1) 5 WS-0510002-KN SP RING WASHER (1) 6 400-34506 BA…
- -

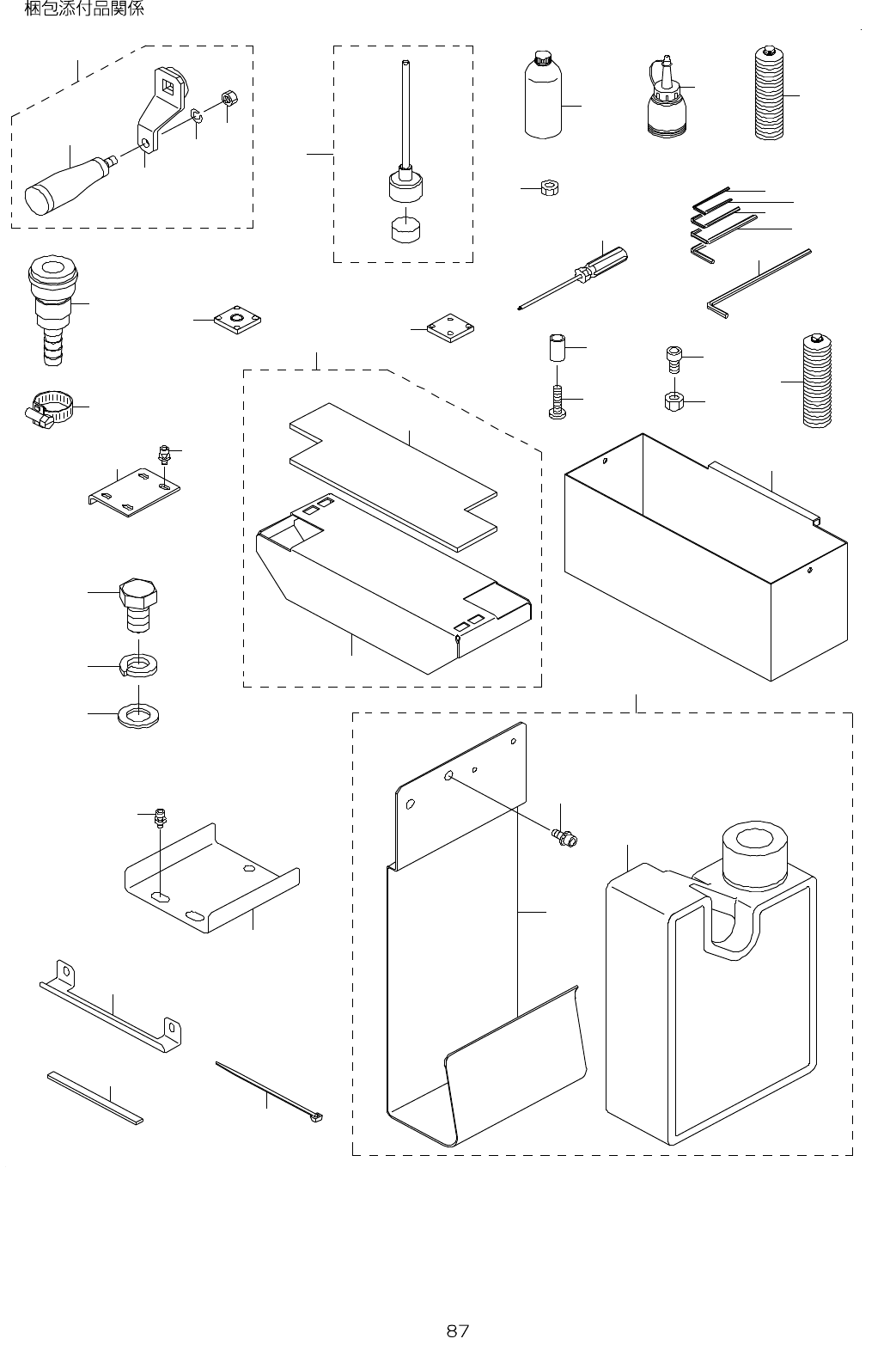

44.ACCESSORIES PART COMPONENTS
3 0
3 1
2 6
2 9
1 3
1 2
1 7
1 6
1 8
1 5
1 4
1 9
2 4
2 5
2 7
3 2
3 4
3 5
3 6
2 0
2 1
3 7
3 8
3 9
8
6
1 0
1 1
9
2 2
3
1
2
4 0
2 3
3 3
7
5
4
2 8
4 1
4 3
4 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-72349 HAND KNOB ASM 1
2 400-72363 HAND KNOB (1)
3 400-72364 HAND KNOB ARM (1)
4 NM-6050001-SC NUT M5 (1)
5 WS-0510002-KN SPRING WASHER (1)
6 400-34506 BACK UP PIN ASSEMBLY 8
7 NM-6050001-SC NUT M5 1
8 MDF-RX1001L0 DEFRIX OIL NO.1 800CC 1
9 400-45258 INSIDE LID ASM 1
10 400-45259 INSIDE LID (1)
11 400-45260 INISIDE LID CUSHION (1)
12 J1067-000-000 OILER 1
13 400-32449 6459GREASE N 1
14 J1066-000-00B HEXAGONAL WRENCH KEY (2MM) 1
15 J1066-000-00C HEXAGONAL WRENCH KEY 2.5 1
16 J1066-000-00D HEXAGONAL WRENCH KEY 1
17 J1066-000-00E HEXAGONAL BOWL WRENCH 1
18 J1066-000-A0G HEXAGONAL LONG SPANNER 1
19 J1080-000-000 BOLL SCREWDRIVER 1
20
#01
111-00500 REVERSE FEED LEVER STOPPER 1
21
#01
SL-6042592-TN SCREW 1
22 400-01601 CHIP BOX 1
23
#01
E5190-729-0A0 CAL PIECE 1
24 PJ-0700000-01 SOCKET 1
25 161-21907 HOSE BAND 1
26 SM-6083002-TN SCREW M8 L=30 12
27 NM-6080002-SC NUT M8 12
28 MGR-EAS050GA C GREASE 1
29 EA-9500B02-00 CABLE BAND 150 10
30 E5501-729-000 X AXIS STOPPER 1
31 SL-6030892-TN SCREW 2
32 400-01631 X FRAME FIXNG PLATE 2
33 SL-6061092-TN SCREW 4
34 400-01133 Z STOPPER 1
35 E3005-729-000 LIMIT DAMPER L 1
36
#02
400-01639 AUTO DRAIN SET ASM. 1
37 400-16814 DRAIN TANK STAY (1)
38 400-16815 DRAIN TANK (1)
39 SL-6040892-TN BOLT (2)
40 E3622-721-000 CAL PIECE A 1
41 288-46509 WASHER 4
42 288-46608 SPRING WASHER 4
43 288-46400 BOLT 4
- -
OPTION
45.CONVEYOR (W) COMPONENTS
1 9
1 9
1 9
1 9
1 9
1 9
1 9
1 9
1 9
2 0
2 0
1 2
2 2
3 4
9 1 0
5 6
7 8
1 1 1 2
1 3 1 4
1 5
1 6
1 7 1 8
1 7 1 8
2 1
2 3
3 1
2 5
2 7
2 9
2 8
3 0
3 2
3 6
3 7
3 9
3 8
4 0
1 5
1 6
1 9
1 9
1 9
2 6
2 6
3 4 3 5
2 4
3 1
3 3
