8. ATC COMPONENTS
6
8
3 0
1 2
1 1
1 3
1 5
1 6
1 7
1 7
2 1
2 2
2 2
1 0
2 4
2 5
2 6
2 8
1 4
1 9
2 0
2 9
3 4
3 5
3 2
3 1
3 6
3 7
3 8
4 1
4 0
3 9
4 2
4 3
7
3 3
5
1 8
1 8
5 5
5 4
5 1 5 3
5 1 5 3
1 4
5 6 5 9
4 5
4 7
4 6
4 8
2 7
2 3
9
4 4
5 0
4 9
- -

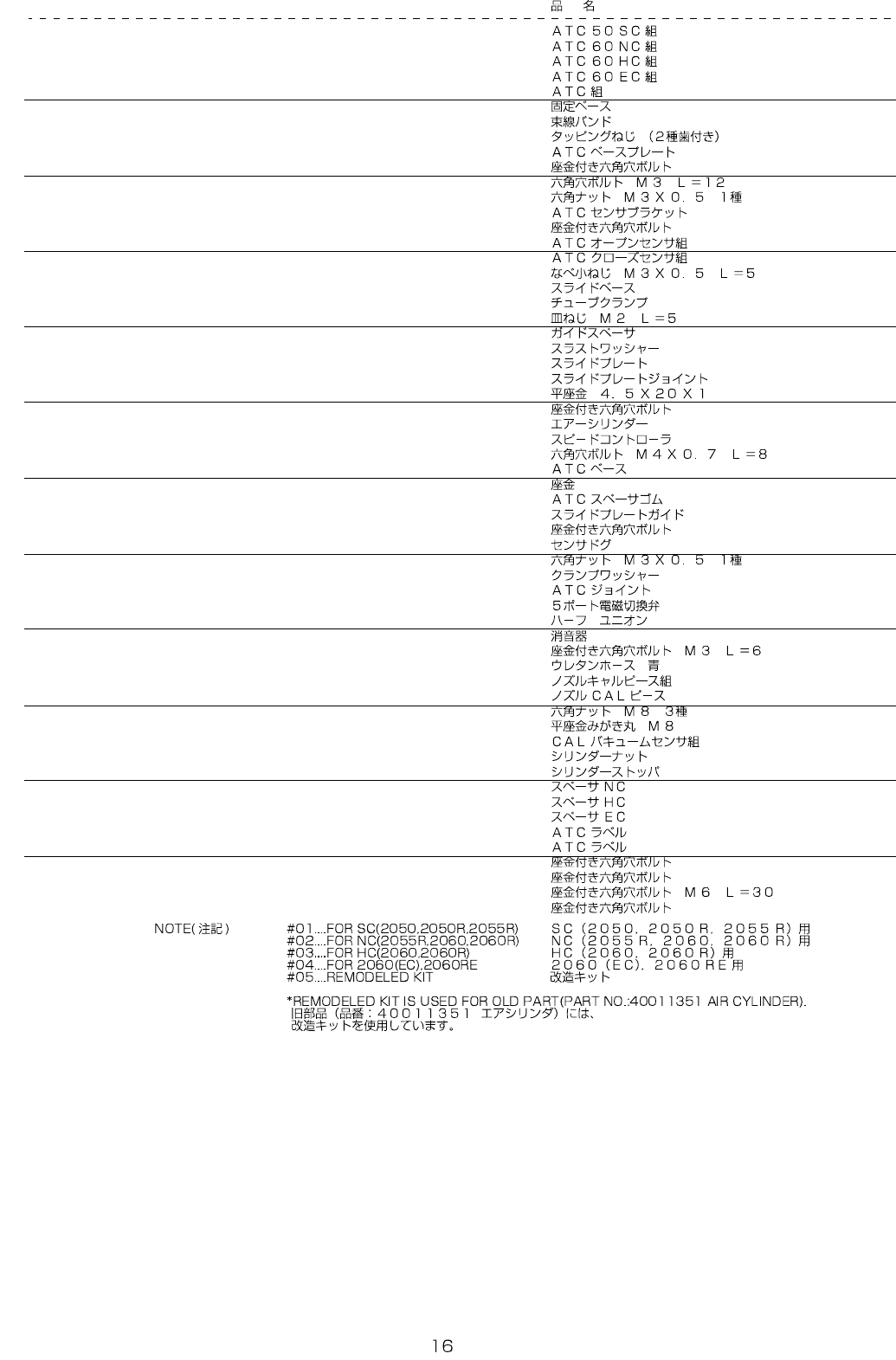

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-01271 ATC 50 ASM. 1
2
#02
400-01273 ATC 60NC ASM. 1
3
#03
400-01273 ATC 60HC ASM. 1
4
#04
400-18633 ATC60 EC ASM 1
5 400-01276 ATC ASM. (1)
6 HX-0029400-00 FIXED BASE (2)
7 EA-9500B01-00 CABLE BAND (2)
8 ST-4040651-SN SCREW M4 X 6 (2)
9 400-01279 ATC BASE PLATE (1)
10 SL-6030892-TN SCREW (2)
11 SM-6031202-TN B0LT (1)
12 NM-6030001-SC NUT M3 (1)
13 400-01277 ATC SENSOR BRACKET (1)
14 SL-6030892-TN SCREW (2)
15 400-02128 ATC OPEN SENS ASM (1)
16 400-02127 ATC CLOSE SENS ASM (1)
17 SM-4030501-SC SCREW M3X0.5 L=5 (4)
18 400-01287 SLIDE BASE (8)
19 E2117-802-000 TUBE CLAMP (1)
20 SM-1020501-SC SCREW (2)
21 400-01285 GUIDE SPACER (4)
22 E3404-700-000 THRUST WASHER (8)
23 400-01283 SLIDE PLATE (1)
24 400-01294 SLIDE PLATE JOINT (2)
25 WP-0451016-SP WASHER 4.5X20X1 (4)
26 SL-6042092-TN SCREW M4 L=20 (4)
27 400-42709 AIR CYLINDER (1)
28 PC-0105080-00 SPEED CONTROLLER (2)
29 SM-6040802-TN SCREW (2)
30 400-01280 ATC BASE (1)
31 B2107-816-000 WASHER (1)
32 400-01286 ATC SPACER RUBBER (1)
33 400-01284 SLIDE PLATE GUIDE (1)
34 SL-6030892-TN SCREW (2)
35 400-01282 ATC SENSOR DOG (2)
36 NM-6030001-SC NUT M3 (4)
37 GLA-02335000 CLAMP WASHER (1)
38 E3528-729-000 ATC JOINT (1)
39 PV-1502060-A0 5 PORT MAGNETIC TRANSFER VALVE (1)
40 PJ-3010605-03 HALF UNION (1)
41 PX-0505010-00 SILENCER (2)
42 SL-6030692-TN SCREW M3 L=6 (2)
43 BT-0400251-EA TUBE HOSE, BLUE (0.4)
44 400-00648 NOZZLE CAL PIECE ASSY (1)
45 E5172-729-000 NOZZLE CAL PIECE (1)
46 NM-6080003-SC NUT M8 (1)
47 WP-0841601-SC WASHER 8.4X17.4X1.6 (1)
48 400-02126 CAL VACUUM SENSOR ASSY (1)
49
#05
400-42771 CYLINDER NUT (1)
50
#05
400-42772 CYLINDER STOPPER (1)
51
#02
400-01288 SPACER NC (2)
52
#03
400-01289 SPACER HC (2)
53
#04
400-16645 SPACER EC (2)
54 400-01281 ATC LABEL (1)
55
#01
400-01281 ATC LABEL (1)
56 #01 SL-6062092-TN SCREW M6 L=20 2
57
#02
SL-6062592-TN SCREW 2
58
#03
SL-6063092-TN SCREW M6 L=30 2
59
#04
SL-6065092-TN SCREW M6 L=50 2
- -
