- - 67.R F I D COMPONENT S (R EPL A C I NG OVERA L L CHA N GER TRUCK) 1 2 4 3 4 9 8 1 0 1 1 1 2 1 3 5 6 7
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-73032 4 PORT MPC 1
2 HX-0066000-00 DUST COVER 3
3 400-73033 SWITCHING HUB 1
4 SL-6030892-TN SCREW M3 L=8 4
5 SL-6030692-TN SCREW M3 L=6 4
6 EA-9500B01-00 CABLE BAND 3
7 HX-0006500-0A CABLE CLIP 10
8 401-22635 MPC_BR_A 1
9 401-22636 MPC_BR_B 1
10 401-22637 MPC_BR_C 1
11 SL-6040892-TN BOLT 4
12 HX-0033900-0L SPACER 4
13 L127E-021-000 COVER CUSHION 4
14 SM-6030502-TN SCREW M3 L=5 4
15 401-22638 MPC_COVER 1
16 SL-6040892-TN BOLT 4
17 HX-0029400-00 FIXED BASE 5
18 SM-4040601-SC SCREW M4X0.7 L=6 5
19 SM-3041252-TN SCREW M4 L=12 1
20 WS-0410002-KN SPRING WASHER M4 1
21 WP-0430801-SC WASHER M4 1
22 NM-6040001-SN NUT M4X0.7 1
23 SL-4040691-SC SCREW M4 L=6 1
24 SL-4030691-SC SCREW M3 L=6 1
25 401-22506 SHIELDING TUBE 1
26 SL-4040691-SC SCREW M4 L=6 1
27 401-22518 MPC POWER CABLE (60) ASM 1
28 401-22522 RFID CONTROL BOX FG CABLE (60) 1
- -
67.RFID COMPONENTS (REPLACING OVERALL CHANGER TRUCK)
1
2
4 3
4
9
8
1 0
1 1
1 2
1 3
5
6
7
- -

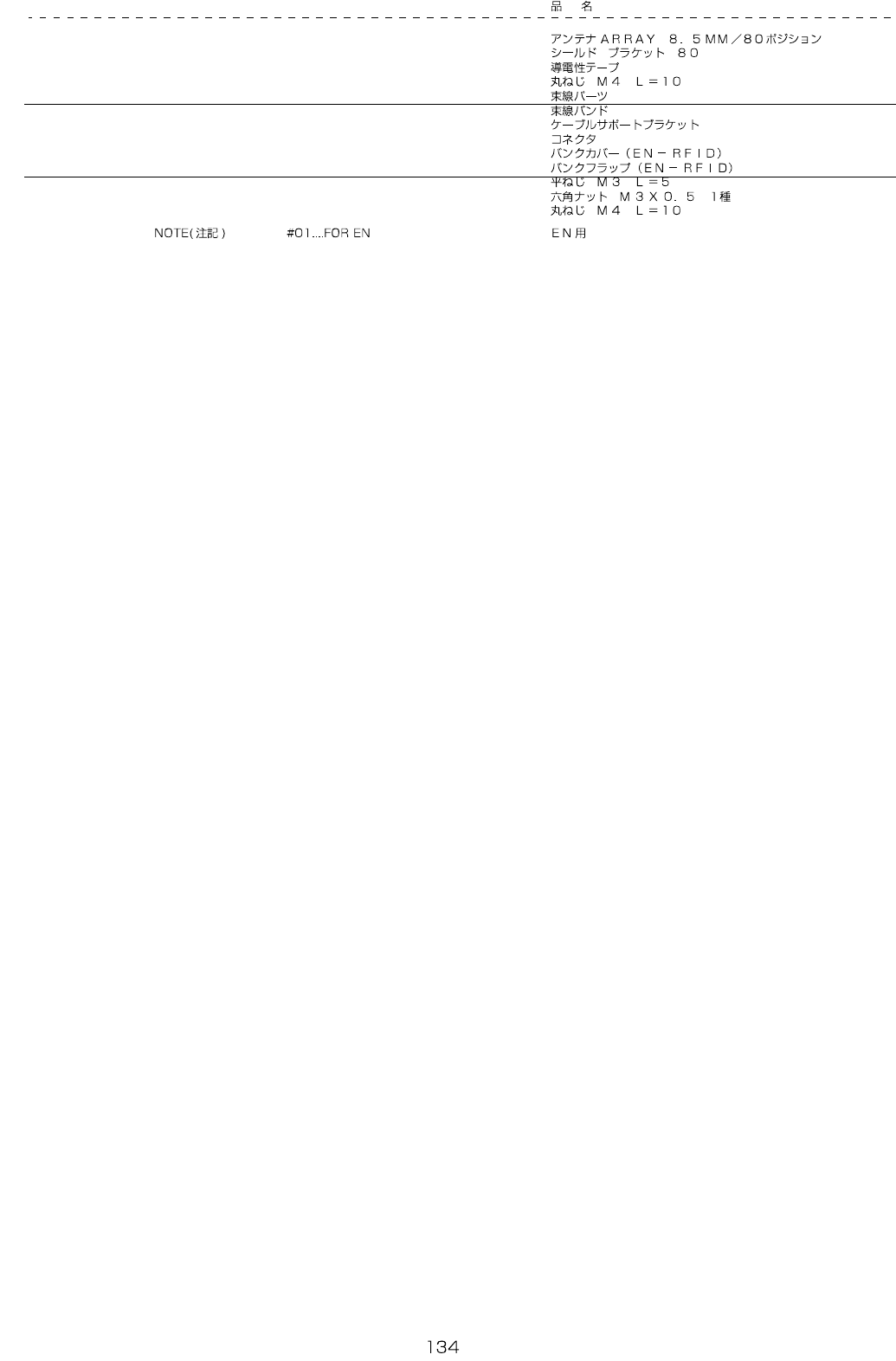

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-73665 ANTENNA ARRAY 8.5MM PITCH / 80 POSITION 1
2 400-79782 SHEILD BRACKET 80 1
3 HX-0026800-00 CONDUCTIVE TAPE 0.435
4 SM-3041052-TN SCREW M4 L=10 6
5 HX-0034400-00 HARNESS PARTS 5
6 EA-9500B01-00 CABLE BAND 5
7 400-73893 CABLE SUPPORT BRACKET 1
8 HK-0651200-60 CONNECTOR 1
9
#01
400-65035 BANK COVER(EN-RFID) 1
10
#01
400-65036 BANK FLAP(EN-RFID) 1
11 SM-6030552-KS SCREW 4
12 NM-6030001-SC NUT M3 4
13 SM-3041052-TN SCREW M4 L=10 4
