61.CONVEYOR EXTENTION COMPONENTS
2 9 3 0
5 6
1 3 1 4
1 5 1 6
7 8
9 1 0
1 1 1 2
1 1 1 2
1 7 1 8
1 7 1 8
1 9
1 5 1 6
1 9
2 0
2 0
2 1 2 2
2 3 2 4
2 1 2 2
2 3 2 4
2 5
2 6 2 8
1 4
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-11052 CONVEYOR EXTENTION 150 ASM 1
2
#02
400-11059 CONVEYOR EXTENTION 250 ASM 1
3
#03
400-75466 CONVEYOR EXTENSION(E)150 ASM 1
4
#04
400-75467 CONVEYOR EXTENSION(E)250 ASM 1
5
#01
400-11054 RAIL PLATE R(150) (1)
6
#02
400-11061 RAIL PLATE R(250) (1)
7
#01
400-11055 RAIL F(150) (1)
8
#02
400-11062 RAIL F(250) (1)
9
#01
400-11056 RAIL R(150) (1)
10
#02
400-11063 RAIL R(250) (1)
11
#01
400-11057 PWB GUIDE EX(150) (2)
12
#02
400-11064 PWB GUIDE EX(250) (2)
13
#01
400-11058 CONVEYOR BELT EX(150) (2)
14
#02
400-11065 CONVEYOR BELT EX(250) (2)
15
#01
400-11072 JOINT PLATE F(150) (2)
16
#02
400-11066 JOINT PLATE F(250) (2)
17
#01
SL-6031092-TN SCREW (6)
18
#02
SL-6031092-TN SCREW (8)
19 SL-6031092-TN SCREW (4)
20 SL-6041292-TN SCREW (6)
21
#01
SL-6041092-TN SCREW (8)
22
#0
2
SL-6041092-TN SCREW (12)
23
#01
NM-6040002-SN NUT M4 (8)
24
#02
NM-6040002-SN NUT M4 (12)
25 HX-0044000-00 CABLE BAND (5)
26 400-00863 CONVEYOR BELT S (2)
27
#03
400-75461 CONVEYOR BELT S(E)150 (2)
28
#04
400-75460 CONVEYOR BELT S(E)250 (2)
29
#01
400-11053 RAIL PLATE F(150) (1)
30
#02
400-11060 RAIL PLATE F(250) (1)
- -

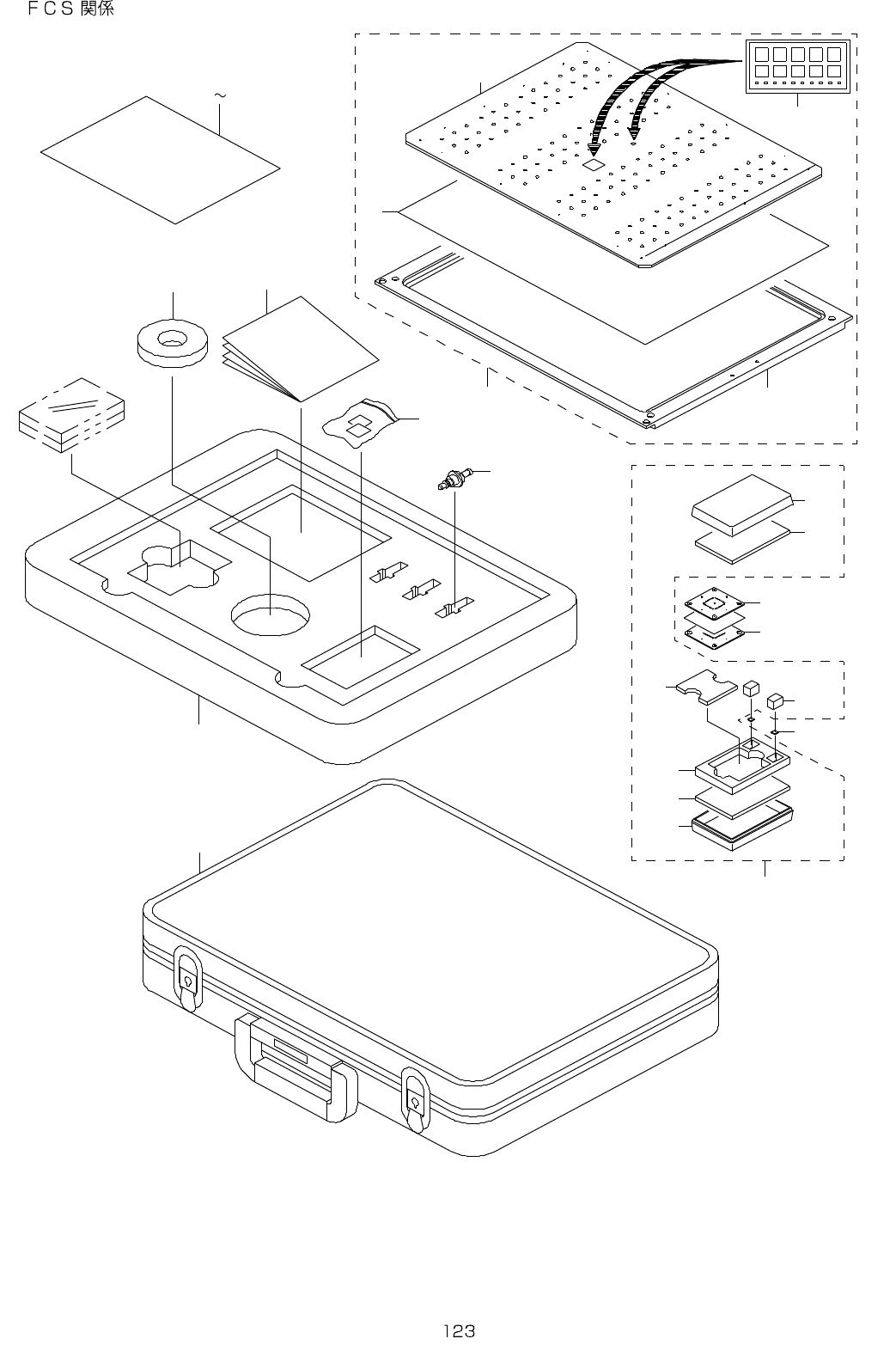

62.FCS COMPONENTS
3
1
1 9
1 9
1 7
6
1 5
1 8
2
4
7
8
9
1 0
1 1
1 2
1 4
1 6
1 4
1 5
1 3
5
2 0 2 2
