- - REF.NO N OTE PA RT NO D E S C R I P T I O N Qty 1 4 0 0-01559 MANIHOL D ASSY 1 2 4 0 0-00546 AI R MANIFOLD UNIT (1) 3 P J- 3 091200-03 MANIFOLD (1) 4 4 0 0-00549 AI R MANIFOLD BRACKET (1) 5 S L-6043092-TN BOLT (2) …
- -

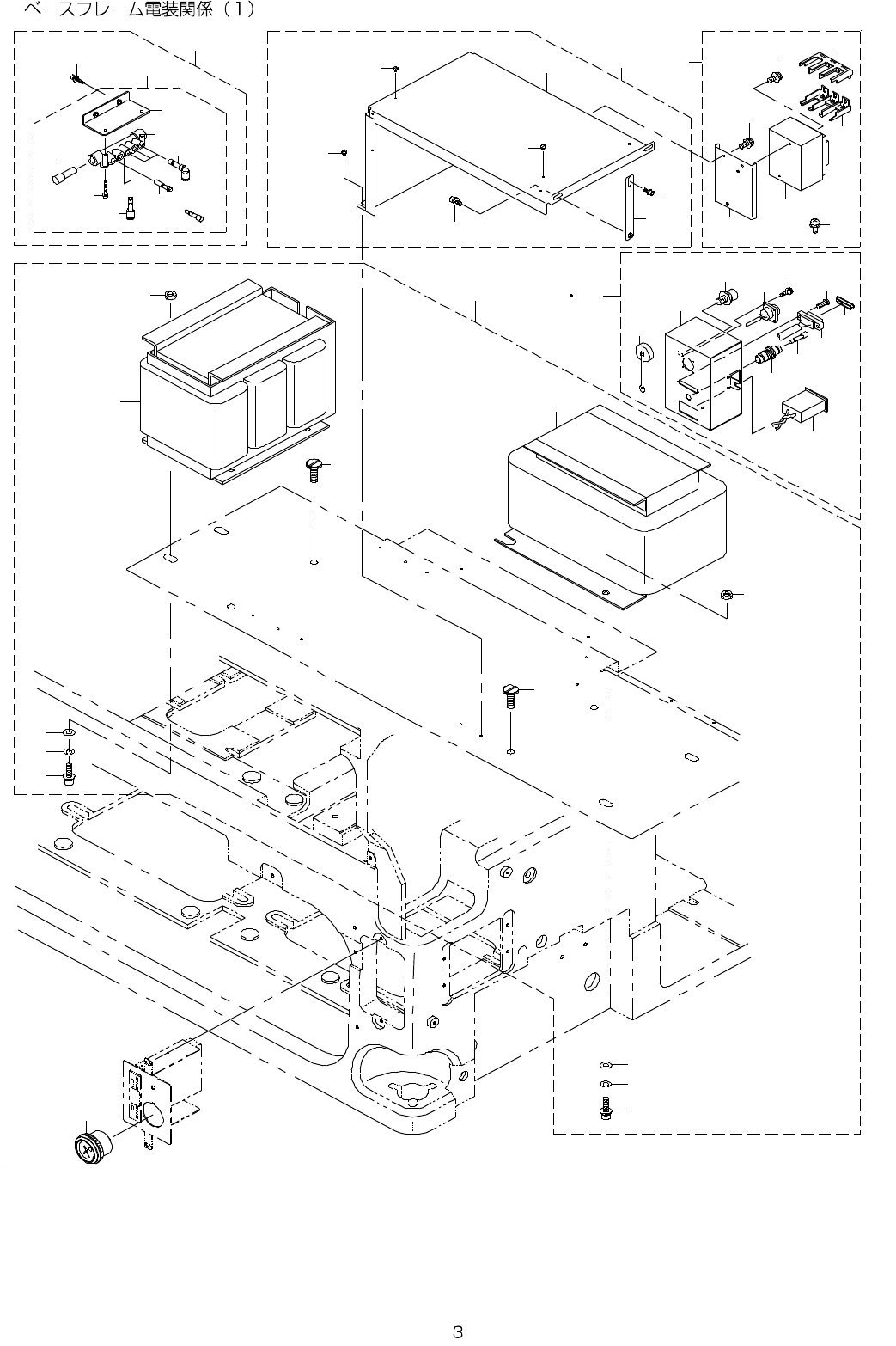

2. BASE FRAME ELECTRIC APPARATUS COMPONENTS (1)
4
3
8
9
7
6
5
1 0
2
1 1
1 2
1 7
1 8
1 8
1 4
1 4
1 9
2 0
2 0
1 9
2 7
2 5
2 2
2 6
2 3
1 7
1
1 5
3 8
4 0
3 0
3 9
3 1
3 2
3 7
3 3
3 6
3 5
3 4
4 2
4 4
4 5
4 1
4 3
4 6
4 6
2 8 2 9
1 3
4 7
2 1
1 6
2 4
2 4
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-01559 MANIHOLD ASSY 1
2 400-00546 AIR MANIFOLD UNIT (1)
3 PJ-3091200-03 MANIFOLD (1)
4 400-00549 AIR MANIFOLD BRACKET (1)
5 SL-6043092-TN BOLT (2)
6 PJ-0200000-03 PLUG ROUND 12 (1)
7 PX-9500070-00 PLUG (2)
8 PX-9500010-00 PLUG (2)
9 PJ-3040600-01 ELBOW (3)
10 PJ-3010600-03 REDUCER (2)
11 SL-6052092-TN SCREW (2)
12 400-02333 AIR PRESSURE METER ASM. 1
13 400-01561 TRANSFORMAR ASSY 1
14 SL-6103542-TN SCREW M10 L=35 (4)
15 400-40378 TRANSFORMER(PSU) (1)
16 400-40379 TRANSFORMER(SERVO) (1)
17 400-00450 TRANS SCREW (4)
18 NM-6120001-SC NUT M12 (4)
19 WS-1220002-KN SPRING WASHER (4)
20 WP-1252210-SC WASHER 12.5X25.6X2.2 (4)
21 400-01562 AC BR ASSY 1
22 SL-6051292-TN BOLT (2)
23 SL-6061292-TN SCREW (2)
24 E1038-871-000 PLATEN LOCK CAM SCREW (2)
25 SL-4040891-SC SCREW M4 L=8 (2)
26 400-00487 AC POWER BAR (2)
27 400-00483 AC POWER BRACKET (1)
28 400-01558 MTC IF PANEL L ASSY 1
29
#01
400-15595 MTC IF PANEL-L ASSY(EN) 1
30 SM-4860501-SB SCREW M2.5 L=5 (2)
31 400-02115 HOURMETER ASM. (1)
32 PJ-2300062-00 UNION (1)
33
#01
HK-0429900-7A CAP (1)
34 400-02104 MTC I/F(L) CABLE ASM (1)
35
#01
HK-0528905-0B DUST COVER (1)
36 400-02062 MTC POWER WIRE L ASM (1)
37 PX-9500010-00 PLUG (1)
38 400-00499 MTS I/F PANEL (1)
39 SL-6061292-TN SCREW (2)
40 SL-4030881-SC SCREW M3 L=8 (4)
41 400-01554 BREAKER ASSY 1
42 SL-4040891-SC SCREW M4 L=8 (3)
43 HA-0053200-00 CIRCUIT PROTECTOR (1)
44 SL-4040891-SC SCREW M4 L=8 (2)
45 SL-4040891-SC SCREW M4 L=8 (4)
46 HA-0053200-10 CIRCUIT PROTECTOR (1)
47 400-00489 BRAKER BRACKET (1)
- -
3. BASE FRAME ELECTRIC APPARATUS COMPONENTS (2)
M4 * 8
6 0
5 8
5 9
6 1
4 1
4 2 4 3 4 4
2 0
5 6 5 75 4 5 55 2 5 35 1 6 8
5 0
6 4 6 5
6 6 6 7
6 2 6 3
1 3 1 4
4 5
4 6
3 03 94 0
3 1
3 1
2 2 2 3
2 4
2 1
3 7
3 8
3 6
1 5
1 6
1 7
1 8
2 8
1 9
2 9
2 6
2 7
2 5
3 2
3 3 4 9
3 5
3 4
88
5
3
1 2
6 7
1 0
9
2
2
4
1 1
1
4 7 4 8
