- - 7. C AL BLOCK COM P ONEN T S 3 4 1 4 8 8 2 1 2 2 1 2 1 3 1 5 1 6 1 4 1 8 1 9 2 0 1 1 2 3 3 1 3 0 2 8 2 9 2 7 3 2 1 7 2 1 0 9 2 4 2 6 3 3 5 3 5 4 3 4 3 5 3 6 3 7 3 8 3 9 4 4 4 2 4 4 4 5 4 8 4 7 4 6 4 8 4 3 4 7 4 0 4…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00410 COVER STUD ASSY 1
2 400-01510 COVER STUD RL (4)
3 400-01512 COVER STUD YF (4)
4 400-01515 COVER STUD YS (4)
5 400-01516 COVER STUD YR (2)
6 SL-6040892-TN BOLT 4
7 400-00411 Y AXIS SENSOR BR ASSY 1
8 400-00509 SENSOR BRACKET L (1)
9 SM-3040652-TN SCREW M4 L=6 (6)
10 400-00510 SENSOR BRACKET R (1)
11 SM-3040652-TN SCREW M4 L=6 (4)
12 PS-0500202-KP SPRING PIN 5X20 (2)
13 400-00413 FEEDER FLOAT SENS ASSY 1
14 401-53654 FD-FLOAT(FR) SENS SET ASM (1)
15 SL-4031481-SC SCREW M3 X 14 (16)
16 EA-9500B01-00 CABLE BAND (8)
17 401-53653 FD-FLOAT(FF) SENS SET ASM (1)
18 E2157-729-000 FSD SPACER (4)
19 401-53653 FD-FLOAT(FF) SENS SET ASM (1)
20 401-53654 FD-FLOAT(FR) SENS SET ASM (1)
21 400-01651 FSD BRACKET (4)
22 401-53655 FD-FLOAT(RF) SENS SET ASM (1)
23 401-53656 FD-FLOAT(RR) SENS SET ASM (1)
24 401-53655 FD-FLOAT(RF) SENS SET ASM (1)
25 401-53656 FD-FLOAT(RR) SENS SET ASM (1)
26 400-00414 FEEDER SENS ASSY 1
27 401-53657 FD SENS SET ASM (1)
28 EA-9500B01-00 CABLE BAND (2)
29 E2158-729-000 FS BRACKET (2)
30 SL-4031481-SC SCREW M3 X 14 (4)
31 401-53657 FD SENS SET ASM (1)
32 #03 400-18815 BASE COVER SEALING R(C) 1
33
#03
SL-6061292-TN SCREW 4
34 400-01583 BANK PCB F ASSY 1
35 SL-4030691-SC SCREW M3 L=6 (4)
36 400-00504 BANK PCB COVER F (1)
37 SL-4040891-SC SCREW M4 L=8 (4)
38 400-01951 BANK/FPI-F PCB ASM. (1)
39
#04
400-01570 CPCI BORD ASSY 1
40
#05
400-00543 CPCI BORD ASSY(50) 1
41 E9610-729-000 MCM(1 SHAFT) (1)
42 400-03259 XMP CPCI (1)
43 400-03313 BUS-BRIDGE BOARD (1)
44
#07
400-03280 CPU BOARD (1)
45
#08
400-44475 CPU BOARD (1)
46 E9609-729-000 MCM(4 SHAFT) (1)
47 400-01581 CARRY BASE ASSY 1
48 #01 400-00463 CARRY BASE ASSY(EN) 1
49 400-00502 CARRY PCB BRACKET (1)
50 SL-6061292-TN SCREW (4)
51 400-01947 CARRY PCB ASM. (1)
52 EA-9002B11-00 BUSHING L (1)
53 HM-0013200-00 MOTOR DRIVER (1)
54 SL-4040891-SC SCREW M4 L=8 (2)
55 SL-4030691-SC SCREW M3 L=6 (5)
56 400-00500 BASE COVER SEALING F (1)
57
#02
400-18882 BANK PCB R ASSY (E) 1
58 E1017-715-000 BASE COVER CUSHION A (1)
59 #02
400-18461 COVER SEALING R(E) (1)
60
#09
400-01584 BANK PCB R ASSY (1)
61 SL-6061292-TN SCREW (4)
62 400-01949 BANK/FPI-R PCB ASSY (1)
63 SL-4030891-SC SCREW M3X8 (2)
64 400-00501 BASE COVER SEALING R (1)
65 400-00503 BANK PCB BRACKET (1)
66
#06
400-29039 N-VERIFY I/F PCB ASM 1
67 SL-6041092-TN SCREW 8
- -
7. CAL BLOCK COMPONENTS
3
4
1
4
8
8
2 1
2 2
1 2
1 3
1 5
1 6
1 4
1 8
1 9
2 0
1 1
2 3
3 1
3 0
2 8
2 9
2 7
3 2
1 7
2
1 0
9
2 4 2 6
3 3
5 3
5 4
3 4
3 5 3 6
3 7
3 8
3 9
4 4
4 2
4 4
4 5
4 8
4 7
4 6
4 8
4 3
4 7
4 0
4 1
4 9 5 2
5 0
5 0
5 1
3
7
6
7
5
- -

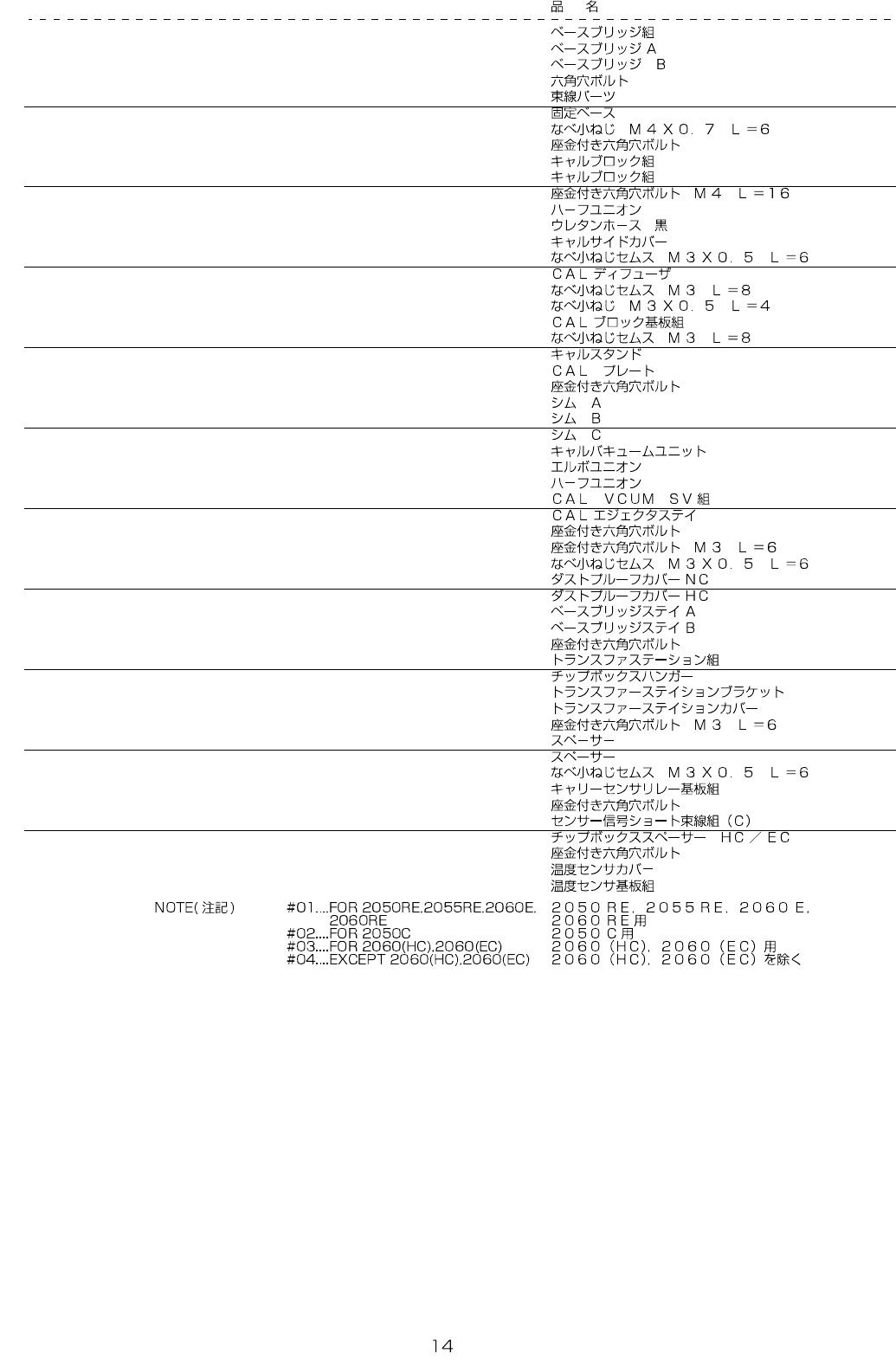

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-45988 BASE BRIDGE ASM 1
2 400-45987 BASE BRIDGE A (1)
3 400-00633 BASE BRIDGE B (2)
4 SM-6082502-TP SCREW M8 L=25 (4)
5 HX-0034400-00 HARNESS PARTS (2)
6 HX-0029400-00 FIXED BASE (5)
7 SM-4040601-SC SCREW M4X0.7 L=6 (7)
8 SL-6062592-TN SCREW 4
9 400-00643 CAL BLOCK UNIT 1
10 400-00650 CAL BLOCK ASSY (1)
11 SL-6041692-TN SCREW M4 L=16 (2)
12 PJ-3010405-05 HALF UNION (1)
13 BT-0400251-EB URETHANE HOSE, BLACK (0.2)
14 400-00644 CAL SIDE COVER (1)
15 SL-4030691-SC SCREW M3X6 (4)
16 E3605-721-000 CAL DIFFUSER (1)
17 SL-4030891-SC SCREW M3X8 (2)
18 SM-4030401-SC SCREW M3X0.5 L=4 (4)
19 E8609-721-0A0 CAL BLOCK CIRCUIT BOARD ASM. (1)
20 SL-4030891-SC SCREW M3X8 (4)
21 400-00646 CAL STAND (1)
22 400-00647 CAL PLATE (1)
23 SL-6062092-TN SCREW M6 L=20 (2)
24 E2061-760-000 SHIM A (1)
25 E2062-760-000 SHIM B (1)
26 E2063-760-000 SHIM C (1)
27 400-00642 CAL VACUUM UNIT (1)
28 PJ-3040405-05 ELBOW (1)
29 PJ-3010405-05 HALF UNION (1)
30 400-02125 CAL VCUM SV ASM. (1)
31 400-00649 CAL EJECTOR STAY (1)
32 SL-6040892-TN BOLT (2)
33 SL-6030692-TN SCREW M3 L=6 2
34 SL-4030691-SC SCREW M3X6 3
35 400-11418 DUSTPROOF COVER NC 1
36 400-11419 DUSTPROOF COVER HC 1
37
#01
400-16709 BASE BRIDGE STAY A 1
38
#01
400-16710 BASE BRIDGE STAY B 1
39
#01
SL-6062592-TN SCREW 4
40 400-01302 TRANSFER STATION ASM 1
41 400-08909 CHIP BOX HANGER (1)
42 400-08907 TRANSFER STATION BRACKET (1)
43 400-08908 TRANSFER STATION COVER (1)
44 SL-6030692-TN SCREW M3 L=6 (4)
45 HX-0007900-0B SPACER (4)
46 HX-0035400-0B PCB SUPPORT L=8MM (4)
47 SL-4030691-SC SCREW M3X6 (8)
48 400-01964 CARRY SENSOR RELAY PCB ASM. (2)
49
#04
SL-6061292-TN SCREW 2
50
#02
400-02353 SENSOR SIGNALSHORT WIRE ASM C 2
51
#03
400-49214 CHIP BOX SPACER HC/EC 1
52
#03
SL-6062092-TN SCREW M6 L=20 2
53 E2142-729-000 TEMPERATURE SENSOR COVER 1
54 400-29824 TEMPERATURE SENSOR PCB ASM 1
