- - REF.NO NOTE PART NO D E S C R I P T I O N Qt y 1 #11 400-01357 C O VE R RUL (ST ) ASS'Y 1 2 #12 400-01358 C O VE R RUL (EN ) ASS'Y 1 3 #07 400-27545 C O VE R RUL (ST ) ASSY 1 4 #08 400-27546 C O VE R RUL …
- -

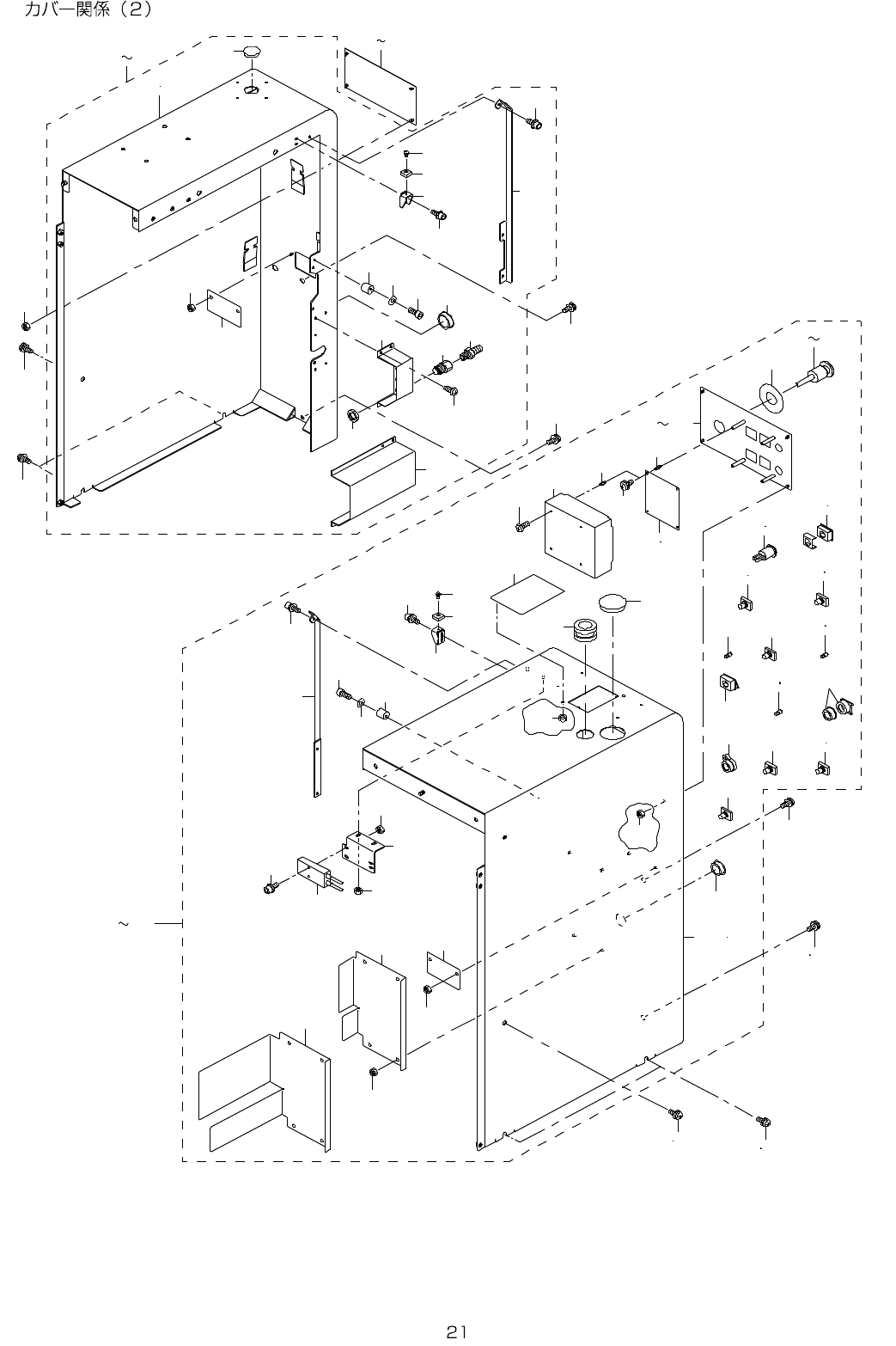

11.COVER COMPONENTS (2)
5 6
2 1
8
2 3
9
1 0
1 1
1 1
1 2
1 3
1 4
1 5
1 6
1 7
1 8
1 9
2 0
1 4
2 2
7 8
7 7
2 9
7 9
8 1
3 8
3 9
4 0
5 7 5 8
4 1
8 2
4 2
4 3
4 4
4 5
7 5
4 8
4 6
4 9
5 1
5 3
5 2
5 6
5 4
5 9 7 6
5 5
6 0 6 2
6 3
6 4
6 5 6 6
6 7 6 8
6 9
7 0 7 1
7 2
3 0 3 1
3 2 3 3
2 5 2 8
5 0
9 9 1 0 0
9 9 1 0 0
1 0 0
9 9 1 0 0
8 0
1 0 0
1 0 0
1 0 0
1 0 0
7 3
3 4 3 7
9 8
9 2 9 7
7 4
8 3 8 4
8 5
8 6
8 7
8 8
8 9 9 0
9 1
4 7
7
2 4
- -

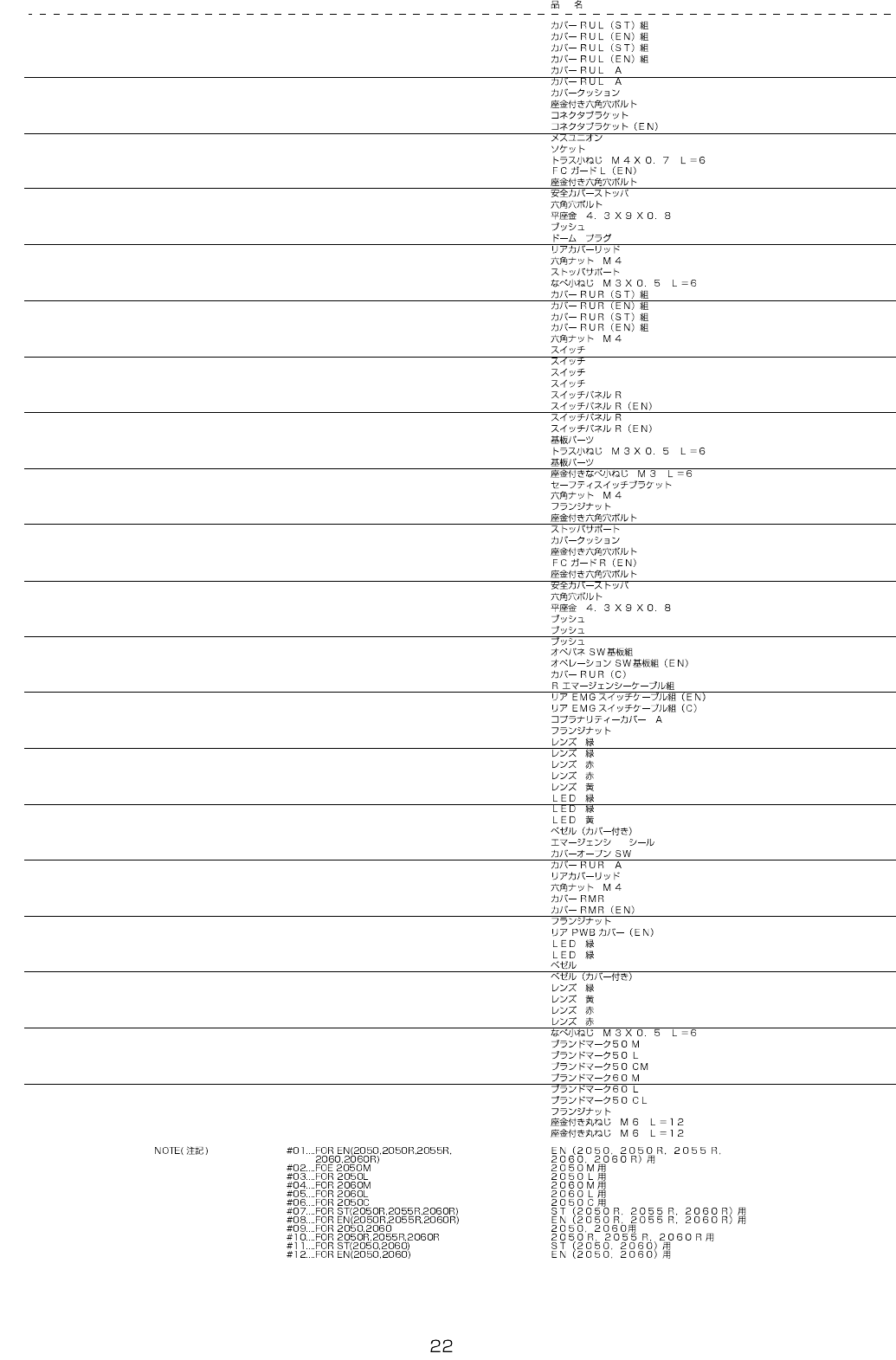

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 #11 400-01357 COVER RUL (ST) ASS'Y 1
2 #12 400-01358 COVER RUL (EN) ASS'Y 1
3 #07 400-27545 COVER RUL (ST) ASSY 1
4 #08 400-27546 COVER RUL (EN) ASSY 1
5
#09
400-43514 COVER RUL A (1)
6
#10
400-43856 COVER RUL A (1)
7 400-49671 COVER CUSHION (1)
8 SL-6041092-TN SCREW (2)
9 E1464-729-000 CONECTOR BRACKET (1)
10
#01
400-01457 CONNECTOR BRACKET (EN ) (1)
11 PJ-3010651-06 KNIFE UNION (1)
12 E2904-700-000 SOCKET (1)
13 SM-0040601-SC SCREW M4X0.7 L=6 (4)
14 #01 400-01425 FC GUIDE L (EN) (1)
15 #01 SL-6041092-TN SCREW (3)
16 E1348-700-000 SAFETY COVER STOPPER (1)
17 SM-6042002-TN BOLT (1)
18 WP-0430801-SC WASHER 4.3X9X0.8 (1)
19 HX-0032600-0B BUSH (1)
20 HX-0032600-0M DOME PLUG (1)
21 400-01460 REAR COVER LID (1)
22 NM -6040001-SC NUT M4 (2)
23 400-01464 STOPPER SUPPORT (1)
24 SM-4030601-SC SCREW M3 X 6 (1)
25
#11
400-01359 COVER RUR (ST) ASS'Y 1
26
#12
400-01360 COVER RUR (EN) ASS'Y 1
27
#07
400-27547 COVER RUR (ST) ASSY 1
28 #08 400-27548 COVER RUR (EN) ASSY 1
29 NM -6040001-SC NUT M4 (4)
30 #11 HA-0053400-30 SWITCH (3)
31 #12 HA-0053400-30 SWITCH (3)
32 HA-0053400-20 SWITCH (4)
33 HA-0053400-20 SWITCH (3)
34
#11
400-01467 SWITCHI PANEL R (1)
35
#12
400-01469 SWITCHI PANEL R (EN) (1)
36
#07
400-26963 SWITCH PANEL R (1)
37
#08
400-27467 SWITCH PANEL R(EN) (1)
38
#01
HX-0035400-0C BASE PARTS (4)
39
#01
SM-0030601-SC SCREW M3X0.5 L=6 (4)
40 HX-0035400-0D BASE PARTS (4)
41 SL-4030681-SC SCREW M3 L=6 (4)
42 400-01453 SAFETY SWITCH BRACKET (1)
43 NM -6040001-SC NUT M4 (2)
44 NM -3040520-SF FLANGE NUT M 4 (2)
45 SL-6041642-TN SCREW (2)
46 400-01464 STOPPER SUPPORT (1)
47 400-49671 COVER CUSHION (1)
48 SL-6041092-TN SCREW (2)
49
#01
400-01426 FC GUIDE R (EN) (1)
50
#01
SL-6041092-TN SCREW (3)
51 E1348-700-000 SAFETY COVER STOPPER (1)
52 SM-6042002-TN BOLT (1)
53 WP-0430801-SC WASHER 4.3X9X0.8 (1)
54 HX-0032600-00 BUSH (1)
55 HX-0005500-0N RUBBER BU SHING (1)
56 HX-0032600-0B BUSH (1)
57 400-01956 OPERAT ION SW PWB ASM. (1)
58 #01 400-01957 OPERATION SW PWB ASM.(EN) (1)
59 #06 400-18943 COVER RUR(C) (1)
60 400-02206 R-EMG SWITCH CABLE ASM (1)
61
#01
400-02275 EM SW R CABLE ASM.(EN) (1)
62
#06
400-02348 R-EMG SW CABLE ASM(C) (1)
63 400-01452 COPLANARITY COVER A (1)
64 NM -3040520-SF FLANGE NUT M 4 (2)
65
#11
HA-0053400-50 LENSE GREEN (2)
66
#12
HA-0053400-50 LENSE GREEN (2)
67
#11
HA-0053400-5C LENSE RED (1)
68
#12
HA-0053400-5C LENSE RED (1)
69 HA-0053400-5A LENSE YELLOW (1)
70
#11
HA-0053400-6A LED GREEN (1)
71 #12 HA-0053400-6A LED GREEN (1)
72 HA-0053400-60 LED YELLOW (1)
73 HA-0053400-40 BEZEL (1)
74 E1326-715-000 EMERGENCY SEAL (1)
75 400-02254 COVER OPEN SWITCH CABLE ASM (1)
76
#09
400-43515 COVER RUR A (1)
77 400-01460 REAR COVER LID (1)
78 NM -6040001-SC NUT M4 (2)
79 400-01458 COVER RMR (1)
80
#01
400-01459 COVER RMR (EN) (1)
81 NM -3040520-SF FLANGE NUT M 4 (4)
82
#01
400-01496 REAR PWB COVER (EN) (1)
83
#07
HA-0053400-6B LED GREEN (1)
84
#08
HA-0053400-6B LED GREEN (1)
85 #10 HA-0055200-30 BEZEL (3)
86 #07 HA-0053400-4A BEZEL (1)
87 #10 HA-0055200-1B LENSE GREEN (2)
88 #07 HA-0055200-1A LENSE YELLOW (1)
89
#07
HA-0055200-10 LENSE RED (1)
90
#08
HA-0055200-10 LENSE RED (1)
91 SM-4030601-SC SCREW M3 X 6 (1)
92
#02
400-01443 BRAND MARK 50M 1
93
#03
400-01444 BRAND MARK 50L 1
94
#06
400-19289 BRAND MARK 50CM 1
95
#04
400-01449 BRAND MARK 60M 1
96
#05
400-01450 BRAND MARK 60L 1
97
#06
400-19290 BRAND MARK 50CL 1
98 NM -3040520-SF FLANGE NUT M 4 4
99 #06 SL-3061232-TN SCREW 4
100 SL-3061232-TN SCREW 10
- -

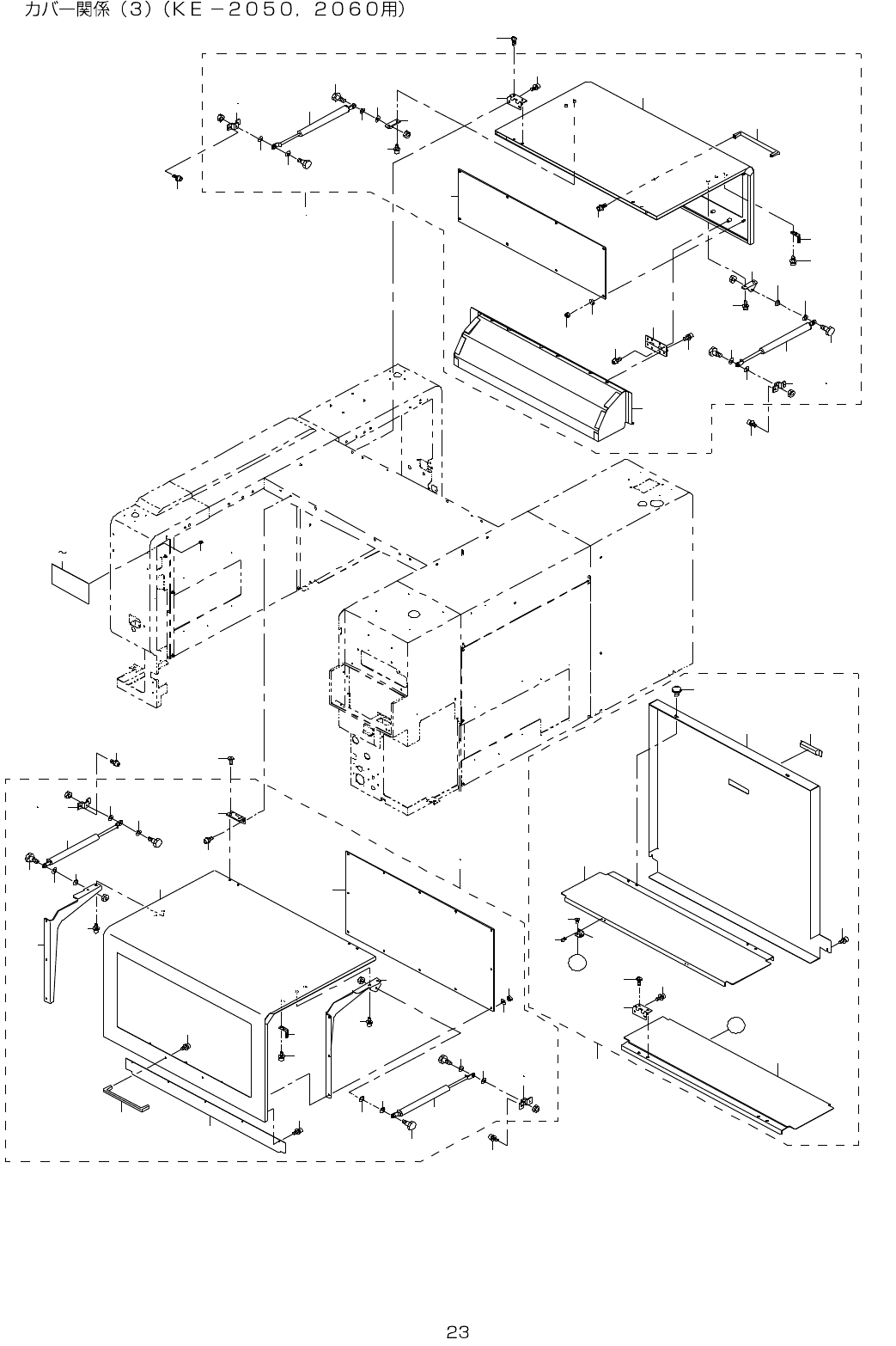

12.COVER COMPONENTS (3)(FOR KE-2050,2060)
3
5
6
7
1 2
1 2
1 3
1 3
1 3
1 3
1 5 1 6
1 3
2 2
2 2
1 7
1 8
1 9
4
4 1
2 6
2 8
2 9
3 0
3 1
3 1
3 2
3 2
3 2
4 4
3 2
3 4 3 5
4 4
3 4 3 5
3 2
3 6
3 7
3 8
3 9
8
2 7
6 3
6 3
6 2
6 2
6 2
6 2
4 0
4 0
1 2
2 3 2 4
9
1 5 1 6
1 0
3 2
3 3
3 2
2 5
4 3
3 3
3 2
6 4
4 5 5 0
5 2
6 1
5 9
5 4
5 4
5 3
5 5
A
A
5 6 5 7
6 0
5 8
1 3
5 1
1 3
1 4
1 3
2 0
1 1
2 1
2 1
4 2
4 2
6 0
