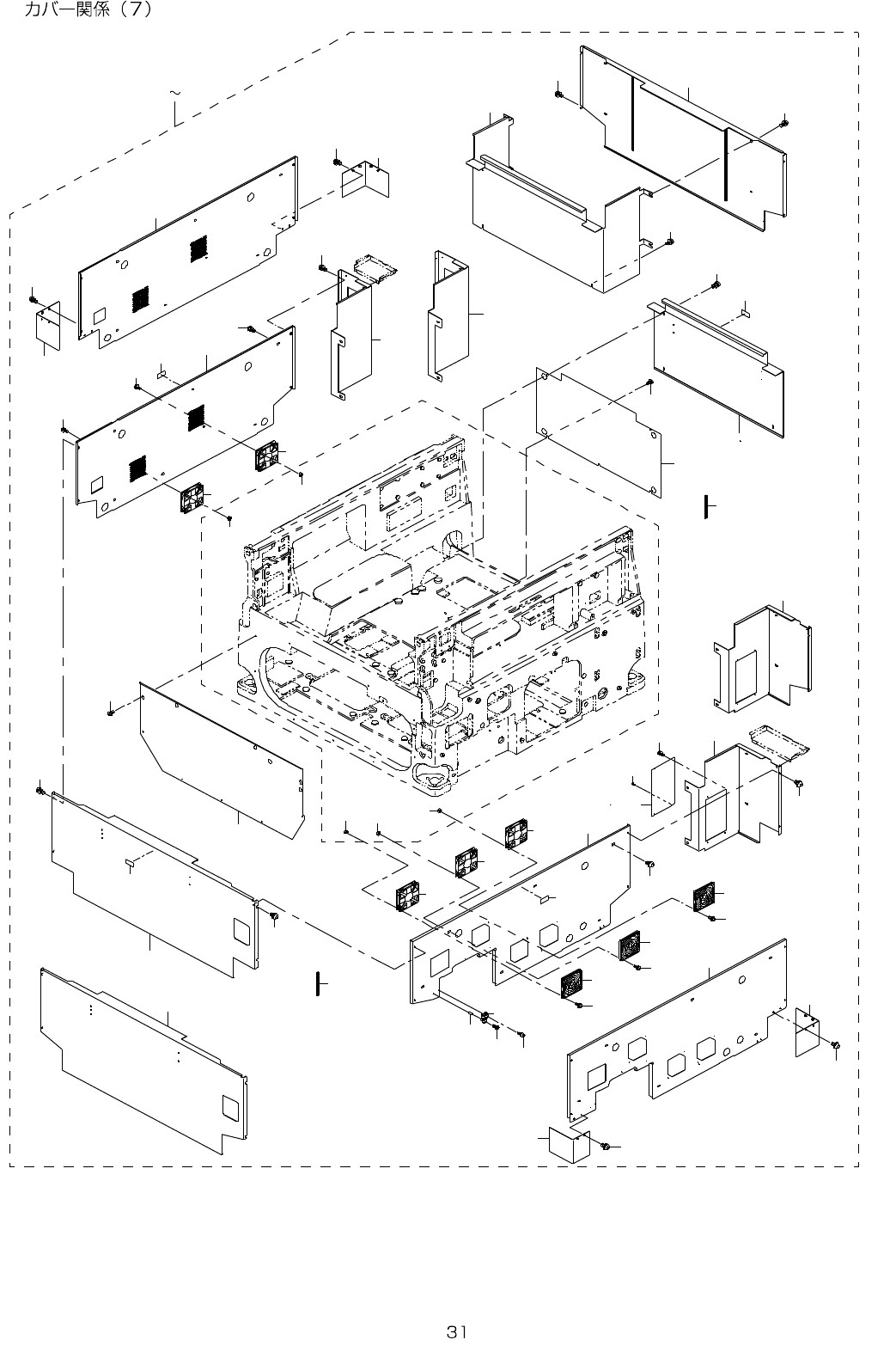

- - 16.C O V E R C OMPONE N T S ( 7) 7 8 8 3 4 4 1 1 6 1 1 1 3 1 4 1 5 1 7 2 0 2 1 2 6 2 8 2 6 2 6 2 6 3 2 3 1 2 9 2 4 2 5 2 2 1 9 4 4 4 0 4 6 4 0 4 9 1 1 1 1 5 1 5 1 5 1 3 3 7 2 7 5 1 5 1 1 6 1 6 3 0 3 8 3 9 4 3 1 2 1…
- -

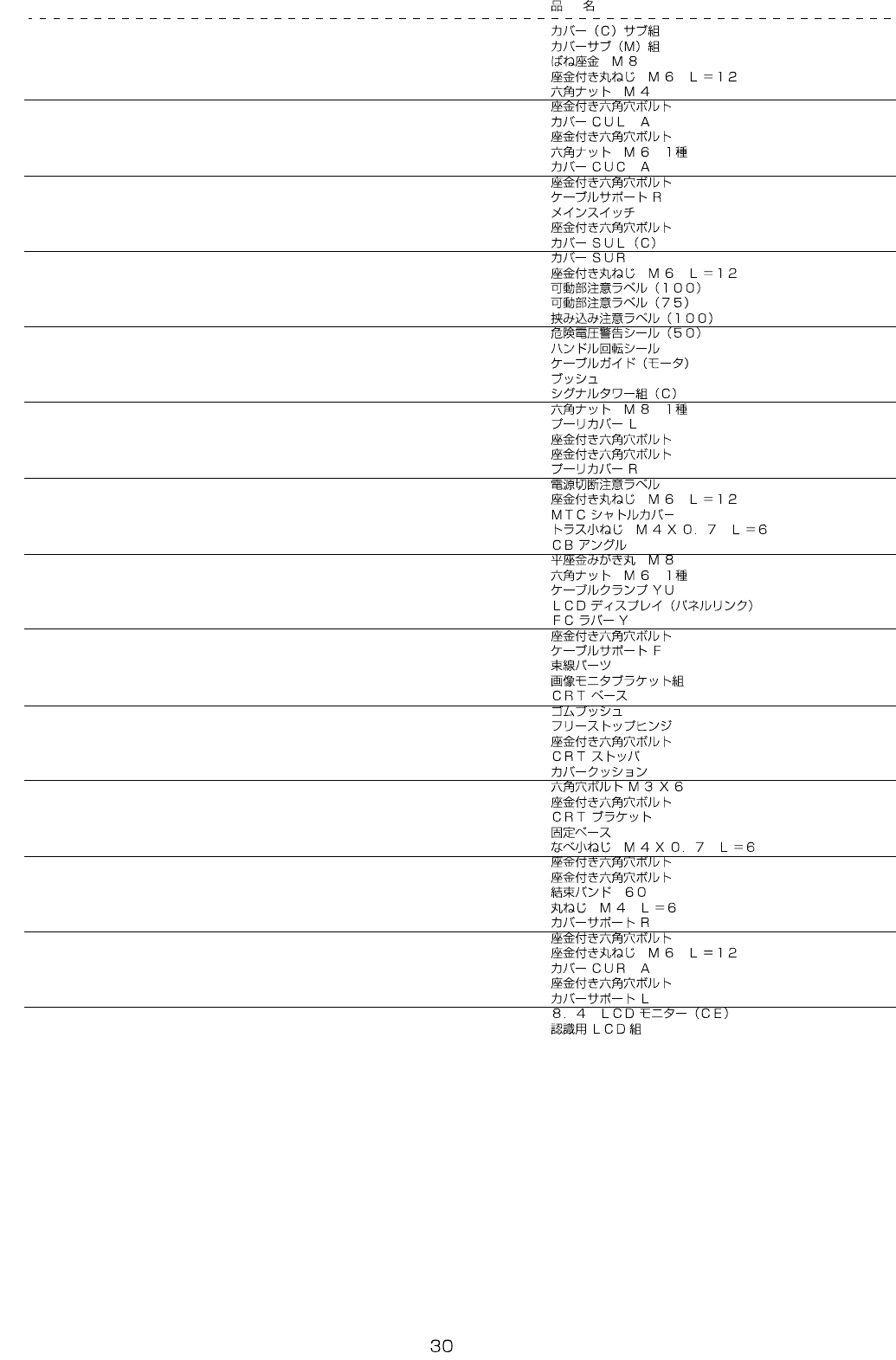

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-18684 COVER (C) SUB ASSY 1
2 400-01368 COVER (M) SUB ASSY (1)
3 WS-0820002-KN SPRING WASHER M8 (2)
4 SL-3061232-TN SCREW (6)
5 NM-6040001-SC NUT M4 (1)
6 SL-6041092-TN SCREW (4)
7 400-43516 COVER CUL A (1)
8 SL-6061292-TN SCREW (2)
9 NM-6060001-SC NUT M6 (2)
10 400-43518 COVER CUC A (1)
11 SL-6041292-TN SCREW (12)
12 400-01500 CABLE SUPPORT R (1)
13 HA-0053800-00 SWITCH (1)
14 SL-6041292-TN SCREW (9)
15 400-18524 COVER SUL (C) (1)
16 400-01417 COVER SUR (1)
17 SL-3061232-TN SCREW (5)
18 CM-3009001-06 LABEL(100) (2)
19 CM-3009001-05 LABEL (6)
20 CM-3002000-E6 LABEL (2)
21 CM-3001000-04 DANGER LABEL (50) (1)
22 E5704-700-000 SEAL (1)
23 400-01463 CABLE GUIDE (MOTOR) (1)
24 HX-0036700-0A BUSH (0.2)
25 400-03323 SIGNAL TOWER ASM. (C) (1)
26 NM-6080001-SC NUT M8X1.25 (2)
27 400-01427 PULLEY COVER L (1)
28 SL-6061292-TN SCREW (4)
29 SL-6061292-TN SCREW (4)
30 400-01428 PULLEY COVER R (1)
31 400-17782 MAIN POWER SWITCH NOTICE LABEL (1)
32 SL-3061232-TN SCREW (5)
33 E1457-729-000 MTC SHUTTLE COVER (1)
34 SM-0040601-SC SCREW M4X0.7 L=6 (4)
35 400-01429 CB ANGLE (1)
36 WP-0841601-SC WASHER 8.4X17.4X1.6 (2)
37 NM-6060001-SC NUT M6 (2)
38 400-01447 CABLE CLAMP YU (1)
39 400-25669 LCD DSP (1)
40 400-66933 FC RUBBER Y (1)
41 SL-6061092-TN SCREW (2)
42 400-01430 CABLE SUPPORT F (1)
43 HX-0032600-0H CABLE PARTS (2)
44 400-33517 VISION MONITOR BRACKET ASM (1)
45 400-99654 CRT BASE (1)
46 HX-0022100-0A RUBBER BUSHING (1)
47 400-99655 FREE STOP HINGE (1)
48 SL-6040892-TN BOLT (4)
49 400-99657 CRT STOPPER (1)
50 L127E-021-000 COVER CUSHION (1)
51 SM-6030602-TN SCREW M3X6 (1)
52 SL-6040892-TN BOLT (2)
53 400-99656 CRT BR (1)
54 HX-0029400-00 FIXED BASE (1)
55 SM-4040601-SC SCREW M4X0.7 L=6 (1)
56 SL-6040892-TN BOLT (4)
57 SL-6041092-TN SCREW (4)
58 EA-9500B00-00 CABLE BAND (1)
59 SM-3040652-TN SCREW M4 L=6 (4)
60 400-43526 COVER SUPPORT R (1)
61 SL-6061092-TN SCREW (2)
62 SL-3061232-TN SCREW (2)
63 400-43517 COVER CUR A (1)
64 SL-6041092-TN SCREW (3)
65 400-43525 COVER SUPPORT L (1)
66 401-02599 8.4 LCD MONITOR(CE) (1)
67 400-99998 LCD ASM FOR BOC 1
- -
16.COVER COMPONENTS (7)
7
8
8
3 4
4 1
1 6
1 1
1 3
1 4
1 5
1 7
2 0
2 1
2 6
2 8
2 6
2 6
2 6
3 2
3 1
2 9
2 4 2 5
2 2
1 9 4 4
4 0
4 6
4 0
4 9
1 1
1 1
5 1
5 1
5 1
3 3
7
2 7
5 1
5 1
1 6
1 6
3 0
3 8
3 9
4 3
1 2
1 2
1 2
4 8
3 7
3 9
4 7
9
4 5
4 5
5 0
6
1 0
2 3
3 5
3 6
4 2
1 5
5 0
4 5
4 5
5 0
1 8
- -

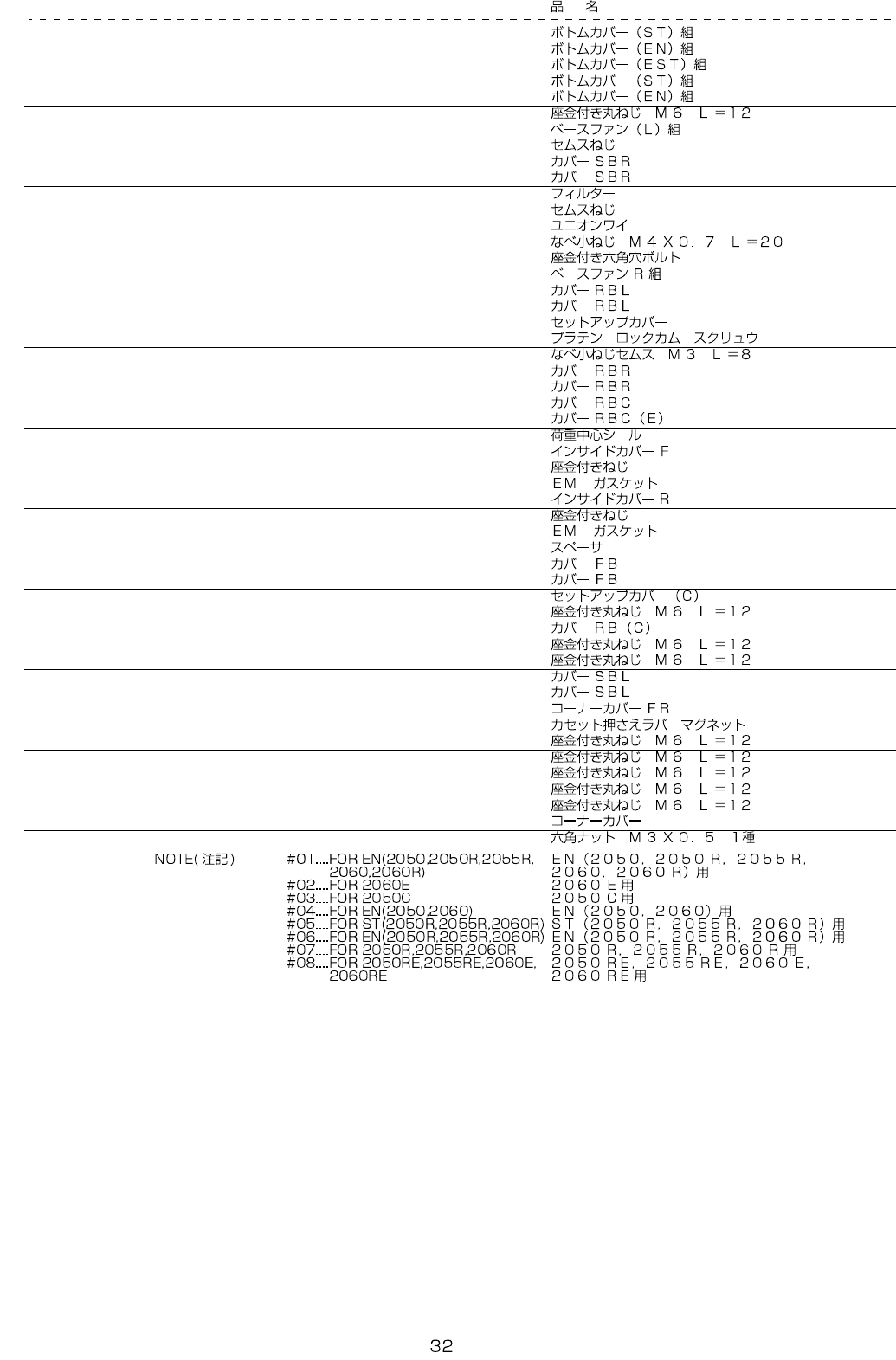

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-01525 BOTTOM COVER(ST)ASSY 1
2
#04
400-01526 BOTTOM COVER(EN)ASSY 1
3
#02
400-18887 BOTTOM COVER (EST) ASSY 1
4
#05
400-27539 BOTTOM COVER(ST)ASSY 1
5
#06
400-27540 BOTTOM COVER(EN)ASSY 1
6 SL-3061232-TN SCREW (6)
7 E9252-729-HA0 BASE FAN (L) ASM. (1)
8 SL-4033591-SC SCREW M3X35 (4)
9 400-01503 COVER SBR (1)
10
#07
400-31191 COVER SBR (1)
11 HM-0010100-10 FILTER (3)
12 SL-4033591-SC SCREW M3X35 (6)
13 PJ-3081000-01 UNION Y (1)
14 SM-4042001-SC SCREW M4 X 20 (1)
15 SL-6042592-TN SCREW (1)
16 400-02326 BASE FAN R ASM (1)
17 400-26959 COVER RBL (1)
18 400-01504 COVER RBL (1)
19 400-01507 SETUP COVER (1)
20 E1038-871-000 PLATEN LOCK CAM SCREW (2)
21 SL-4030891-SC SCREW M3X8 (2)
22 400-26960 COVER RBR (1)
23 400-01505 COVER RBR (1)
24 400-01506 COVER RBC (1)
25
#08
400-17019 COVER RBC(E) (1)
26 168-70206 GRAVITY SEAL (4)
27
#01
400-01517 INSIDE COVER F (1)
28
#01
SL-4061091-SC SCREW (9)
29
#01
HX-0050300-00 EMI GASKET (3)
30
#01
400-01518 INSIDE COVER R (1)
31
#01
SL-4061091-SC SCREW (5)
32
#01
HX-0050300-00 EMI GASKET (1.9)
33 HX-0033400-0D SPACER (1)
34
#07
400-26961 COVER FB (1)
35 400-01501 COVER FB (1)
36
#03
400-18520 SET UP COVER (C) (1)
37
#03
SL-3061232-TN SCREW (4)
38
#03
400-18519 COVER RB (C) (1)
39
#03
SL-3061232-TN SCREW (8)
40 SL-3061232-TN SCREW (4)
41 400-01502 COVER SBL (1)
42
#07
400-31190 COVER SBL (1)
43
#07
400-26956 CORNER COVER FR (1)
44 B2585-220-000 CASSETTE PRESSER RUBBER MAGNET (2)
45 SL-3061232-TN SCREW (8)
46 SL-3061232-TN SCREW (6)
47 SL-3061232-TN SCREW (4)
48 SL-3061232-TN SCREW (4)
49 SL-3061232-TN SCREW (4)
50
#07
400-26955 CORNER COVER (3)
51 NM-6030001-SC NUT M3 10
