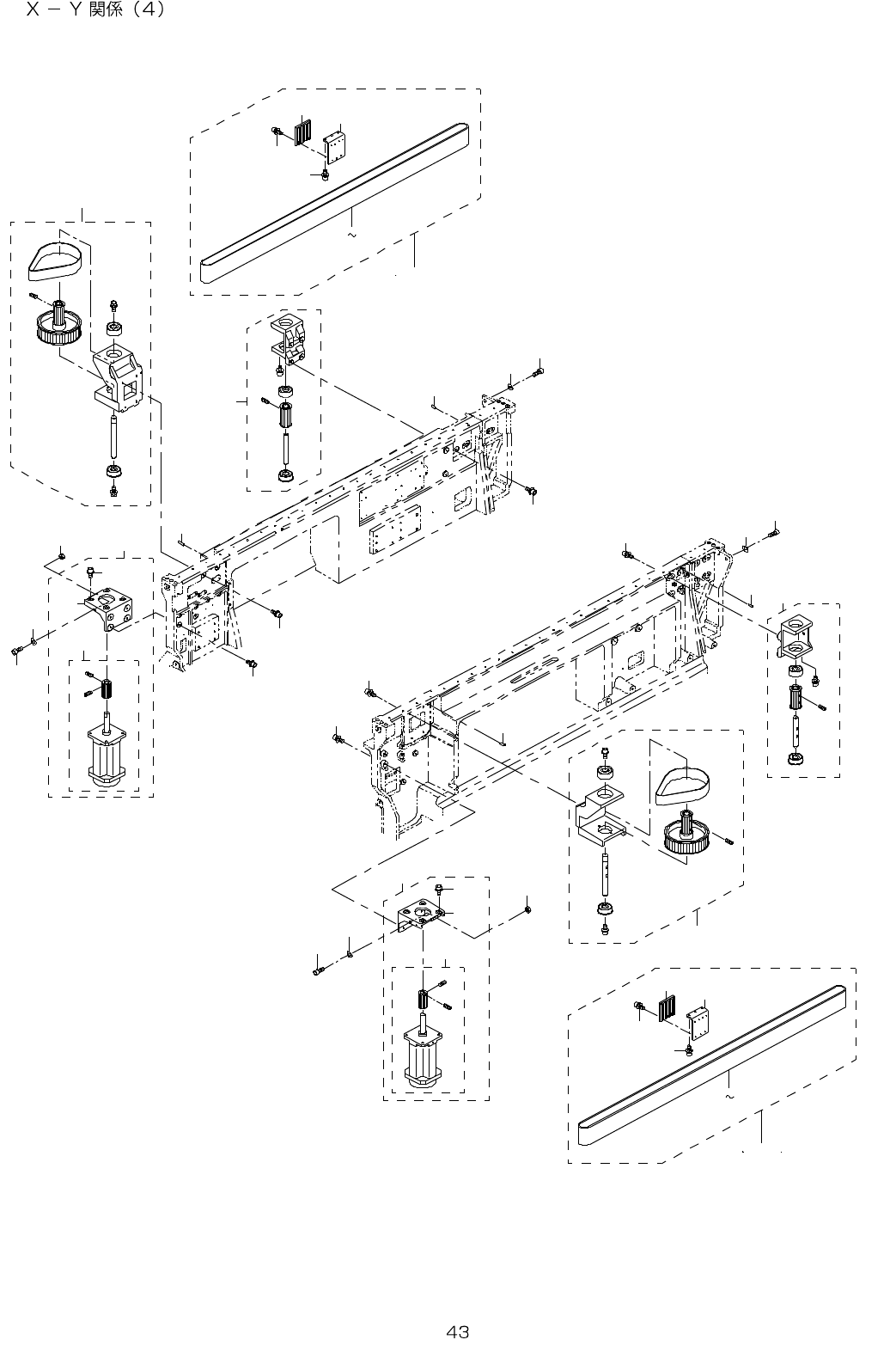

- - 22.X - Y C O M P ONE N TS (4) 6 2 4 3 5 8 7 1 7 1 5 1 6 1 4 1 3 1 4 1 6 1 5 1 3 1 9 2 0 2 4 2 6 2 4 2 6 2 7 2 9 2 8 3 0 2 1 2 2 2 3 2 1 2 2 2 3 1 0 1 1 1 2 1 9 1 8 2 0 9 1 1 8 1 7 2 7 2 9 3 0 2 8 3 3 3 4 3 2 3 1
- -

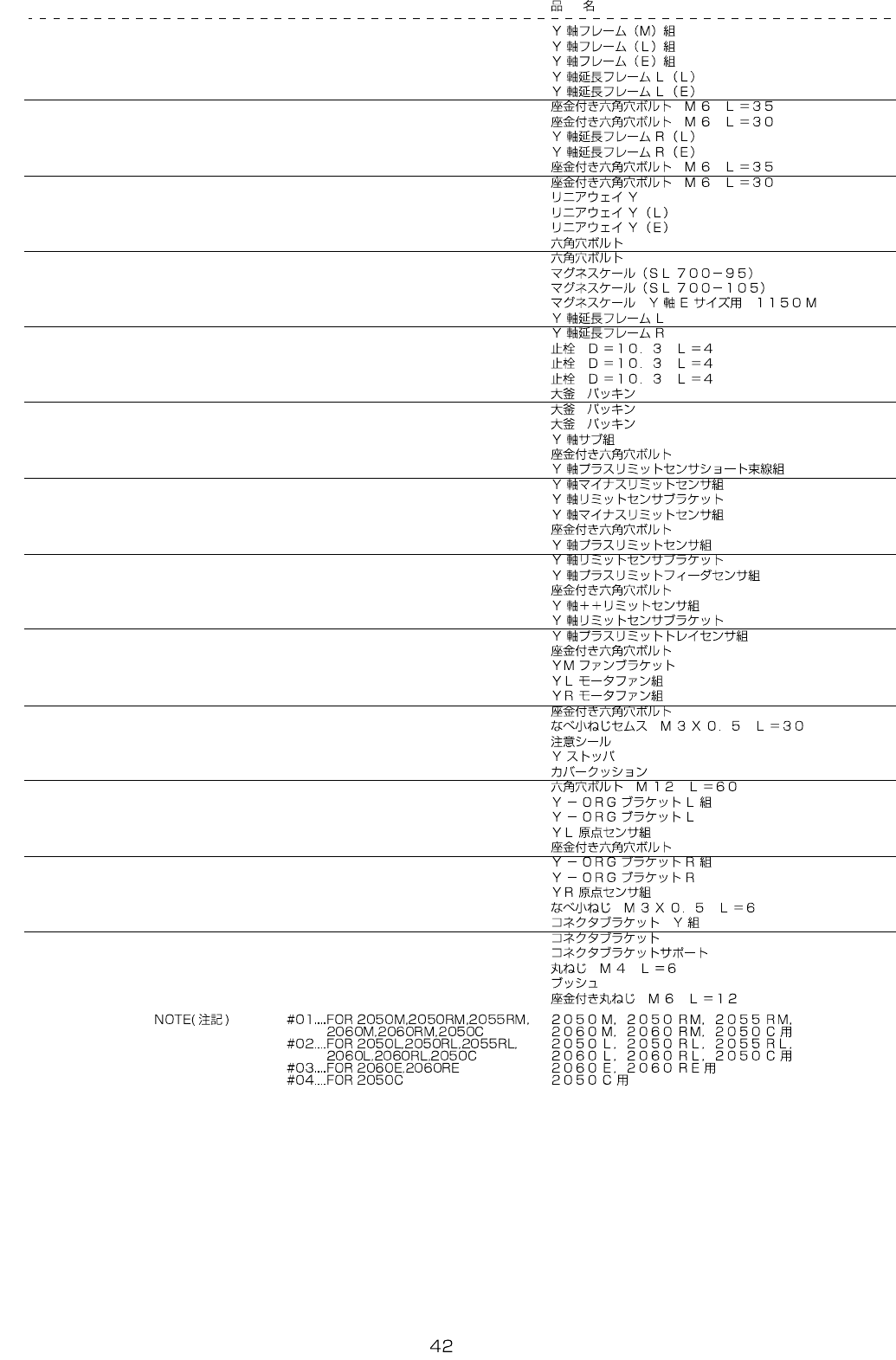

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-00695 Y AXIS FRAME (M) ASS'Y 1
2
#02
400-00696 Y AXIS FRAME (L) ASS'Y 1
3
#03
400-18852 Y AXIS FRAME (E) ASSY 1
4
#02
400-00701 Y EXTENDED FRAME L (L) (1)
5
#03
400-16694 Y EXTENDED FRAME L(E) (1)
6 #01 SL-6063592-TN SCREW (3)
7
#02
SL-6063092-TN SCREW M6 L=30 (8)
8
#02
400-00702 Y EXTENDED FRAME R (L) (1)
9
#03
400-16695 Y EXTENDED FRAME R(E) (1)
10
#01
SL-6063592-TN SCREW (3)
11
#02
SL-6063092-TN SCREW M6 L=30 (8)
12
#01
400-00700 LINEAR WAY Y (2)
13
#02
400-00703 LINEAR WAY Y (L) (2)
14
#03
400-16696 LINEAR WAY Y(E) (2)
15
#01
SM-6052002-TN BOLT (44)
16
#02
SM-6052002-TN BOLT (48)
17
#01
400-03272 MAGNETIC SCALE Y(M)(SL700-95) (2)
18
#02
400-03273 MAGNETIC SCALE Y(L)(SL700-105) (2)
19 #03 400-03319 MAGNETIC SCALE Y(E) (2)
20
#01
400-00698 Y EXTENDED FRAME L (1)
21
#01
400-00699 Y EXTENDED FRAME R (1)
22
#01
TA-1030402-R0 RUBBER PLUG D=10.3 L=4 (3)
23
#02
TA-1030402-R0 RUBBER PLUG D=10.3 L=4 (2)
24
#03
TA-1030402-R0 RUBBER PLUG D=10.3 L=4 (2)
25
#01
135-29607 SHUTTLE PACKING (4)
26
#02
135-29607 SHUTTLE PACKING (2)
27
#03
135-29607 SHUTTLE PACKING (6)
28 400-00707 Y AXIS SUB ASS'Y 1
29 SL-6040892-TN BOLT (2)
30 #04 400-02352 Y PLUS LMT SENSOR SHORT WIRE ASM (1)
31 400-01677 Y MINUS LMT SENSOR ASS'Y (1)
32 400-00711 Y-LMT SENSOR BRACKET (1)
33 400-02068 Y MINUS LMT SENSOR ASM. (1)
34 SL-6040892-TN BOLT (2)
35 400-01678 Y PLUS LMT SENSOR ASS'Y (1)
36 400-00711 Y-LMT SENSOR BRACKET (1)
37 400-02070 YL+ LMT SENSOR(FEEDER)ASM. (1)
38 SL-6040892-TN BOLT (2)
39 400-01679 Y ++ LMT SENSOR ASS'Y (1)
40 400-00711 Y-LMT SENSOR BRACKET (1)
41 400-02069 YL+ LMT SENSOR(TRAY)ASM (1)
42 SL-6040892-TN BOLT (2)
43 400-00712 YM FAN BRACKET (2)
44 E9247-729-HA0 YL MOTOR FAN ASM. (1)
45 E9250-729-HA0 YR MOTOR FAN ASM. (1)
46 SL-6061092-TN SCREW (4)
47 SL-4033091-SC SCREW M3 L=30 (4)
48 E2333-715-000 CAUTION SEAL (2)
49 400-00708 Y STOPPER (4)
50 400-49671 COVER CUSHION (8)
51 SM-6126002-TN SCREW M12 L=60 (12)
52 400-01675 Y-ORG BRACKET L ASS'Y (1)
53 400-13313 Y-ORG BRACKET L (1)
54 400-02171 YL ORG SENS ASM (1)
55 SL-6040892-TN BOLT (2)
56 400-01676 Y-ORG BRACKET R ASS'Y (1)
57 400-00710 Y-ORG BRACKET R (1)
58 400-02172 YR ORG SENS ASM (1)
59 SM-4030601-SC SCREW M3 X 6 (8)
60 400-01652 CONNECTOR BRACKET Y ASS'Y 1
61 400-62409 CONNECTOR BRACKET (1)
62 400-01661 CONNECTOR BRACKET SUPPORT (1)
63 SM-3040652-TN SCREW M4 L=6 (4)
64 HX-0036700-0A BUSH (0.16)
65 SL-3061232-TN SCREW 2
- -
22.X-Y COMPONENTS (4)
6
2
4
3
5
8
7
1 7
1 5
1 6
1 4
1 3
1 4
1 6
1 5
1 3
1 9
2 0
2 4 2 6
2 4 2 6
2 7
2 9
2 8
3 0
2 1 2 2 2 3
2 1 2 2 2 3
1 0
1 1
1 2
1 9
1 8
2 0
9
1
1 8
1 7
2 7
2 9
3 0
2 8
3 3
3 4
3 2
3 1
- -

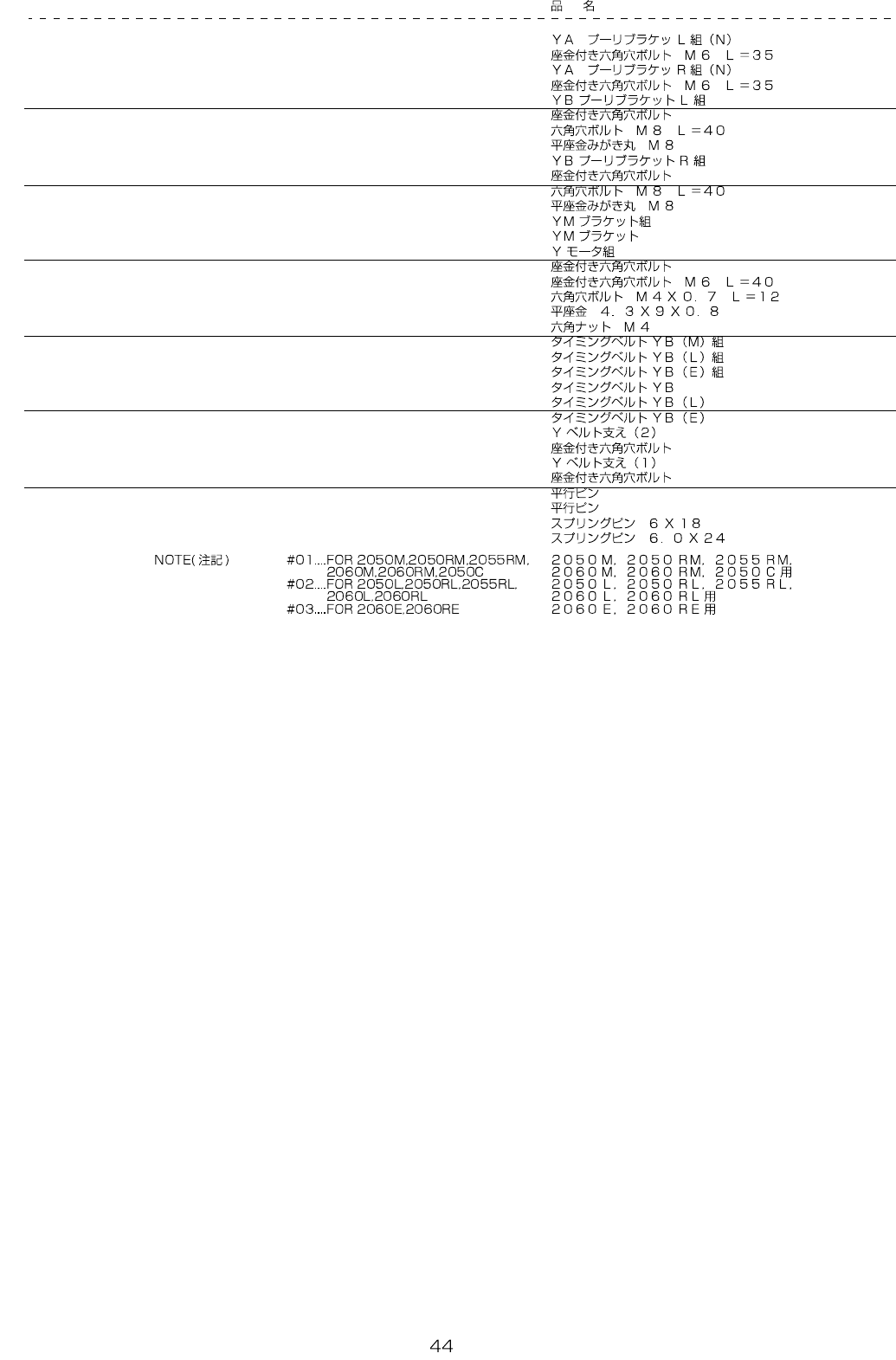

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-55736 YA PULLEY BRACKET L ASSY(N) 1
2 SL-6063592-TN SCREW M6 L=35 4
3 400-55737 YA PULLEY BRACKET R ASSY(N) 1
4 SL-6063592-TN SCREW M6 L=35 4
5 400-00720 YB PULLEY BRACKET L ASS'Y 1
6 SL-6062592-TN SCREW 4
7 SM-6084002-TN SCREW M8 L=40 1
8 WP-0841601-SC WASHER 8.4X17.4X1.6 1
9 400-00723 YB PULLEY BRACKET R ASS'Y 1
10 SL-6062592-TN SCREW 4
11 SM-6084002-TN SCREW M8 L=40 1
12 WP-0841601-SC WASHER 8.4X17.4X1.6 1
13 400-00725 YM BRACKET ASS'Y 2
14 400-00726 YM BRACKET (1)
15 400-00727 Y MOTOR ASS'Y (1)
16 SL-6061492-TN BOLT (4)
17 SL-6064092-TN SCREW 8
18 SM-6041202-TN SCREW M4X0.7 L=12 2
19 WP-0430801-SC WASHER 4.3X9X0.8 2
20 NM-6040001-SC NUT M4 2
21
#01
400-00729 TIMING BELT YB (M) ASS'Y 2
22
#02
400-00730 TIMING BELT YB (L) ASS'Y 2
23
#03
400-18853 TIMING BELT YB(E) ASSY 2
24
#01
400-00732 TIMING BELT YB (1)
25
#02
400-00733 TIMING BELT YB(L) (1)
26
#03
400-16697 TIMING BELT YB(E) (1)
27 400-00736 Y BELT STAY (2) (1)
28 SL-6041292-TN SCREW (7)
29 400-00735 Y BELT STAY (1) (1)
30 SL-6062092-TN SCREW M6 L=20 (3)
31 PH-0600164-C0 PIN 2
32 PH-0600164-C0 PIN 2
33 PS-0600182-KP SPRING PIN 1
34 PS-0600241-00 SPRING PIN 6X24 1
