- - 6. B ASE FRAME ELECT R I C A PP A R A TU S COM P ONE NT S ( 5 ) 1 2 5 1 8 9 1 0 1 1 7 2 2 2 2 3 3 3 3 4 4 4 4 5 5 1 2 8 1 3 6 7 6 7 6 7 1 6 2 6 6 6 4 6 4 1 4 3 4 2 6 2 6 5 6 3 6 4 6 1 4 9 4 7 4 8 5 0 3 8 3 5 3 7 3 …
- -

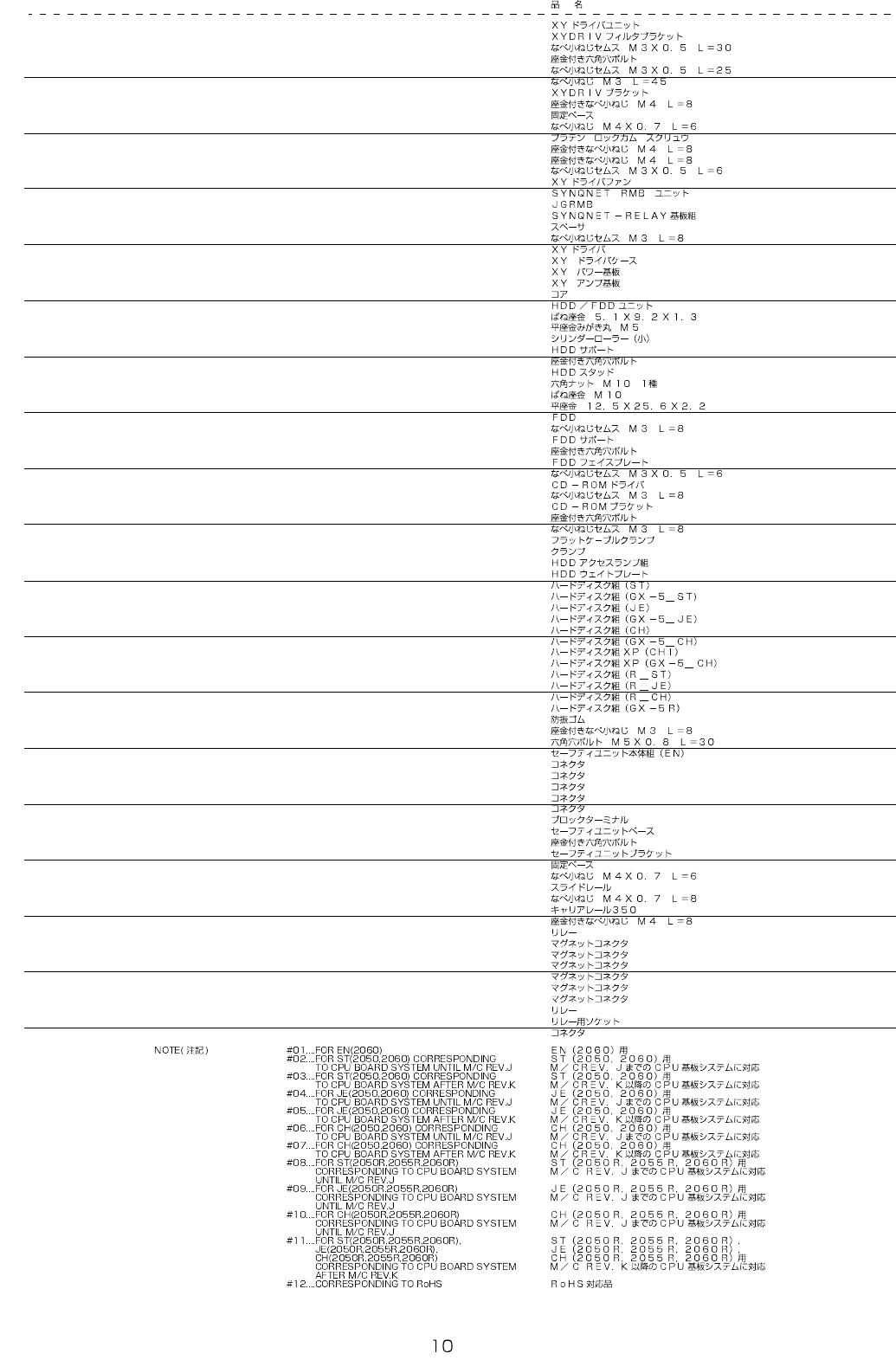

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00451 XY DRIVER UNIT 1
2 400-00453 XY DRIV FILTER BRACKET (1)
3 SL-4033091-SC SCREW M3 L=30 (8)
4 SL-6030842-TN SCREW M3 L=8 (2)
5 SL-4032591-SC SCREW M3X25 (1)
6 SM-4034551-SC SCREW (2)
7 400-00452 XY DRIV BRACKET (1)
8 SL-4040891-SC SCREW M4 L=8 (2)
9 HX-0029400-00 F IXED BASE (1)
10 SM-4040601-SC SCREW M4X0.7 L=6 (1)
11 E1038-871-000 PLATEN LOCK CAM SCREW (4)
12 SL-4040891-SC SCREW M4 L=8 (4)
13 SL-4040891-SC SCREW M4 L=8 (2)
14 SL-4030691-SC SCREW M3X6 (2)
15 400-03317 XY DRIVER FAN (1)
16 400-03322 SYNQNET RMB UNIT (1)
17 400-03260 JGRMB (1)
18 400-01932 SYNQNET RELAY PCB ASM. (1)
19 HX-0024200-0F SPECER (4)
20 SL-4030891-SC SCREW M3X8 (8)
21
#12
400-62551 XY DRIVER (1)
22 400-62554 XY DRIVER CASE (1)
23 400-62553 XY POWER BOARD (1)
24 400-62552 XY AMP BOARD (2)
25
#01
HN-0013300-0A CORE 1
26 400-01567 HDD FDD UNIT 1
27 WS-0510002-KN SPRING WASHER (2)
28 WP-0531001-SC WASHER (2)
29 MAT-R0105000 CYLINDER ROLLER (1)
30 400-00495 HDD SUPPORT (1)
31 SL-6051292-TN BOLT (1)
32 400-00496 HDD STUD (2)
33 NM -6100001-SC NUT M10X1.5 (2)
34 WS-1020002-KN SPRING WASHER M10 (2)
35 WP-1252210-SC WASHER 12.5X25.6X2.2 (2)
36 E9619-729-000 FDD (1)
37 SL-4030891-SC SCREW M3X8 (4)
38 400-00493 FDD SUPPORT (1)
39 SL-6061292-TN SCREW (2)
40 400-00494 FDD FACE PLATE (1)
41 SL-4030691-SC SCREW M3X6 (8)
42 400-03285 CD ROM DRIVE (1)
43 SL-4030891-SC SCREW M3X8 (4)
44 400-00506 CD ROM BR ACKET (1)
45 SL-6061292-TN SCREW (4)
46 SL-4030891-SC SCREW M3X8 (4)
47 HX-0013300-00 F LAT CABLE CLAMP (1)
48 HX-0002400-0B CLAMP (1)
49 400-02325 HDD ACCESS LAMP ASM. (1)
50 400-11588 HDD WEIGHT PLATE (1)
51
#02
400-02933 HARD DISK ASM(ST) (1)
52
#03
400-44503 HARD DISK ASM (GX-5_ST) (1)
53
#04
400-02937 HARD DISK ASM(JE) (1)
54
#05
400-44504 HARD DISK ASM (GX-5_JE) (1)
55
#06
400-02941 HARD DISK ASM(CH) (1)
56
#07
400-44505 HARD DISK ASM (GX-5_CH) (1)
57 #06 400-22685 HARD DISK ASM(CHI) FOR XP (1)
58 #07 400-44506 HARD DISK ASM(GX-5_CH) FOR XP (1)
59 #08 400-27339 HARD DISK ASM(R_ST) (1)
60 #09 400-27341 HARD DISK ASM(R_JE) (1)
61
#10
400-27340 HARD DISK ASM(R_CH) (1)
62
#11
400-44507 HARD DISK ASM(GX-5R) (1)
63 E1612-721-000 VIBROISOLATING RUBBER (4)
64 SL-4030881-SC SCREW M3 L=8 (4)
65 SM-6053002-TN SCREW M5X0.8 L=30 (2)
66
#01
400-01819 SAFETYUNIT BODY ASSY(EN) 1
67 HK-0692500-10 BLOCK TERMINAL (4)
68 HK-0696900-0A BLOC K TERMINAL (1)
69 HK-0696900-0B BLOC K TERMINAL (1)
70 HK-0696900-0C BLOC K TERMINAL (1)
71 HK-0691900-00 BLOCK TERMINAL (1)
72 HK-0691900-0B BLOC K TERMINAL (3)
73 400-00485 SAFETY UNIT BASE (1)
74 SL-6061292-TN SCREW (4)
75 400-00486 SAFETY UNIT BRACKET (1)
76 HX-0029400-00 F IXED BASE (6)
77 SM-4040601-SC SCREW M4X0.7 L=6 (6)
78 400-00488 SLIDE RAIL (1)
79 SM-4040801-SC SCREW M4X0.7 L=8 (12)
80 400-00529 CARRIER RAIL 350 (2)
81 SL-4040891-SC SCREW M4 L=8 (4)
82 HB-0015800-00 RELAY (1)
83 HA-0053100-00 MAGNETIC CONTACTOR (3)
84 HA-0053000-00 MAGNETIC CONTACTOR (2)
85 HA-0053100-10 MAGNETIC CONTACTOR (3)
86 HA-0053000-10 MAGNETIC CONTACTOR (2)
87 HA-0053100-20 MAGNETIC CONTACTOR (3)
88 HA-0053000-20 MAGNETIC CONTACTOR (2)
89 HB-0013900-00 RELAY (8)
90 HB-0013900-10 RELAY SOCKET (8)
91 HK-0691500-10 BLOCK TERMINAL (22)
- -
6. BASE FRAME ELECTRIC APPARATUS COMPONENTS (5)
1 2
5 1
8
9
1 0
1 1
7
2
2
2
2
3
3
3
3
4
4
4
4
5
5
1
2 8
1 3
6 7
6 7
6 7
1 6
2 6
6
6
4 6
4 1
4 3
4 2
6 2
6 5
6 3
6 4
6 1
4 9
4 7 4 8
5 0
3 8
3 5
3 7
3 6
5 2
6 0
3 2
5 9
5 8
6 6
4 4 4 5
3 9 4 0
5 3
5 4
1 4
1 7
2 1
1 5
1 8
2 2
2 1
1 5
1 8
2 3
1 8
2 0
1 9
1 5
2 1
1 8
2 5
2 4
1 5
2 1
3 1
2 9
3 0
2 7
2 9
3 0
5 5
5 6
5 7
3 3
3 4
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00410 COVER STUD ASSY 1
2 400-01510 COVER STUD RL (4)
3 400-01512 COVER STUD YF (4)
4 400-01515 COVER STUD YS (4)
5 400-01516 COVER STUD YR (2)
6 SL-6040892-TN BOLT 4
7 400-00411 Y AXIS SENSOR BR ASSY 1
8 400-00509 SENSOR BRACKET L (1)
9 SM-3040652-TN SCREW M4 L=6 (6)
10 400-00510 SENSOR BRACKET R (1)
11 SM-3040652-TN SCREW M4 L=6 (4)
12 PS-0500202-KP SPRING PIN 5X20 (2)
13 400-00413 FEEDER FLOAT SENS ASSY 1
14 401-53654 FD-FLOAT(FR) SENS SET ASM (1)
15 SL-4031481-SC SCREW M3 X 14 (16)
16 EA-9500B01-00 CABLE BAND (8)
17 401-53653 FD-FLOAT(FF) SENS SET ASM (1)
18 E2157-729-000 FSD SPACER (4)
19 401-53653 FD-FLOAT(FF) SENS SET ASM (1)
20 401-53654 FD-FLOAT(FR) SENS SET ASM (1)
21 400-01651 FSD BRACKET (4)
22 401-53655 FD-FLOAT(RF) SENS SET ASM (1)
23 401-53656 FD-FLOAT(RR) SENS SET ASM (1)
24 401-53655 FD-FLOAT(RF) SENS SET ASM (1)
25 401-53656 FD-FLOAT(RR) SENS SET ASM (1)
26 400-00414 FEEDER SENS ASSY 1
27 401-53657 FD SENS SET ASM (1)
28 EA-9500B01-00 CABLE BAND (2)
29 E2158-729-000 FS BRACKET (2)
30 SL-4031481-SC SCREW M3 X 14 (4)
31 401-53657 FD SENS SET ASM (1)
32 #03 400-18815 BASE COVER SEALING R(C) 1
33
#03
SL-6061292-TN SCREW 4
34 400-01583 BANK PCB F ASSY 1
35 SL-4030691-SC SCREW M3 L=6 (4)
36 400-00504 BANK PCB COVER F (1)
37 SL-4040891-SC SCREW M4 L=8 (4)
38 400-01951 BANK/FPI-F PCB ASM. (1)
39
#04
400-01570 CPCI BORD ASSY 1
40
#05
400-00543 CPCI BORD ASSY(50) 1
41 E9610-729-000 MCM(1 SHAFT) (1)
42 400-03259 XMP CPCI (1)
43 400-03313 BUS-BRIDGE BOARD (1)
44
#07
400-03280 CPU BOARD (1)
45
#08
400-44475 CPU BOARD (1)
46 E9609-729-000 MCM(4 SHAFT) (1)
47 400-01581 CARRY BASE ASSY 1
48 #01 400-00463 CARRY BASE ASSY(EN) 1
49 400-00502 CARRY PCB BRACKET (1)
50 SL-6061292-TN SCREW (4)
51 400-01947 CARRY PCB ASM. (1)
52 EA-9002B11-00 BUSHING L (1)
53 HM-0013200-00 MOTOR DRIVER (1)
54 SL-4040891-SC SCREW M4 L=8 (2)
55 SL-4030691-SC SCREW M3 L=6 (5)
56 400-00500 BASE COVER SEALING F (1)
57
#02
400-18882 BANK PCB R ASSY (E) 1
58 E1017-715-000 BASE COVER CUSHION A (1)
59 #02
400-18461 COVER SEALING R(E) (1)
60
#09
400-01584 BANK PCB R ASSY (1)
61 SL-6061292-TN SCREW (4)
62 400-01949 BANK/FPI-R PCB ASSY (1)
63 SL-4030891-SC SCREW M3X8 (2)
64 400-00501 BASE COVER SEALING R (1)
65 400-00503 BANK PCB BRACKET (1)
66
#06
400-29039 N-VERIFY I/F PCB ASM 1
67 SL-6041092-TN SCREW 8
