- - 86.SYST EM DIAGRAM (19)(ISM/MES ) M S 2 C P U B O A R D C T R L U N I T K E Y B O A R D K E Y B O A R D / M O U S E S W I T C H C O M 2 C O M 2 M O U S E M O U S E B A R C O R D R E A D E R K E Y B O A R D B A R C …
- -

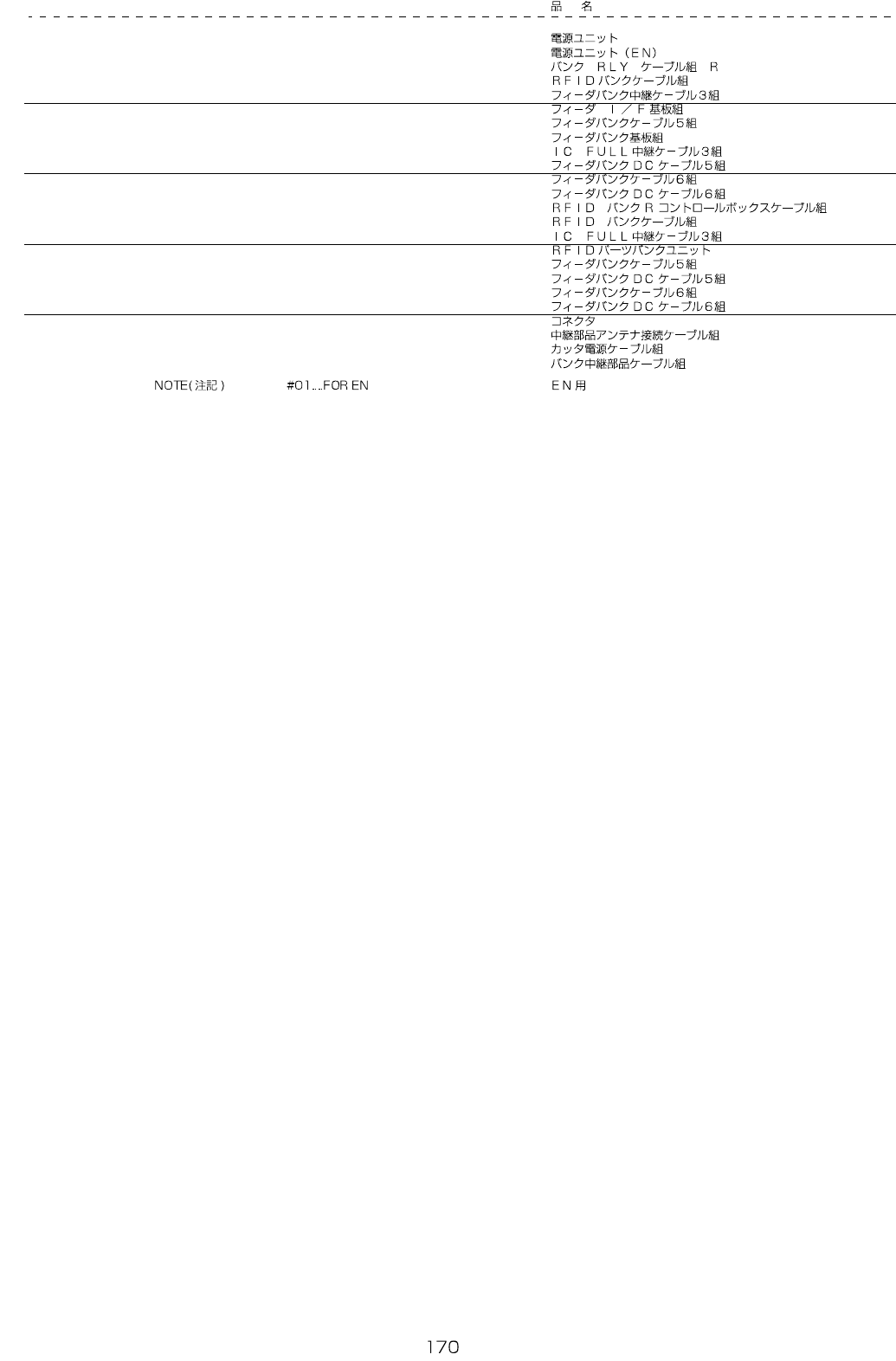

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00466 POWER UNIT 1
2
#01
400-00518 POWER UNIT(EN) 1
3 400-02316 BANK RLY CABLE ASM R 1
4 400-75085 RFID BANK CABLE ASM 1
5 E9388-725-0A0 FEEDER BANK RELAY CABLE 3 ASM. 1
6 E8618-721-0A0 FEEDER I/F BOARD ASM. 1
7 E9378-721-0A0 FEEDER BANK CABLE 5 ASM 1
8 E8615-715-0A0 FEEDER BANK CIRCUIT BOARD ASM. 1
9 E9395-725-0A0 IC FULL RELAY CABLE 3 ASM. 1
10 E9384-721-0A0 FEEDER BANK DC CABLE 5 ASM. 1
11 E9379-721-0A0 FEEDER BANK CABLE 6 ASM. 1
12 E9385-721-0A0 FEEDER BANK DC CABLE 6 ASM. 1
13 400-73743 RFID BANK R CONTROL BOX CABLE ASM 1
14 400-73753 RFID BANK CABLE ASM 1
15 E9395-725-0A0 IC FULL RELAY CABLE 3 ASM. 1
16 400-75525 RFID-PARTS_BANK UNIT 1
17 E9378-721-0A0 FEEDER BANK CABLE 5 ASM 1
18 E9384-721-0A0 FEEDER BANK DC CABLE 5 ASM. 1
19 E9379-721-0A0 FEEDER BANK CABLE 6 ASM. 1
20 E9385-721-0A0 FEEDER BANK DC CABLE 6 ASM. 1
21 HK-0651200-60 CONNECTOR 1
22 400-75358 JOINT PARTS ANTENNA ARRAY F/R CABL E 1
23 E9532-729-0A0 CUTTER POWER SOURCE CABLE ASM. 1
24 400-75356 BANK F/R JOINT PARTS CABLE ASM 1
- -
86.SYSTEM DIAGRAM (19)(ISM/MES)
M S 2
C P U B O A R D
C T R L U N I T
K E Y B O A R D
K E Y B O A R D / M O U S E
S W I T C H
C O M 2C O M 2
M O U S E
M O U S E
B A R C O R D
R E A D E R
K E Y B O A R D
B A R C O R D
R E A D E R
K B
M O U S E
K B / M S P C
R S P C
K B 1
K B 2
M S 1
1 2 1 2
3 3
4 5 6 7
8
9 1 0
1 1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-03284 KEY BOARD 1
2 EZ-1458644-11 READER BAR CODE 1
3 401-76191 PS/2 BARCODE READER CABLE 1
4 400-02302 KEYBOARD CABLE ASM 1
5 400-02301 MOUSE CABLE ASM 1
6 400-02304 R-KEYBOARD CABLE ASM 1
7 400-02303 R-MOUSE CABLE ASM 1
8 400-03281 MOUSE/KEYBOARD SELECTOR 1
9 400-03282 MOUSE/KEYBOARD SELECTOR CABLE ASM 1
10 400-27815 F-232C CABLE ASM 1
11 400-03280 CPU BOARD 1
