- - REF.NO N O T E PART N O D E S C R I P T I O N Qty 1 4 0 0 -01 148 F ML A HEAD AS M. 1 2 #01 400-16052 F ML A HEAD EC ASM 1 3 4 0 0 -01 149 HEAD BRACKET I C ASM. (1 ) 4 #01 400-16053 HEAD BRACKET IC EC ASM (1 ) 5 4 …
- -
26.HEAD COMPONENTS (2) (FOR KE-2060,2060R)
5
6 6
6 7
6 7
7
8
9
5 5
1 0 1 1
6 9
1 2
1 4
1 5
1 7
1 9
2 0
2 2
2 3
2 5
2 5
2 5
2 4
2 6
2 7
1 8
1 3
7 0
5 9
7 1
3 2
3 3
6 8
3 4
3 5
3 6 3 8
4 0
3 9
4 2
6 1 6 2
4 5
4 4
4 7
4 3
4 8
4 9
5 0
5 1
5 4
5 3
5 7
6 0
8 8 9 1
3 4
9 39 5
9 4
8 3
7 8 7 9
7 6 7 7
8 5
8 0
8 2
8 7
7 6 7 7
8 4
8 6
7 2 7 3
9 2
1 2
2 1
7 4 7 5
8 1
5 2
1 2
8
4 6
4 5
9 6
3 0
3 1
5 6
5 8
4 1
6
6 3
6 4
6 5
1 6
2 9
2 8
- -

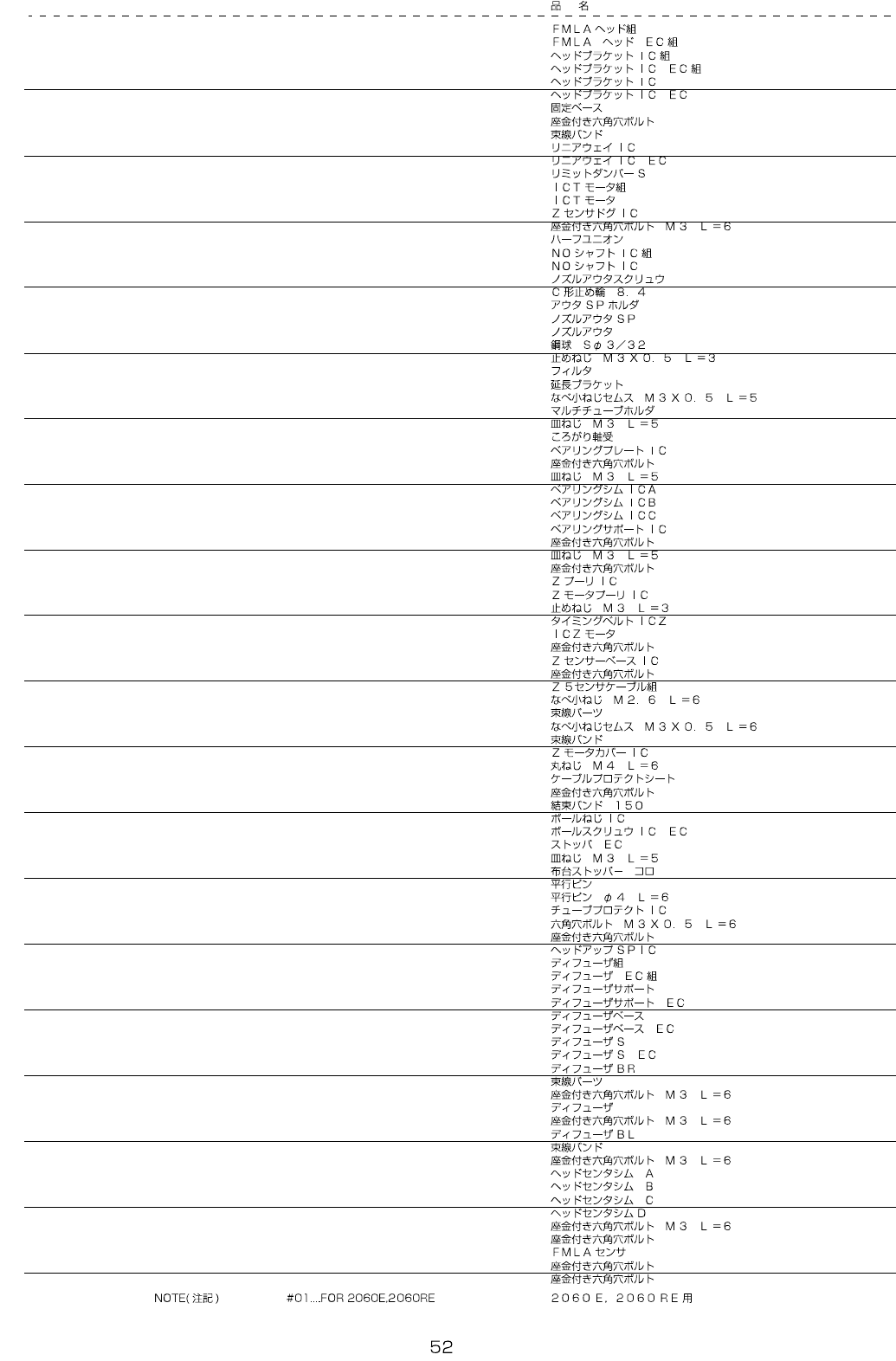

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-01148 FMLA HEAD ASM. 1
2 #01 400-16052 FMLA HEAD EC ASM 1
3 400-01149 HEAD BRACKET IC ASM. (1)
4
#01
400-16053 HEAD BRACKET IC EC ASM (1)
5 400-01150 HEAD BRACKET IC (1)
6
#01
400-16060 HEAD BRACKET IC EC (1)
7 HX-0029400-00 FIXED BASE (1)
8 SL-6030892-TN SCREW (1)
9 EA-9500B01-00 CABLE BAND (1)
10 400-01161 LINEAR WAY IC (1)
11
#01
400-16062 LINEAR WAY IC EC (1)
12 E3046-729-000 LIMIT DAMPER S (2)
13 400-01167 IC T MOTOR ASM. (1)
14 400-03256 ICT MOTOR (1)
15 400-01168 Z SENSOR DOG IC (1)
16 SL-6030692-TN SCREW M3 L=6 (2)
17 PJ-2105041-00 HALF UNION (1)
18 400-01178 NO SHAFT IC ASM. (1)
19 400-01179 NO SHAFT IC (1)
20 400-01139 NOZZLE OUTER SCREW (1)
21 RC-0841011-KP RETAINING RING 8.4 (1)
22 E3062-729-000 OUTER SP HOLDER (1)
23 400-13575 NOZZLE OUTER SP (1)
24 400-01292 NOZZLE OUTER (1)
25 E4228-760-000 STEEL BALL (3)
26 SM-8030302-TP SCREW M3X0.5 L=3 (1)
27 E3052-729-000 FILTER (1)
28 400-98316 EXTEND BR (1)
29 SL-4030581-SC COMBINATION SCREW M3 X 5 (2)
30 400-11220 MULTI TUBE HOLDER (0.167)
31 SM-1030552-TN SCREW M3 L=5 (2)
32 SB-1100025-00 BEARING (1)
33 400-01153 BEARING PLATE IC (1)
34 SL-6030892-TN SCREW (2)
35 SM-1030552-TN SCREW M3 L=5 (2)
36 400-01154 BEARING SHIM IC A (1)
37 400-01155 BEARING SHIM IC B (1)
38 400-01156 BEARING SHIM IC C (1)
39 400-01157 BEARING SUPPORT IC (1)
40 SL-6030892-TN SCREW (2)
41 SM-1030552-TN SCREW (2)
42 SL-6042042-TN SCREW (4)
43 400-01158 Z PULLEY I C (1)
44 400-01159 Z MOTOR PULLEY I C (1)
45 SM-8030312-TP SCREW M3 L=3 (2)
46 400-01160 TIMING BELT IC Z (1)
47 400-03255 ICZ MOTOR (1)
48 SL-6041292-TN SCREW (4)
49 400-01164 Z SENSOR BASE IC (1)
50 SL-6032092-TN BOLT (2)
51 400-02226 Z5 SENSOR RELAY CABLE ASM. (1)
52 SM-4860601-SC SCREW M2.6 L=6 (1)
53 HX-0034400-00 HARNESS PARTS (1)
54 SL-4030691-SC SCREW M3X6 (1)
55 EA-9500B01-00 CABLE BAND (2)
56 400-01165 Z MOTOR COVER IC (1)
57 SM-3040652-TN SCREW M4 L=6 (3)
58 400-01306 CABLE PROTECTOR SHEET (1)
59 SL-6035092-TN BOLT (2)
60 EA-9500B02-00 CABLE BAND 150 (1)
61 400-01152 BALL SCREW IC (1)
62
#01
400-16061 BALL SCREW IC EC (1)
63 #01 400-16070 STOPPER EC (1)
64
#01
SM-1030552-TN SCREW M3 L=5 (2)
65 B4122-804-000 ROLLER (4)
66 PH-0500122-C0 PIN (1)
67 PH-0400062-C0 PIN (4)
68 400-01151 TUBE PROTECTOR IC (1)
69 SM-6030602-TN HEX SCREW M3 X 6 (6)
70 SL-6030892-TN SCREW (2)
71 400-01163 HEAD UP SP IC (2)
72 400-01169 DIFFUSER ASM. (1)
73 #01 400-16054 DIFFUSER EC ASM (1)
74 400-01170 DIFFUSER SUPPORT (1)
75
#01
400-16063 DIFFUSER SUPPORT EC (1)
76 400-01172 DIFFUSER BASE (2)
77
#01
400-16064 DIFFUSER BASE EC (2)
78 400-01173 DIFFUSER S (2)
79 #01 400-16065 DIFFUSER S EC (2)
80 400-01175 DIFFUSER BR (1)
81 HX-0034400-00 HARNESS PARTS (2)
82 SL-6030692-TN SCREW M3 L=6 (2)
83 400-01171 DIFFUSER (1)
84 SL-6030692-TN SCREW M3 L=6 (4)
85 400-01174 DIFFUSER BL (1)
86 EA-9500B01-00 CABLE BAND (2)
87 SL-6030692-TN SCREW M3 L=6 (4)
88 E3019-721-000 HAED CENTER SHIM A (1)
89 E3020-721-000 HAED CENTER SHIM B (1)
90 E3021-721-000 HAED CENTER SHIM C (1)
91 E3047-729-000 HAED CENTER SHIM D (1)
92 SL-6030692-TN SCREW M3 L=6 (1)
93 SL-6051692-TN BOLT (4)
94 400-03264 FMLA SENSOR (1)
95 SL-6041292-TN SCREW (4)
96 SL-6040892-TN BOLT (3)
- -
27.HEAD COMPONENTS (3)
2 4 2 5
1 6
1 7
2 0
2 1
2 1
2 0
2 2
1 1 1 4
3
4
7
7
2
5
5
8
6
9
1 0
1
2 7 2 8
2 9 3 0
1 8 1 9
2 3
1 5 2 6
