- - 20.X - Y C O M P ONE N TS (2) 2 5 2 4 6 7 7 9 9 1 1 1 2 2 1 2 0 2 5 4 2 4 3 3 2 3 3 3 4 2 3 3 1 2 9 3 7 4 0 4 0 4 8 5 4 5 5 5 6 5 7 5 8 5 8 5 2 5 3 4 4 4 5 6 0 6 1 4 1 3 6 4 6 5 6 7 8 5 2 4 2 6 2 8 3 6 3 5 4 6 6 8 …
- -

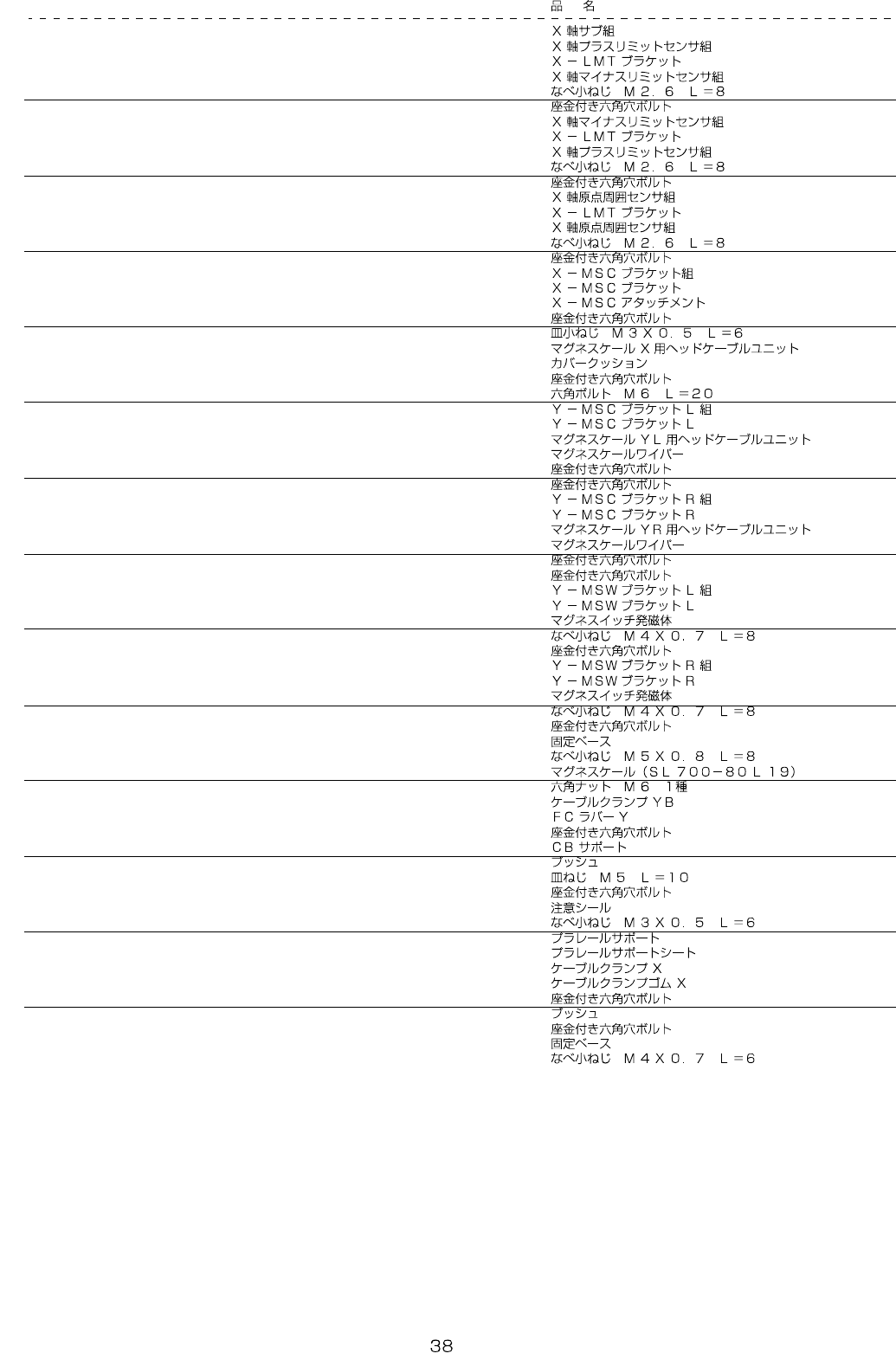

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00665 X AXIS SUB ASS'Y 1
2 400-01669 X PLUS LMT SENSOR ASS'Y (1)
3 400-00667 X-LMT BRACKET (1)
4 400-02228 X MINUS LMT SENSOR ASM. (1)
5 SM-4860801-SC SCREW M2.6 L=8 (1)
6 SL-6030892-TN SCREW (2)
7 400-01670 X MINUS LMT SENSOR ASS'Y (1)
8 400-00667 X-LMT BRACKET (1)
9 400-02227 X PLUS LMT SENSOR ASM (1)
10 SM-4860801-SC SCREW M2.6 L=8 (1)
11 SL-6030892-TN SCREW (2)
12 400-01671 X ORIGIN AMBIT SENSOR ASM. (1)
13 400-00667 X-LMT BRACKET (1)
14 400-02229 X ORG RANGE SENSOR ASM. (1)
15 SM-4860801-SC SCREW M2.6 L=8 (1)
16 SL-6030892-TN SCREW (2)
17 400-01686 X-MSC BRACKET ASS'Y (1)
18 400-00668 X-MSC BRACKET (1)
19 400-00669 X-MSC ATTACHMENT (1)
20 SL-6041092-TN SCREW (2)
21 SM-1030601-SC SCREW M3 L=6 (2)
22 400-03269 MAGNETIC SCALE X HEAD CABLE UNIT (1)
23 400-49671 COVER CUSHION (4)
24 SL-6040892-TN BOLT (2)
25 SM-9062003-SC SCREW M6 L=20 (2)
26 400-01687 Y-MSC BRACKET L ASS'Y (1)
27 400-00670 Y-MSC BRACKET L (1)
28 400-03270 MAGNETIC SCALE YL HEAD CABLE UNIT (1)
29 400-03306 MAGNETIC SCALE WIPER (1)
30 SL-6030892-TN SCREW (2)
31 SL-6051092-TN BOLT (2)
32 400-01688 Y-MSC BRACKET R ASS'Y (1)
33 400-00671 Y-MSC BRACKET R (1)
34 400-03271 MAGNETIC SCALE YR HEAD CABLE UNIT (1)
35 400-03306 MAGNETIC SCALE WIPER (1)
36 SL-6030892-TN SCREW (2)
37 SL-6051092-TN BOLT (2)
38 400-01672 Y-MSW BRACKET L ASS'Y (1)
39 400-00672 Y-MSW BRACKET L (1)
40 E9607-715-B00 MAGNET SWITCH (1)
41 SM-4040801-SC SCREW M4X0.7 L=8 (2)
42 SL-6042092-TN SCREW M4 L=20 (2)
43 400-01673 Y-MSW BRACKET R ASS'Y (1)
44 400-00673 Y-MSW BRACKET R (1)
45 E9607-715-B00 MAGNET SWITCH (1)
46 SM-4040801-SC SCREW M4X0.7 L=8 (2)
47 SL-6042092-TN SCREW M4 L=20 (2)
48 HX-0051900-00 FIXING BASE (2)
49 SM-4050801-SC SCREW M5X0.8 L=8 (2)
50 400-03274 MAGNETIC SCALE (SL700-80L19) (1)
51 NM-6060001-SC NUT M6 (2)
52 400-00747 CABLE CLAMP YB (1)
53 400-66933 FC RUBBER Y (1)
54 SL-6061092-TN SCREW (2)
55 400-01655 CB SUPPORT (1)
56 HX-0022700-0A BUSH (4)
57 SM-1051052-TN PLATE SCREW M5 L=10 (3)
58 SL-6051292-TN BOLT (1)
59 E2333-715-000 CAUTION SEAL (2)
60 SM-4030601-SC SCREW M3 X 6 (4)
61 400-00744 PLASTIC RAIL SUPPORT (1)
62 400-00745 PLASTIC RAIL SUPPORT SHEET (1)
63 400-00746 CABLE CLAMP X (1)
64 400-00748 CABLE CLAMP RUBBER X (1)
65 SL-6061092-TN SCREW (4)
66 HX-0054100-00 BUSH (4)
67 SL-6061292-TN SCREW (4)
68 HX-0029400-00 FIXED BASE (6)
69 SM-4040601-SC SCREW M4X0.7 L=6 (6)
- -

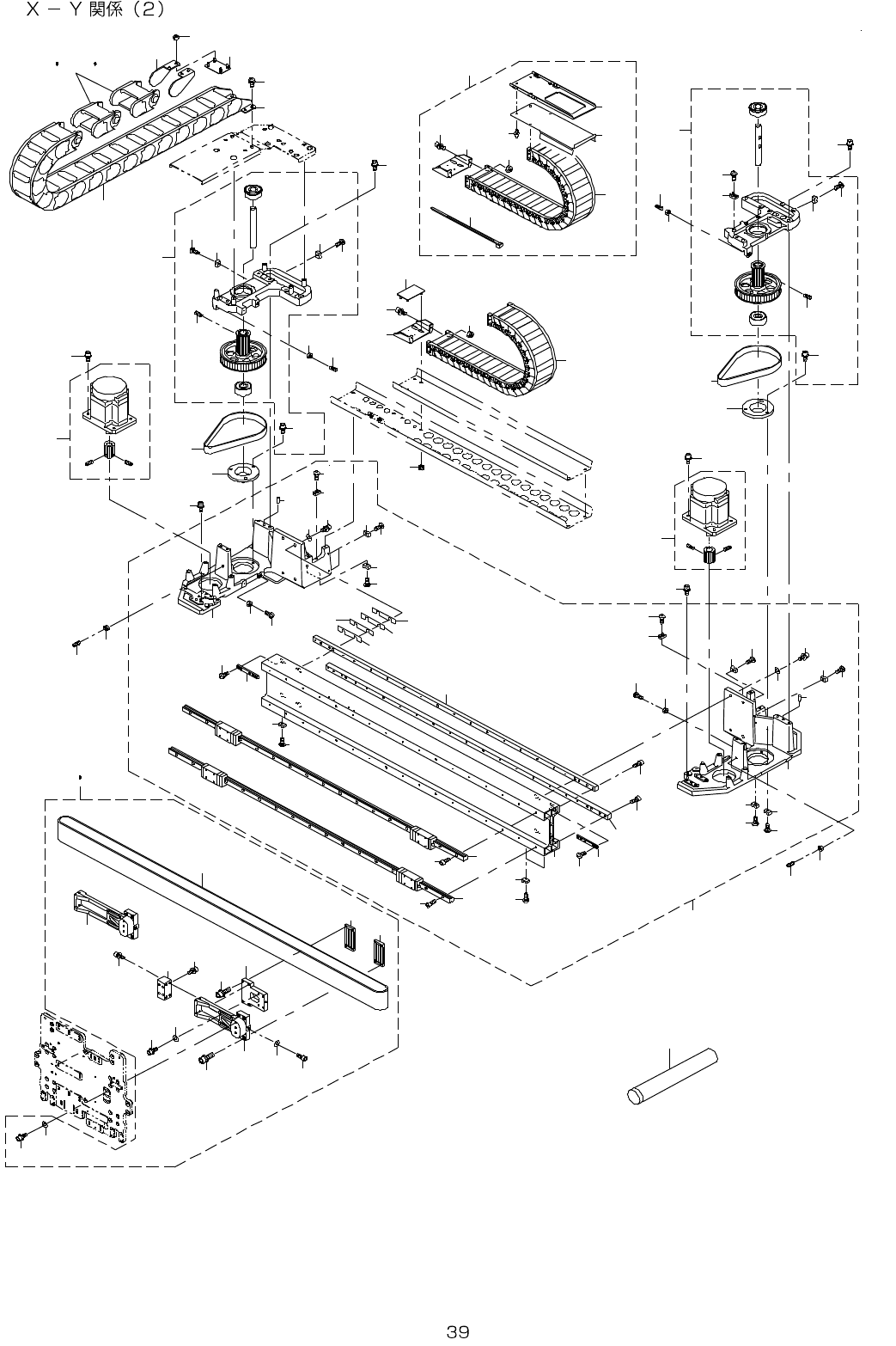

20.X-Y COMPONENTS (2)
2 5
2
4
6
7
7
9
9
1 1
1 2
2 1
2 0
2 5
4 2
4 3
3 2
3 3
3 4
2 3
3 1
2 9
3 7
4 0
4 0
4 8
5 4
5 5
5 6
5 7
5 8
5 8
5 2
5 3
4 4 4 5
6 0
6
1 4
1 3
6 4
6 5
6 7
8
5
2 4
2 6
2 8
3 6
3 5
4 6
6 8
1
3 3
3 4
3 9
3 9
8
4 2
4 3
4 1
1 6
1 6
3
1 8
1 7
1 7
1 8
1 7
1 8
1 0
1 7
1 9
1 7
1 9
1 7
1 8
1 7
2 6
3 0
1 8
1 8
1 7
1 7
1 8
1 7
1 8
7 3
7 3
5
1 0
1 2
2 7
2 1
2 0
4 1
6 1 6 9 7 2
7 0
6 2
6 7
1 1
1 5
2 2
7 4
7 4
6 5
7 6
7 5
6 3
7 7
8 3
8 2
8 1
7 9
8 5
8 4
8 0
3 8
7 8
4 9
5 0
4 7
5 1
5 9
6 6
5 9
8 6
- -

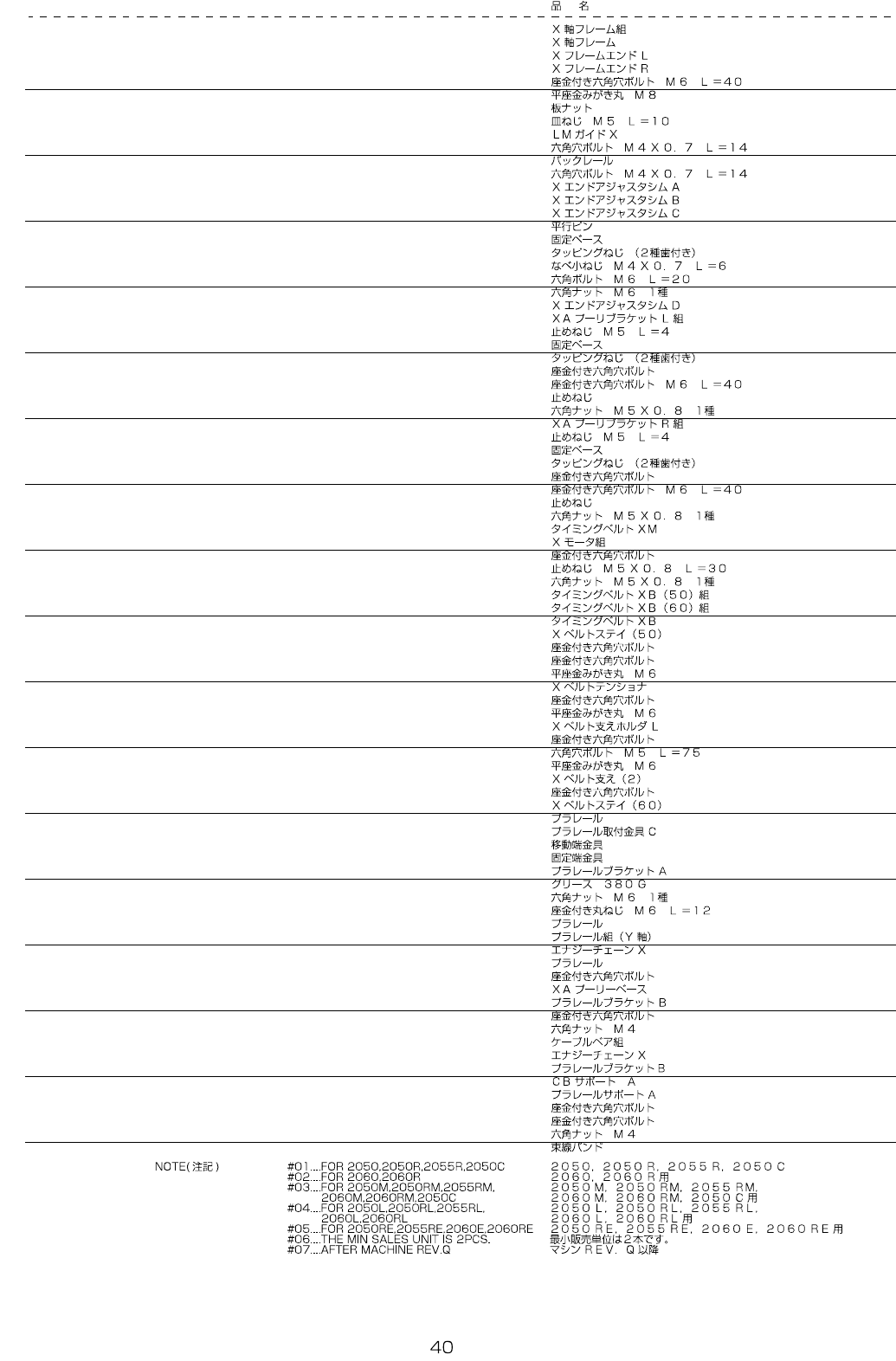

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00655 X AXIS FRAME ASS'Y 1
2 400-00656 X AXIS FRAME (1)
3 400-00657 X FRAME END L (1)
4 400-00658 X FRAME END R (1)
5 SL-6064092-TN SCREW (8)
6 WP-0841601-SC WASHER 8.4X17.4X1.6 (8)
7 400-00661 PLATE NUT (4)
8 SM-1051052-TN PLATE SCREW M5 L=10 (8)
9
#06
400-00659 LM GUIDE X (2)
10 SM-6041402-TN SCREW M4X0.7 L=14 (34)
11 400-00660 BACK RAIL (2)
12 SM-6041402-TN SCREW M4X0.7 L=14 (38)
13 400-00662 X END ADJUST SHIM A (4)
14 400-00663 X END ADJUST SHIM B (2)
15 400-00664 X END ADJUST SHIM C (2)
16 PH-0600164-C0 PIN (2)
17 HX-0029400-00 FIXED BASE (13)
18 ST-4040651-SN SCREW M4 X 6 (10)
19 SM-4040601-SC SCREW M4X0.7 L=6 (3)
20 SM-9062003-SC SCREW M6 L=20 (2)
21 NM-6060001-SC NUT M6 (2)
22 400-15660 X END ADJUST SHIM D (2)
23 400-00676 XA PULLEY BRACKET L ASS'Y 1
24 SM-8050412-TP SCREW M5 L=4 (2)
25 HX-0029400-00 FIXED BASE (6)
26 ST-4040651-SN SCREW M4 X 6 (6)
27 SL-6062092-TN SCREW M6 L=20 (3)
28 SL-6064092-TN SCREW 6
29 SM-8052502-TP SCREW M5X0.8 L=25 1
30 NM-6050001-SC NUT M5 1
31 400-00683 XA PULLEY BRACKET R ASS'Y 1
32 SM-8050412-TP SCREW M5 L=4 (2)
33 HX-0029400-00 FIXED BASE (9)
34 ST-4040651-SN SCREW M4 X 6 (9)
35 SL-6062092-TN SCREW M6 L=20 (6)
36 SL-6064092-TN SCREW 6
37 SM-8052502-TP SCREW M5X0.8 L=25 1
38 NM-6050001-SC NUT M5 1
39 400-00675 TIMING BELT XM 2
40 400-00685 X MOTOR ASS'Y 2
41 SL-6062092-TN SCREW M6 L=20 8
42 SM-8053002-TP SCREW M5 L=30 2
43 NM-6050001-SC NUT M5 2
44
#01
400-00687 TIMING BELT XB (50) ASS'Y 1
45
#02
400-01685 TIMING BELT XB (60) ASS'Y 1
46 400-00688 TIMING BELT XB (1)
47
#01
400-42763 X BELT STAY(50) (1)
48 SL-6053592-TN BOLT (4)
49 SL-6052592-TN BOLT (4)
50 WP-0641601-SC WASHER (4)
51 400-42765 X BELT TENSIONER (1)
52 SL-6052592-TN BOLT (3)
53 WP-0641601-SC WASHER (3)
54 400-01659 X BELT STAY HOLDER L (1)
55 SL-6053592-TN BOLT (4)
56 SM-6057552-TP SCREW M5 L=75 (1)
57 WP-0641601-SC WASHER (1)
58 400-00691 X BELT STAY (2) (2)
59 SL-6042092-TN SCREW M4 L=20 (8)
60
#02
400-42824 X BELT STAY(60) (1)
61
#03
400-00741 PLASTIC RAIL 2
62 400-00742 PLASTIC RAIL TABLE CLAMP C 1
63 E2055-729-00B MOVING END METAL 1
64 E2055-729-00C FIXED END METAL 1
65 400-01674 PLASTIC RAIL BRACKET A 2
66 MGR-EAS380G0 GREASE 380G 1
67 NM-6060001-SC NUT M6 8
68 SL-3061232-TN SCREW 4
69
#04
400-00741 PLASTIC RAIL 3
70 400-00740 PLASTIC RAIL ASSY(Y AXIS) 1
71 400-58017 ENERGY CHAIN X 1
72
#05
400-00741 PLASTIC RAIL 4
73 SL-6052592-TN BOLT 22
74 400-00682 XA PULLEY BASE 2
75 400-65019 PLASTIC RAIL BRACKET B 1
76 SL-6041292-TN SCREW 4
77 NM-6040001-SC NUT M4 2
78
#07
400-69117 CABLE BEAR ASSY 1
79 400-58017 ENERGY CHAIN X (1)
80 400-65019 PLASTIC RAIL BRACKET B (1)
81 400-66028 CB SUPPORT A (1)
82 400-66027 PLASTIC RAIL SUPPORT A (1)
83 SL-6040892-TN BOLT (2)
84 SL-6041292-TN SCREW (4)
85 NM-6040001-SC NUT M4 (2)
86 HX-0006500-0B CABLE BAND (6)
