- - 13.C O V E R C OMPONE N TS (4)(FOR KE - 205 0R,205 5R,2060 R ) 3 7 1 2 1 2 1 3 1 3 1 3 1 3 1 4 1 3 1 5 1 3 1 6 1 6 1 9 4 4 1 4 6 4 6 4 7 4 7 4 7 5 0 4 7 4 9 5 0 4 9 4 7 5 3 5 4 4 2 7 3 7 3 7 2 7 2 7 2 7 2 7 0 7 0 3…
- -

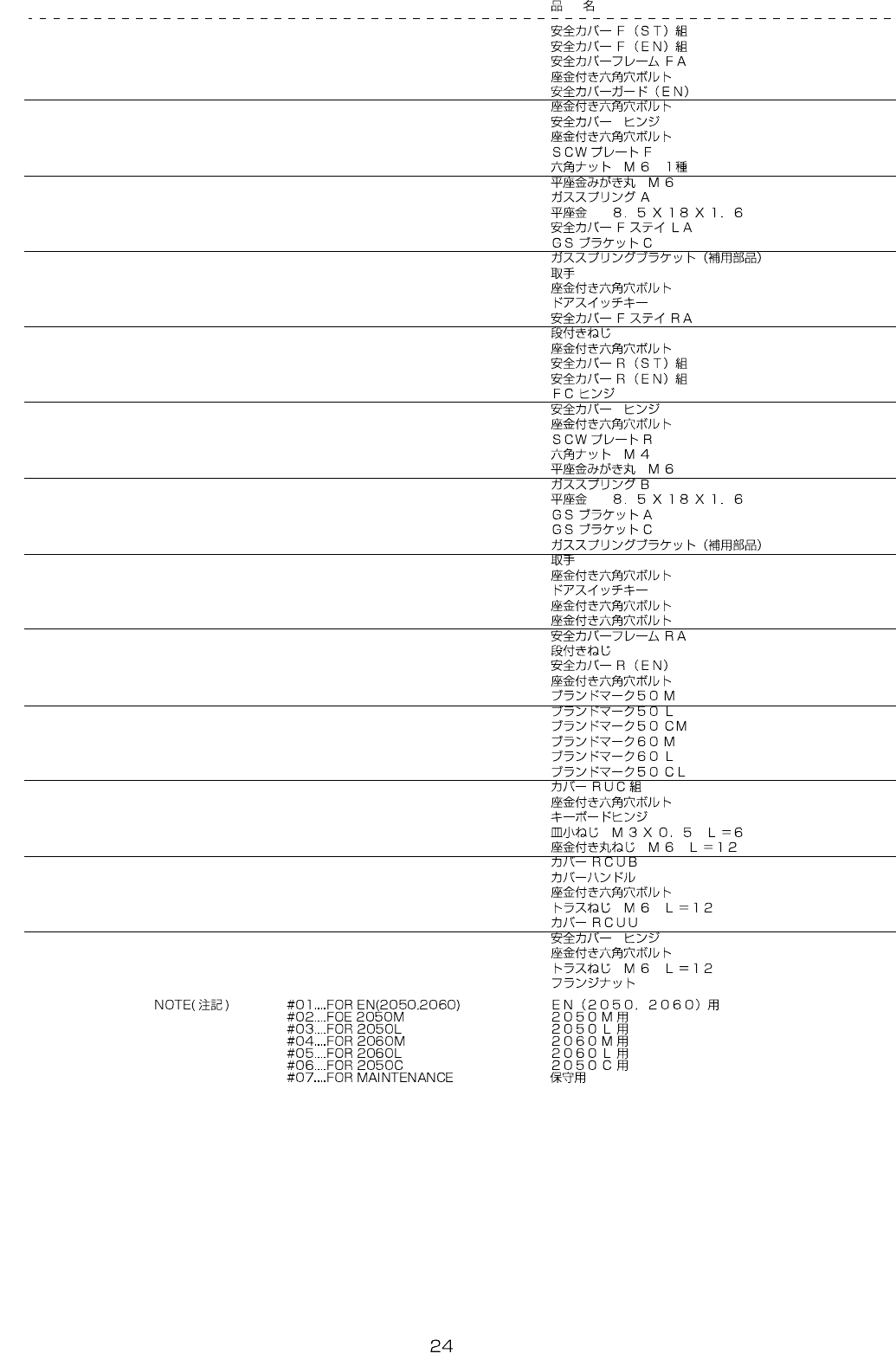

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-01386 SAFETY COVER F(ST) ASS'Y 1
2
#01
400-01387 SAFETY COVER F(EN) ASS'Y 1
3 400-43519 SAFETY COVER FRAME F A (1)
4 SL-6041042-TN BOLT (2)
5
#01
400-01451 SAFETY COVER GUARD (EN) (1)
6 #01 SL-6030892-TN SCREW (5)
7 E1318-715-000 SAFTY COVER HINGE (2)
8 SL-6061242-TN BOLT (4)
9 400-13104 SCW PLATE F (1)
10 NM-6060001-SC NUT M6 (12)
11 WP-0641601-SC WASHER (12)
12 401-10174 GAS_SPRING_A (2)
13 WP-0850002-SC WASHER 8.5X18X1.6 (8)
14 400-43521 SAFETY COVER F STAY L A (1)
15 400-43523 GS BRACKET C (2)
16
#07
400-64540 GS BR(MAINTENANCE PARTS) (2)
17 400-01448 KNOB (1)
18 SL-6051092-TN BOLT (2)
19 HA-0052800-10 SWITCH (1)
20 400-43522 SAFETY COVER F STAY R A (1)
21 400-38381 STEP SCREW (2)
22 SL-6061242-TN BOLT (4)
23 400-01361 SAFETY COVER R(ST) ASS'Y 1
24
#01
400-01362 SAFETY COVER R(EN) ASS'Y 1
25
#01
E1196-725-000 FC HINGE (3)
26 E1318-715-000 SAFTY COVER HINGE (2)
27 SL-6061242-TN BOLT (4)
28 400-01423 SCW PLATE R (1)
29 NM-6040001-SC NUT M4 (8)
30 WP-0641601-SC WASHER (8)
31 401-10173 GAS_SPRING_B (2)
32 WP-0850002-SC WASHER 8.5X18X1.6 (8)
33 E1422-729-000 GS BRACKET A (2)
34 400-43523 GS BRACKET C (2)
35
#07
400-64540 GS BR(MAINTENANCE PARTS) (2)
36 400-01448 KNOB (1)
37 SL-6051092-TN BOLT (2)
38 HA-0052800-10 SWITCH (1)
39 SL-6041042-TN BOLT (2)
40 SL-6051092-TN BOLT (12)
41 400-43520 SAFETY COVER FRAME R A (1)
42 400-38381 STEP SCREW (2)
43 #01 400-01424 FEEDER COVER R (EN) (1)
44 SL-6061242-TN BOLT (4)
45
#02
400-01443 BRAND MARK 50M 1
46
#03
400-01444 BRAND MARK 50L 1
47
#06
400-19289 BRAND MARK 50CM 1
48
#04
400-01449 BRAND MARK 60M 1
49
#05
400-01450 BRAND MARK 60L 1
50
#06
400-19290 BRAND MARK 50CL 1
51
#06
400-18690 COVER RUC ASSY 1
52 SL-6061242-TN BOLT (4)
53 E1349-721-000 KEYBOARD HINGE (2)
54 SM-1030601-SC SCREW M3 L=6 (8)
55 SL-3061232-TN SCREW (2)
56 400-18523 COVER RCUB (1)
57 400-18551 COVER HANDLE (1)
58 SL-6041092-TN SCREW (2)
59 SM-0061201-SC SCREW (4)
60 400-18522 COVER RCUU (2)
61 E1318-715-000 SAFTY COVER HINGE (2)
62 SL-6061242-TN BOLT 8
63 SM-0061201-SC SCREW 8
64 NM-3040520-SF FLANGE NUT M4 1
- -
13.COVER COMPONENTS (4)(FOR KE-2050R,2055R,2060R)
3
7
1 2
1 2
1 3
1 3
1 3
1 3
1 4
1 3
1 5
1 3
1 6
1 6
1 9
4
4 1
4 6
4 6
4 7
4 7
4 7
5 0
4 7
4 9
5 0
4 9
4 7
5 3
5 4
4 2
7 3
7 3
7 2
7 2
7 2
7 2
7 0
7 0
3 6 3 7
1 5
1 4
1 3
1 1
4 7
4 8
4 7
3 9
4 8
4 7
1 3
A
5
2 1
9
2 0
A
1 7
2 2
2 3
2 4
8
6
2 5 3 3
3 4
1 0
4 4
5 6
4 5
5 8
5 1
4 3
6 0 6 8
4 0
3 8
5 5
6 9
5 7
5 9
3 5
3 5
7 1
7 1
1 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-27549 SAFETY COVER F (ST) ASSY 1
2 #01 400-27550 SAFETY COVER F (EN) ASSY 1
3 400-43858 SAFETY COVER FRAME F A (1)
4 SL-6041042-TN BOLT (2)
5
#01
400-01451 SAFETY COVER GUARD (EN) (1)
6
#01
SL-6030892-TN SCREW (5)
7 E1318-715-000 SAFTY COVER HINGE (2)
8 SL-6061242-TN BOLT (4)
9 400-25967 SCW PLATE F (1)
10 NM-6060001-SC NUT M6 (5)
11 WP-0641601-SC WASHER (5)
12 401-10174 GAS_SPRING_A (2)
13 WP-0850002-SC WASHER 8.5X18X1.6 (8)
14 400-31236 GS BRACKET AN (2)
15 400-43523 GS BRACKET C (2)
16 SL-6061242-TN BOLT (4)
17 400-25972 SAFETY COVER HANDLE (1)
18 SL-6051092-TN BOLT (2)
19 HA-0052800-10 SWITCH (1)
20 400-26954 SAFETY COVER PLATE (1)
21 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 (5)
22 SL-6061692-TN BOLT (4)
23 NM-7060032-SC HEXAGONAL CAP NUT, TYPE 3 M6 (4)
24 SL-3061232-TN SCREW (3)
25
#02
400-28121 BRAND MARK 50RM (1)
26
#03
400-28123 BRAND MARK 50RL (1)
27 #04 400-28124 BRAND MARK 50RE (1)
28
#05
400-28125 BRAND MARK 55RM (1)
29
#06
400-28126 BRAND MARK 55RL (1)
30
#07
400-28127 BRAND MARK 55RE (1)
31
#08
400-28128 BRAND MARK 60RM (1)
32 #09 400-28129 BRAND MARK 60RL (1)
33
#10
400-28130 BRAND MARK 60RE (1)
34 CM-3009001-06 LABEL(100) (1)
35 400-38381 STEP SCREW (2)
36 400-27551 SAFETY COVER R (ST) ASSY 1
37
#01
400-27552 SAFETY COVER R (EN) ASSY 1
38 400-43859 SAFETY COVER FRAME R A (1)
39
#01
400-27507 FEEDER COVER R(EN) (1)
40 E1196-725-000 FC HINGE (3)
41 E1318-715-000 SAFTY COVER HINGE (2)
42 SL-6061242-TN BOLT (4)
43 400-26951 SCW PLATE R (1)
44 NM-6040001-SC NUT M4 (5)
45 WP-0641601-SC WASHER (5)
46 401-10173 GAS_SPRING_B (2)
47 WP-0850002-SC WASHER 8.5X18X1.6 (8)
48 400-31236 GS BRACKET AN (2)
49 400-43523 GS BRACKET C (2)
50 SL-6061242-TN BOLT (4)
51 400-25972 SAFETY COVER HANDLE (1)
52 SL-6051092-TN BOLT (2)
53 HA-0052800-10 SWITCH (1)
54 SL-6041042-TN BOLT (2)
55 400-26954 SAFETY COVER PLATE (1)
56 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 (5)
57 SL-6061692-TN BOLT (4)
58 NM-7060032-SC HEXAGONAL CAP NUT, TYPE 3 M6 (4)
59 SL-3061232-TN SCREW (3)
60
#02
400-28121 BRAND MARK 50RM (1)
61
#03
400-28123 BRAND MARK 50RL (1)
62
#04
400-28124 BRAND MARK 50RE (1)
63 #05 400-28125 BRAND MARK 55RM (1)
64
#06
400-28126 BRAND MARK 55RL (1)
65
#07
400-28127 BRAND MARK 55RE (1)
66
#08
400-28128 BRAND MARK 60RM (1)
67
#09
400-28129 BRAND MARK 60RL (1)
68 #10 400-28130 BRAND MARK 60RE (1)
69 CM-3009001-06 LABEL(100) (1)
70 SL-6051092-TN BOLT (12)
71 400-38381 STEP SCREW (2)
72 SL-6061242-TN BOLT 8
73 SM-0061201-SC SCREW 8
