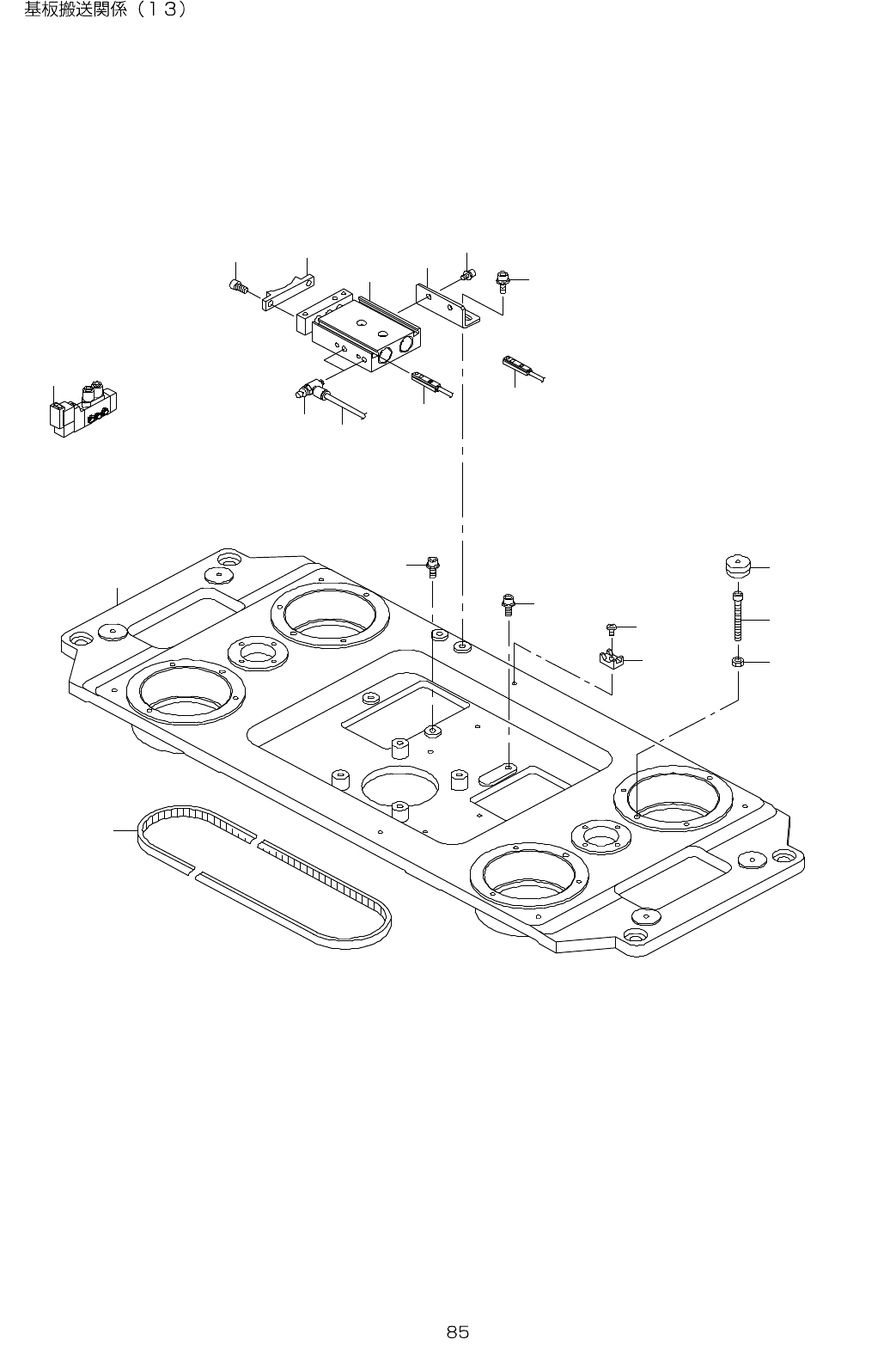

- - 43.P WB C O N VEYO R COMPONEN T S ( 13) 6 7 8 5 1 0 9 1 5 1 6 1 7 1 2 3 4 1 3 1 2 1 4 1 1 1 8 1 9 2 0
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 NM-6050001-SC NUT M5 2
2 #03 NM-6050001-SC N UT M5 4
3 400-00948 CONVEYOR BASE 1
4 #03 400-01024 CONVEYOR BASE(L) 1
5 400-00921 BEARIN G SLEEVE ASM. 4
6 400-00923 BU BALL SCREW (1)
7 400-00924 CLAMP HOLDER (1)
8 400-00925 SHAFT HOLDER (1)
9 400-00926 TIMING PULLEY B (1)
10 E4155-729-000 NUT (M40X1.5) (1)
11 SB-1450004-00 BEAR ING (1)
12 SL-6041042-TN BOLT (1)
13 SM-8050852-TP SCREW M5X8 (2)
14 SM-6051602-TN BOLT (4)
15 400-00922 BEAR ING SLEEVE (1)
16 400-00928 TORQU E SUPPORT ASM. 1
17 400-00929 TORQU E SUPPORT (1)
18 E4141-729-000 TOR SION SPRING (1)
19 E4142-729-000 STOPPER PIN (2)
20 400-00930 TIMIN G PULLEY A ASM. (1)
21 400-00931 TIMIN G PULLEY A (1)
22 400-00932 PULLEY COLLAR (1)
23 SM-8050842-TP SETSCREW (1)
24 SM-8050852-TP SCREW M5X8 (1)
25 SB-1100004-00 BALL BEARING (1)
26 226-14002 THRUST WASHER, A (2)
27 NM -6100002-SE NUT M10 (1)
28 SB-1100004-00 BALL BEARING (1)
29 SM-8050852-TP SCREW M5 L=8 (2)
30 E9432-729-0A0 BU MOTOR ASM. 1
31 400-00934 ENCODER BRACKET ASM. 1
32 400-00935 ENCODER BRACKET (1)
33 E4131-729-000 TIMING PULLEY EA (1)
34 400-00936 ENCODER SHAFT (1)
35 E9433-729-0A0 BU ENC ASM. (1)
36 HX-0036700-0A BUSH (0.05)
37 EA-9500B01-00 CABLE BAND (2)
38 SB-1080002-00 SIDE BEARING (2)
39 SM-6030502-TN SCREW M3 L=5 (2)
40 SM-8040802-TP SCREW M4X8 (2)
41 RC-0740811-KP C-RING (1)
42 WP-0320501-SC WASHER M3 (2)
43 400-00937 TENSION SUPPORT ASM. 1
44 GAW-02121000 PULLEY (1)
45 400-00939 TENSHION SHAFT (1)
46 SB-1100005-00 BEAR ING (2)
47 RC-0100001-KP SNAP RING M10 (1)
48 SM-8050852-TP SCREW M5X8 (2)
49 400-00938 TENSION SUPPORT (1)
50 M1008 -511-000 FOOT SWITCH FIXING PLATE 2
51
#03
M1008-511-000 FOOT SWITCH FIXING PLATE 4
52 E2759-721-000 LIFTER GUIDE SHAFT A 2
53 E2761-721-000 BUSH SUPPORT 2
54 SL-6062542-TN SCREW 4
55 SB-8160001-00 BEAR ING 1
56 WP-0451016-SP WASHER 4.5X20X1 12
57 400-00947 TIMIN G BELT 1
58 #03 400-01023 TIMING BELT(L) 1
59 SL-6051492-TN BOLT 2
60 SL-6051492-TN BOLT 2
61 HX-0029400-00 F IXED BASE 4
62 SM-6054502-TN SCREW M5 L=45 2
63
#03
SM-6054502-TN SCR EW M5 L=45 4
64 SL-6051442-TN BOLT 4
65 SL-6040892-TN BOLT 12
66 SM-4040801-SC SCREW M4X0.7 L=8 4
67
#02
400-11567 BU PLATE ASM. 1
68
#01
400-01867 BU PLATE R ASM(E) 1
69
#04
400-11569 BU PLATE R ASM(L) 1
70
#02
400-00943 BU PLATE (1)
71 #01 400-01868 BU PLATE(E) (1)
72 #04 400-01020 BU PLATE(L) (1)
73 #02 400-00944 SIDE BEAM (1)
74 #01 400-01869 SIDE BEAM(E) (1)
75
#04
400-01021 SIDE BEAM(L) (1)
76 SL-6051492-TN BOLT (4)
77 SM-8040412-TP SET SCREW M4 L=4 2
78
#02
400-11568 BU PLATE ASM. 1
79
#01
400-01867 BU PLATE R ASM(E) 1
80
#04
400-11570 BU PLATE L ASM(L) 1
81
#02
400-00943 BU PLATE (1)
82
#01
400-01868 BU PLATE(E) (1)
83
#04
400-01020 BU PLATE(L) (1)
84
#02
400-00944 SIDE BEAM (1)
85 #01 400-01869 SIDE BEAM(E) (1)
86 #04 400-01021 SIDE BEAM(L) (1)
87 SL-6051492-TN BOLT (4)
88 SM-4040801-SC SCREW M4X0.7 L=8 3
89
#02
400-00941 BU TABLE 1
90
#01
400-01865 BU TABLE(E) 1
91
#04
400-01018 BU TABLE(L) 1
92 SM-1040801-SN SCREW M4X0.7 L=8 12
93 HX-0034400-00 HARNESS PARTS 3
94
#04
HX-0029400-00 FIXED BASE 3
95 SL-6041242-TN BOLT 12
96 SL-6082592-TN BOLT 4
97 SM-6040802-TN SCREW 8
- -
43.PWB CONVEYOR COMPONENTS (13)
6
7
8
5
1 0
9
1 5
1 6
1 7
1
2
3
4
1 3
1 2
1 4
1 1
1 8
1 9
2 0
- -

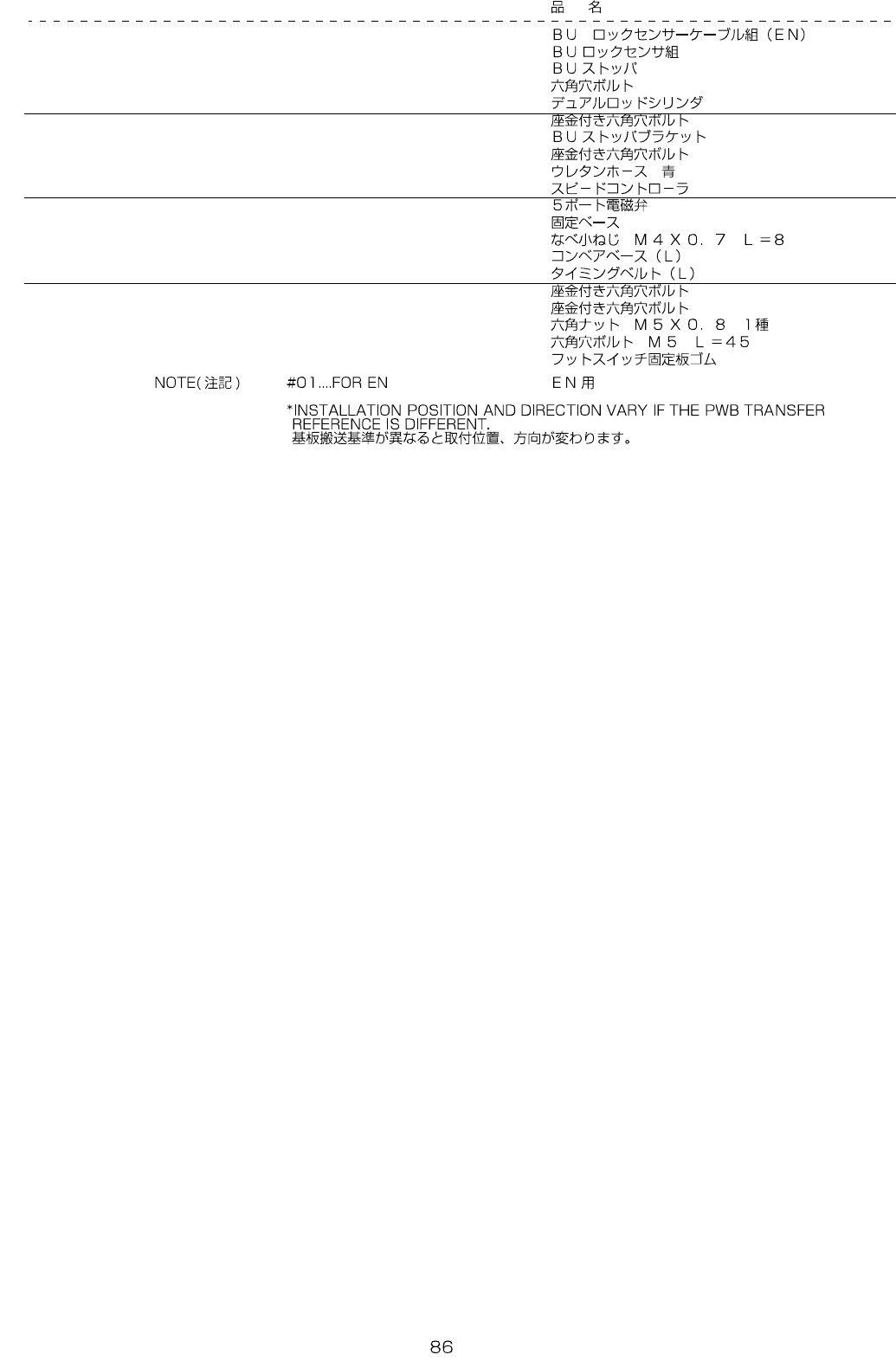

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-02343 BU LOCK CABLE ASM(EN) 1
2
#01
400-02241 BU LOCK SENS ASM. 1
3
#01
400-00970 BU STOPER(EN) 1
4
#01
SM-6051002-TN BOLT 2
5
#01
PA-1501011-00 DUAL ROD CYLINDER 1
6
#01
SL-6040892-TN BOLT 2
7
#01
400-00971 BU STOPER BRACKET(EN) 1
8
#01
SL-6051492-TN BOLT 4
9
#01
BT-0400251-EA TUBE HOSE, BLUE 2
10
#01
PC-0105080-00 SPEED CONTROLLER 2
11
#01
PV-1502090-00 5 PORT SOLENOID VALVE 1
12 HX-0029400-00 FIXED BASE 4
13 SM-4040801-SC SCREW M4X0.7 L=8 4
14 400-01024 CONVEYOR BASE(L) 1
15 400-01023 TIMING BELT(L) 1
16 SL-6051492-TN BOLT 2
17 SL-6051492-TN BOLT 2
18 NM-6050001-SC NUT M5 4
19 SM-6054502-TN SCREW M5 L=45 4
20 M1008-511-000 FOOT SWITCH FIXING PLATE 4
