- - REF.NO NOT E P A RT NO D E S C R I P T I O N Q ty 1 400-00915 C O N V EYOR OT HE R PA R T S 1 2 #01 400 -0 10 15 M E C HA OT HE R P ARTS(L) 1 3 400-00916 MAN I FOL D V ALVE A AS M. ( 1) 4 PV-9150050- 0 0 S OL ENOI …
- -

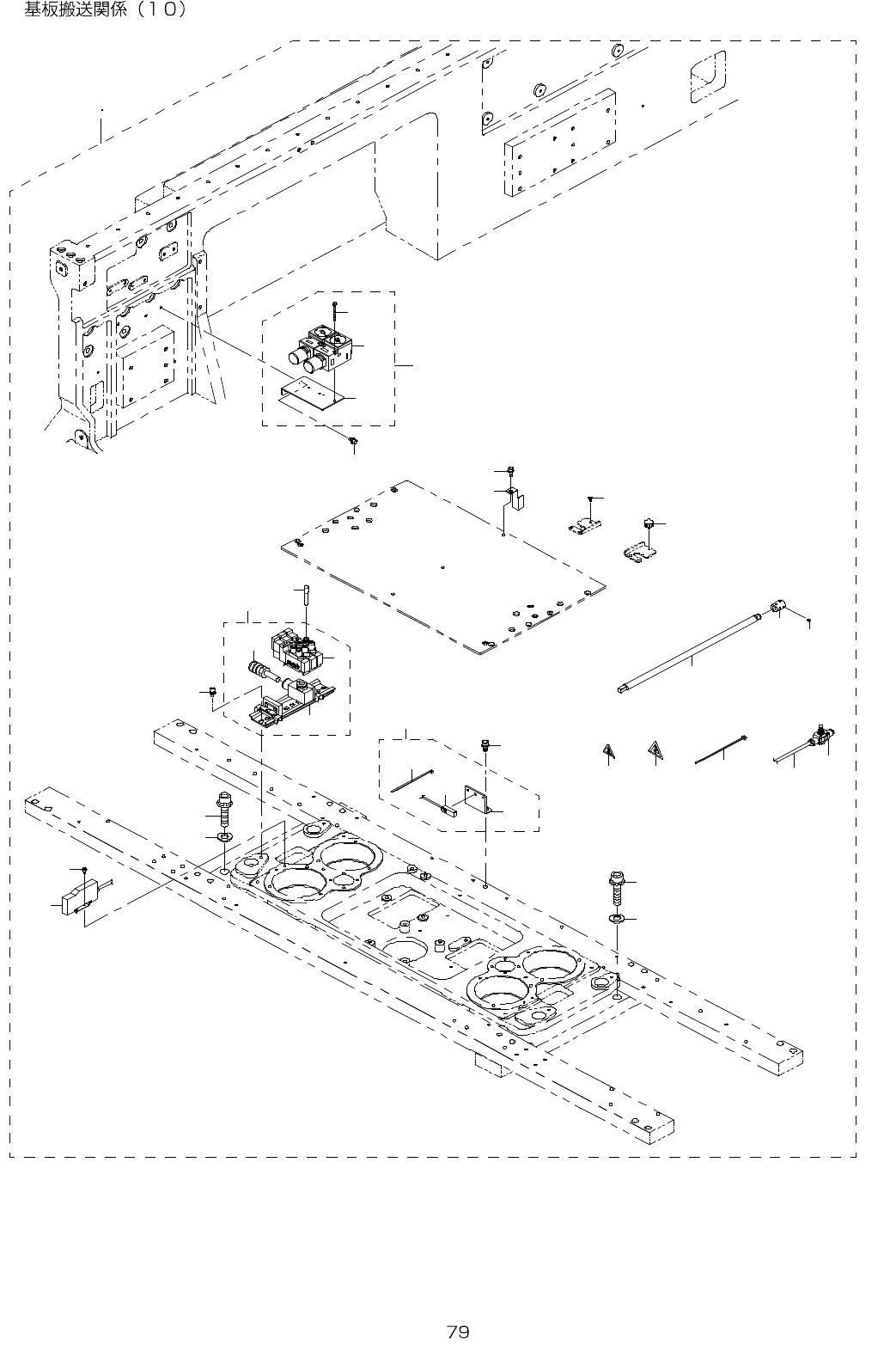

40.PWB CONVEYOR COMPONENTS (10)
3
7
4
6
5
1 1
9
1 0
1 2
3 4
1 8
2 8
2 9
3 0
2 4
1 3
1 4
2 62 3
2 5
3 2
3 3
2 0
3 1
1 9
1 5
2 2
2 1
2 1
2 2
1 6
1 7
2 7
1 2
8
- -

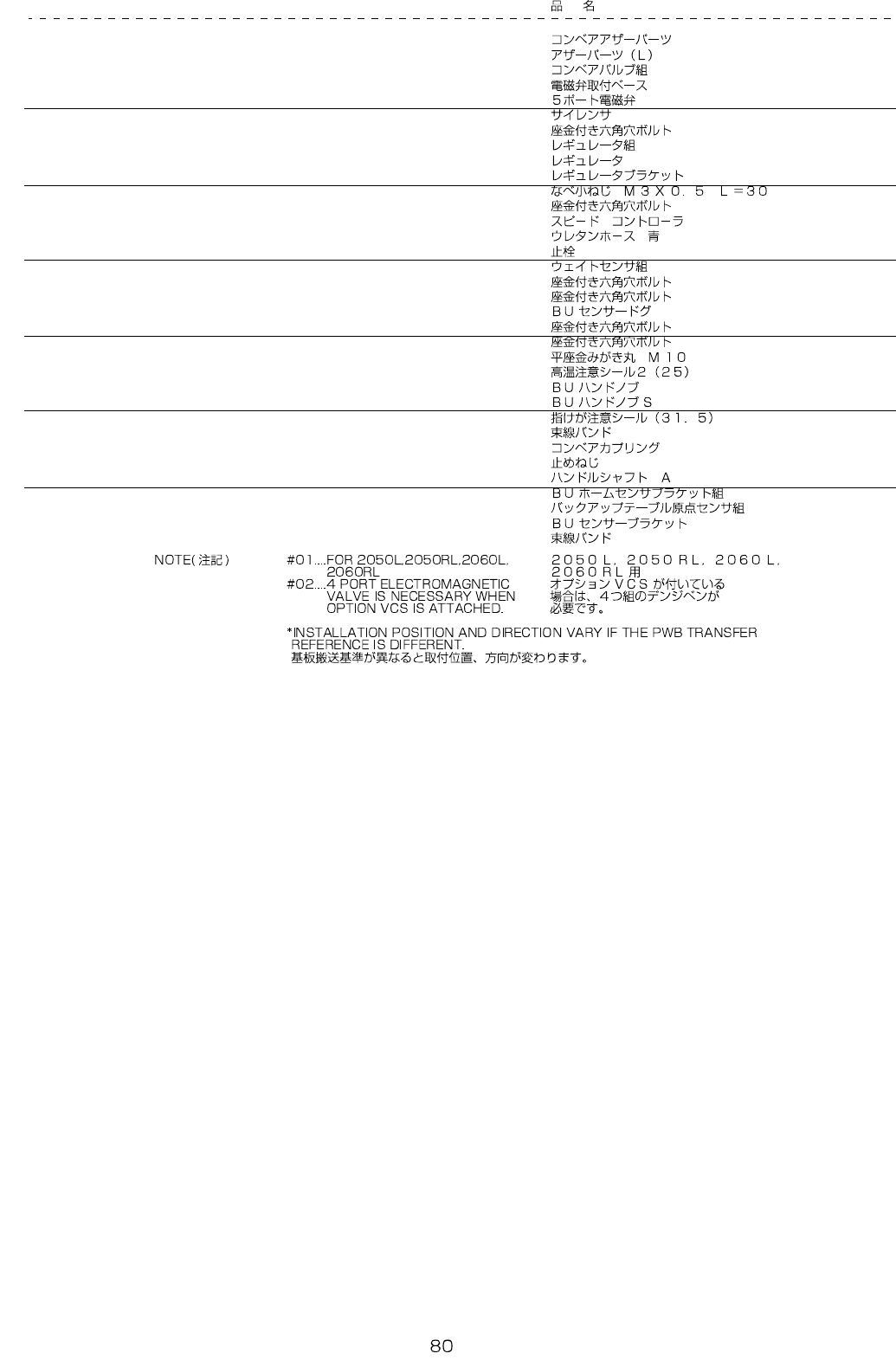

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00915 CONVEYOR OTHER PARTS 1
2
#01
400-01015 MECHA OTHER PARTS(L) 1
3 400-00916 MANIFOLD VALVE A ASM. (1)
4 PV-9150050-00 SOLENOID VALVE INSTALLING BASE (1)
5
#02
PV-1502093-00 5 PORT ELECTROMAGNETIC VALVE (3)
6 PX-0500030-00 SILENCER (1)
7 SL-6041092-TN SCREW (2)
8 400-00903 REGULATOR ASM. (1)
9 PF-0200040-00 REGULATOR (2)
10 400-00904 REGULATOR BRACKET (1)
11 SM-4033001-SC SCREW M3 L=30 (4)
12 SL-6040892-TN BOLT (2)
13 PC-0124010-00 SPEED CONTROLLER (2)
14 BT-0400251-EA TUBE HOSE, BLUE (4)
15 PX-5000140-00 PLUG (3)
16 400-02212 WAIT SENS ASM (1)
17 SL-6030642-TN SCREW M3 L=6 (2)
18 SL-6041092-TN SCREW (1)
19 E4114-729-000 BU SENSOR DOG (1)
20 SL-6051292-TN BOLT (2)
21 SL-6104042-TN BOLT (4)
22 WP-1052001-SC WASHER 10,5X21X2 (4)
23 CM-3003000-02 LABEL2 (25) (1)
24 E2076-721-000 BU HAND KNOB (1)
25 E2141-725-000 BU HAND KNOB S (1)
26 CM-3002000-03 ATTENTION LABEL (2)
27 EA-9500B01-00 CABLE BAND (20)
28 400-13197 CONVEYOR COUPLING (1)
29 SM-8050502-TP SCREW M5 L=5 (4)
30 E2057-721-000 HANDLE SHAFT A (1)
31 400-00981 BU HOME SENSOR BRACKET ASM. (1)
32 400-02124 BU ORG SENS ASM (1)
33 E4115-729-000 BU SENSOR BRACKET (1)
34 EA-9500B01-00 CABLE BAND (1)
- -

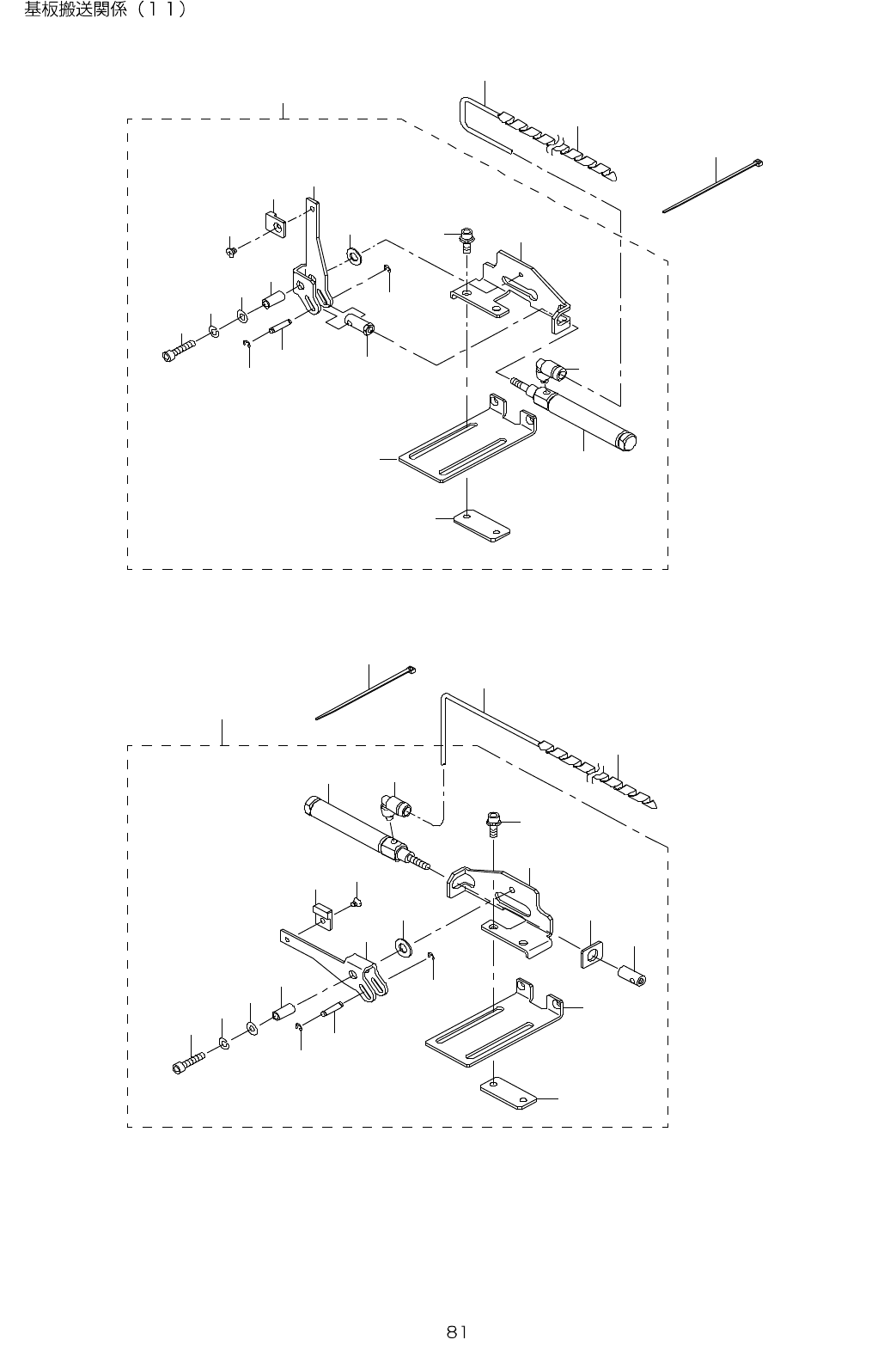

41.PWB CONVEYOR COMPONENTS (11)
2 3
1 0
1 9
1 8
9
8
7
5
6
2
2 0
3
1 3
1 7
1 5
1 9
1 1
1 6
1 4
4
2 1
1
2 6
2 7
2 8
3 1
3 0
2 9
3 2
3 6
3 7
3 5
3 8
3 3
3 9
4 0
3 4
4 2
4 1
4 2
4 3
2 4
2 2
2 5
1 2
