- - REF.NO N OTE PA RT NO D E S C R I P T I O N Qty 1 # 0 2 E6 5 00 -7 29-000 CO PL A S ENSO R BRACKE T 2025 1 2 SL -6 06 2 0 92- T N SCREW M6 L=2 0 2 3 SL -6 04 1 0 92- T N SCREW 4 4 400-01717 CO PL A NALITY SUB UNIT …
- -

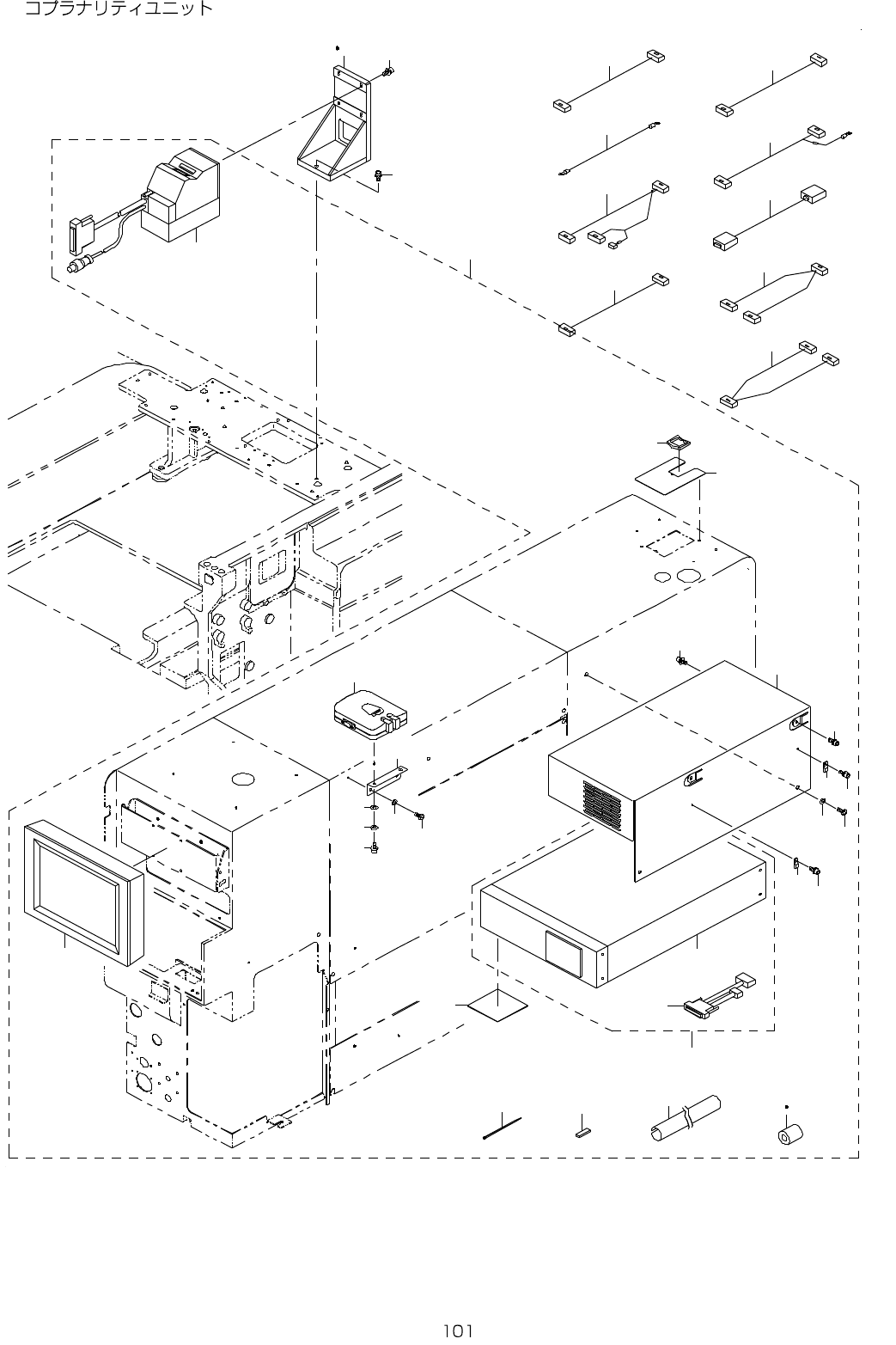

51.COPLANARITY UNIT
1 3 6
2
3
2 1
2 2
2 0
1 9
1 8
1 7
1 6
2 8
1 1 2 6
1 5
4
1 3
1 4
2 7
2 9
3 0
3 1
3 2
3 3
3 4
3 5
3 8
3 7
6
7
1 2
5
2 4
8
9
1 0
1 0
8
9
1 8
2 5
2 3
2 3
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#02
E6500-729-000 COPLA SENSOR BRACKET 2025 1
2 SL-6062092-TN SCREW M6 L=20 2
3 SL-6041092-TN SCREW 4
4 400-01717 COPLANALITY SUB UNIT 1
5 400-46150 COPLANARITY PC COVER (1)
6 SM-3061252-TN SCREW M6 L=12 (2)
7 WP-0641601-SC WASHER (2)
8 SL-6030892-TN SCREW (4)
9 HX-0034400-00 HARNESS PARTS (2)
10 SL-6041292-TN SCREW (4)
11 HN-0014900-0A CLAMP FILTER (3)
12 E1049-729-000 ADJUSTER RUBBER SHEET (2)
13 400-01719 COPLANALITY COVER B (1)
14 HX-0055600-00 EDGE SADDLE (1)
15 400-28131 LCD DISP (1)
16 EA-9500B02-00 CABLE BAND 150 (20)
17 E9676-729-000 VGA TRANSFER SWITCH (1)
18 WP-0320501-SC WASHER M3 (4)
19 SL-6032542-TN SCREW (2)
20 400-01720 VGA SWITCH BRACKET (1)
21 SM-3040652-TN SCREW M4 L=6 (2)
22 WP-0430801-SC WASHER 4.3X9X0.8 (2)
23 400-46680 COPLANARITY UNIT ASM (1)
24 400-63760 COPLANARITY UNIT (1)
25 400-63761 COPLA_SENSOR_CABLE (1)
26 HN-0014900-00 CLAMP FILTER(L) (4)
27 E2156-998-000 COPLA HORIZONTAL FEED SHAFT (1)
28 400-03305 SHIELDING TUBE (1)
29 400-02289 COPLA I F CABLE ASM. 1
30 400-02290 COPLA RS232C CABLE ASM. 1
31 400-02291 COPLA SENSOR POWER CABLE ASM. 1
32 400-02292 COPLA AC POWER RELAY CABLE ASM 1
33 400-02293 COPLA VGA CABLE ASM. 1
34 400-02295 COPLA TOUCH VGA CABLE ASM. 1
35 400-02296 COPLA TOUCH VGA EXT CABLE ASM. 1
36
#01
E6501-729-000 COPLA SENSOR BRACKET 12 1
37 E9858-729-0A0 COPLA AC POWER CABLE ASM. 1
38 400-02332 COPLA FG WIRE ASM. 1
- -
52.FPI COMPONENTS
4
5
5
6
7
8
9
1 2
1 3
1 4
1 5
1 6
1 8
3
2
1 9
1 9
2 0
2 0
2 0
2 0
3 3
3 4
3 2
3 8
2 3
2 4
2 5
3 6
2 6
2 7
2 8
2 9
3 1
3 0
3 5
4 0
4 1
3 9
4 1
2 5
2 2
2 1
3 7
1
1 0
1 7
1 1
