- - 42.P WB C O N VEYO R COMPONEN T S ( 12) 1 5 6 7 8 9 1 0 1 1 1 2 1 3 1 4 1 7 2 1 2 2 2 3 2 4 2 5 1 9 1 9 1 8 1 6 2 6 2 8 2 6 2 7 2 9 3 3 3 5 3 2 3 6 3 8 3 9 4 1 4 0 4 4 4 5 3 8 4 6 4 6 4 7 4 8 3 4 5 2 5 3 5 4 5 5 9 …
- -

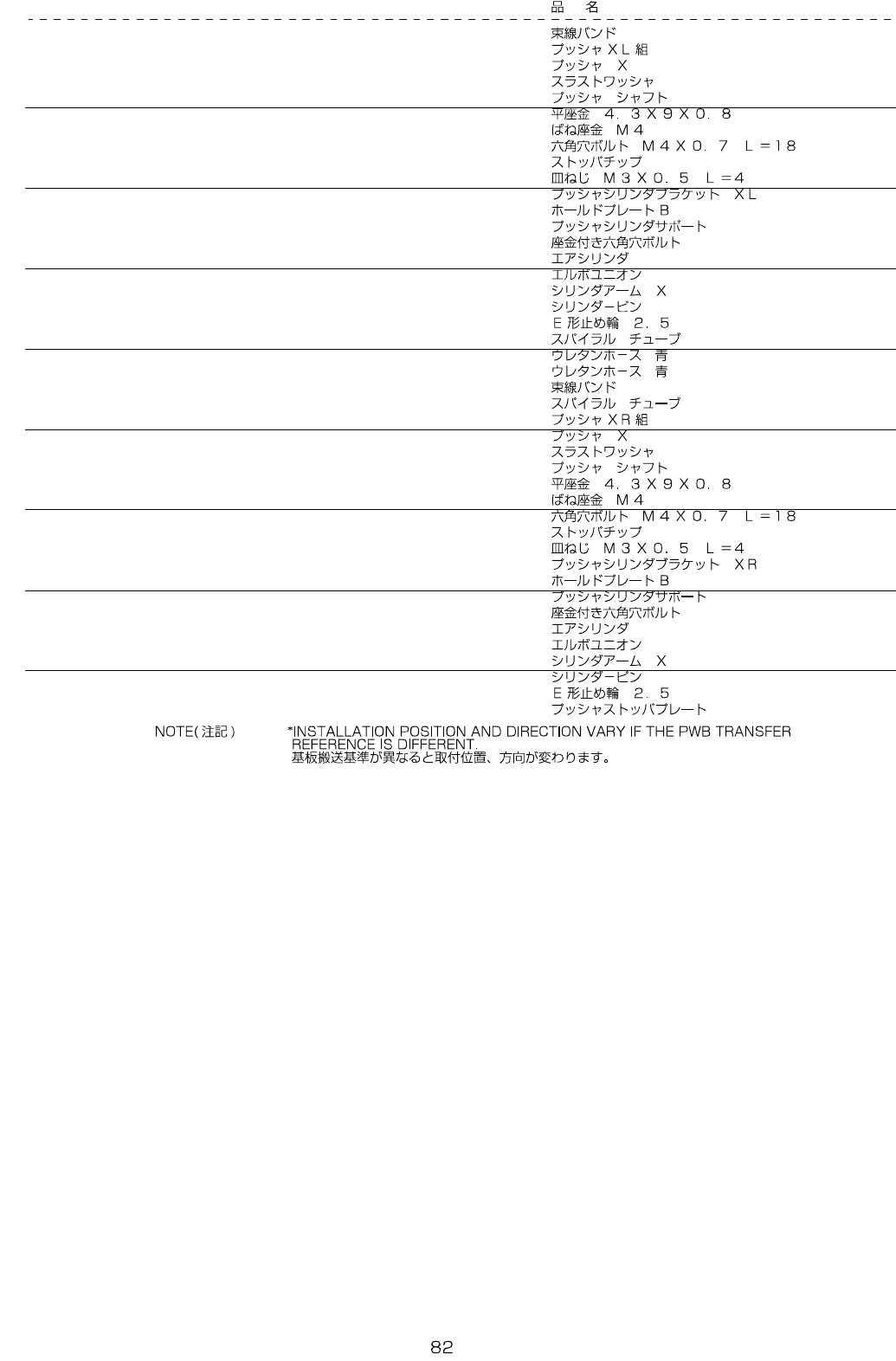

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 EA-9500B01-00 CABLE BAND 1
2 E2281-725-0A0 PUSHER XL ASM. 1
3 E2280-725-000 PUSHER X (1)
4 E2173-715-000 THRUST WASHER (1)
5 E2172-715-000 PUSHER SHAFT (1)
6 WP-0430801-SC WASHER 4.3X9X0.8 (1)
7 WS-0410002-KN SPRING WASHER (1)
8 SM-6041802-TN SCREW M4X0.7 L=18 (1)
9 E2233-725-000 STOPPER CHIP (1)
10 SM-1030401-SE SCREW M3 L=4 (1)
11 E2281-725-000 PUSHER CYLINDER BRACKET XL (1)
12 E2284-725-000 HOLD PLATE B (1)
13 E2283-725-000 PUSHER CYLINDER SUPPER (1)
14 SL-6041042-TN BOLT (2)
15 PA-1002101-A0 AIR CYLINDER (1)
16 PJ-3040405-11 ELBOW UNION (1)
17 E2177-715-000 CYLINDER ARM X (1)
18 E4843-760-000 CYLINDER PIN (1)
19 RE-0250000-K0 E-RING 2.5 (2)
20 HX-0031400-00 SPIRAL TABE 0.6
21 BT-0400251-EA TUBE HOSE, BLUE 1.8
22 BT-0400251-EA TUBE HOSE, BLUE 1.8
23 EA-9500B01-00 CABLE BAND 1
24 HX-0031400-00 SPIRAL TABE 0.6
25 E2282-725-0A0 PUSHER XR ASM. 1
26 E2280-725-000 PUSHER X (1)
27 E2173-715-000 THRUST WASHER (1)
28 E2172-715-000 PUSHER SHAFT (1)
29 WP-0430801-SC WASHER 4.3X9X0.8 (1)
30 WS-0410002-KN SPRING WASHER (1)
31 SM-6041802-TN SCREW M4X0.7 L=18 (1)
32 E2233-725-000 STOPPER CHIP (1)
33 SM-1030401-SE SCREW M3 L=4 (1)
34 E2282-725-000 PUSHER CYLINDER BRACKET XR (1)
35 E2284-725-000 HOLD PLATE B (1)
36 E2283-725-000 PUSHER CYLINDER SUPPER (1)
37 SL-6041042-TN BOLT (2)
38 PA-1002101-A0 AIR CYLINDER (1)
39 PJ-3040405-11 ELBOW UNION (1)
40 E2177-715-000 CYLINDER ARM X (1)
41 E4843-760-000 CYLINDER PIN (1)
42 RE-0250000-K0 E-RING 2.5 (2)
43 E2116-725-000 PUSHER STOPPER PLATE (1)
- -

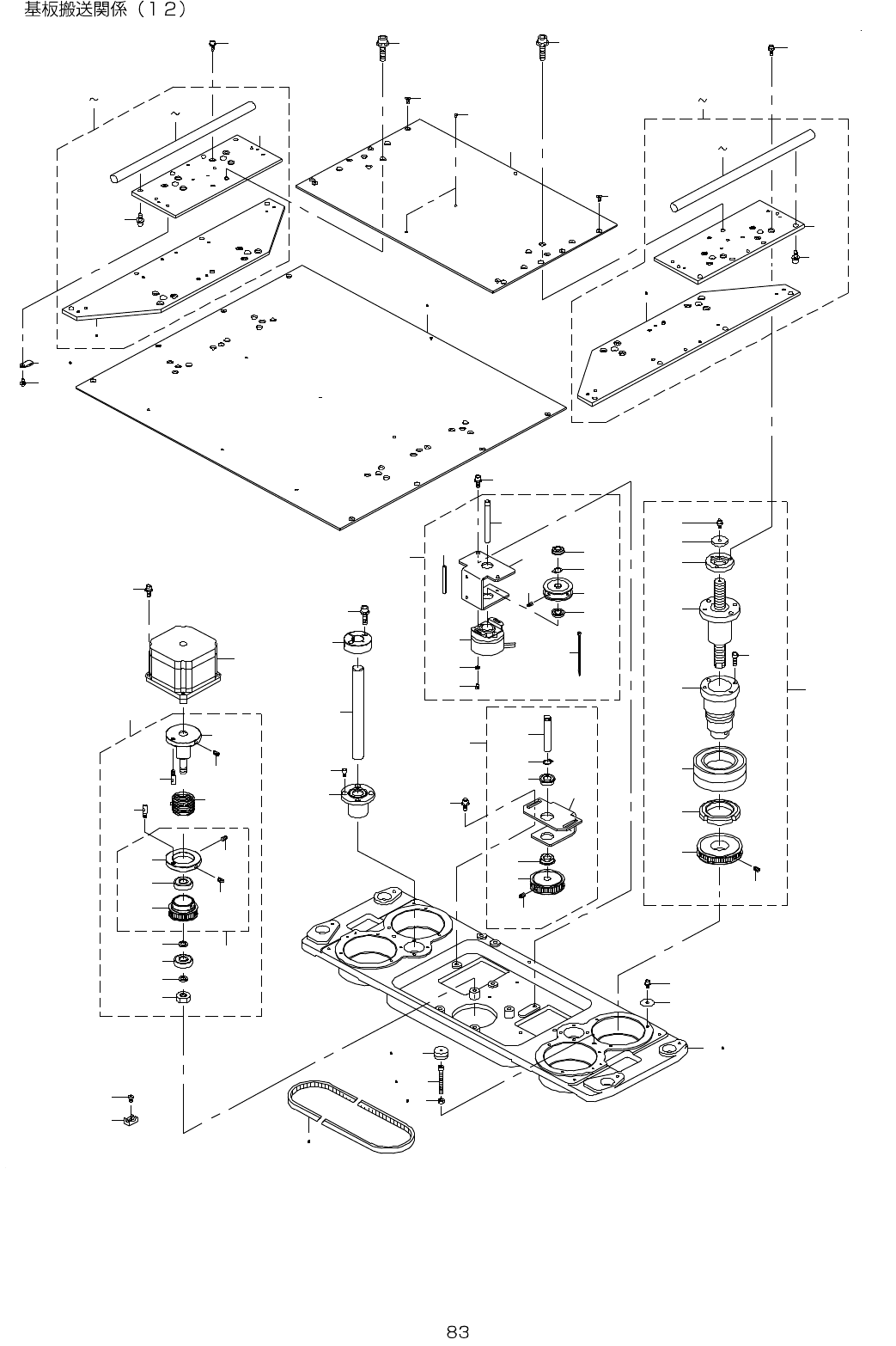

42.PWB CONVEYOR COMPONENTS (12)
1 5
6
7
8
9
1 0
1 1
1 2
1 3
1 4
1 7
2 1
2 2
2 3
2 4
2 5
1 9
1 9
1 8
1 6
2 6
2 8
2 6
2 7
2 9
3 3
3 5
3 2
3 6
3 8
3 9
4 1
4 0
4 4
4 5
3 8
4 6
4 6
4 7
4 8
3 4
5 2
5 3
5 4
5 5
9 7
6 5
5 6
6 0
4 9
6 4
5 9
3 4
6 2 6 3
1 2
5 0 5 1
9 2
7 7
8 1
8 4 8 6
8 7
7 8 8 0
7 3 7 5
6 7 6 9
2 0
3 0
7 6
9 6
9 2
9 6
8 9
9 5
9 5
6 6
6 1
7 0
7 1 7 2
9 0 9 1
8 2 8 3
8 8
9 3 9 4
4 3
3 7
5
3 1
5 7 5 8
4 2
- -

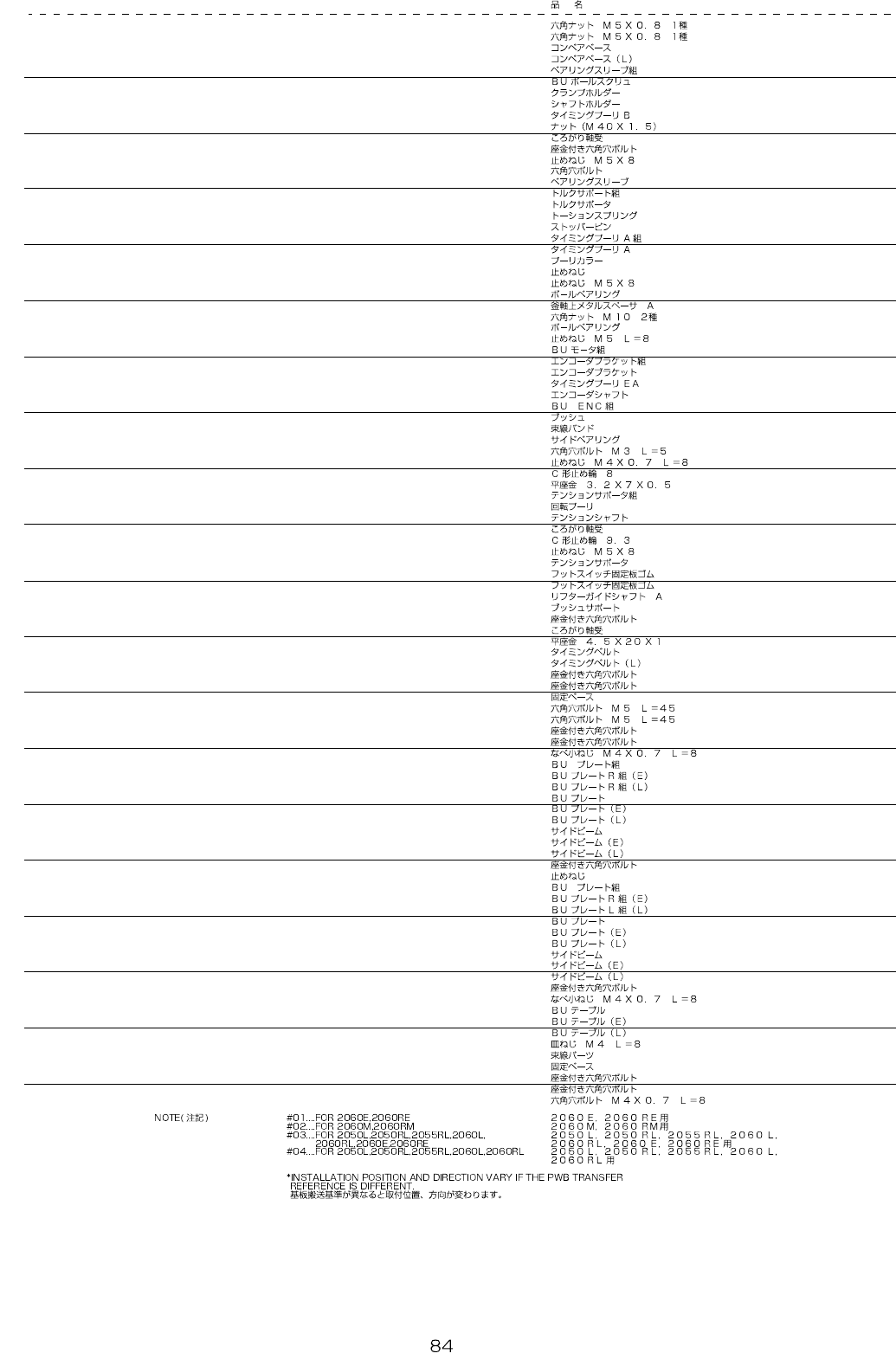

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 NM-6050001-SC NUT M5 2
2 #03 NM-6050001-SC N UT M5 4
3 400-00948 CONVEYOR BASE 1
4 #03 400-01024 CONVEYOR BASE(L) 1
5 400-00921 BEARIN G SLEEVE ASM. 4
6 400-00923 BU BALL SCREW (1)
7 400-00924 CLAMP HOLDER (1)
8 400-00925 SHAFT HOLDER (1)
9 400-00926 TIMING PULLEY B (1)
10 E4155-729-000 NUT (M40X1.5) (1)
11 SB-1450004-00 BEAR ING (1)
12 SL-6041042-TN BOLT (1)
13 SM-8050852-TP SCREW M5X8 (2)
14 SM-6051602-TN BOLT (4)
15 400-00922 BEAR ING SLEEVE (1)
16 400-00928 TORQU E SUPPORT ASM. 1
17 400-00929 TORQU E SUPPORT (1)
18 E4141-729-000 TOR SION SPRING (1)
19 E4142-729-000 STOPPER PIN (2)
20 400-00930 TIMIN G PULLEY A ASM. (1)
21 400-00931 TIMIN G PULLEY A (1)
22 400-00932 PULLEY COLLAR (1)
23 SM-8050842-TP SETSCREW (1)
24 SM-8050852-TP SCREW M5X8 (1)
25 SB-1100004-00 BALL BEARING (1)
26 226-14002 THRUST WASHER, A (2)
27 NM -6100002-SE NUT M10 (1)
28 SB-1100004-00 BALL BEARING (1)
29 SM-8050852-TP SCREW M5 L=8 (2)
30 E9432-729-0A0 BU MOTOR ASM. 1
31 400-00934 ENCODER BRACKET ASM. 1
32 400-00935 ENCODER BRACKET (1)
33 E4131-729-000 TIMING PULLEY EA (1)
34 400-00936 ENCODER SHAFT (1)
35 E9433-729-0A0 BU ENC ASM. (1)
36 HX-0036700-0A BUSH (0.05)
37 EA-9500B01-00 CABLE BAND (2)
38 SB-1080002-00 SIDE BEARING (2)
39 SM-6030502-TN SCREW M3 L=5 (2)
40 SM-8040802-TP SCREW M4X8 (2)
41 RC-0740811-KP C-RING (1)
42 WP-0320501-SC WASHER M3 (2)
43 400-00937 TENSION SUPPORT ASM. 1
44 GAW-02121000 PULLEY (1)
45 400-00939 TENSHION SHAFT (1)
46 SB-1100005-00 BEAR ING (2)
47 RC-0100001-KP SNAP RING M10 (1)
48 SM-8050852-TP SCREW M5X8 (2)
49 400-00938 TENSION SUPPORT (1)
50 M1008 -511-000 FOOT SWITCH FIXING PLATE 2
51
#03
M1008-511-000 FOOT SWITCH FIXING PLATE 4
52 E2759-721-000 LIFTER GUIDE SHAFT A 2
53 E2761-721-000 BUSH SUPPORT 2
54 SL-6062542-TN SCREW 4
55 SB-8160001-00 BEAR ING 1
56 WP-0451016-SP WASHER 4.5X20X1 12
57 400-00947 TIMIN G BELT 1
58 #03 400-01023 TIMING BELT(L) 1
59 SL-6051492-TN BOLT 2
60 SL-6051492-TN BOLT 2
61 HX-0029400-00 F IXED BASE 4
62 SM-6054502-TN SCREW M5 L=45 2
63
#03
SM-6054502-TN SCR EW M5 L=45 4
64 SL-6051442-TN BOLT 4
65 SL-6040892-TN BOLT 12
66 SM-4040801-SC SCREW M4X0.7 L=8 4
67
#02
400-11567 BU PLATE ASM. 1
68
#01
400-01867 BU PLATE R ASM(E) 1
69
#04
400-11569 BU PLATE R ASM(L) 1
70
#02
400-00943 BU PLATE (1)
71 #01 400-01868 BU PLATE(E) (1)
72 #04 400-01020 BU PLATE(L) (1)
73 #02 400-00944 SIDE BEAM (1)
74 #01 400-01869 SIDE BEAM(E) (1)
75
#04
400-01021 SIDE BEAM(L) (1)
76 SL-6051492-TN BOLT (4)
77 SM-8040412-TP SET SCREW M4 L=4 2
78
#02
400-11568 BU PLATE ASM. 1
79
#01
400-01867 BU PLATE R ASM(E) 1
80
#04
400-11570 BU PLATE L ASM(L) 1
81
#02
400-00943 BU PLATE (1)
82
#01
400-01868 BU PLATE(E) (1)
83
#04
400-01020 BU PLATE(L) (1)
84
#02
400-00944 SIDE BEAM (1)
85 #01 400-01869 SIDE BEAM(E) (1)
86 #04 400-01021 SIDE BEAM(L) (1)
87 SL-6051492-TN BOLT (4)
88 SM-4040801-SC SCREW M4X0.7 L=8 3
89
#02
400-00941 BU TABLE 1
90
#01
400-01865 BU TABLE(E) 1
91
#04
400-01018 BU TABLE(L) 1
92 SM-1040801-SN SCREW M4X0.7 L=8 12
93 HX-0034400-00 HARNESS PARTS 3
94
#04
HX-0029400-00 FIXED BASE 3
95 SL-6041242-TN BOLT 12
96 SL-6082592-TN BOLT 4
97 SM-6040802-TN SCREW 8
