- - REF. N O N O T E PA R T N O D E S C R I P T I O N Qty 1 E9 81 9- 72 9- 0A 0 MINI P A T C A B LE ASM 2 2 SL - 60410 92- T N S CREW 8 3 EA-95 0 0B 01-00 C ABLE BAND 1 0 4 E5 38 1- 72 9- 00 0 SO T CHECK TAB LE 1 5 SM-…
- -
60.MINI PAT & SOT CHECK TABLE COMPONENTS
1
1
3
2
2
8
5
4
6
7
- -

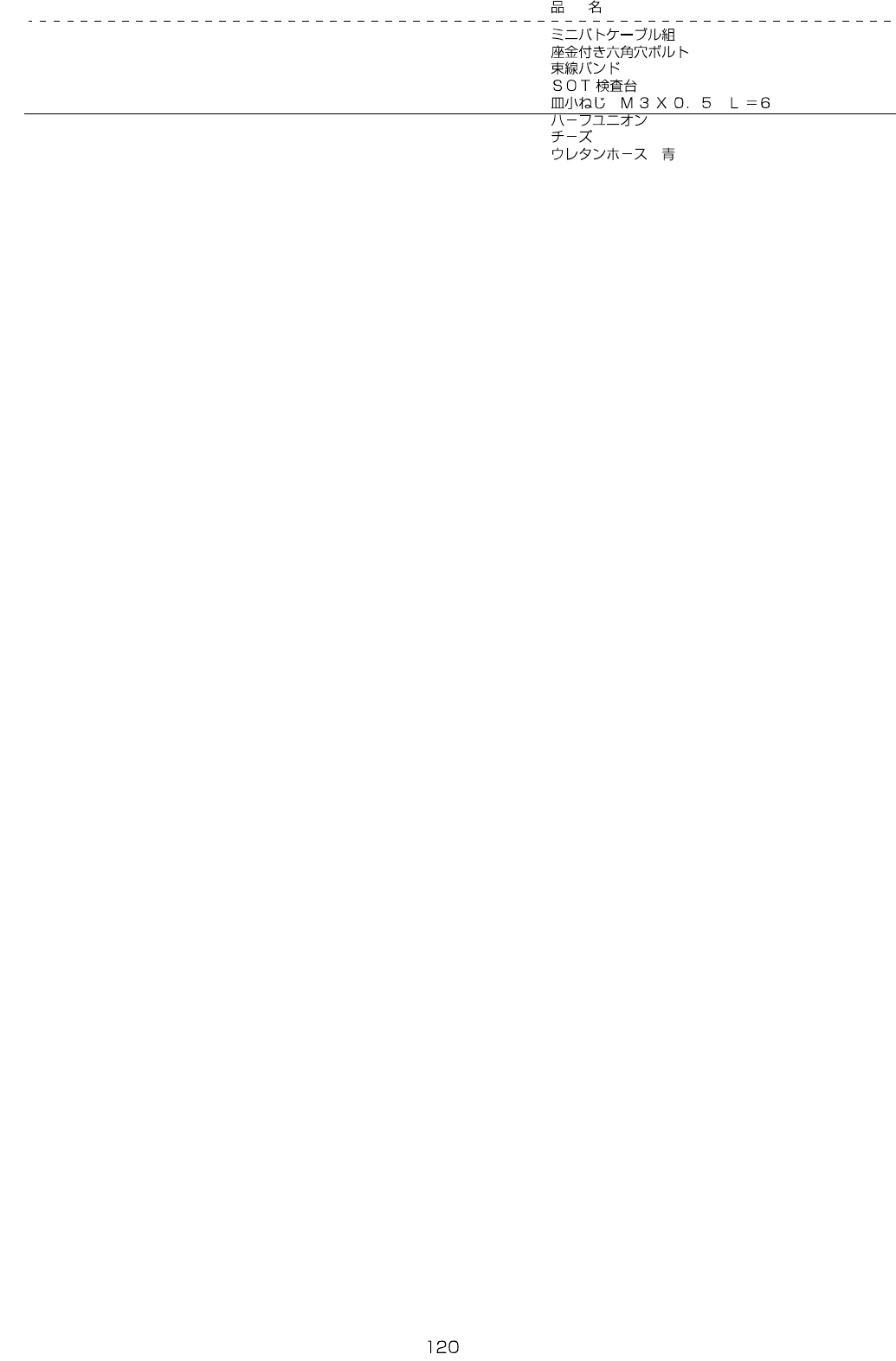

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9819-729-0A0 MINI PAT CABLE ASM 2
2 SL-6041092-TN SCREW 8
3 EA-9500B01-00 CABLE BAND 10
4 E5381-729-000 SOT CHECK TABLE 1
5 SM-1030601-SC SCREW M3 L=6 2
6 PJ-3010405-05 HALF UNION 1
7 PJ-3050400-01 TEE UNION 1
8 BT-0400251-EA TUBE HOSE, BLUE 0.5
- -

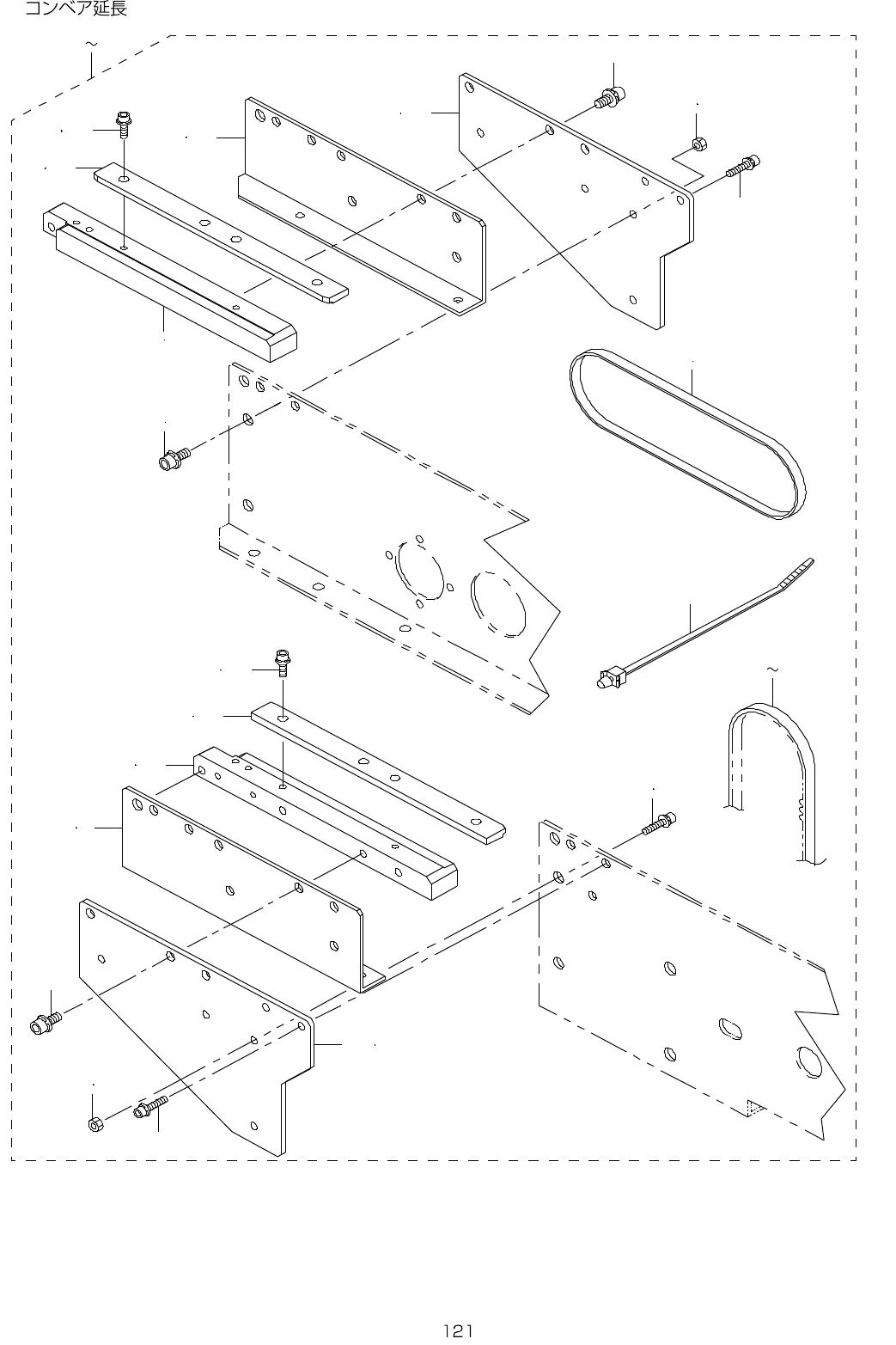

61.CONVEYOR EXTENTION COMPONENTS
2 9 3 0
5 6
1 3 1 4
1 5 1 6
7 8
9 1 0
1 1 1 2
1 1 1 2
1 7 1 8
1 7 1 8
1 9
1 5 1 6
1 9
2 0
2 0
2 1 2 2
2 3 2 4
2 1 2 2
2 3 2 4
2 5
2 6 2 8
1 4
