- - REF.NO N OTE PA RT NO D E S C R I P T I O N Qty 1 # 0 1 400-01392 CO NVEYO R COVER(W,EN)ASSY 1 2 # 0 2 400-01391 CO NVEYO R COVER(L)ASSY 1 3 # 0 1 400-81646 CO NVEYO R COVER L(W,E N) (1) 4 # 0 2 400-01478 CO NVEYO …
- -
OPTION

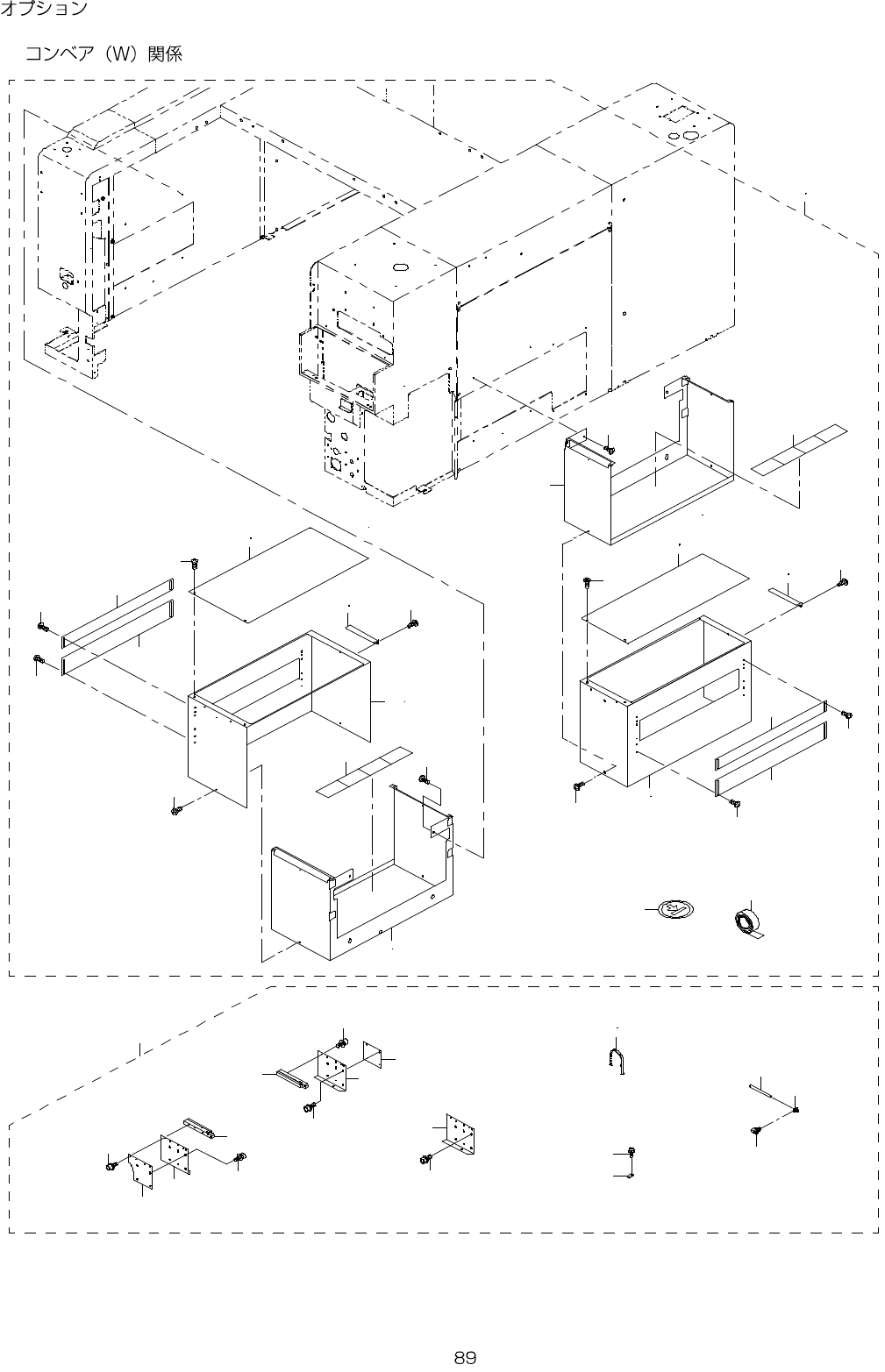

45.CONVEYOR (W) COMPONENTS
1 9
1 9
1 9
1 9
1 9
1 9
1 9
1 9
1 9
2 0
2 0
1 2
2 2
3 4
9 1 0
5 6
7 8
1 1 1 2
1 3 1 4
1 5
1 6
1 7 1 8
1 7 1 8
2 1
2 3
3 1
2 5
2 7
2 9
2 8
3 0
3 2
3 6
3 7
3 9
3 8
4 0
1 5
1 6
1 9
1 9
1 9
2 6
2 6
3 4 3 5
2 4
3 1
3 3
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-01392 CONVEYOR COVER(W,EN)ASSY 1
2
#02
400-01391 CONVEYOR COVER(L)ASSY 1
3
#01
400-81646 CONVEYOR COVER L(W,EN) (1)
4
#02
400-01478 CONVEYOR COVER L(L,EN) (1)
5
#01
400-01486 CONVEYOR SIDE COVER L(W,EN) (1)
6
#02
400-01482 CONVEYOR SIDE COVER L(L,EN) (1)
7
#01
400-01489 CONVEYOR UPPER COVER L(W,EN) (1)
8
#02
400-01483 CONVEYOR UPPER COVER L(L,EN) (1)
9
#01
400-81647 CONVEYOR COVER R(W,EN) (1)
10
#02
400-01497 CONVEYOR COVER R(L,EN) (1)
11
#01
400-01492 CONVEYOR SIDE COVER R(W,EN) (1)
12
#02
400-01498 CONVEYOR SIDE COVER R(L,EN) (1)
13
#01
400-01495 CONVEYOR UPPER COVER R(W,EN) (1)
14
#02
400-01499 CONVEYOR UPPER COVER R(L,EN) (1)
15 400-01484 CONVEYOR SHUTTER U(L,EN) (2)
16 400-01485 CONVEYOR SHUTTER B(L,EN) (2)
17
#01
400-01494 CONVEYOR COVER STOPPER(W,EN) (2)
18
#02
400-01493 CONVEYOR COVER STOPPER(EN) (2)
19 SM-0040801-SC SCREW (24)
20 E1143-721-000 WOOLEN CLOTH PAPER (8)
21 E5721-729-000 LABEL (2)
22 400-01490 TAPE (2)
23 400-00784 CONVEYOR_EXTENSION(W)ASM 1
24 400-00785 RAIL F(W) (2)
25 400-00786 RAIL R(W) (2)
26 SL-6031092-TN SCREW (16)
27 400-00787 RAIL PLATE F(W) (2)
28 400-00788 RAIL PLATE R(W) (2)
29 400-00791 JOINT PLATE F(W) (4)
30 E2176-725-000 JOINT PLATE R(100) (4)
31 SL-6041292-TN SCREW (16)
32 400-00789 PWB GUID EX(W) (4)
33 SL-6030892-TN SCREW (8)
34 400-00790 CONVEYOR BELT EX(W) (4)
35 400-00863 CONVEYOR BELT S (4)
36 E2125-721-000 PWB GUIDE PLATE RB (1)
37 SL-6030892-TN SCREW (1)
38 400-00885 Y_PUSHER_ASM (1)
39 PJ-0460590-05 CONNECTOR (1)
40 BT-0400251-EA TUBE HOSE, BLUE (0.2)
- -
46.AWC COMPONENTS
1 6 3 4
1 4 3 2
6
1 7 1 9
1 8
1 5 3 3
1 0
7
1 1
1 2
2 2 2 3
2 9
4
8
1 3 3 1
5
9
2 7 2 8 3 0
2 4
2 0
2 1
2 5
1 2 3
2 6
3 5
3 6
