- - 46.A WC C O M P ONEN T S 1 6 3 4 1 4 3 2 6 1 7 1 9 1 8 1 5 3 3 1 0 7 1 1 1 2 2 2 2 3 2 9 4 8 1 3 3 1 5 9 2 7 2 8 3 0 2 4 2 0 2 1 2 5 1 2 3 2 6 3 5 3 6
- -

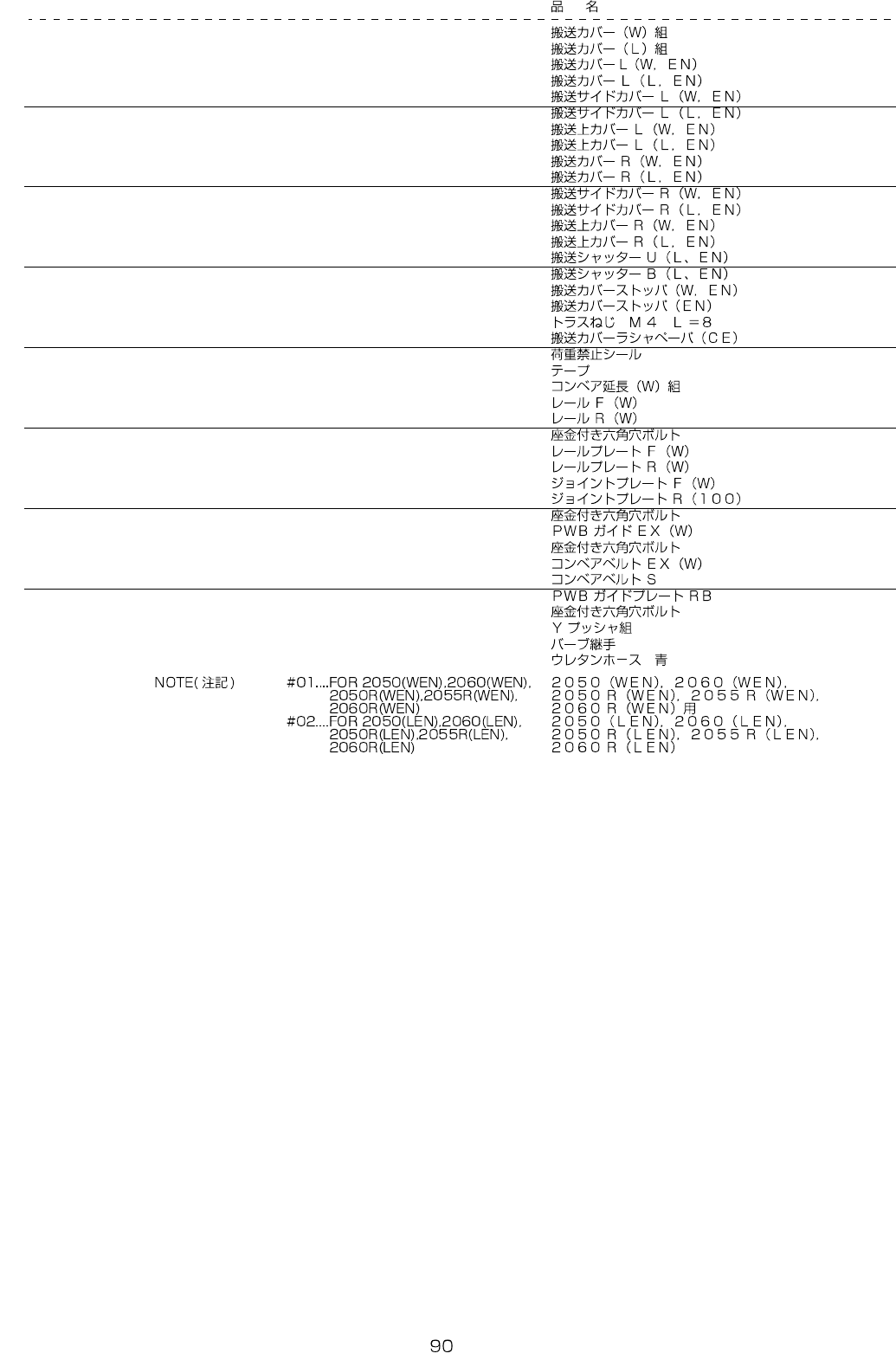

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-01392 CONVEYOR COVER(W,EN)ASSY 1
2
#02
400-01391 CONVEYOR COVER(L)ASSY 1
3
#01
400-81646 CONVEYOR COVER L(W,EN) (1)
4
#02
400-01478 CONVEYOR COVER L(L,EN) (1)
5
#01
400-01486 CONVEYOR SIDE COVER L(W,EN) (1)
6
#02
400-01482 CONVEYOR SIDE COVER L(L,EN) (1)
7
#01
400-01489 CONVEYOR UPPER COVER L(W,EN) (1)
8
#02
400-01483 CONVEYOR UPPER COVER L(L,EN) (1)
9
#01
400-81647 CONVEYOR COVER R(W,EN) (1)
10
#02
400-01497 CONVEYOR COVER R(L,EN) (1)
11
#01
400-01492 CONVEYOR SIDE COVER R(W,EN) (1)
12
#02
400-01498 CONVEYOR SIDE COVER R(L,EN) (1)
13
#01
400-01495 CONVEYOR UPPER COVER R(W,EN) (1)
14
#02
400-01499 CONVEYOR UPPER COVER R(L,EN) (1)
15 400-01484 CONVEYOR SHUTTER U(L,EN) (2)
16 400-01485 CONVEYOR SHUTTER B(L,EN) (2)
17
#01
400-01494 CONVEYOR COVER STOPPER(W,EN) (2)
18
#02
400-01493 CONVEYOR COVER STOPPER(EN) (2)
19 SM-0040801-SC SCREW (24)
20 E1143-721-000 WOOLEN CLOTH PAPER (8)
21 E5721-729-000 LABEL (2)
22 400-01490 TAPE (2)
23 400-00784 CONVEYOR_EXTENSION(W)ASM 1
24 400-00785 RAIL F(W) (2)
25 400-00786 RAIL R(W) (2)
26 SL-6031092-TN SCREW (16)
27 400-00787 RAIL PLATE F(W) (2)
28 400-00788 RAIL PLATE R(W) (2)
29 400-00791 JOINT PLATE F(W) (4)
30 E2176-725-000 JOINT PLATE R(100) (4)
31 SL-6041292-TN SCREW (16)
32 400-00789 PWB GUID EX(W) (4)
33 SL-6030892-TN SCREW (8)
34 400-00790 CONVEYOR BELT EX(W) (4)
35 400-00863 CONVEYOR BELT S (4)
36 E2125-721-000 PWB GUIDE PLATE RB (1)
37 SL-6030892-TN SCREW (1)
38 400-00885 Y_PUSHER_ASM (1)
39 PJ-0460590-05 CONNECTOR (1)
40 BT-0400251-EA TUBE HOSE, BLUE (0.2)
- -
46.AWC COMPONENTS
1 6 3 4
1 4 3 2
6
1 7 1 9
1 8
1 5 3 3
1 0
7
1 1
1 2
2 2 2 3
2 9
4
8
1 3 3 1
5
9
2 7 2 8 3 0
2 4
2 0
2 1
2 5
1 2 3
2 6
3 5
3 6
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-00766 AWC(M)F MECHANIC ASM. 1
2
#01
400-00776 AWC(M)R MECHANIC ASM. 1
3
#02
400-00778 AWC(L) MECHANIC ASM. 1
4 SL-6041092-TN SCREW (4)
5 400-00768 AWC PULLEY A ASM. (1)
6 E2153-725-000 AWC PULLEY A (1)
7 SM-8040602-TP SCREW M4X0.7 L=6 (2)
8 SL-6051492-TN BOLT (2)
9 400-00769 AWC PULLEY B ASM. (1)
10 E2154-725-000 AWC PULLEY B (1)
11 SM-8040402-TP SCREW M4X0.7 L=4 (2)
12 SM-8040602-TP SCREW M4X0.7 L=6 (2)
13 E2155-725-000 AWC BELT (M/L) (1)
14 E2156-725-000 AWC OP DOG (M/L) (1)
15 SL-6030692-TN SCREW M3 L=6 (2)
16 E4801-729-000 AWC SENSOR BRACKET B (M/L) (1)
17 SL-6031092-TN SCREW (2)
18 400-02120 AWC ORG SENS ASM (1)
19
#02
SL-6031092-TN SCREW (2)
20 400-01100 SENSOR BRACKET A(AWC) (2)
21 SL-6031092-TN SCREW (4)
22 400-02237 BU PIN SENS ASM (1)
23 400-02239 BU PIN RECEIVE SENS ASM (1)
24 SL-6031092-TN SCREW (4)
25 400-00767 AWC DRIVER BRACKET (1)
26 SL-6040892-TN BOLT (2)
27
#01
E2151-725-000 AWC BRACKET F (1)
28
#01
E2152-725-000 AWC BRACKET R (1)
29 E9434-729-0A0 WIDTH ADJUST MOTOR ASM. (1)
30 #02 E2163-725-000 AWC BRACKET E (1)
31
#02
E2160-725-000 AWC BELT (E) (1)
32
#02
E2161-725-000 AWC OP DOG (E) (1)
33
#02
SL-6030692-TN SCREW M3 L=6 (2)
34
#02
E4805-729-000 AWC SENSOR BRACKET B (E) (1)
35 400-19212 BU_PIN SENSOR DOG (1)
36 SM-4030501-SN SCREW M3 L=5 (1)
