- - 14.C O V E R C OMPONE N TS (5)(EXCE P T KE - 2 050C) 1 4 1 6 1 7 1 3 1 9 2 0 2 0 1 9 2 0 6 2 6 5 2 7 6 4 6 0 2 7 2 7 3 0 3 1 3 3 3 5 3 7 1 3 1 3 1 9 1 3 3 4 3 8 4 0 5 5 5 6 5 7 1 3 4 3 4 4 4 5 4 6 2 7 4 8 4 9 4 9 5…

- -

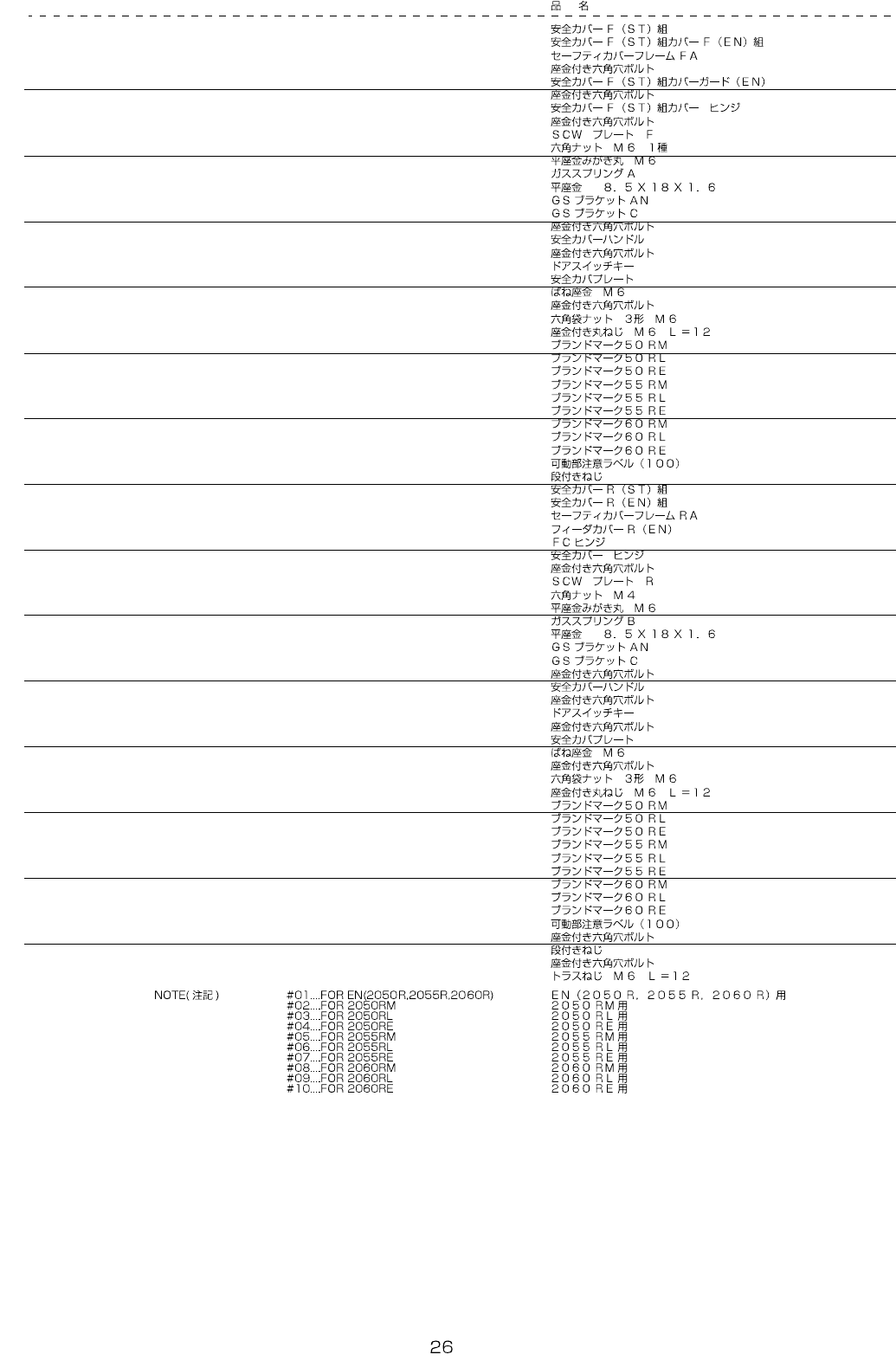

REF.NO NOTE PART NO D E S C R I P T I O N Qty

1 400-27549 SAFETY COVER F (ST) ASSY 1

2 #01 400-27550 SAFETY COVER F (EN) ASSY 1

3 400-43858 SAFETY COVER FRAME F A (1)

4 SL-6041042-TN BOLT (2)

#01

400-01451 SAFETY COVER GUARD (EN) (1)

#01

SL-6030892-TN SCREW (5)

7 E1318-715-000 SAFTY COVER HINGE (2)

8 SL-6061242-TN BOLT (4)

9 400-25967 SCW PLATE F (1)

10 NM-6060001-SC NUT M6 (5)

11 WP-0641601-SC WASHER (5)

12 401-10174 GAS_SPRING_A (2)

13 WP-0850002-SC WASHER 8.5X18X1.6 (8)

14 400-31236 GS BRACKET AN (2)

15 400-43523 GS BRACKET C (2)

16 SL-6061242-TN BOLT (4)

17 400-25972 SAFETY COVER HANDLE (1)

18 SL-6051092-TN BOLT (2)

19 HA-0052800-10 SWITCH (1)

20 400-26954 SAFETY COVER PLATE (1)

21 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 (5)

22 SL-6061692-TN BOLT (4)

23 NM-7060032-SC HEXAGONAL CAP NUT, TYPE 3 M6 (4)

24 SL-3061232-TN SCREW (3)

#02

400-28121 BRAND MARK 50RM (1)

#03

400-28123 BRAND MARK 50RL (1)

27 #04 400-28124 BRAND MARK 50RE (1)

#05

400-28125 BRAND MARK 55RM (1)

#06

400-28126 BRAND MARK 55RL (1)

#07

400-28127 BRAND MARK 55RE (1)

#08

400-28128 BRAND MARK 60RM (1)

32 #09 400-28129 BRAND MARK 60RL (1)

#10

400-28130 BRAND MARK 60RE (1)

34 CM-3009001-06 LABEL(100) (1)

35 400-38381 STEP SCREW (2)

36 400-27551 SAFETY COVER R (ST) ASSY 1

#01

400-27552 SAFETY COVER R (EN) ASSY 1

38 400-43859 SAFETY COVER FRAME R A (1)

#01

400-27507 FEEDER COVER R(EN) (1)

40 E1196-725-000 FC HINGE (3)

41 E1318-715-000 SAFTY COVER HINGE (2)

42 SL-6061242-TN BOLT (4)

43 400-26951 SCW PLATE R (1)

44 NM-6040001-SC NUT M4 (5)

45 WP-0641601-SC WASHER (5)

46 401-10173 GAS_SPRING_B (2)

47 WP-0850002-SC WASHER 8.5X18X1.6 (8)

48 400-31236 GS BRACKET AN (2)

49 400-43523 GS BRACKET C (2)

50 SL-6061242-TN BOLT (4)

51 400-25972 SAFETY COVER HANDLE (1)

52 SL-6051092-TN BOLT (2)

53 HA-0052800-10 SWITCH (1)

54 SL-6041042-TN BOLT (2)

55 400-26954 SAFETY COVER PLATE (1)

56 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 (5)

57 SL-6061692-TN BOLT (4)

58 NM-7060032-SC HEXAGONAL CAP NUT, TYPE 3 M6 (4)

59 SL-3061232-TN SCREW (3)

#02

400-28121 BRAND MARK 50RM (1)

#03

400-28123 BRAND MARK 50RL (1)

#04

400-28124 BRAND MARK 50RE (1)

63 #05 400-28125 BRAND MARK 55RM (1)

#06

400-28126 BRAND MARK 55RL (1)

#07

400-28127 BRAND MARK 55RE (1)

#08

400-28128 BRAND MARK 60RM (1)

#09

400-28129 BRAND MARK 60RL (1)

68 #10 400-28130 BRAND MARK 60RE (1)

69 CM-3009001-06 LABEL(100) (1)

70 SL-6051092-TN BOLT (12)

71 400-38381 STEP SCREW (2)

72 SL-6061242-TN BOLT 8

73 SM-0061201-SC SCREW 8

- -

14.COVER COMPONENTS (5)(EXCEPT KE-2050C)

1 4

1 6 1 7

1 3

1 9

2 0

1 9

2 0

6 2

6 5

2 7

6 4

6 0

2 7

2 7 3 0

3 1 3 3

3 5 3 7

1 3

1 9

1 3 3 4

3 8 4 0

5 5

5 6

5 7

1 3

4 3 4 4 4 5 4 6

2 7

4 8

4 9

5 1

6 1

1 2

6 3

6 7

2 9

4 1

5 8

5 2

5 8

1 1 1

1 5

1 9

2 8

6 6

2 1 2 6

4 7

1 5

5 8

1 3

5 8

6 7

5 4

1 5

1 8

4 2

5 3

5 9

1 3 3 4

1 9

8 9 9 1

9 3

8 6 8 8

9 3

5 0

9 2

5 0

8 5 9 4

6 8

6 9

8 3

8 4

8 1

8 0

7 9

7 8

7 7

7 6

7 5

7 4

7 3

7 2

7 1

7 0

8 2

9 5

- -

REF.NO NOTE PART NO D E S C R I P T I O N Qty

1 #01 400-01368 COVER (M) SUB ASSY 1

2 #02 400-01369 COVER (L) SUB ASS'Y 1

3 #03 400-18860 COVER (E) SUB ASSY 1

4 #04 400-16105 COVER(MEN)SUB ASSY 1

#05

400-16106 COVER(LEN )SUB ASSY 1

#06

400-27555 COVER (M ST) SUB ASSY 1

#07

400-27556 COVER (L ST) SUB ASSY 1

#08

400-27557 COVER (E ST) SUB ASSY 1

#09

400-27558 COVER (M EN) SUB ASSY 1

#10

400-27559 COVER (L EN) SUB ASSY 1

#11

400-27560 COVER (E EN) SUB ASSY 1

12 WS-0820002-KN SPRING WASHER M8 (2)

13 SL-3061232-TN SCREW (16)

14 NM -6040001-SC NUT M4 (1)

15 SL-6041092-TN SCREW (4)

16 #17 400-43516 COVER CUL A (1)

17 #18 400-43784 COVER CUL A(L) (1)

18 #16 400-43789 COVER CUL A(E) (1)

19 SL-6061292-TN SCREW (10)

20 NM -6060001-SC NUT M6 (4)

#12

400-43518 COVER CUC A (1)

#13

400-43786 COVER CUC A(L) (1)

#03

400-43791 COVER CUC A(E) (1)

#14

400-43857 COVER CUC A (1)

#15

400-43860 COVER CUC A(L) (1)

#16

400-43861 COVER CUC A(E) (1)

27 SL-6041292-TN SCREW (22)

28 400-01500 CABLE SUPPORT R (1)

29 HA-0053800-00 SWITCH (1)

30 #19 SL-6041292-TN SCREW (9)

31 #17 400-01414 COVER SUL (1)

32 #18 400-01415 COVER SUL(L) (1)

#16

400-16916 COVER SUL (E) (1)

#16

SL-3061232-TN SCREW (12)

#17

400-43517 COVER CUR A (1)

#18

400-43785 COVER CUR A(L) (1)

#16

400-43790 COVER CUR A(E) (1)

#17

400-01417 COVER SUR (1)

#18

400-01418 COVER SUR(L) (1)

#16

400-16917 COVER SUR(E) (1)

#18

400-01513 YBL COVER(L) (1)

#16

400-18416 YBL COVER(E) (1)

43 CM -3009001-06 LABEL(100) (2)

44 CM -3009001-05 LABEL (6)

45 CM -3002000-E6 LABEL (2)

46 CM -3001000-04 DAN GER LABEL (50) (1)

47 E5704-700-000 SEAL (1)

48 400-01463 CABLE GUIDE (MOTOR) (1)

49 HX-0036700-0A BUSH (0.2)

50 400-03265 SIGNAL TOWER ASM (1)

51 NM -6080001-SC NUT M8X1.25 (2)

#18

400-01514 YBR COVER(L) (1)

#16

400-18417 YBR COVER(E) (1)

54 400-01427 PULLEY COVER L (1)

55 E1457-729-000 MTC SHUTTLE COVER (1)

56 SM-0040601-SC SCREW M4X0.7 L=6 (4)

57 400-01428 PULLEY COVER R (1)

58 #18 SL-4040891-SC SCREW M4 L=8 (8)

59 400-17782 MAIN POWER SWITCH NOTICE LABEL (1)

60 400-01429 CB ANGLE (1)

61 WP-0841601-SC WASHER 8.4X17.4X1.6 (2)

62 400-01447 CABLE CLAMP YU (1)

63 400-25669 LCD DSP (1)

64 400-66933 FC RUBBER Y (1)

65 SL-6061092-TN SCREW (2)

66 400-01430 CABLE SUPPORT F (1)

67 HX-0032600-0H CABLE PARTS (2)

68 400-33517 VISION MONITOR BRACKET ASM (1)

69 400-99654 CRT BASE (1)

70 HX-0022100-0A RUBBER BUSHIN G (1)

71 400-99655 FREE STOP HINGE (1)

72 SL-6040892-TN BOLT (4)

73 400-99657 CRT STOPPER (1)

74 L127E-021-000 COVER CUSHION (1)

75 SM-6030602-TN SCREW M3X6 (1)

76 SL-6040892-TN BOLT (2)

77 400-99656 CRT BR (1)

78 HX-0029400-00 F IXED BASE (1)

79 SM-4040601-SC SCREW M4X0.7 L=6 (1)

80 SL-6040892-TN BOLT (4)

81 SL-6041092-TN SCREW (4)

82 EA-9500B00-00 CABLE BAND (1)

83 SM-3040652-TN SCREW M4 L=6 (4)

84 401-02599 8.4 LCD MONITOR(CE) (1)

85 #21 400-26667 LCD BACK LIGHT (TECNART) (1)

86 #17 400-43525 COVER SUPPORT L (1)

87 #18 400-43787 COVER SUPPORT L(L) (1)

88 #16 400-43792 COVER SUPPORT L(E) (1)

#17

400-43526 COVER SUPPORT R (1)

#18

400-43788 COVER SUPPORT R(L) (1)

#16

400-43793 COVER SUPPORT R(E) (1)

92 SL-6061092-TN SCREW (2)

93 SL-3061232-TN SCREW (2)

#20

400-03316 LCD BACK LIGHT (1)

95 400-99998 LCD ASM FOR BOC 1
