KE-2050_KE-2050R_KE-2055R_KE-2060_KE-2060R-Rev14-.pdf - 第65页
- - RE F. NO N OTE PA R T NO D E S C R I P T I O N Qt y 1 #01 40 0-01 211 O CC AS M. 2 2 #02 40 0-01 211 O CC AS M. 1 3 4 00-0 121 2 C AME R A AS M. ( 1 ) 4 EA -9 50 0B01- 00 C ABL E BA ND (1 ) 5 SL- 60 514 92 -TN B O …
- -
30.OCC COMPONENTS
4
1 4
5
7
1 0
1 2
1 3
1 9
1 1
5
3
2 4
2 3
5 3
4 4
5 1
4 0
9
1 5 1 8
4 9
3 8
5 2
2 5
2 7
2 8
2 9
3 0
3 1
3 2
3 3
3 4
3 5
3 6
4 3
4 1
4 2
3 7
4 5
4 6
4 7
4 8
5 0
2 6
8
6
3 9
2 2
5 7
5 8
5 4
5 5
5 6
1
2
2 0
2 1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-01211 OCC ASM. 2
2
#02
400-01211 OCC ASM. 1
3 400-01212 C AMERA ASM. (1)
4 EA-9500B01- 00 C ABLE BAND (1)
5 SL- 6051492-TN B OLT (4)
6 401-57655 C AMERA-LENS ASM (1)
7 401-57591 C CD CAMERA (1)
8 E9636- 729-000 OCC CAMERA LENS (1)
9 401-57620 C CD_HOLDER (1)
10 SL-6030692-TN SCREW M3 L=6 (4)
11 400-01217 LENS HOLDER (1)
12 SL-6032092-TN BOLT (1)
13 SL-6030892-TN SCREW (2)
14 401-57619 C AMERA_BRACKET_U (1)
15 400-01310 OCC SHIM A (1)
16 400-01311 OCC SHIM B (1)
17 400-01312 OCC SHIM C (1)
18 400-01313 OCC SHIM D (1)
19 SM-6020602-TN S CREW M2 L=6 (4)
20 HX-0029400-00 FIXED BASE (1)
21 SM-4030601-SC S CREW M3 X 6 (1)
22 400-14061 C A LIGHT ASSEMBLY (1)
23 HX-0034400-00 HARNESS PARTS (1)
24 EA-9500B01-00 CABLE BAND (1)
25 400-13949 LIGHT FILTER U SUPPORT (1)
26 E1038-871-000 P LATEN LOCK CAM SC REW (2)
27 400-15847 OCC COLLAR (1)
28 SL-6030892-TN SCREW (1)
29 SM-1020301-SN S CREW (4)
30 400-43896 LENS FILTER (1)
31 400-13948 GUIDE PLATE (1)
32 400-13944 R OTARY BASE (1)
33 SM-1030501-SC S CREW M3 L=5 (3)
34 400-01979 OCC C LIGHT P.C.B ASM (1)
35 SL-4030691-SC SCREW M3X6 (2)
36 400-44028 M IRROR BOX (1)
37 SL-6030692-TN SCREW M3 L=6 (3)
38 118-04606 R UBBER PLUG (10)
39 400-43895 LIGHT DIFFUSER (1)
40 SL-6030892-TN SCREW (4)
41 400-14037 B EAM SPRITTER (1)
42 400-13943 P RISM COVER (1)
43 SL-6030692-TN SCREW M3 L=6 (3)
44 400-01225 H OLD RUBBER (1)
45 400-14042 P RISM (1)
46 400-01982 OCC A LIGHT P.C.B ASM (1)
47 400-14043 P RISM BASE (1)
48 SL-6030892-TN SCREW (4)
49 E1143-721-000 WOOLEN CLOTH PAPER (1)
50 400-15962 OCC LABEL (1)
51 400-01214 C AMERA BRACKET D (1)
52 400-13947 LIGHT BRA CKET (1)
53 SL-6042092-TN SCREW M4 L=20 (2)
54 #03 HX-0035400-0D BASE PARTS 4
55
#03
HX-0033500-0G SPACER 4
56
#03
400-32433 LOW HEAD SCREW M3_10 4
57
#03
400-01982 OCC A LIGHT P.C.B ASM 1
58
#03
400-14043 PRISM BASE 1
- -

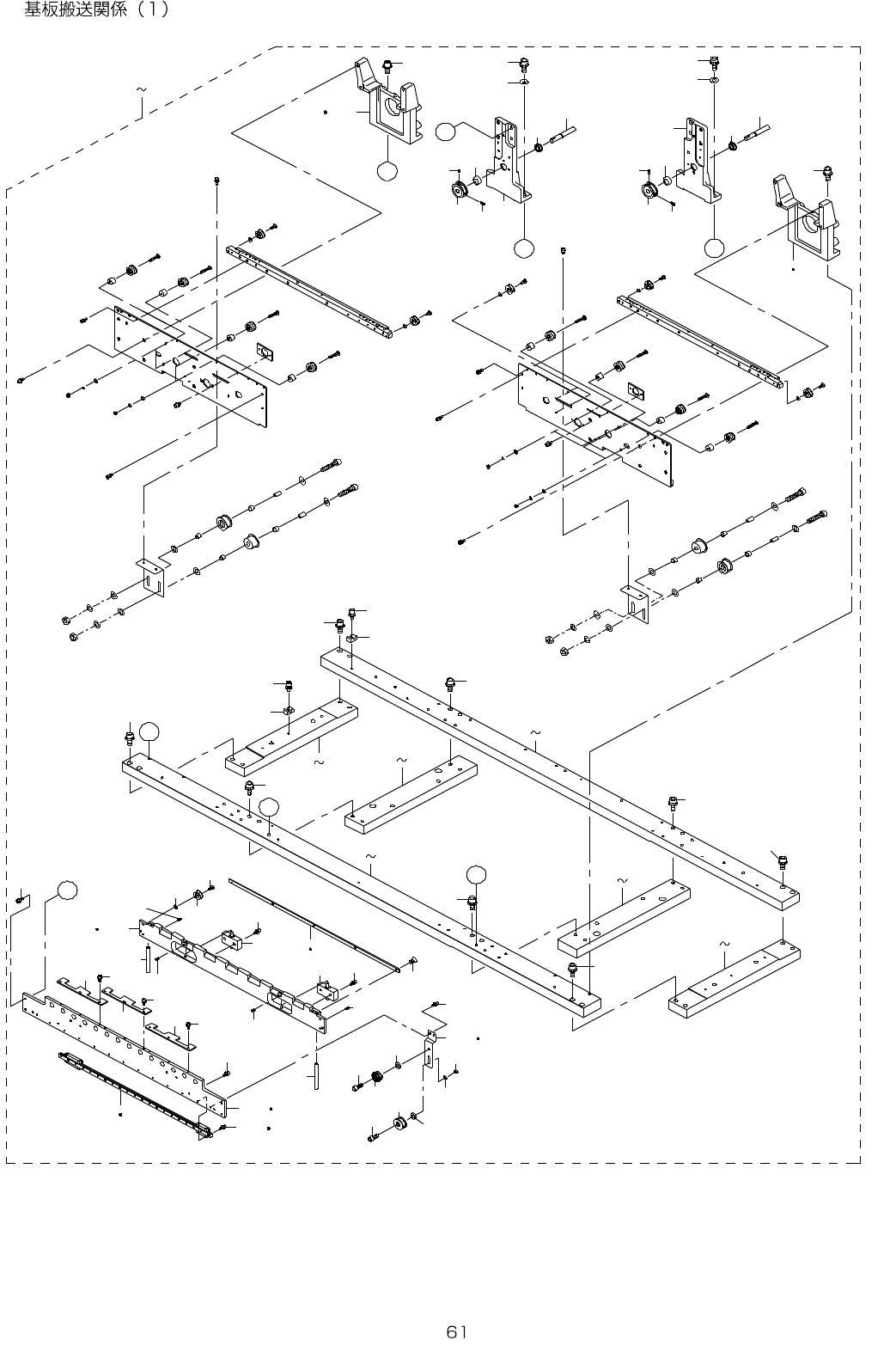

31.PWB CONVEYOR COMPONENTS (1)
1 3
1 6
1 7
1 6
1 7
1 7
1 7
1 6
1 6
1 9
1 8
1 9
1 8
2 0
2 1
2 2
2 3
2 3
2 4
2 5
2 6
2 7
3 2
3 1
2 8
2 9
3 0
3 0
6 9
6 9
3 8
3 4
4 0
4 1
4 7
5 1 5 2
6 0
5 3
5 4
5 5
5 7
5 8
5 9
6 5
7 0
A
A
B
C
D
B
C
D
3 9
3 9
3 9
4 0
4 0
3 5
3 5
3 8
3 4
4 1
4 2
6 7 6 8
6 7 6 8
1 0 1 2
1 3 1 5
1 3 1 5
1 0 1 2
7 9
4 6
4 3 4 4
3 3 6 1
4 5 4 6
3 6 3 7
6 2 6 3
6 4
5 6
4 2
7 1
6 6
7 2
4 9
4 8
5 0
