KE-2050_KE-2050R_KE-2055R_KE-2060_KE-2060R-Rev14-.pdf - 第64页
- - 30.OC C COMPONENTS 4 1 4 5 7 1 0 1 2 1 3 1 9 1 1 5 3 2 4 2 3 5 3 4 4 5 1 4 0 9 1 5 1 8 4 9 3 8 5 2 2 5 2 7 2 8 2 9 3 0 3 1 3 2 3 3 3 4 3 5 3 6 4 3 4 1 4 2 3 7 4 5 4 6 4 7 4 8 5 0 2 6 8 6 3 9 2 2 5 7 5 8 5 4 5 5 5 6…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-01232 HEAD RELATED 60 ASM. 1
2 400-01259 HEAD TOP PLATE 60 ASM. (1)
3 400-01260 HEAD TOP PLATE 60 (1)
4 SL-6051092-TN BOLT (4)
5 HX-0029400-00 F IXED BASE (2)
6 EA-9500B01-00 CABLE BAND (1)
7 SM-3040652-TN SCREW M4 L=6 (2)
8 400-01306 CABLE PROTEC TOR SHEET (1)
9 E3203-729-000 T PLATE SUPPORT D (2)
10 SL-6041092-TN SCREW (4)
11 SM-3040652-TN SCREW M4 L=6 (4)
12 400-01269 HEAD MAIN PCB BASE 60 (1)
13 SM-3040652-TN SCREW M4 L=6 (4)
14 400-01926 HEAD MAIN PCB ASM. (1)
15 #01 400-50603 RECONSTRU CTION H EAD MAIN PCB A (1)
16 400-01270 HMS PCB SUPPORT 60 (1)
17 SM-3040652-TN SCREW M4 L=6 (4)
18 HX-0029400-00 F IXED BASE (1)
19 HX-0034400-00 HARNESS PARTS (6)
20 EA-9500B01-00 CABLE BAND (5)
21 EA-9500B02-00 CABLE BAND 150 (13)
22 SL-4030691-SC SCREW M3X6 (7)
23 400-01268 HEAD COVER 60 (1)
24 400-01233 CONNECTOR LABEL 60 (1)
25 SM-3040652-TN SCREW M4 L=6 (5)
26 400-01267 MOTOR CONNEC TOR BLACKET (1)
27 SM-3040652-TN SCREW M4 L=6 (4)
28 HX-0029400-00 F IXED BASE (2)
29 HX-0029400-00 F IXED BASE (1)
30 SL-4030691-SC SCREW M3X6 (2)
31 400-01247 HEAD HANDLE (2)
32 SM-3051052-TN SCREW M5 L=10 (4)
33 HX-0034400-00 HARNESS PARTS (1)
34 SM-4040501-SN SCREW M4X0.7 L=5 (2)
35 E2117-802-000 TUBE CLAMP (1)
36 SM-1020501-SC SCREW (4)
37 400-01306 CABLE PROTECTOR SHEET (1)
38 SL-4030691-SC SCREW M3X6 (6)
39 400-01236 CB SUPPORT ASM. (1)
40 400-01306 CABLE PROTECTOR SHEET (1)
41 HX-0006500-0B CABLE BAND (4)
42 400-01248 CB SUPPORT S ASM. (1)
43 SM-3051052-TN SCREW M5 L=10 (4)
44 400-01240 CB SUPPORT B (1)
45 SL-6051492-TN BOLT (4)
46 SL-6052592-TN BOLT (1)
47 SM-6040802-TN SCREW (4)
48 400-66028 CB SUPPORT A (1)
49 SL-6040892-TN BOLT (4)
50 400-01242 FC CASE (1)
51 SM-3040652-TN SCREW M4 L=6 (2)
52 400-01243 FC RUBBER (3)
53 400-01244 FC CASE COVER (1)
54 SM-6040802-TN SCREW (2)
55 400-10627 FC GUIDE R (1)
56 WP-0651646-SC WASHER (1)
57 400-01238 FC GUIDE (1)
58 SM-3040652-TN SCREW M4 L=6 (4)
59 400-66027 PLASTIC RAIL SUPPORT A (1)
60 SM-6040802-TN SCREW (2)
61 WP-0430801-SC WASHER 4.3X9X0.8 (2)
62 WS-0410002-UZ SPRING WASHER (2)
63 400-01264 EJECTOR BASE 60 ASM. (1)
64 SL-4030691-SC SCREW M3X6 (3)
65 EA-9500B01-00 CABLE BAND (5)
66 SL-4030691-SC SCREW M3X6 (5)
67 PJ-3040405-04 ELBOW UNION (5)
68 400-01180 EJECTOR BASE ANGLE (2)
69 PJ-3040851-01 ELBOW UNION (2)
70 SM-3040652-TN SCREW M4 L=6 (4)
71 BT-0400251-EA T UBE HOSE, BLUE (2)
72 400-01249 OCC R ELAY PCB BASE 60 (1)
73 400-01293 AIRFOIL (1)
74 400-01254 HEAD SENSOR PCB SUPPORT (3)
75 SM-3040652-TN SCREW M4 L=6 (2)
76 SM-3040652-TN SCREW M4 L=6 (4)
77 SM-3040652-TN SCREW M4 L=6 (6)
78 400-01934 HEAD SENSOR PCB ASM. (3)
79
#01
400-61212 HEAD SENSOR PCB ASM (3)
80 WP-0651646-SC WASHER (4)
81 400-11216 SENSOR CABLE GUIDE ANGLE (2)
82 SM-3040652-TN SCREW M4 L=6 (2)
83 HX-0029400-00 F IXED BASE (5)
84 400-01261 SENSOR CABLE GUIDE 60 (1)
85 400-01265 EJECTOR BASE 60 (1)
86 400-01938 OCC R ELAY PCB ASM. (1)
87 HX-0029400-00 F IXED BASE (3)
88 SL-4030691-SC SCREW M3X6 (3)
89 SL-6051692-TN BOLT (4)
90 SM-3040652-TN SCREW M4 L=6 (4)
91 SL-4030691-SC SCREW M3X6 (7)
92 400-72402 EJ OUTSIDE FILTER EXCHANGE PAC (1)
93 400-77163 EJECTOR OUTSID E FILTER ASM(60) (1)
94 400-61992 EJECTOR OUTSID E FILTER (1)
95 400-61993 EJECTOR FILTER BRACKET (1)
96 400-61994 EJECTOR FILTER SUPPORT (1)
97 SL-6031692-TN SCREW (2)
98 EA-9500B01-00 CABLE BAND (2)
99 EA-9500B02-00 CABLE BAND 150 (4)
100 SM-3041052-TN SCREW M 4 L=10 (4)
101 400-01266 EJECTOR 60 (1)
- -

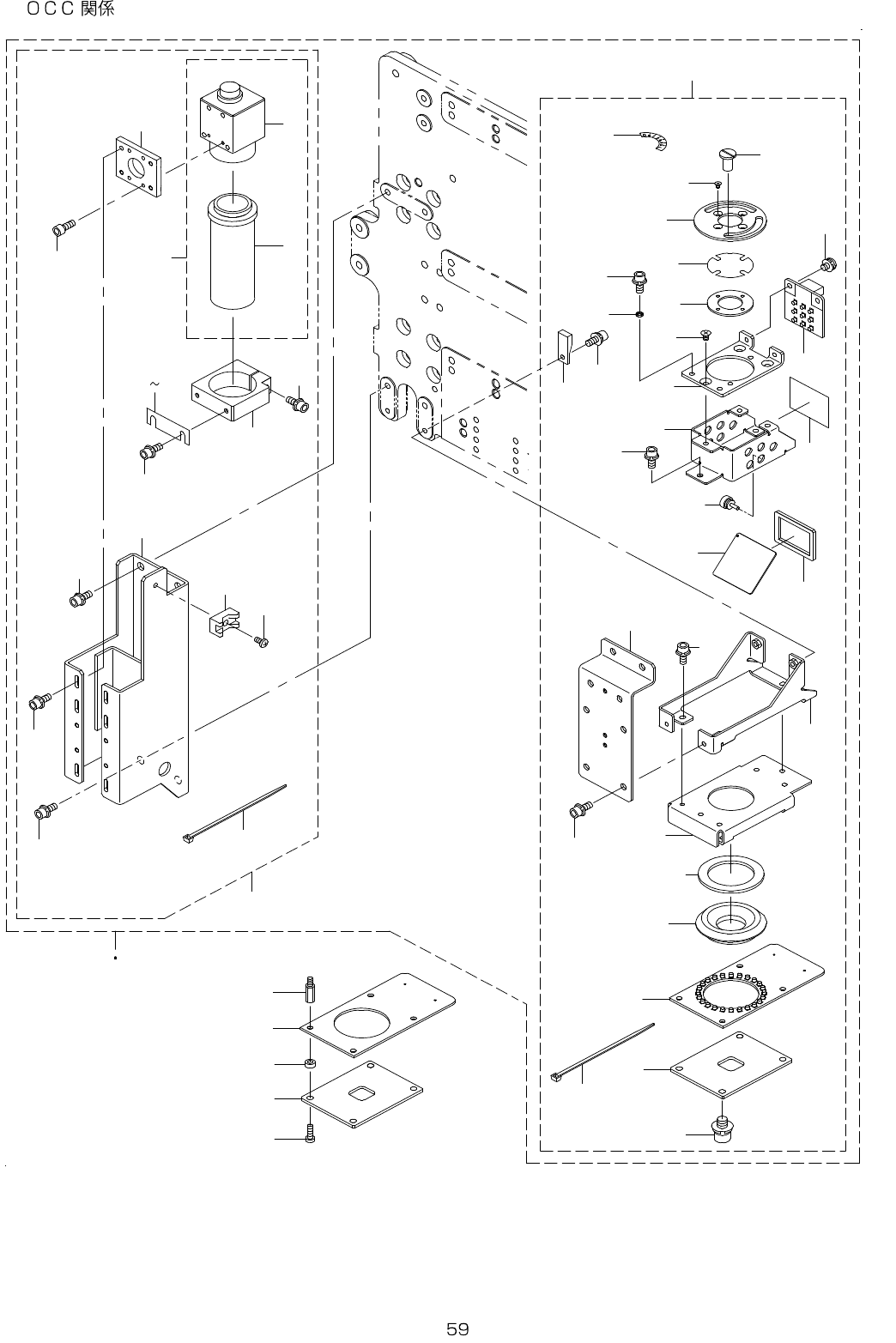

30.OCC COMPONENTS
4
1 4
5
7
1 0
1 2
1 3
1 9
1 1
5
3
2 4
2 3
5 3
4 4
5 1
4 0
9
1 5 1 8
4 9
3 8
5 2
2 5
2 7
2 8
2 9
3 0
3 1
3 2
3 3
3 4
3 5
3 6
4 3
4 1
4 2
3 7
4 5
4 6
4 7
4 8
5 0
2 6
8
6
3 9
2 2
5 7
5 8
5 4
5 5
5 6
1
2
2 0
2 1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-01211 OCC ASM. 2
2
#02
400-01211 OCC ASM. 1
3 400-01212 C AMERA ASM. (1)
4 EA-9500B01- 00 C ABLE BAND (1)
5 SL- 6051492-TN B OLT (4)
6 401-57655 C AMERA-LENS ASM (1)
7 401-57591 C CD CAMERA (1)
8 E9636- 729-000 OCC CAMERA LENS (1)
9 401-57620 C CD_HOLDER (1)
10 SL-6030692-TN SCREW M3 L=6 (4)
11 400-01217 LENS HOLDER (1)
12 SL-6032092-TN BOLT (1)
13 SL-6030892-TN SCREW (2)
14 401-57619 C AMERA_BRACKET_U (1)
15 400-01310 OCC SHIM A (1)
16 400-01311 OCC SHIM B (1)
17 400-01312 OCC SHIM C (1)
18 400-01313 OCC SHIM D (1)
19 SM-6020602-TN S CREW M2 L=6 (4)
20 HX-0029400-00 FIXED BASE (1)
21 SM-4030601-SC S CREW M3 X 6 (1)
22 400-14061 C A LIGHT ASSEMBLY (1)
23 HX-0034400-00 HARNESS PARTS (1)
24 EA-9500B01-00 CABLE BAND (1)
25 400-13949 LIGHT FILTER U SUPPORT (1)
26 E1038-871-000 P LATEN LOCK CAM SC REW (2)
27 400-15847 OCC COLLAR (1)
28 SL-6030892-TN SCREW (1)
29 SM-1020301-SN S CREW (4)
30 400-43896 LENS FILTER (1)
31 400-13948 GUIDE PLATE (1)
32 400-13944 R OTARY BASE (1)
33 SM-1030501-SC S CREW M3 L=5 (3)
34 400-01979 OCC C LIGHT P.C.B ASM (1)
35 SL-4030691-SC SCREW M3X6 (2)
36 400-44028 M IRROR BOX (1)
37 SL-6030692-TN SCREW M3 L=6 (3)
38 118-04606 R UBBER PLUG (10)
39 400-43895 LIGHT DIFFUSER (1)
40 SL-6030892-TN SCREW (4)
41 400-14037 B EAM SPRITTER (1)
42 400-13943 P RISM COVER (1)
43 SL-6030692-TN SCREW M3 L=6 (3)
44 400-01225 H OLD RUBBER (1)
45 400-14042 P RISM (1)
46 400-01982 OCC A LIGHT P.C.B ASM (1)
47 400-14043 P RISM BASE (1)
48 SL-6030892-TN SCREW (4)
49 E1143-721-000 WOOLEN CLOTH PAPER (1)
50 400-15962 OCC LABEL (1)
51 400-01214 C AMERA BRACKET D (1)
52 400-13947 LIGHT BRA CKET (1)
53 SL-6042092-TN SCREW M4 L=20 (2)
54 #03 HX-0035400-0D BASE PARTS 4
55
#03
HX-0033500-0G SPACER 4
56
#03
400-32433 LOW HEAD SCREW M3_10 4
57
#03
400-01982 OCC A LIGHT P.C.B ASM 1
58
#03
400-14043 PRISM BASE 1
