- - 4. B ASE FRAME ELECT R I C A PP A R A TU S COM P ONE NT S ( 3 ) 7 8 3 4 2 4 2 2 2 1 2 5 2 6 2 7 1 8 1 9 5 9 6 3 7 3 8 3 6 3 2 3 3 3 4 3 5 3 1 1 1 1 2 1 5 1 7 1 0 2 3 2 8 3 0 2 0 6 2 6 0 6 3 6 1 5 9 A A 1 2 1 3 1 4 …
- -

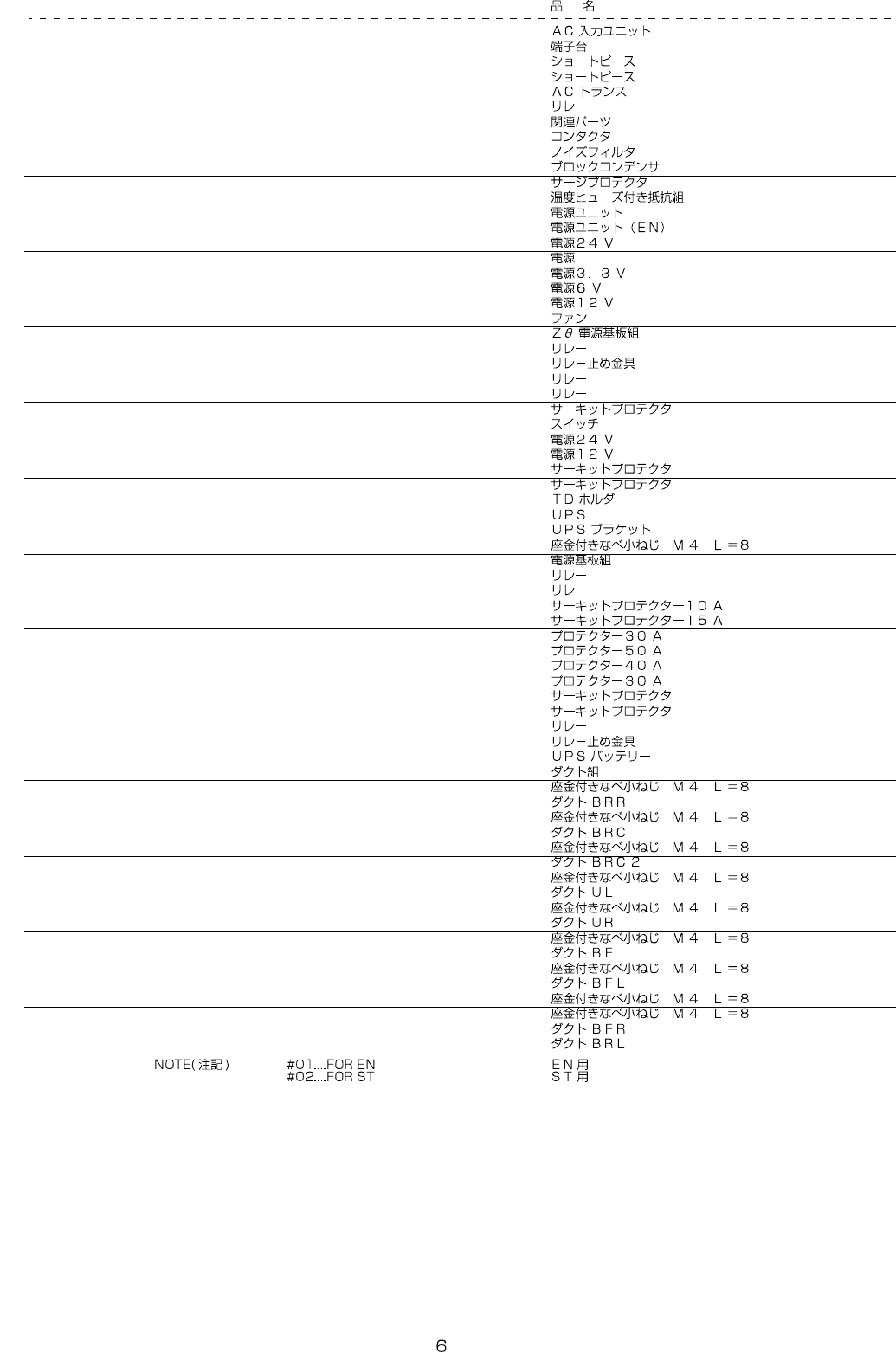

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00481 AC INPUT UNIT 1
2 HK-0699501-10 BLOCK TERMINAL (2)
3 HK-0699900-20 BLOCK TERMINAL (3)
4 HK-0699900-30 BLOCK TERMINAL (4)
5 400-29567 AC TRANCE (1)
6 HB-0010200-0A RELAY (1)
7 HB-0011000-10 RELAY COVER (1)
8 HA-0053300-00 MAGNETIC CONTACTOR (2)
9 HN-0023700-00 NOISE FILTER (1)
10 HC-0566030-P0 CAPACITOR (1)
11 HN-0023600-00 VARISTOR (1)
12 400-21645 RESISTOR ASM (1)
13 400-00466 POWER UNIT 1
14
#01
400-00518 POWER UNIT(EN) 1
15 HX-0054300-0A POWER SUPPLY 24V (1)
16 HX-0057700-00 POWER SUPPLY (1)
17 HX-0049400-0A POWER SOURCE 3.3V (1)
18 KX-0000001-50 POWER SOURCE 6V (1)
19 HX-0054200-00 POWER SOURCE 12V (1)
20 HM-0003300-0A FAN (1)
21 400-01902 Z THETA POWER PCB ASM. (1)
22 HB-0012800-00 RELAY (1)
23 HB-0005800-10 RELAY CLASP (1)
24 HB-0011000-0B RELAY (1)
25 HB-0011000-0A RELAY (1)
26
#01
HA-0052400-00 CIRCUIT PROTECTOR (1)
27 HA-0052900-00 SWITCH (1)
28
#01
HX-0054200-0B POWER SOURCE 24V (1)
29 HX-0049400-0B POWER SUPPLY 12V (1)
30 HA-0054200-0C CIRCUIT PROTECTOR (1)
31 HA-0054200-0D CIRCUIT PROTECTOR (2)
32 400-16764 TD HOLDER (1)
33 400-95745 UPS (1)
34 400-00479 UPS BRACKET (1)
35 SL-4040891-SC SCREW M4 L=8 (1)
36 400-01945 POWER PCB ASM. (1)
37
#02
HB-0011000-00 RELAY (1)
38 HB-0011000-0C RELAY (1)
39 HA-0052400-0C CIRCUIT PROTECTOR (1)
40 HA-0052400-0D CIRCUIT PROTECTOR (1)
41 HA-0052500-00 CIRCUIT PROTECTOR (1)
42 HA-0052600-00 CIRCUIT PROTECTOR (1)
43 HA-0052700-0A CIRCUIT PROTECTOR (1)
44 HA-0052700-00 CIRCUIT PROTECTOR (1)
45 HA-0054200-0A CIRCUIT PROTECTOR (1)
46 HA-0054200-0B CIRCUIT PROTECTOR (1)
47
#02
HB-0012800-0C RELAY (2)
48
#02
HB-0005800-10 RELAY CLASP (2)
49 400-11120 UPS BATTERY (1)
50 400-01563 DUCT ASSY 1
51 SL-4040891-SC SCREW M4 L=8 (2)
52 400-00524 DUCT BRR (1)
53 SL-4040891-SC SCREW M4 L=8 (2)
54 400-00525 DUCT BRC (1)
55 SL-4040891-SC SCREW M4 L=8 (2)
56 400-00526 DUCT BRC2 (1)
57 SL-4040891-SC SCREW M4 L=8 (2)
58 400-00527 DUCT UL (2)
59 SL-4040891-SC SCREW M4 L=8 (4)
60 400-00528 DUCT UR (2)
61 SL-4040891-SC SCREW M4 L=8 (4)
62 400-00520 DUCT BF (1)
63 SL-4040891-SC SCREW M4 L=8 (2)
64 400-00521 DUCT BFL (1)
65 SL-4040891-SC SCREW M4 L=8 (2)
66 SL-4040891-SC SCREW M4 L=8 (2)
67 400-00522 DUCT BFR (1)
68 400-00523 DUCT BRL (1)
- -

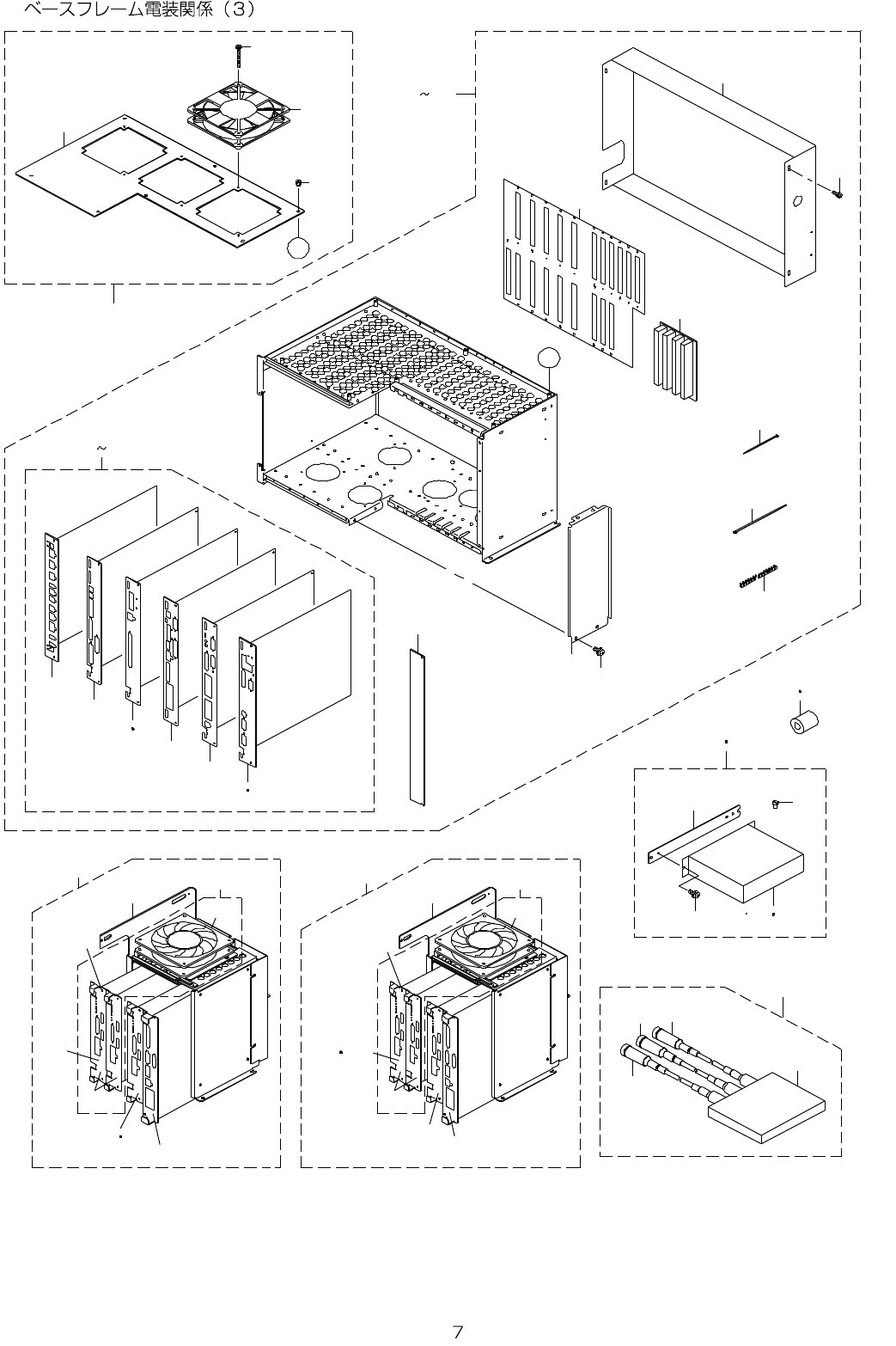

4. BASE FRAME ELECTRIC APPARATUS COMPONENTS (3)
7
8
3 4
2 4
2 2
2 1
2 5
2 6
2 7
1 8
1 9
5 9
6
3 7 3 8
3 6
3 2
3 3 3 4
3 5
3 1
1 1
1 2
1 5 1 7
1 0
2 3
2 8 3 0
2 0
6 2
6 0
6 3
6 1
5 9
A
A
1 2
1 3
1 4
3 9
4 7
4 5 4 6
4 0
4 3
4 8
4 4
4 1
4 2 5 2
5 1
5 4
5 5 5 6
5 3
5 0
5 7
5 8
4 9
- -

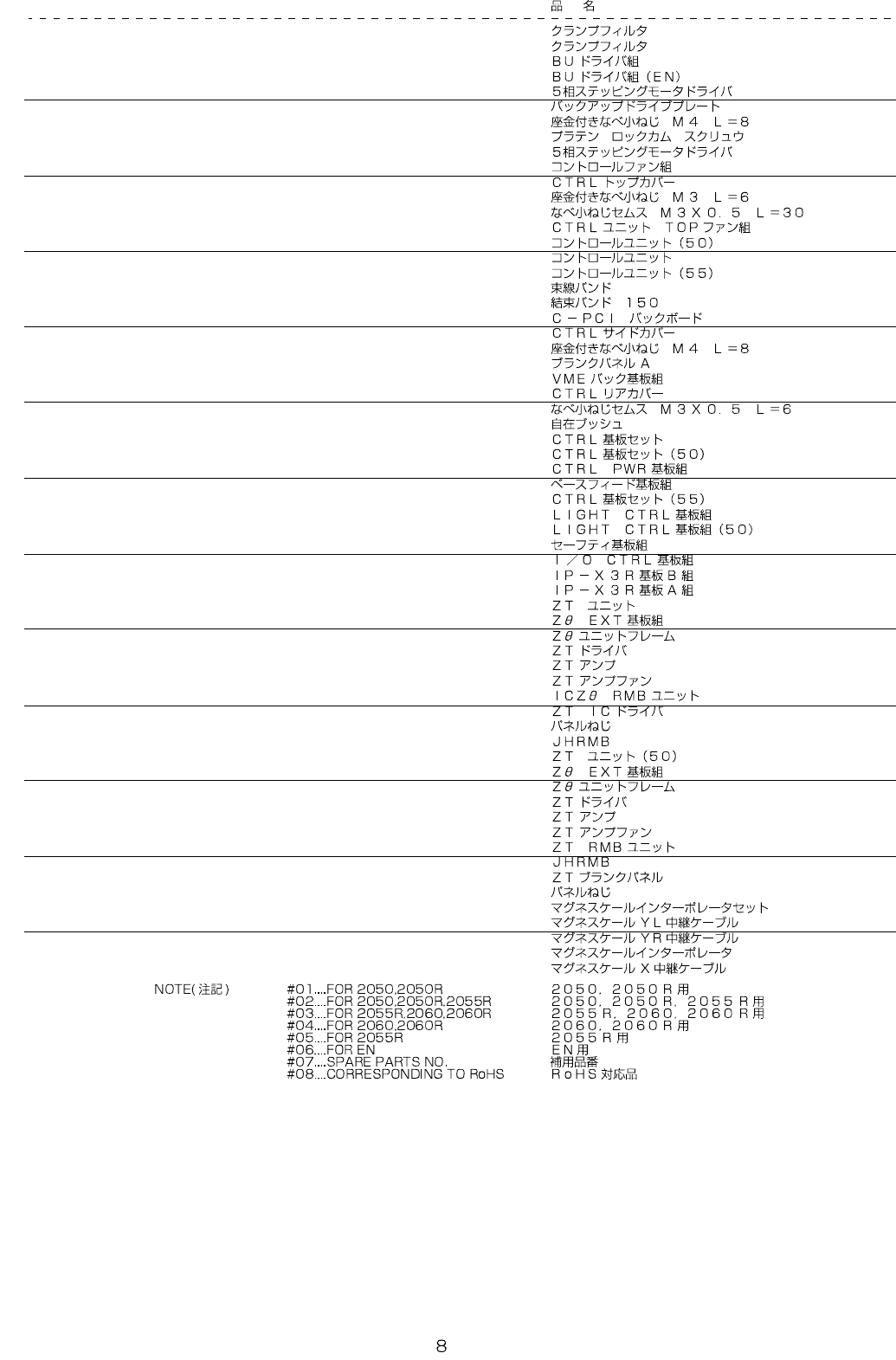

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#06
HN-0014900-0A CLAMP FILTER 1
2
#06
HN-0014900-00 C LAMP FILTER(L) 1
3 400-01565 BU DRIVER ASSY 1
4
#06
400-01822 BU DRIVER ASSY(EN) 1
5
#06
HX-0054500-00 5 PHASE STEP DRIVER (1)
6 400-00534 BACK UP DRIV PLATE (1)
7 SL-4040891-SC SCREW M4 L=8 (3)
8 E1038-871-000 PLATEN LOCK CAM SCREW (1)
9 HX-0042000-00 5 PHASE STEP DRIVER (1)
10 400-01566 CTRL FAN ASSY 1
11 400-61464 CTRL TOP COVER (1)
12 SL-4030691-SC SCREW M3 L=6 (7)
13 SL-4033091-SC SCREW M3 L=30 (6)
14 E9249-729-HA0 CTRL UNIT TOP FAN ASM. (1)
15
#01
400-00536 CONTROL UNIT(50) 1
16
#04
400-00419 CONTROL UNIT 1
17
#05
400-33022 CONTROL UNIT(55) 1
18 EA-9500B01-00 CABLE BAND (9)
19 EA-9500B02-00 CABLE BAND 150 (3)
20 400-03314 C-PCI BACK BOARD (1)
21 400-00424 CTRL SIDE COVER (1)
22 SL-4040891-SC SCREW M4 L=8 (4)
23 E1648-729-000 BRANK PANEL A (3)
24 400-03283 VME BACK PCB ASM. (1)
25 400-00426 CTRL REAR COVER (1)
26 SL-4030691-SC SCREW M3X6 (4)
27 HX-0022300-00 ADJUSTABLE BUSH (0.2)
28
#04
400-01571 CTRL PCB SET (1)
29
#01
400-00540 CTRL PCB SET(50) (1)
30 400-01906 CTRL PWR PCB ASM. (1)
31 400-01941 BASE FEEDER PCB ASM. (1)
32
#05
400-33024 CTRL PCB SET(55) (1)
33
#03
400-01904 LIGHT CTRL PCB ASM. (1)
34
#01
400-01918 LIGHT CTRL PCB ASM.(50) (1)
35 400-01924 SAFETY PCB ASM. (1)
36 400-01943 I/O CTRL PCB ASM. (1)
37
#03
400-52360 IP-X3R ASM B (1)
38
#01
400-52359 IP-X3R ASM A (1)
39
#04
400-00454 ZT UNIT 1
40 400-01930 Z THETA EXT PCB ASM. (1)
41 400-00455 Z THETA UNIT FRAME (1)
42 400-62555 ZT DRIVER (1)
43 #07 400-62556 ZT AMP (2)
44 400-62557 ZT AMP FAN (1)
45
#07
400-03321 ICZT RMB UNIT (1)
46
#08
400-62558 ZT IC DRIVER (1)
47 400-00431 PANEL SCREW (6)
48
#04
400-03261 JHRMB (3)
49
#02
400-00538 ZT UNIT(50) 1
50 400-01930 Z THETA EXT PCB ASM. (1)
51 400-00455 Z THETA UNIT FRAME (1)
52
#08
400-62555 ZT DRIVER (1)
53
#07
400-62556 ZT AMP (2)
54 400-62557 ZT AMP FAN (1)
55
#07
400-03320 ZT RMB UNIT (1)
56 #02 400-03261 JHRMB (2)
57
#02
400-00462 ZT BLANK PANEL (1)
58 400-00431 PANEL SCREW (6)
59
#08
400-66653 MAGNETIC SCALE INTERPOLETER AS 1
60 400-03302 MAGNETIC SCALE YL RELAY CABLE (1)
61 400-03303 MAGNETIC SCALE YR RELAY CABLE (1)
62
#08
400-66654 MAGNETIC SCALE INTER POLATOR (1)
63 400-03301 MAGNETIC SCALE X RELAY CABLE (1)
