PCBRM15 & PCBRM System 5.2 User’s Manual Chapter 3: Set Up & Installation

Part No. 4005.00.906 3-9

Z-Axis Lock

3.5 PCBRM System 5.2 – Z Axis Stop, Set Up, Function

• The z-axis lock presets a repeatable stop in the Z-Axis for board solder location.

Power

Receptical

Microswitch

Interface

Receptical

PCBRM15 & PCBRM System 5.2 User’s Manual Chapter 3: Set Up & Installation

Part No. 4005.00.906 3-10

Y-Axis Preheater Lock Knob

Preheater Slides

Safety Stop

3.6 PCBRM System 5.2 - Preheater Safety Stop

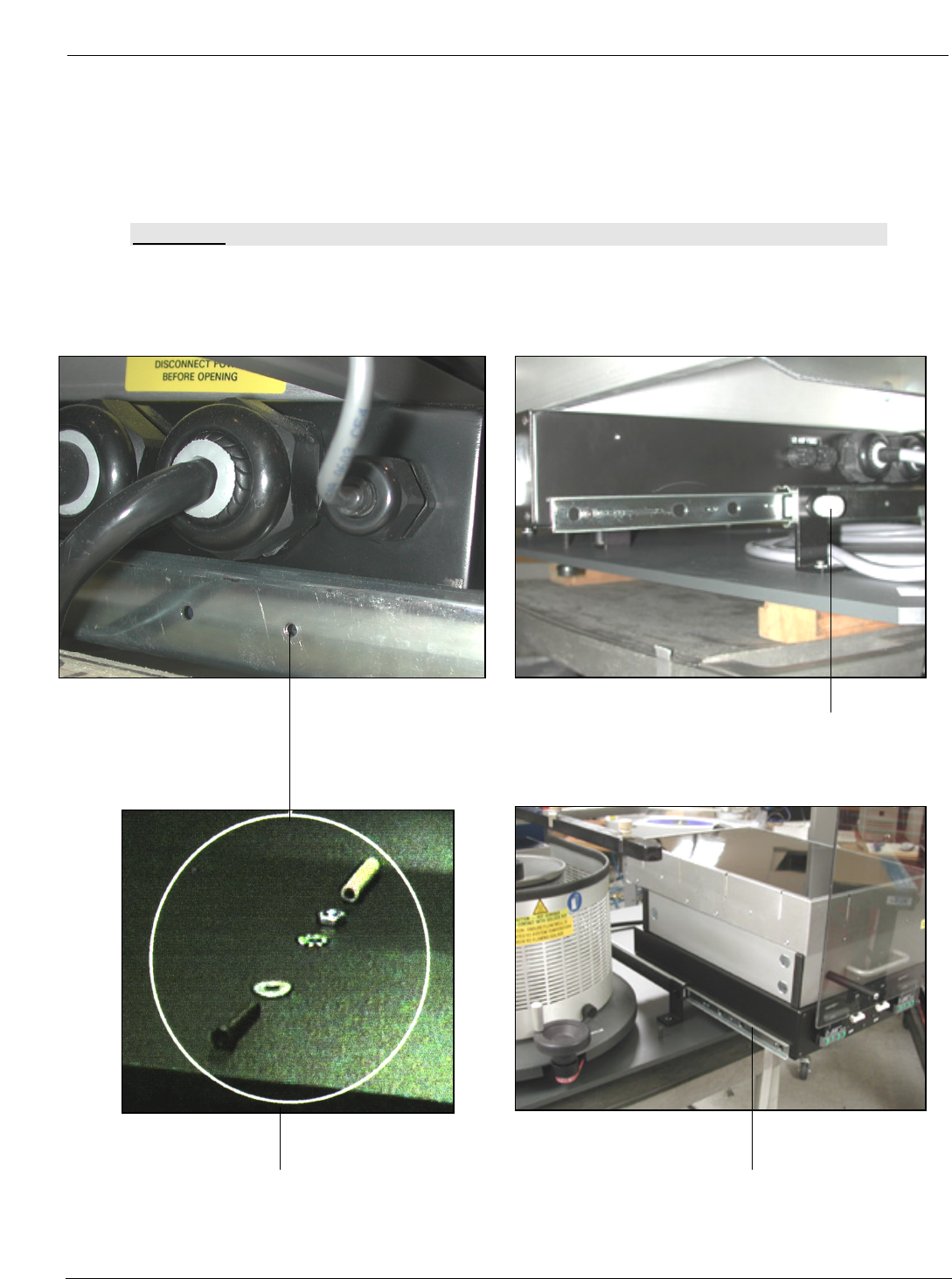

• Safety Stop is removed for shipping. Install once machine is set up. Slide preheater forward and

install screw and washer into hole. Secure with lock washer and nut. Place protective tube over

the end of exposed screw.

CAUTION:

FAILURE TO INSTALL THIS STOP COULD RESULT IN DAMAGE TO SYSTEM.

PCBRM15 & PCBRM System 5.2 User’s Manual

Chapter 3: Set Up & Installation

Part No. 4005.00.906 3-11

(A)

(B)

3.7 Optional Fume Extraction Manifold Assembly Installation

• The Optional Fume Extraction Manifold (for PCBRM15 or PCBRM System 5.2) consists of an

Overhead Arm (A), two Exhaust Nozzles (B) and 2” Diameter Hoses which can be attached

to an in-house or separate filtration system.
