Pcbrm15 & PCBRM System 5.2 User’s Manual Chapter 5: Maintenance/Parts Part No. 4005.00.906 5-10 • Install motor belt to pump and motor. Apply downward pressure on motor to achieve belt. Tension and tighten motor scre…
Pcbrm15 & PCBRM System 5.2 User’s Manual Chapter 5: Maintenance/Parts
Part No. 4005.00.906 5-9
• Locate the level in the carrier arm as if it were a PCB. Note the position of the bubble. Place the level
on the pump housing stack the same way. Note the difference between the two bubbles. Determine
which two leveling screws will need to be adjusted and by how much.
Note: THE PUMP HOUSING STACK MUST BE PARALLEL TO THE CARRIER ARMS. THEY DO
NOT NEED TO BE LEVEL. LEVELING THE MACHINE IS THE NEXT STEP
• Re-check the level of the pump and lock down the (4) lock nuts. DO NOT OVER TIGHTEN.
Machine Level:
• Next level the machine , place level on the solder pump and level the machine on a
workbench. Bring the bubble dead center in both x and y positions by using the machine
legs. Once level has been achieved, lock legs in place with jam nut.

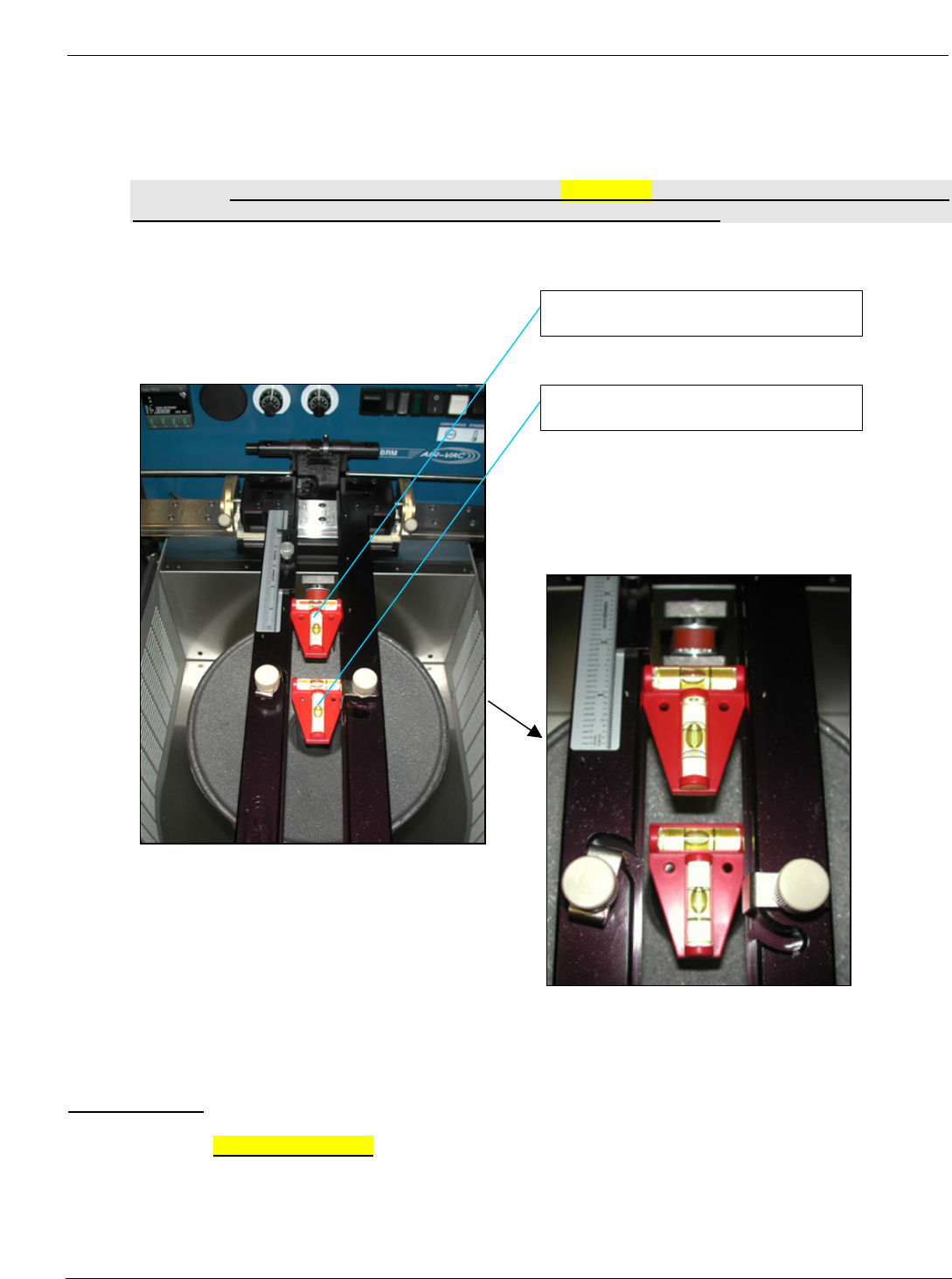

Level located in the carrier arms
Level located on the solder pump
Pcbrm15 & PCBRM System 5.2 User’s Manual Chapter 5: Maintenance/Parts
Part No. 4005.00.906 5-10
• Install motor belt to pump and motor. Apply downward pressure on motor to achieve belt. Tension
and tighten motor screws.
• Attach pulley guard (2) 1/4 hex head screws.
• Install pot heat shield.
• Install rear door.
• Turn machine on and let it heat up.
Note: Do not run pump without solder. Damage to the pump sleeve will occur!
• Once machine comes up to temperature, load lead free solder (approx. 35 lbs), _” from top of pot.
• Once pot is filled with solder, place pot cover on pot.
Motor belt
Pulley guard
PCBRM15 & PCBRM System 5.2 User’s Manual Chapter 5: Maintenance/Parts
Part No. 4005.00.906 5-11
1
2
3
4
5
6
5.5 PCBRM System 5.2 – Specific Parts
Note
SEE PCBRM15 FOR A LIST OF COMMON PARTS.
Item Part# Description
1 Temperature Controller
2 PH161 Circuit Breaker
3 Proj.DRS.SCS.73 Handle
4 4005.01.111 Handle Extension
5 ST350 Flow Well Heater Box (option)
6 PH154 Panel Heater
* PH157 Panel Heater Thermocouple (not shown)
