Pcbrm15 & PCBRM System 5.2 User’s Manual Chapter 5: Maintenance/Parts
Part No. 4005.00.906 5-10

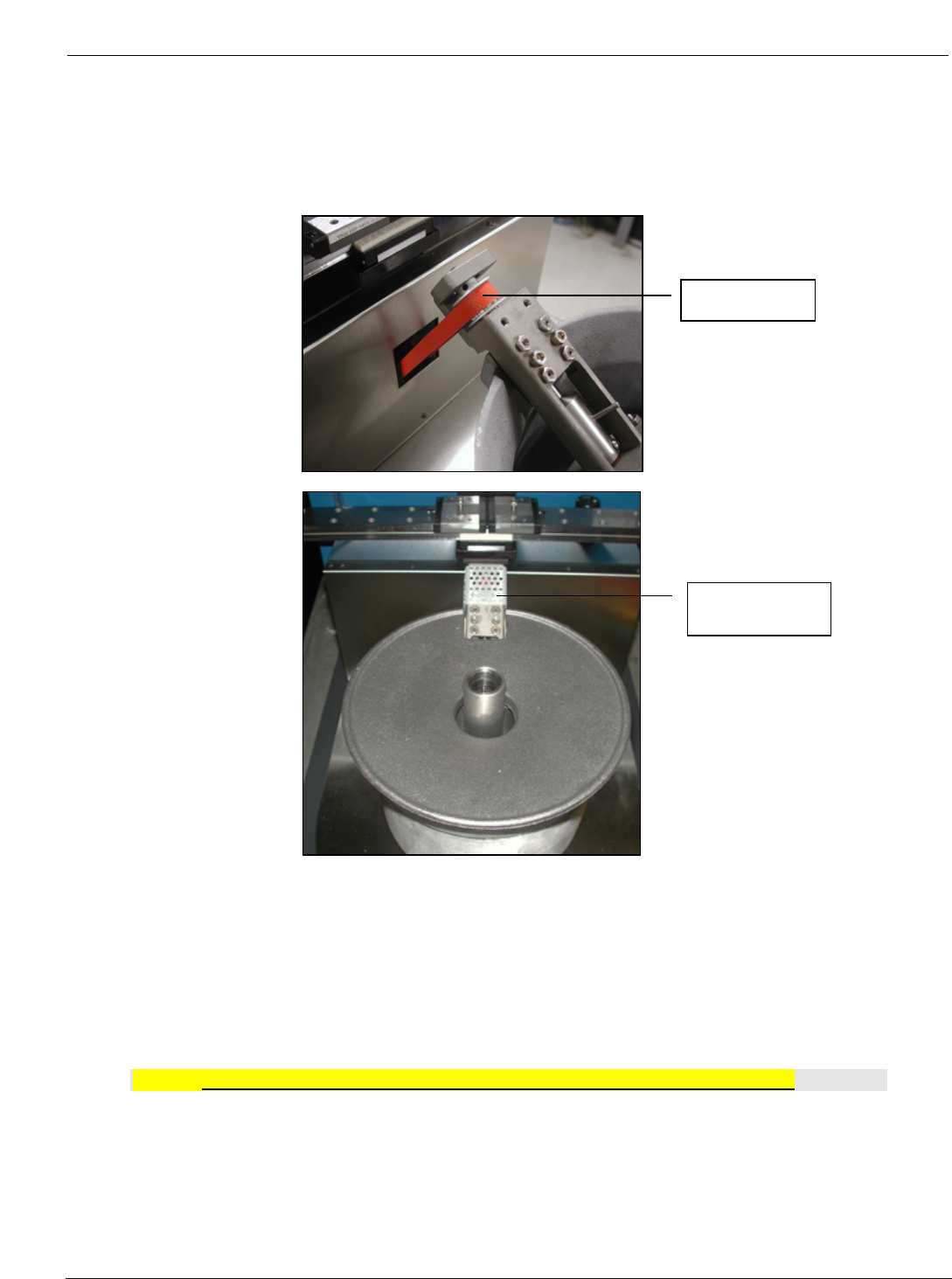

• Install motor belt to pump and motor. Apply downward pressure on motor to achieve belt. Tension
and tighten motor screws.
• Attach pulley guard (2) 1/4 hex head screws.
• Install pot heat shield.
• Install rear door.
• Turn machine on and let it heat up.
Note: Do not run pump without solder. Damage to the pump sleeve will occur!
• Once machine comes up to temperature, load lead free solder (approx. 35 lbs), _” from top of pot.
• Once pot is filled with solder, place pot cover on pot.
Motor belt
Pulley guard
PCBRM15 & PCBRM System 5.2 User’s Manual Chapter 5: Maintenance/Parts
Part No. 4005.00.906 5-11
1
2
3
4
5
6

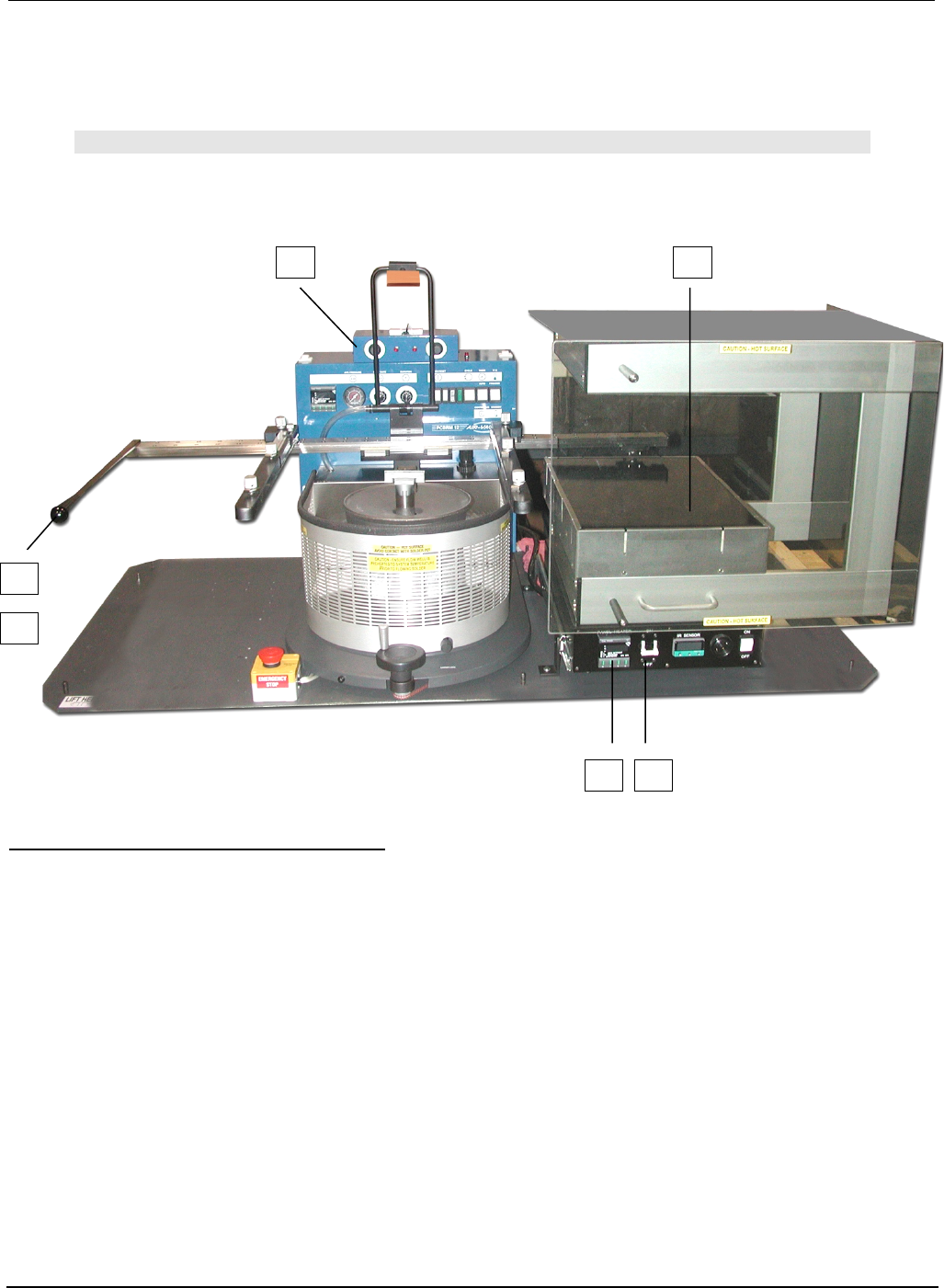

5.5 PCBRM System 5.2 – Specific Parts
Note
SEE PCBRM15 FOR A LIST OF COMMON PARTS.
Item Part# Description
1 Temperature Controller
2 PH161 Circuit Breaker
3 Proj.DRS.SCS.73 Handle
4 4005.01.111 Handle Extension
5 ST350 Flow Well Heater Box (option)
6 PH154 Panel Heater
* PH157 Panel Heater Thermocouple (not shown)
Pcbrm15 & PCBRM System 5.2 User’s Manual Chapter 5: Maintenance/Parts
Part No. 4005.00.906 5-12
5.6 PCBRM15 - Mechanical Breakdown
24
23
22
32
28
27
26
25
29
4
5
6
7
8
2
3
16
1
17
18
14
15
44
45
47
49
49
48
50
51
52
53
54
57
56
55
20
58
21
59
19
46
43
42
41
40
39
37
38
12
13
36
35
1
0
33
34
10
9
30
Lock Rod
12318
Bracket
12324
Screw
5A – 6-32 x 1/2
6B – 6-32 x 3/4
10A
6-32 x 3/16
37B - 5/16 x 5/8 - Screw
36B - Washer
Idler Gear, SM – 12354
Idler Gear, LG – 12323-3
Phomalic Washer – 12370
Idler Screw – 12369
