PCBRM15 & PCBRM System 5. 2 User’s Manual Chapter 3: Set Up & Inst allati on Part No. 4005.00.906 3- 11 (A) (B) (B) 3.7 Optional Fume Extraction Manifold Assembly Installation • The O ptional Fume Extraction Mani…
PCBRM15 & PCBRM System 5.2 User’s Manual Chapter 3: Set Up & Installation
Part No. 4005.00.906 3-10
Y-Axis Preheater Lock Knob
Preheater Slides
Safety Stop
3.6 PCBRM System 5.2 - Preheater Safety Stop
• Safety Stop is removed for shipping. Install once machine is set up. Slide preheater forward and
install screw and washer into hole. Secure with lock washer and nut. Place protective tube over
the end of exposed screw.
CAUTION:
FAILURE TO INSTALL THIS STOP COULD RESULT IN DAMAGE TO SYSTEM.
PCBRM15 & PCBRM System 5.2 User’s Manual
Chapter 3: Set Up & Installation
Part No. 4005.00.906 3-11
(A)
(B)
(B)
3.7 Optional Fume Extraction Manifold Assembly Installation
• The Optional Fume Extraction Manifold (for PCBRM15 or PCBRM System 5.2) consists of an
Overhead Arm (A), two Exhaust Nozzles (B) and 2” Diameter Hoses which can be attached
to an in-house or separate filtration system.
PCBRM15 & PCBRM System 5.2 User’s Manual
Chapter 3: Set Up & Installation
Part No. 4005.00.906 3-12

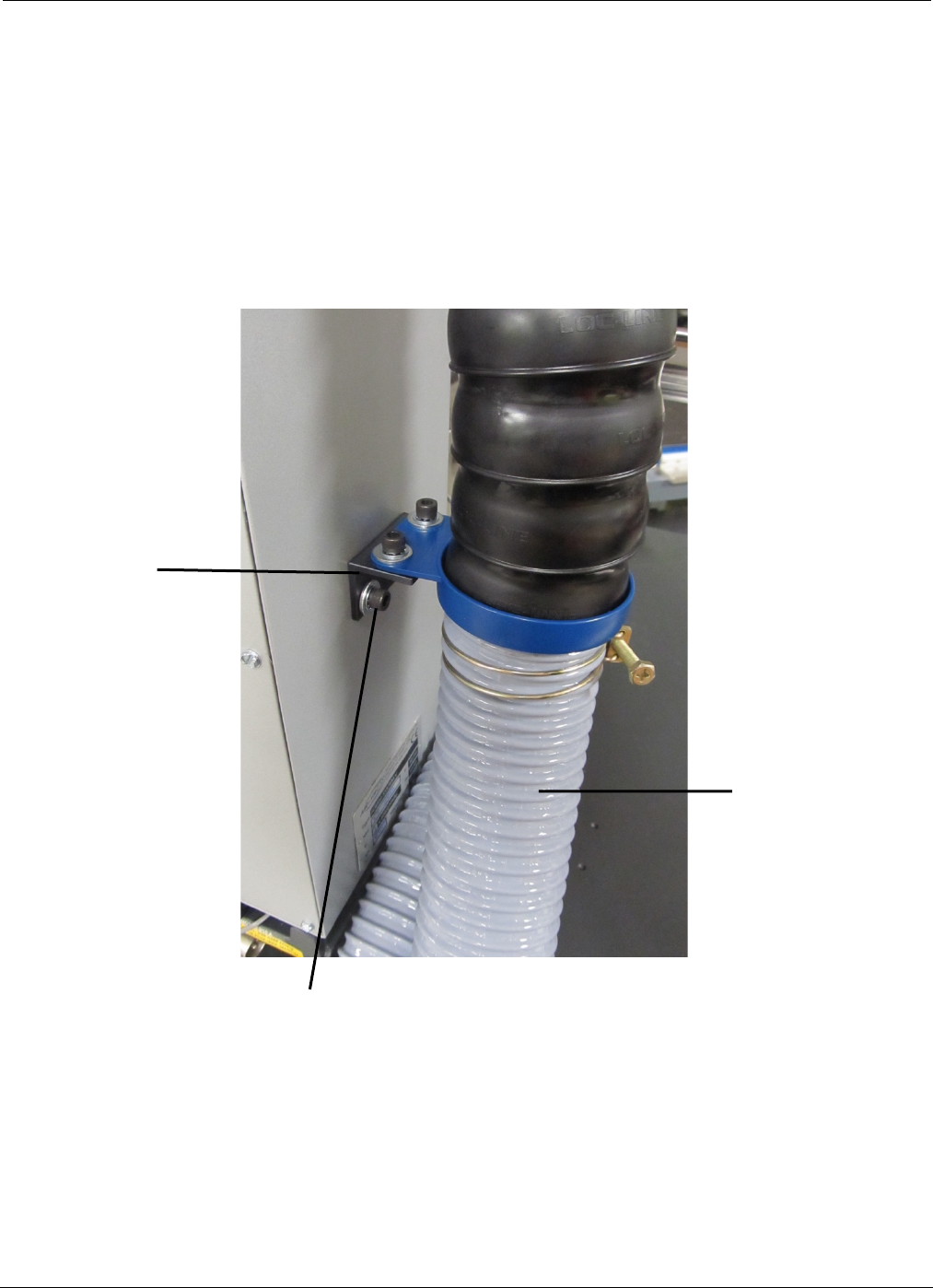

(C)
(¼-20 x 3/8 screws and washers included)
2 ½” hose
• Overhead Arm mounts to bracket (C), which mounts to the left side of the PCBRM (hardware
included).
