14-62
Advanced Chip Shooter DECAN S2 Administrator’s Guide

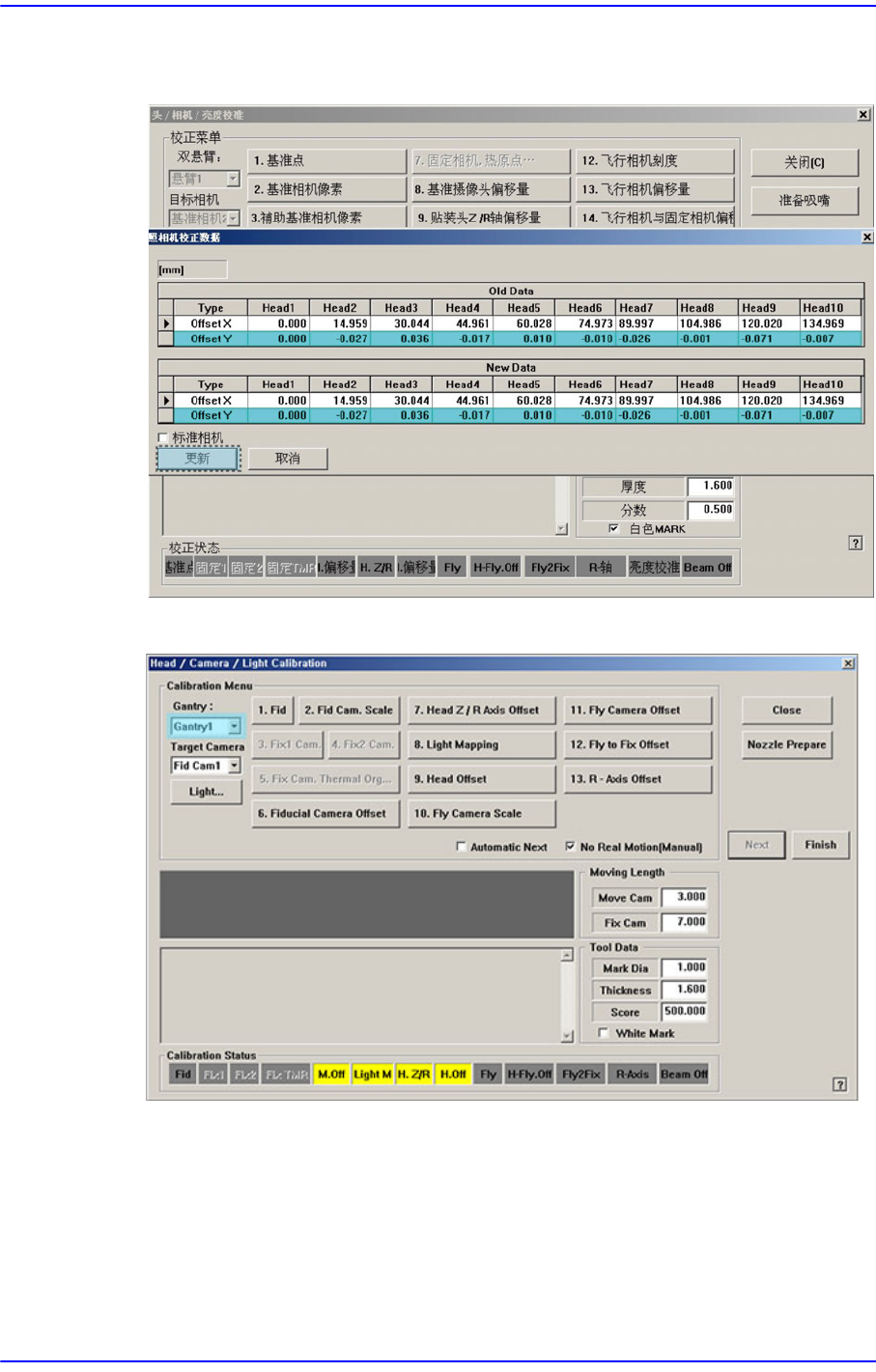

10. 对所有磁头正常完成校正次序如下图显示结果值。要在设备中适用校正值请点
击<确定>按钮。
11. <Gantry>组合框中选择Gantry2后，与Gantry1相同的方式执行校正。
14-63
Machine Calibration

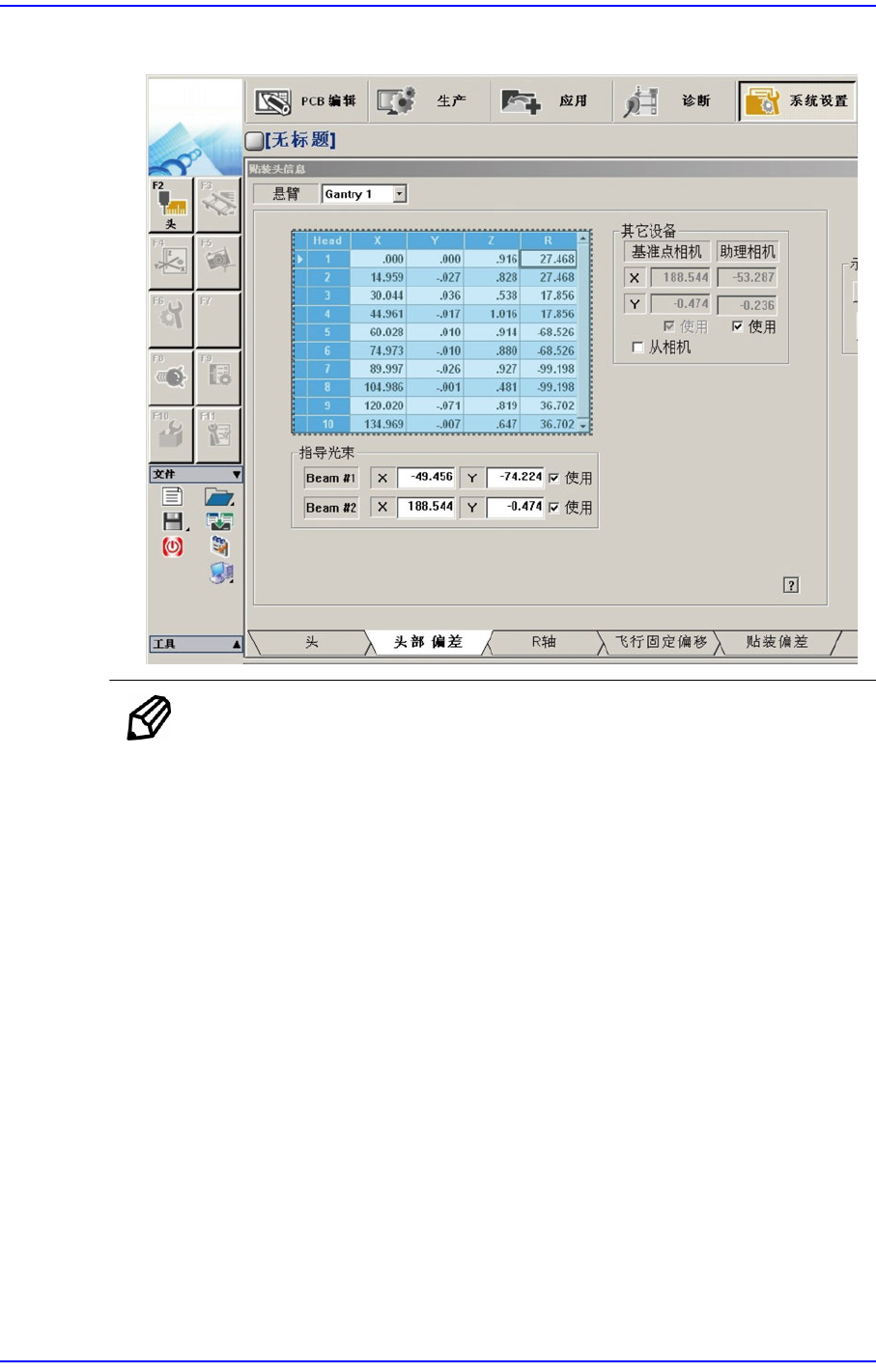

结果值可在Head Offset对话框中确认。
备 注 Head XY Offset Calibration 基准值如下。
Head 1
X:-0.06mm~0.06mm, Y: -0.05mm~0.05mm
Head 2
X:14.94mm~15.06mm, Y: -0.05mm~0.05mm
Head 3
X:29.94mm~30.06mm, Y: -0.05mm~0.05mm
Head 4
X:44.94mm~45.06mm, Y: -0.05mm~0.05mm
Head 5
X:59.94mm~60.06mm, Y: -0.05mm~0.05mm
Head 6
X:74.94mm~75.06mm, Y: -0.05mm~0.05mm
Head 7
X:89.94mm~90.06mm, Y: -0.05mm~0.05mm
14-64
Advanced Chip Shooter DECAN S2 Administrator’s Guide
Head 8
X:104.94mm~105.06mm, Y: -0.05mm~0.05mm
Head 9
X:119.94mm~120.06mm, Y: -0.05mm~0.05mm
Head 10
X:134.94mm~135.06mm, Y: -0.05mm~0.05mm
Head 11
X:-0.06mm~0.06mm, Y: -0.05mm~0.05mm
Head 12
X:-15.06mm~-14.94mm, Y: -0.05mm~0.05mm
Head 13
X:-30.06mm~-29.94mm, Y: -0.05mm~0.05mm
Head 14
X:-45.06mm~-44.94mm, Y: -0.05mm~0.05mm
Head 15
X:-60.06mm~-59.94mm, Y: -0.05mm~0.05mm
Head 16
X:-75.06mm~-74.94mm, Y: -0.05mm~0.05mm
Head 17
X:-90.06mm~-89.94mm, Y: -0.05mm~0.05mm
Head 18
X:-105.06mm~-104.94mm, Y: -0.05mm~0.05mm
Head 19
X:-120.06mm~-119.94mm, Y: -0.05mm~0.05mm
Head 20
X:-135.06mm~-134.94mm, Y: -0.05mm~0.05mm
